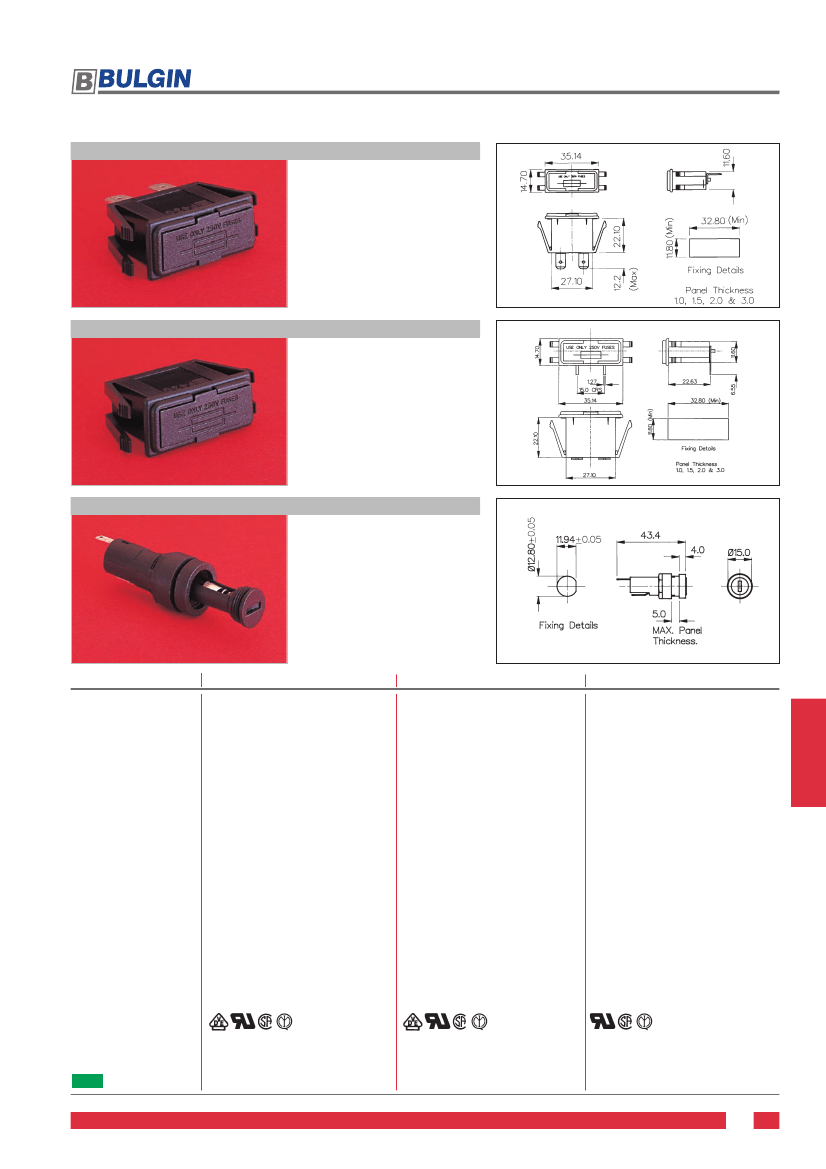

FUSEHOLDERS
Panel/PC Mounting Captive Carriers Touchproof, PC3
SNAP FIT TO PANEL
Protection Category PC3
Fuse Size 5 x 20mm
Panel Sizes 1.0, 1.5, 2.0 and
3.0mm
Captive Drawer
10A, 250V (16A, 250V UL)
2.8, 4.8 or 6.3 tabs
FX0430/63
SNAP FIT TO PANEL
Protection Category PC3
Fuse Size 5 x 20mm
Panel Sizes 1.0, 1.5, 2.0 and
3.0mm
Captive Drawer
10A, 250V (16A, 250V UL)
PC spills
FX0430/PC
PANEL MOUNT
Protection Category PC3
Fuse Size 5 x 20mm
Screw Cap/Screwdriver
Release
Captive Fuse Carrier
10A, 250V (16A, 250V UL)
FX0460
Specification
Fuse Size:
Fuse Carrier:
Terminations:
Max. Rating:
Max. Power Dissipation:
Insulation Resistance:
A.C. Breakdown:
Contact Resistance:
Operating Temp:
Mouldings:
Body/Drawer:
Cap:
Nut:
Contacts:
Approvals:
Accessories:
Note:
FX0430/Termination
5 x 20mm
Captive Drawer
/28 (2.8mm solder), /48 (4.8mm tab),
/63 (6.3mm tab)
10A, 250V (16A, 250V a.c. UL)
2.5W (@ 23ºC)
>10MΩ @ 500V d.c.
>2kV
<10mΩ
–20˚C to +85˚C
(ambient air temp + fuse temp rise)
Nylon UL94V-0 rated
FX0430/PC
5 x 20mm
Captive Drawer
/PC (PC spills)
10A, 250V (16A, 250V a.c. UL)
2.5W (@ 23ºC)
>10MΩ @ 500V d.c.
>2kV
<10mΩ
–20˚C to +85˚C
(ambient air temp + fuse temp rise)
Nylon UL94V-0 rated
FX0460
5 x 20mm
Screw cap/Screwdriver release
Solder tags
10A, 250V (16A, 250V a.c. UL)
1.6W (@ 23ºC)
>10MΩ @ 500V d.c.
>2kV
<10mΩ
–20˚C to +85˚C
(ambient air temp + fuse temp rise)
Polyester UL94V-0 rated
Nylon UL94V-0 rated
Glass Filled Nylon UL94V-0 rated
Brass, Silver Plated
Contact tags: Brass, Tin Plated
Fuse Clips: Phospher Bronze, Nickel Plated
Contact tags: Brass, Tin Plated
Fuse Clips: Phospher Bronze, Nickel Plated
pending
P
.No. 11327 (See page 163)
See page 164 for PC version
Compliant
Compliant
Compliant
149
RoHS
