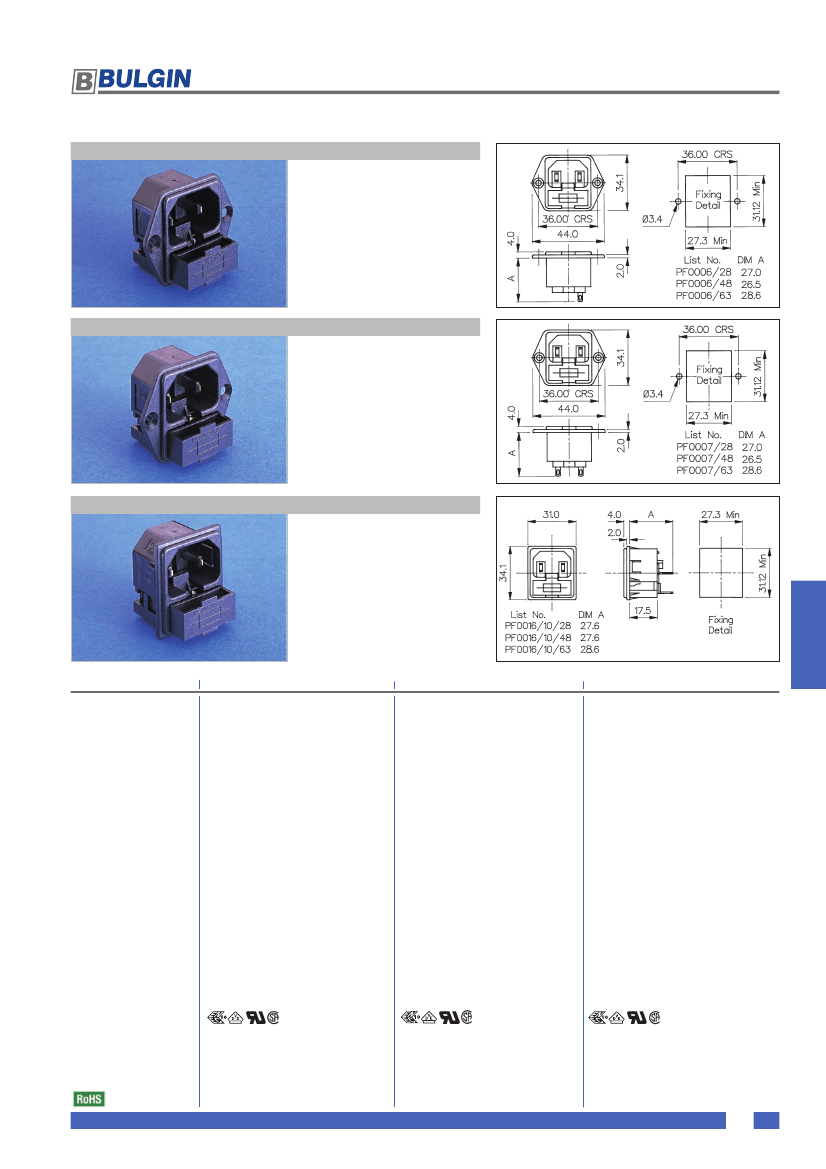

IEC CONNECTORS
EN60 320-1 Standard Sheet C18 Class II Cold Condition (Fused)
FLANGE MOUNT FUSED INLET
Single Fuse 5 x 20mm
Two Pin Class II (No Earth
Pin)
2.8, 4.8 or 6.3mm Tabs
10A, 250V a.c.
PF0006/28
FLANGE MOUNT FUSED INLET
Single Fuse 5 x 20mm (Fuse
Contacts Isolated)
Two Pin Class II (No Earth
Pin)
2.8, 4.8 or 6.3mm Tabs
10A, 250V a.c.
PF0007/28
SNAP FIT TO PANEL FUSED INLET
Single Fuse 5 x 20mm
Two Pin Class II (No Earth
Pin)
Fits Panel Sizes 1.0, 1.5, 2.0
or 3.0mm
2.8, 4.8 or 6.3mm Tabs
10A, 250V a.c.
PF0016/10/28
Specification
Fixing (Panel):
Terminations:
Colours:
Max. Rating:
Contact Resistance:
Insulation Resistance:
A.C. Breakdown:
Operating Temp. Range:
Max. Pin Temp.:
Mouldings:
Contacts:
Approvals:
Accessories / Notes:
Mating Connectors:
Compliant
www.elektron-bulgin.com
Compliant
Compliant
85
P
.No. 11987 (See Page 97)
P
.No. 11987 (See Page 97)
(Note: Fuse contacts isolated)
P
.No. 11987 (See Page 97)
PF0006/Term/Col
Flange
/28 (2.8mm solder), /48 (4.8mm tab)
/63 (6.3mm tab)
No suffix (Black), /WH (White), /GY (Grey)
10A, 250V a.c.
<10mΩ (<15mΩ including
Fuseholder)
>10
3
MΩ
Pole-Pole 5.5kV. Poles-Panel 4kV
–40˚C to +70˚C
+70˚C
Nylon, Flammability Rating UL94V-0
Brass: Pins, Nickel Plated. Tabs, Tin
Plated
PF0007/Term/Col
Flange
/28 (2.8mm solder), /48 (4.8mm tab)
/63 (6.3mm tab)
No suffix (Black), /WH (White), /GY (Grey)
10A, 250V a.c.
<10mΩ
>10
3
MΩ
Pole-Pole 5.5kV. Poles-Panel 4kV
–40˚C to +70˚C
+70˚C
Nylon, Flammability Rating UL94V-0
Brass: Pins, Nickel Plated. Tabs, Tin
Plated
PF0016/Panel/Term/Col
Snap fit, /10 (1mm), /15 (1.5mm),
/20 (2mm), /30 (3mm)
/28 (2.8mm solder), /48 (4.8mm tab)
/63 (6.3mm tab)
No suffix (Black), /WH (White), /GY (Grey)
10A, 250V a.c.
<10mΩ (<15mΩ including
Fuseholder)
>10
3
MΩ
Pole-Pole 5.5kV. Poles-Panel 4kV
–40˚C to +70˚C
+70˚C
Nylon, Flammability Rating UL94V-0
Brass: Pins, Nickel Plated. Tabs, Tin
Plated
