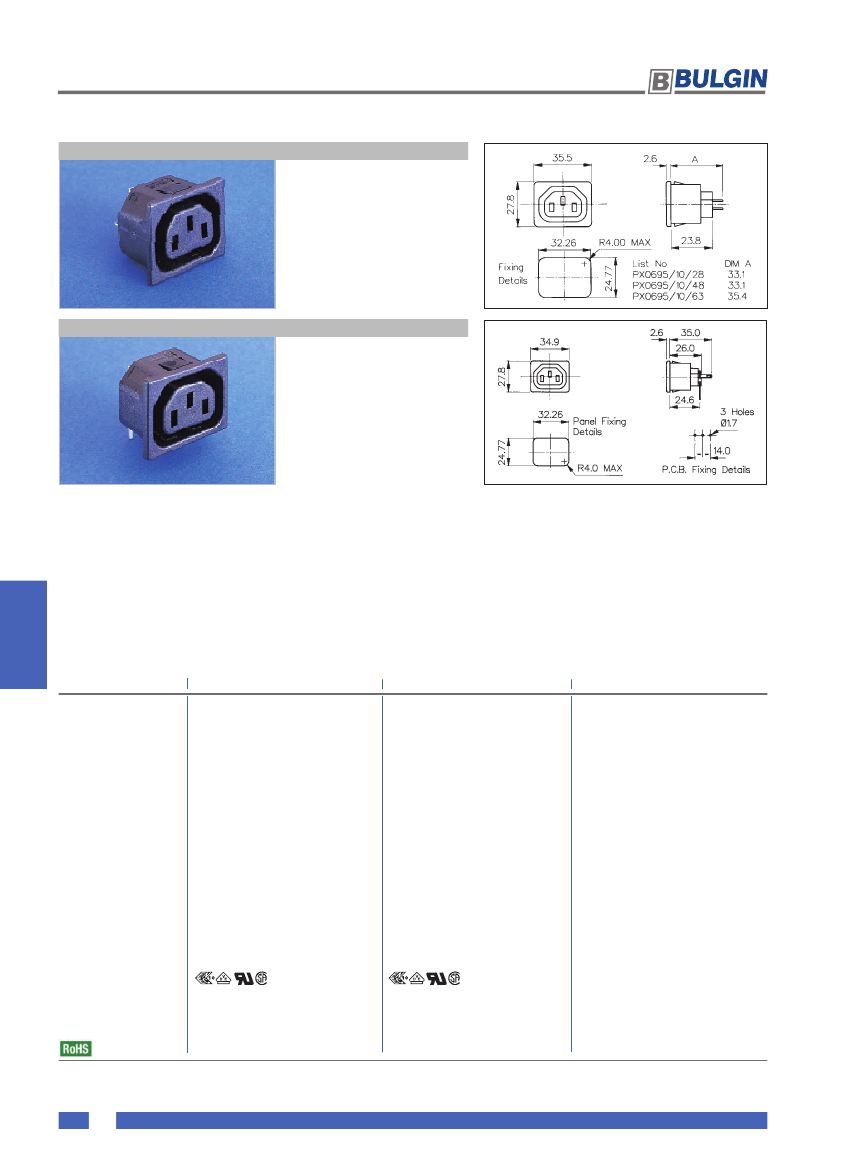

IEC CONNECTORS
EN60 320-2-2 Standard Sheet F Class I
SNAP FIT TO PANEL OUTLET
Panel Sizes 1, 1.5, 2.0 or
3.0mm
2.8 or 6.3mm Tabs
10A, 250V a.c.
(15A, 250V a.c. UL & CSA)
PX0695/10/28
PC SNAP FIT TO PANEL OUTLET
Panel Sizes 1, 1.5, 2.0 or
3.0mm
PC Spills
10A, 250V a.c.
(15A, 250V a.c. UL & CSA)
PX0695/10/PC
IEC CONNECTORS
Specification
Fixing:
Terminations:
Colours:
Max. Rating:
Contact Resistance:
Insulation Resistance:
A.C. Breakdown:
Operating Temp. Range:
Mouldings:
Contacts:
Approvals:
Accessories / Notes:
Mates with:
PX0695/Panel/Term/Col
Snap fit, /10 (1mm), /15 (1.5mm),
/20 (2mm), /30 (3mm)
/28 (2.8mm solder), /63 (6.3mm tab)
No suffix (Black), /WH (White), /GY (Grey)
10A, 250V a.c.
(UL & CSA 15A, 250V a.c.)
<10mΩ
>10
4
MΩ
Pole-Pole 7kV. Poles-Panel 9kV
–40˚C to +70˚C
Nylon, Flammability Rating UL94V-0
Brass, Tin Plated
PX0695/Panel/PC/Col
Snap fit, /10 (1mm), /15 (1.5mm),
/20 (2mm), /30 (3mm)
P Spills
.C.
No suffix (Black), /WH (White), /GY (Grey)
10A, 250V a.c.
(UL & CSA 15A, 250V a.c.)
<10mΩ
>10
4
MΩ
Pole-Pole 4kV. Poles-Panel 9kV
–40˚C to +70˚C
Nylon, Flammability Rating UL94V-0
Brass, Tin Plated
P
.No. 12075, 14228 (See Page 96-97)
PX0685, PX0686, PX0686/SE,
Compliant
P
.No. 14228 (see page 96)
PX0685, PX0686, PX0686/SE,
Compliant
90
www.elektron-bulgin.com
