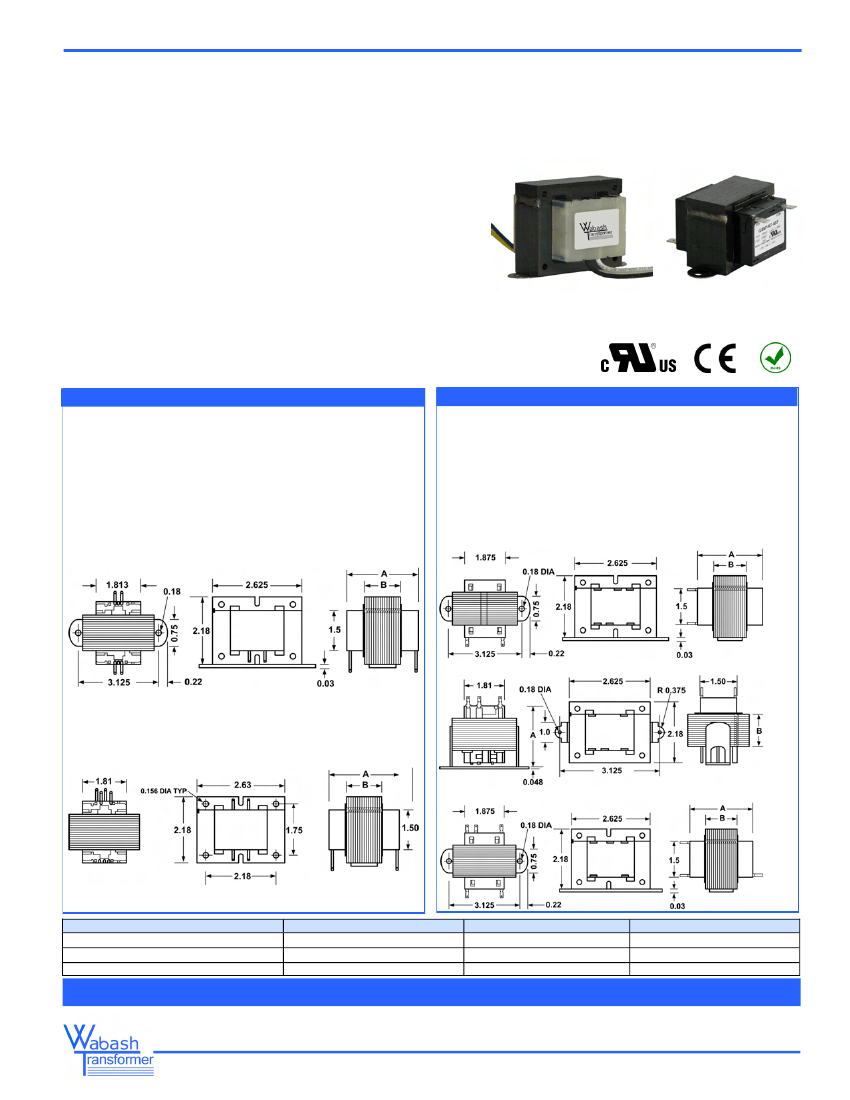

Class 2 UL5085 - 3 Transformer
40VA - 50VA, Core 7/8”,
Inherently Energy Limited
Series: CL
- Lead Wires & Quick-Connects
Power Rating 40VA to 50VA
No Secondary Fusing Required
Frequency 50/60Hz
Insulation Class F (155°C)
Agency Approvals:
UL/cUL 5085-3 Class 2 Recognized (File E49606)
Insulation File No. E95662
*
Multi voltage combinations are available - consult factory.
Class 2
Quick-Connects
Type BB
Foot Mount, Pri & Sec on Same Side - Quick connect terminals
with line and load terminations on the same side of transformer.
Type AE
Laydown, Pri & Sec on Top Side - Quick connect terminals
with line and load terminations on the top of transformer.
Type AB
Foot Mount, Pri & Sec on Opposite Side - Quick connect
terminals with line and load terminations on opposite sides of transformer
Terminals:
Standard male quick connects - 0.250” x 0.032” (6.35 x 0.81mm)
Other available quick connects - 0.187” x 0.032” (4.75 x 0.81mm)
Lead Wires
Type HX
Foot Mount - Steel bracket welded to the
bottom of the laminations for easy mounting
Type GX
Panel Mount - 0.156” (3.96 mm) diameter
holes in each corner to allow direct mounting to a panel.
Lead Wires:
All leads are 18 AWG stranded 2/64” (0.794 mm)
insulation thickness. Standard parts have 12” (305 mm)
total length with 1/2” (12.7 mm) strip.
Type BB
- Foot Mount, Pri & Sec on Same Side
Type HX
- Foot Mount
Type AE
- Laydown, Pri & Sec on Top Side
Type GX
- Panel Mount
Type AB
- Foot Mount, Pri & Sec on Opposite Side
Dimensions (Inches)
A
B
Weight (Lbs)
40VA - E
2.000
0.890
0.740
50VA - LP
2.000
0.890
0.889
50VA - AW
2.470
1.250
0.968
Any application, Any requirement, Contact us for our Custom Designs
14
Sales Office:
300 W Factory Road, Addison IL 60101
•
Phone: (630) 628-9999
•
Fax: (630) 628-9922
•
www.wabashtransformer.com
Class 2 UL5085 - 3 Transformer
40VA - 50VA, Core 7/8”,
Inherently Energy Limited
Series: CL
- Lead Wires & Quick-Connects
Partial Selection Guide
Primary
Voltage
208/230
120
277
120/208/240
480
120/208/240/480
600
120/240
380
240
208/240
415
380/415
575
215/230
208/240/277
240/480
380/415/575
460
480/575
120/208/240/277
120/277
208/277/480
277/380/415
208/240/480
208
220/240
100
220
115
265
346
208/230/460
400
575/600
200/230/460
230/460
380/460
115/230
230
240/277/480
Secondary
Voltage
24
24
24
24
24
24
24
24
24
24
24
25
24
24
24
24
24
24
24
24
24
24
24
24
24
24
24
24
24
24
24
24
24
24
24
24
24
24
24
24
24
24
40 VA
Size - 7/8” X 7/8”
CL40E00-000*
CL40E01-000*
CL40E02-000*
CL40E03-000*
CL40E04-000*
─
CL40E06-000*
CL40E07-000*
CL40E09-000*
CL40E40-000*
CL40E15-000*
CL40E61-000*
CL40E16-000*
CL40E17-000*
CL40E21-000*
CL40E22-000*
CL40E23-000*
CL40E24-000*
CL40E27-000*
CL40E28-000*
CL40E30-000*
CL40E36-000*
CL40E41-000*
CL40E42-000*
CL40E43-000*
CL40E44-000*
CL40E45-000*
CL40E47-000*
CL40E48-000*
CL40E49-000*
CL40E51-000*
CL40E52-000*
CL40E53-000*
CL40E54-000*
CL40E55-000*
CL40E56-000*
CL40E58-000*
CL40E59-000*
CL40E60-000*
CL40E62-000*
CL40E63-000*
CL40E64-000*
UL
Class 2
√
√
√
√
√
-
50 VA
Size - 7/8” X 7/8”
─
CL50LP01-000*
CL50LP02-000*
CL50LP03-000*
CL50LP04-000*
─
CL50LP06-000*
CL50LP07-000*
CL50LP09-000*
CL50LP40-000*
CL50LP15-000*
CL50LP61-000*
─
CL50LP17-000*
CL50LP21-000*
CL50LP22-000*
─
─
─
─
CL50LP30-000*
─
CL50LP41-000*
─
─
CL50LP44-000*
CL50LP45-000*
CL50LP47-000*
CL50LP48-000*
CL50LP49-000*
CL50LP51-000*
CL50LP52-000*
CL50LP53-000*
CL50LP54-000*
CL50LP55-000*
─
CL50LP58-000*
CL50LP59-000*
CL50LP60-000*
─
─
─
UL
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
50 VA
Size - 7/8” X 1-1/4”
─
CL50AW01-000*
CL50AW02-000*
CL50AW03-000*
CL50AW04-000*
CL50AW05-000*
CL50AW06-000*
CL50AW07-000*
CL50AW09-000*
CL50AW40-000*
CL50AW15-000*
CL50AW61-000*
─
CL50AW17-000*
CL50AW21-000*
CL50AW22-000*
─
CL50AW24-000*
─
─
CL50AW30-000*
─
CL50AW41-000*
─
─
CL50AW44-000*
CL50AW45-000*
CL50AW47-000*
CL50AW48-000*
CL50AW49-000*
CL50AW51-000*
CL50AW52-000*
CL50AW53-000*
CL50AW54-000*
CL50AW55-000*
─
CL50AW58-000*
CL50AW59-000*
CL50AW60-000*
─
─
─
UL
-
√
-
-
√
√
-
-
-
-
√
√
√
√
√
√
√
√
√
√
√
-
√
-
-
-
-
-
-
-
-
-
-
-
-
√
√
√
-
√
-
-
√
-
√
-
-
√
-
-
-
-
-
-
-
-
-
-
-
-
-
√
√
√
√
√
√
√
√
√
√
-
√
√
√
-
-
-
* Refer to page number 7. Must complete part number to specify voltages, termination, mounting & fusing.
For custom designs 3 digit customer ID will be added at the end of the part number.
Lead Wire Details:
Primary Voltage
Color
Secondary Voltage
Color
COM
Black
COM
Blue
110,115,120
White
12
Yellow
200,208,215
Red
24
Blue
220, 230, 240
Orange
265, 277
Brown
380
Violet
400, 415
Red/White
460, 480
Grey
575
Black/Red
600
Black/White
Standard leads: All leads are 12.0” L.O.C (length out of coil) 1/2” strip
Any application, Any requirement, Contact us for our Custom Designs
Sales Office:
300 W Factory Road, Addison IL 60101
•
Phone: (630) 628-9999
•
Fax: (630) 628-9922
•
www.wabashtransformer.com
15
