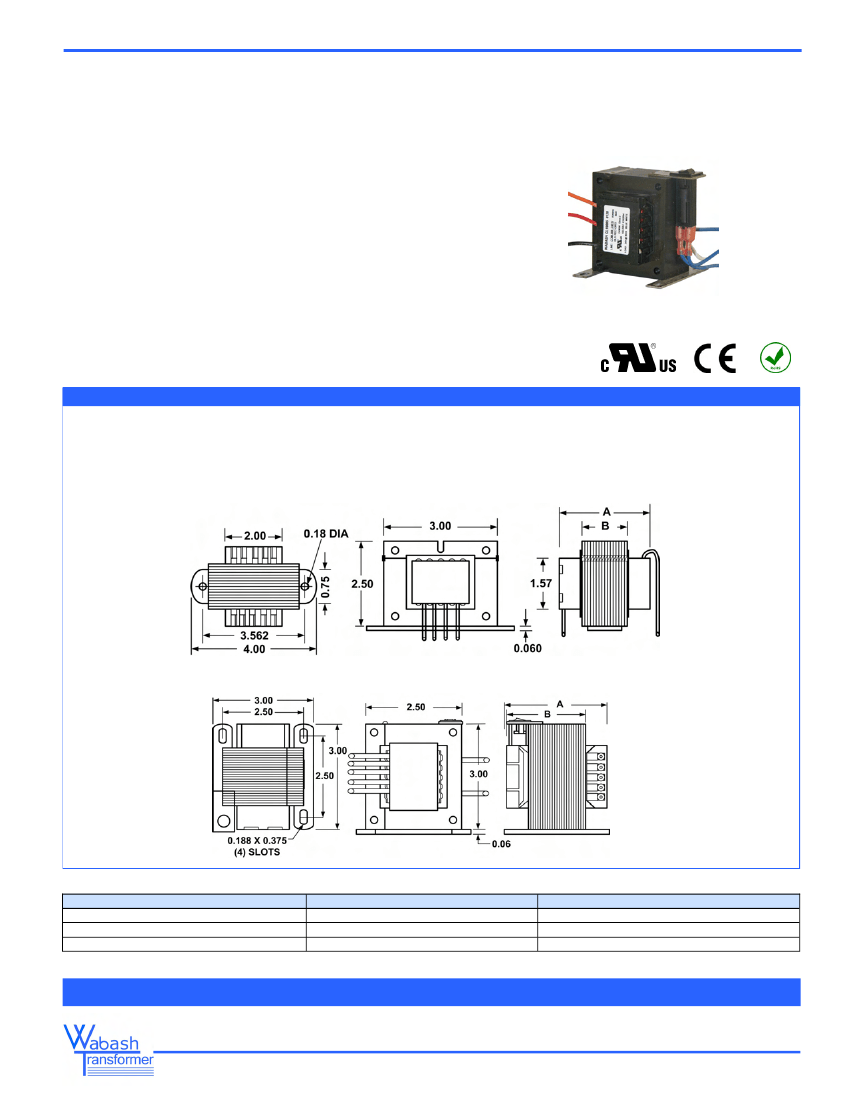

Class 2 UL5085 - 3 Transformer
80VA - 100VA,
Non-Inherently Energy Limited
Series: CL
- Lead Wires
Power Rating 80VA to 100VA
Secondary Fusing Required
(Provided by Factory),
Frequency 50/60Hz
Insulation Class F (155°C)
Agency Approvals:
UL/cUL 5085-3 Class 2 Recognized (File E49606)
Insulation File No. E95662
*
Multi voltage combinations are available - consult factory.
Class 2
Lead Wires
Type HX
Foot Mount - Steel bracket welded to the bottom of the laminations for easy mounting
Type VX
Foot Mount - Steel bracket welded to the bottom of the laminations for easy mounting
Lead Wires:
All leads are 18 AWG stranded 2/64” (0.794 mm) insulation thickness. Standard parts have 12” (305 mm)
total length with 1/2” (12.7 mm) strip.
Type HX
- Foot Mount, Internally Fused
Type VX
- Foot Mount, Vertical, Same Side Leads
Dimensions (Inches)
A
B
Weight (Lbs)
85VA
2.820
1.500
2.900
100VA
2.820
1.500
3.300
Any application, Any requirement, Contact us for our Custom Designs
22
Sales Office:
300 W Factory Road, Addison IL 60101
•
Phone: (630) 628-9999
•
Fax: (630) 628-9922
•
www.wabashtransformer.com
Class 2 UL5085 - 3 Transformer
80VA - 100VA,
Non-Inherently Energy Limited
Series: CL
- Lead Wires
Partial Selection Guide
Primary
Voltage
Secondary
Voltage
24
120
24Vct
24
277
24Vct
24
480
24Vct
24
120/208/240/480
24Vct
24
208/240
24Vct
CL85R15-0CT*
CL85R05-0CT*
CL85R15-000*
CL85R04-0CT*
CL85R05-000*
CL85R02-0CT*
CL85R04-000*
CL85R01-0CT*
CL85R02-000*
85VA
Size - 1.0” X 1-1/2”
CL85R01-000*
Class 2
UL
96VA
Size - 1.0” X 1-1/2”
CL100K01-000*
CL100K01-0CT*
CL100K02-000*
CL100K02-0CT*
CL100K04-000*
CL100K04-0CT*
CL100K05-000*
CL100K05-0CT*
CL100K15-000*
CL100K15-0CT*
UL
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
* Refer to page number 7. Must complete part number to specify voltages, termination, mounting & fusing.
For custom designs 3 digit customer ID will be added at the end of the part number.
Lead Wire Details:
Primary Voltage
Color
Secondary Voltage
Color
COM
Black
COM
Blue
110,115,120
White
12
Yellow
200,208,215
Red
24
Blue
220, 230, 240
Orange
265, 277
Brown
380
Violet
400, 415
Red/White
460, 480
Grey
575
Black/Red
600
Black/White
Standard leads: All leads are 12.0” L.O.C (length out of coil) 1/2” strip
Any application, Any requirement, Contact us for our Custom Designs
Sales Office:
300 W Factory Road, Addison IL 60101
•
Phone: (630) 628-9999
•
Fax: (630) 628-9922
•
www.wabashtransformer.com
23
