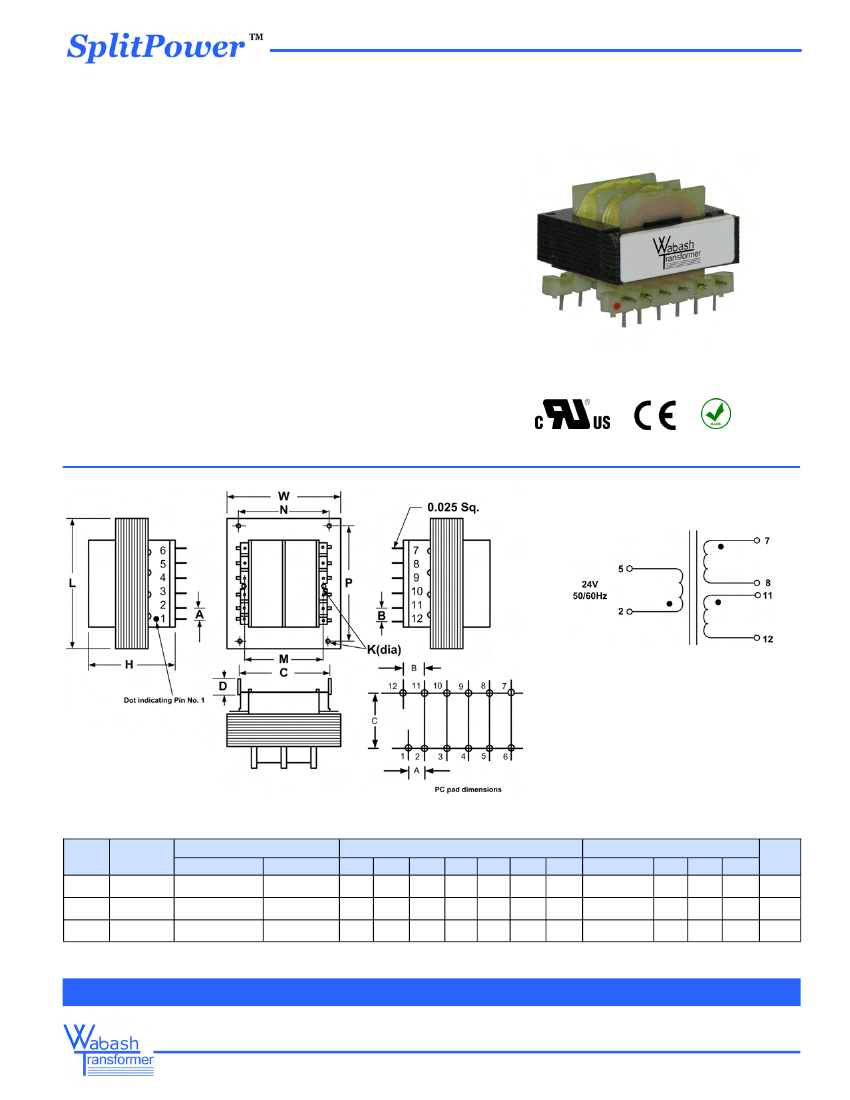

Split Bobbin Isolation Transformer
Series: P24X
- Printed Circuit Mount, Horizontal
12
Pins
Power Rating 2.4VA to 30VA
Single Primary, 24V
Frequency 50/60HZ
Series or Parallel Secondary
Dielectric Strength – 1500 Vrms
Insulation Class B (130°C)
Agency Approvals:
UL/cUL 5085-2 Recognized (File E47299)
Insulation File No. E95662
Single Primary
●
Indicates Like Polarity
Primaries and Secondaries are designed to be used
simultaneously. That is, they must be used either series or parallel
connected (as one winding). Same applies to secondaries also.
VA
Rating
2.4
20
30
Part
Number
P24X-24-24
P24X-20-24
P24X-30-24
Secondary
Series
24VCT @ 100mA
24VCT @ 833mA
24VCT @ 1.250A
Dimensions (Inches)
L
1.38
2.25
2.25
Mounting Dimension
C
0.86
1.30
1.30
Parallel
12V @ 0.200A
12V @ 1.670A
12V @ 2.500A
W
1.12
1.87
1.87
H
1.13
1.41
1.79
A
0.15
0.20
0.20
B
0.20
0.30
0.30
D
0.172
0.140
0.140
K
-
0.219 X 0.09*
0.219 X 0.09*
* = Slots
M
1.00
1.69
1.69
N
-
1.50
1.50
P
-
1.88
1.88
Wgt.
lbs
0.230
0.780
1.150
Any application, Any requirement, Contact us for our Custom Designs
50
Sales Office:
300 W Factory Road, Addison IL 60101
•
Phone: (630) 628-9999
•
Fax: (630) 628-9922
•
www.wabashtransformer.com
