PDH-20-56: DescriptionSplit Bobbin Power Transformer; File Size584KB，2 Pages; ManufacturerWabash Transformer Inc.; Websitehttps://www.wabashtransformer.com/

Download Datasheet View All

PDH-20-56 Overview

Split Bobbin Power Transformer

Preview

Download Datasheet

View All

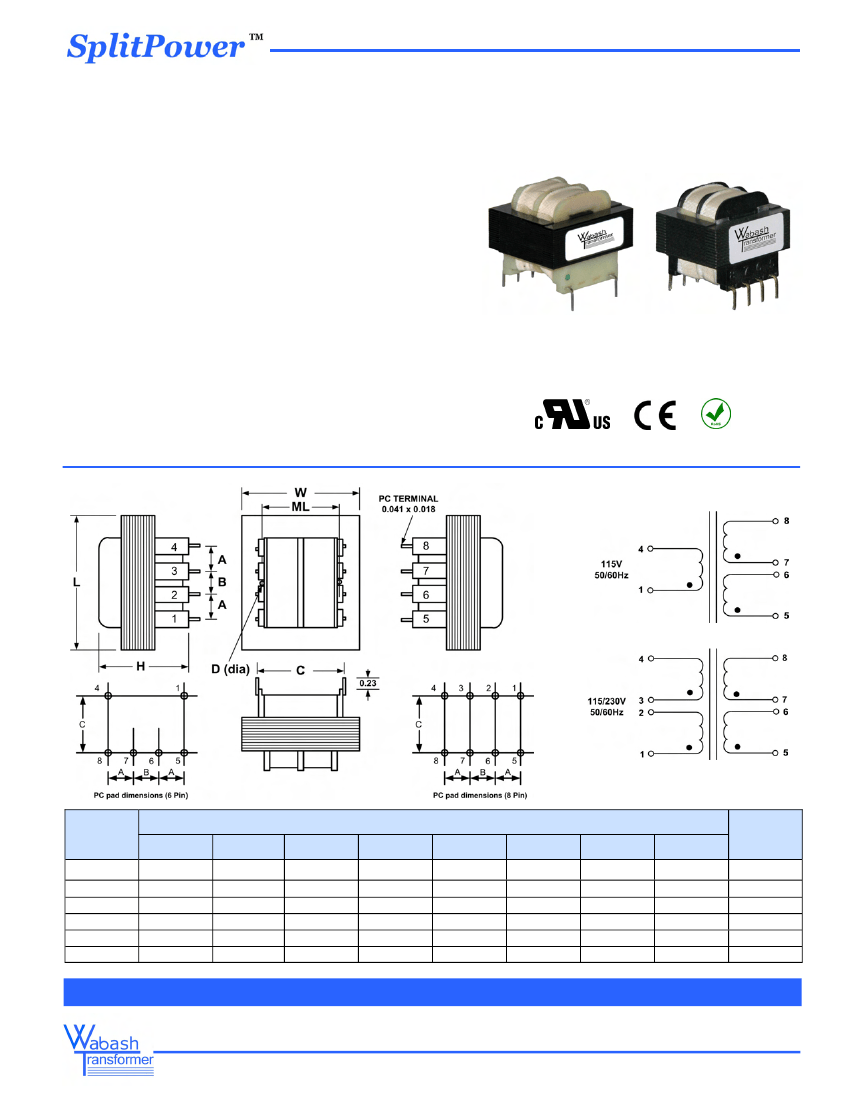

Split Bobbin Power Transformer

Series: PSH & PDH

- Printed Circuit Mount, Horizontal 6 & 8 Pins



Power Rating 1.1VA to 36VA

Single or Dual Primary, 115V or 115/230V

Frequency 50/60HZ

Series or Parallel Secondary

Dielectric Strength – 2500 Vrms

Insulation Class B (130°C)

Low Capacitive Coupling, no Electrostatic Shield Needed

Agency Approvals:



UL/cUL 5085-2 Recognized (File E47299)

Insulation File No. E95662

Single Primary (6 Pin)

Dual Primary (8 PIN)

●

Indicates Like Polarity

Primaries and Secondaries are designed to be used

simultaneously. That is, they must be used either series or parallel

connected (as one winding). Same applies to secondaries also.

Rating

1.1

2.4

Dimensions (Inches)

1.38

1.63

1.88

2.25

2.63

1.13

1.31

1.56

1.88

2.19

0.93

1.17

1.29

1.41

1.56

1.06

1.25

1.66

1.94

0.250

0.300

0.400

0.250

0.350

0.400

1.22

1.28

1.40

1.59

1.84

D (dia)

0.125

0.150

0.218*

* = Slots

Weight

Lbs

0.17

0.25

0.44

0.70

0.80

1.10

Any application, Any requirement, Contact us for our Custom Designs

Sales Office:

300 W Factory Road, Addison IL 60101

•

Phone: (630) 628-9999

•

Fax: (630) 628-9922

•

www.wabashtransformer.com
