Technical Data Sheet

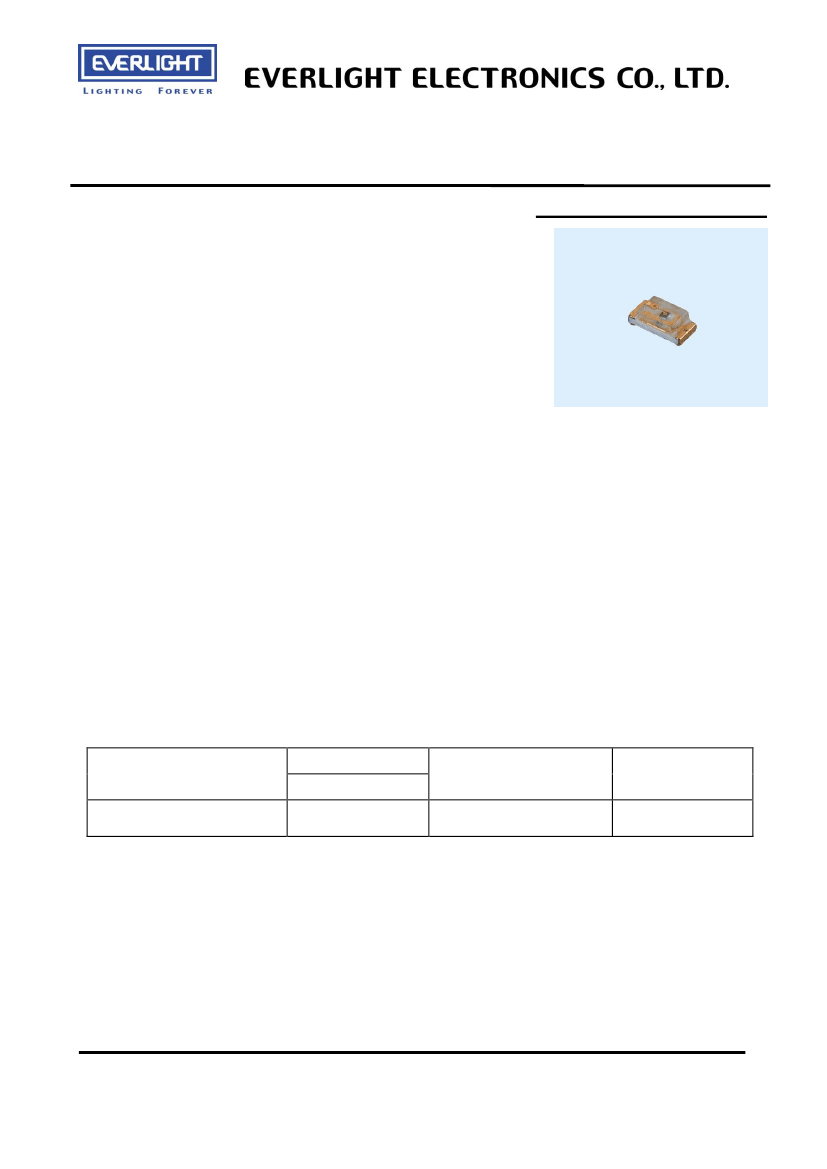

0603 Package Chip LED (0.6mm Height)
19-213/S2C-AN1P2B/3T
Features
․Package
in 8mm tape on 7〞diameter reel.
․Compatible
with automatic placement equipment.
․Compatible
with infrared and vapor phase reflow
solder process.
․Mono-color
type.
․Pb-free.
․The
product itself will remain within RoHS complaint version
Descriptions
․The
19-213 SMD LED is much smaller than lead
frame type components, thus enable smaller board
size, higher packing density, reduced storage space
and finally smaller equipment to be obtained.
․Besides,
lightweight makes them ideal for
miniature applications. etc.
Applications
․Backlighting
in dashboard and switch.
․Telecommunication:
indicator and backlighting in
telephone and fax.
․Flat
backlight for LCD, switch and symbol.
․General
use.
Device Selection Guide
Part No.
19-213/S2C-AN1P2B/3T
Chip
Material
AlGaInP
Emitted Color
Brilliant Orange
Resin Color
Water Clear
Everlight Electronics Co., Ltd.
Device No:
http://www.everlight.com
Prepared date:3-Jul-2011
Rev.1
Page: 1 of 10
Prepared by: Chen Zheng
19-213/S2C-AN1P2B/3T

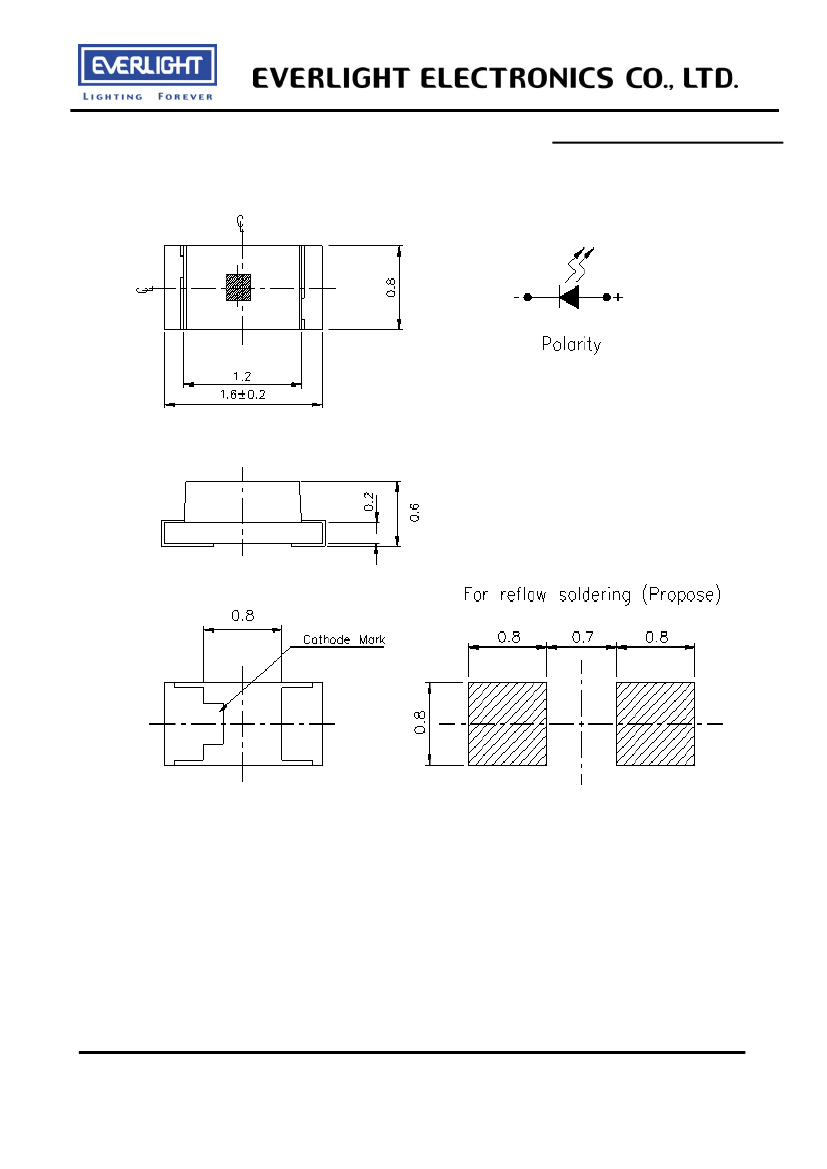

Package Outline Dimensions
Note:
The tolerances unless mentioned are
±0.1mm,
unit = mm.
Everlight Electronics Co., Ltd.
Device No:
http://www.everlight.com
Prepared date:3-Jul-2011
Rev.1
Page: 2 of 10
Prepared by: Chen Zheng
19-213/S2C-AN1P2B/3T
Absolute Maximum Ratings (Ta=25℃)
Parameter
Reverse Voltage
Forward Current
Peak Forward Current
(Duty 1/10 @1KHz)
Power Dissipation
Electrostatic Discharge(HBM)
Operating Temperature
Storage Temperature
Soldering Temperature
Symbol
V
R
I
F
I
FP
Pd
ESD
Topr
Tstg
Tsol
Rating
5
25
60
60
2000
-40 ~ +85
-40~ +90
Reflow Soldering:260
℃
for 10 sec
Hand Soldering:350℃ for 3 sec
Unit
V
mA
mA
mW
V
℃
℃
Electro-Optical Characteristics (Ta=25℃)
Parameter
Luminous Intensity
Viewing Angle
Peak Wavelength
Dominant Wavelength
Spectrum Radiation
Bandwidth
Forward Voltage
Reverse Current
Symbol
Iv
2θ1/2
λp
λd
△λ
V
F
I
R
Min.
28.5
-----
600.5
-----
-----
1.75
-----
Typ.
-----
611
-----
17
120
-----
-----
Max.
72.0
-----
612.5
-----
-----
2.35
10
Unit
mcd
deg
nm
nm
nm
V
μA
V
R
=5V
I
F
=20mA
Condition
Notes:
1.Tolerance of Luminous Intensity
±11%
2.Tolerance of Dominant Wavelength
±1nm
3.Tolerance of Forward Voltage
±0.1V
Everlight Electronics Co., Ltd.
Device No:
http://www.everlight.com
Prepared date:3-Jul-2011
Rev.1
Page: 3 of 10
Prepared by: Chen Zheng
19-213/S2C-AN1P2B/3T
Bin Range Of Dom. Wavelength
Group
Bin
D8
D9
A
D10
D11
Min
600.5
603.5
606.5
609.5
Max
603.5
606.5
609.5
612.5
nm
I
F
=20mA
Unit
Condition
Bin Range Of Luminous Intensity
Bin
N1
N2
P1
P2
Min
28.5
36.0
45.0
57.0
Max
36.0
45.0
57.0
72.0
mcd
I
F
=20mA
Unit
Condition
Bin Range Of Forward
Group
B
Bin
0
1
2
Voltage
Min
1.75
1.95
2.15
Max
1.95
2.15
2.35
V
I
F
=20mA
Unit
Condition
Notes:
1.Tolerance of Luminous Intensity
±11%
2.Tolerance of Dominant Wavelength
±1nm
3.Tolerance of Forward Voltage
±0.1
V
Everlight Electronics Co., Ltd.
Device No:
http://www.everlight.com
Prepared date:3-Jul-2011
Rev.1
Page: 4 of 10
Prepared by: Chen Zheng
19-213/S2C-AN1P2B/3T

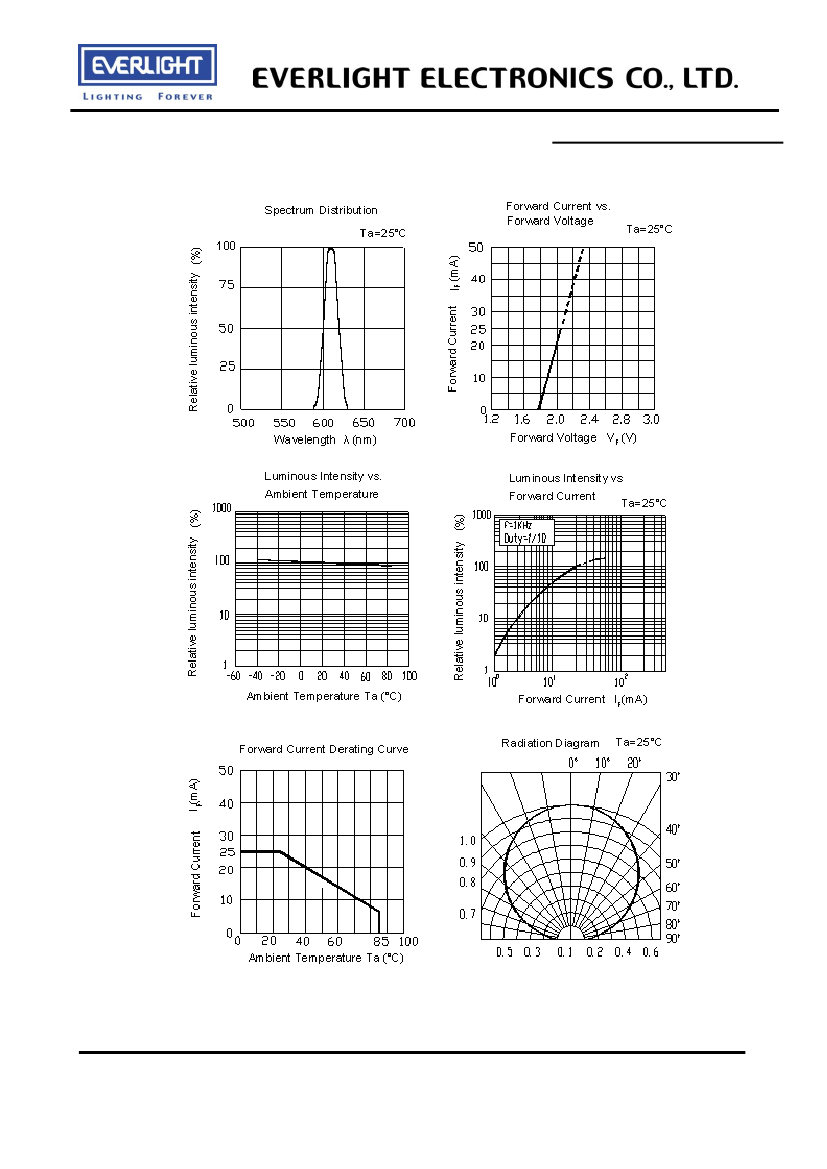

Typical Electro-Optical Characteristics Curves
Everlight Electronics Co., Ltd.
Device No:
http://www.everlight.com
Prepared date:3-Jul-2011
Rev.1
Page: 5 of 10
Prepared by: Chen Zheng
