Technical Data Sheet

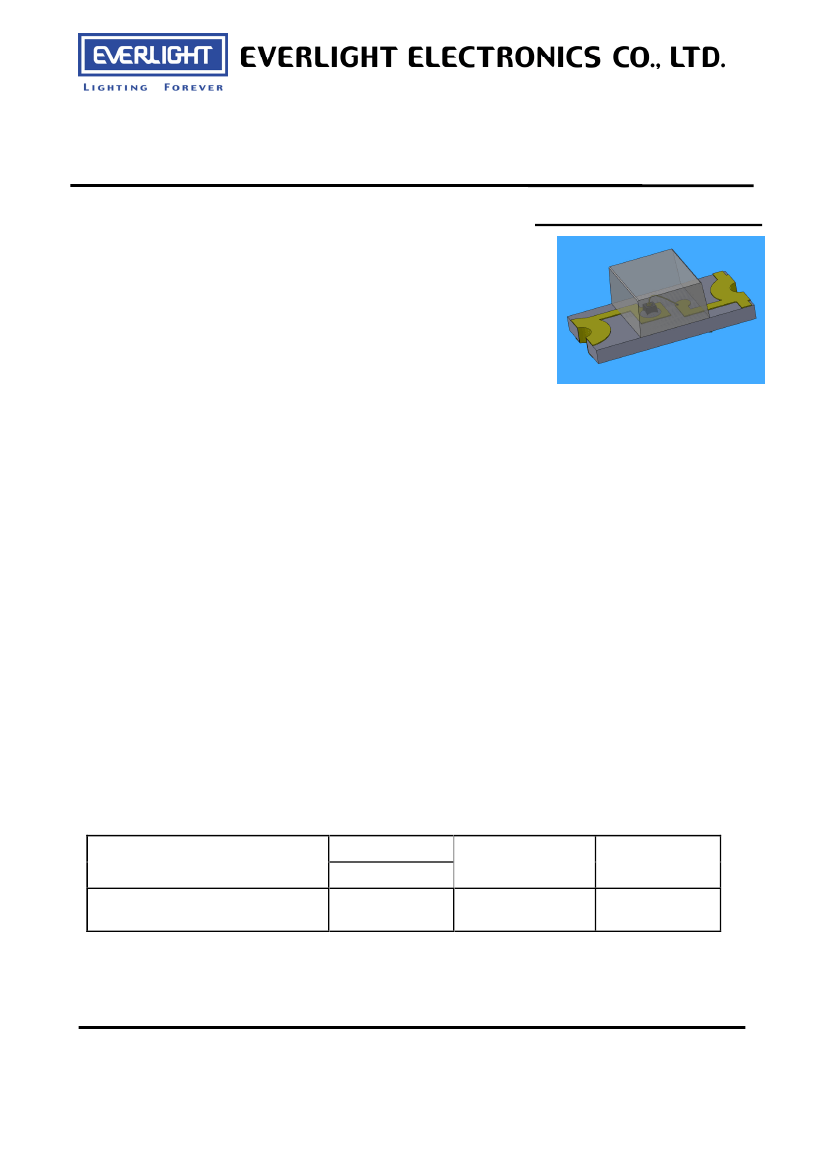

1206 Package Chip LED ( 1.1mm Height )
23-21/R8C-AN2Q1B/2T
Features
․Package
in 8mm tape on 7〞diameter reel.
․Compatible
with automatic placement equipment.
․Compatible
with infrared and vapor phase reflow
solder process.
․Mono-color
type.
․Pb-free.
․The
product itself will remain within RoHS compliant version.
Descriptions
․The
23-21 SMD LED is much smaller than lead
frame type components, thus enable smaller board
size, higher packing density, reduced storage space
and finally smaller equipment to be obtained.
․Besides,
lightweight makes them ideal for
miniature applications. etc.
Applications
․Backlighting
in dashboard and switch.
․Telecommunication:
indicator and backlighting in
telephone and fax.
․Flat
backlight for LCD, switch and symbol.
․General
use.
․Indoor
signboard use.
Device Selection Guide
Chip
Material
AlGaInP
Part No.
23-21/R8C-AN2Q1B/2T
Emitted Color
Deep-Red
Resin Color
Water Clear
Everlight Electronics Co., Ltd.
Device No :
http://www.everlight.com
Prepared date: 1Jul-2011
Rev.1 Page: 1 of 10
Prepared by: Sam Feng
23-21/R8C-AN2Q1B/2T

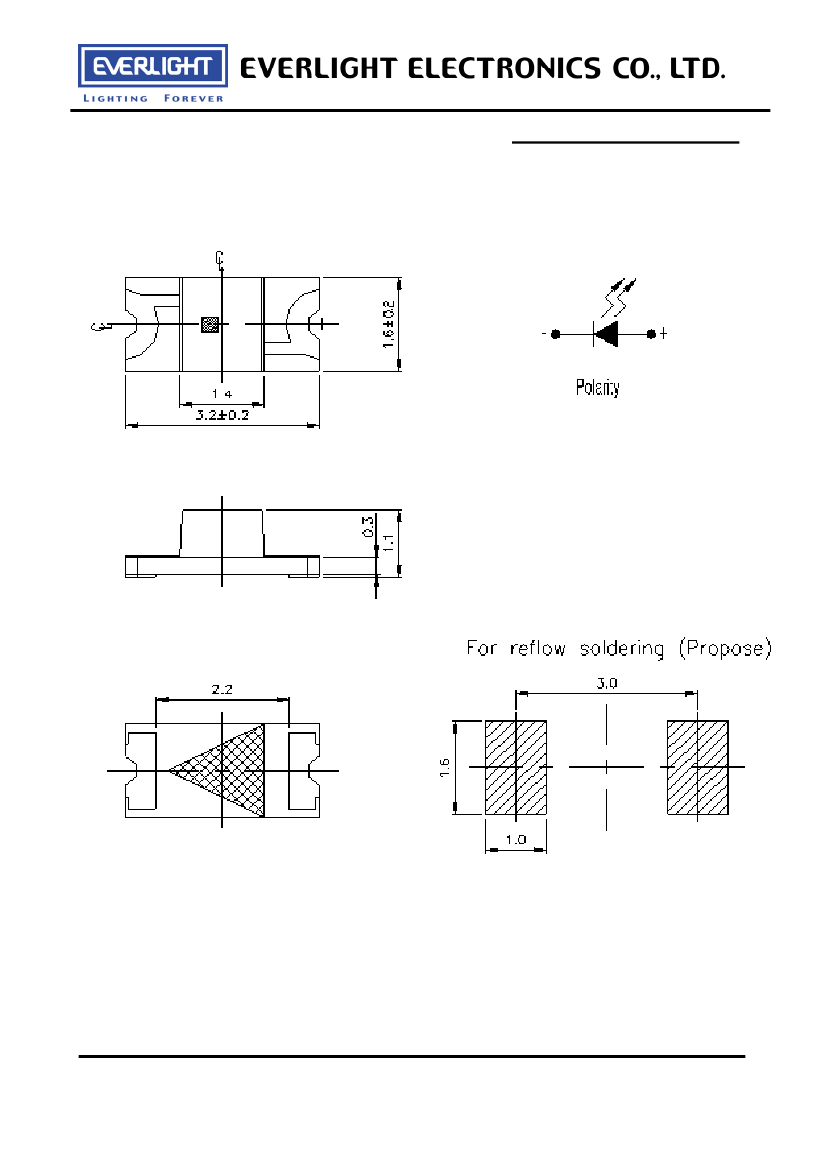

Package Outline Dimensions
Note:
The tolerances unless mentioned is
±0.1mm,Unit
= mm
Everlight Electronics Co., Ltd.
Device No :
http://www.everlight.com
Prepared date: 1Jul-2011
Rev.1 Page: 2 of 10
Prepared by: Sam Feng
23-21/R8C-AN2Q1B/2T
Absolute Maximum Ratings (Ta=25℃)
℃
Parameter
Reverse Voltage
Forward Current
Operating Temperature
Storage Temperature
Electrostatic Discharge (HBM)
Power Dissipation
Peak Forward Current
(Duty 1/10 @1KHz)
Soldering Temperature
Symbol
V
R
I
F
I
FP
Pd
ESD
Topr
Tstg
Rating
5
25
60
60
2000
-40 ~ +85
-40 ~ +90
Unit
V
mA
mA
mW
V
℃
℃
Reflow Soldering : 260
℃
for 10 sec.
Tsol
Hand Soldering : 350
℃
for 3 sec.
Electro-Optical Characteristics (Ta=25℃)
℃
Parameter
Luminous Intensity
Viewing Angle
Peak Wavelength
Dominant
Wavelength
Spectrum Radiation
Bandwidth
Forward Voltage
Reverse Current
Symbol
Iv
2θ1/2
λp
λd
△λ
V
F
I
R
Min.
36.0
----
----
629.5
----
1.75
----
Typ.
-----
130
650
----
20
----
----
Max.
90.0
----
----
645.5
----
2.35
10
Unit
mcd
deg
nm
nm
nm
V
μA
V
R
=5V
I
F
=20mA
Condition
Notes:
1.Tolerance of Luminous Intensity
±
11%
2.Tolerance of Dominant Wavelength
±
1nm
3.Tolerance of Forward Voltage
±
0.1V
Everlight Electronics Co., Ltd.
Device No :
http://www.everlight.com
Prepared date: 1Jul-2011
Rev.1 Page: 3 of 10
Prepared by: Sam Feng
23-21/R8C-AN2Q1B/2T
Bin Range Of Dom. Wavelength
Group
Bin
E7
Min
629.5
633.5
637.5
641.5
Max
633.5
637.5
641.5
645.5
nm
I
F
=20mA
Unit
Condition
A
E8
E9
E10
Bin Range Of Luminous Intensity
Bin
N2
P1
P2
Q1
Min
36.0
45.0
57.0
72.0
Max
45.0
57.0
72.0
90.0
mcd
I
F
=20mA
Unit
Condition
Bin Range Of Forward Voltage
Group
Bin
0
Min
1.75
1.95
2.15
Max
1.95
2.15
2.35
V
I
F
=20mA
Unit
Condition
B
1
2
Notes:
1.Tolerance of Luminous Intensity
±
11%
2.Tolerance of Dominant Wavelength
±
1nm
3.Tolerance of Forward Voltage
±
0.1V
Everlight Electronics Co., Ltd.
Device No :
http://www.everlight.com
Prepared date: 1Jul-2011
Rev.1 Page: 4 of 10
Prepared by: Sam Feng
23-21/R8C-AN2Q1B/2T

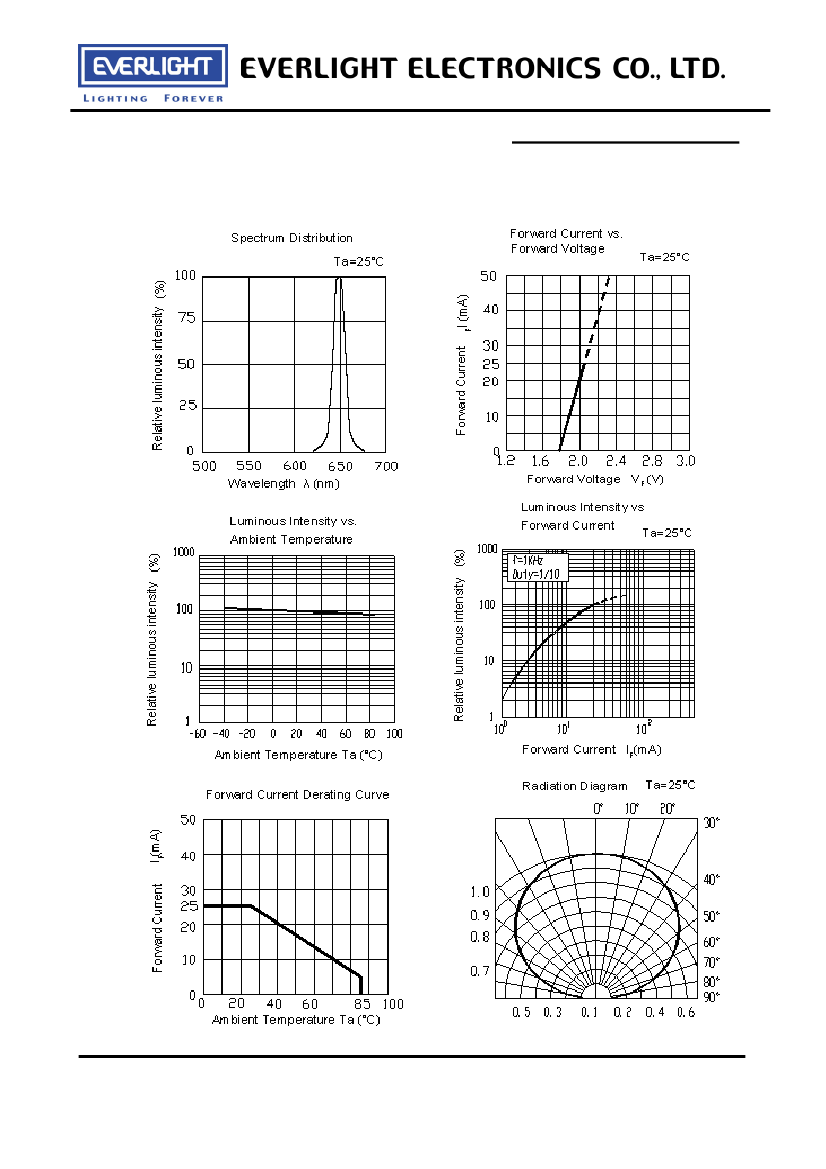

Typical Electro-Optical Characteristics Curves
Everlight Electronics Co., Ltd.
Device No :
http://www.everlight.com
Prepared date: 1Jul-2011
Rev.1 Page: 5 of 10
Prepared by: Sam Feng
