Technical Data Sheet
1206 Package Chip LED with Inner Lens(1.1mm Height)
25-21BHC-APR2T
Features
․Package
in 8mm tape on 7〞diameter reel.
․Compatible
with automatic placement equipment.
․Compatible
with infrared and vapor phase reflow
solder process.
․Mono-color
type.
․Pb-free.
․The
product itself will remain within RoHS compliant version.
Descriptions
․The
25-21 SMD LED is much smaller than lead
frame type components, thus enable smaller board
size, higher packing density, reduced storage space
and finally smaller equipment to be obtained.
․
Besides, lightweight makes them ideal for
miniature applications. etc.
Applications
․Backlighting
in dashboard and switch.
․Telecommunication:
indicator and backlighting in
telephone and fax.
․Flat
backlight for LCD, switch and symbol.
․General
use.
Device Selection Guide
Chip
Material
InGaN
Part No.
25-21BHC-APR2T
Emitted Color
Blue
Resin Color
Water Clear
Everlight Electronics Co., Ltd.
Device No:
http://www.everlight.com
Prepared date: 1-Jul-2011
Rev 2
Page: 1 of 11
Prepared by:Sam Feng
25-21BHC-APR2T

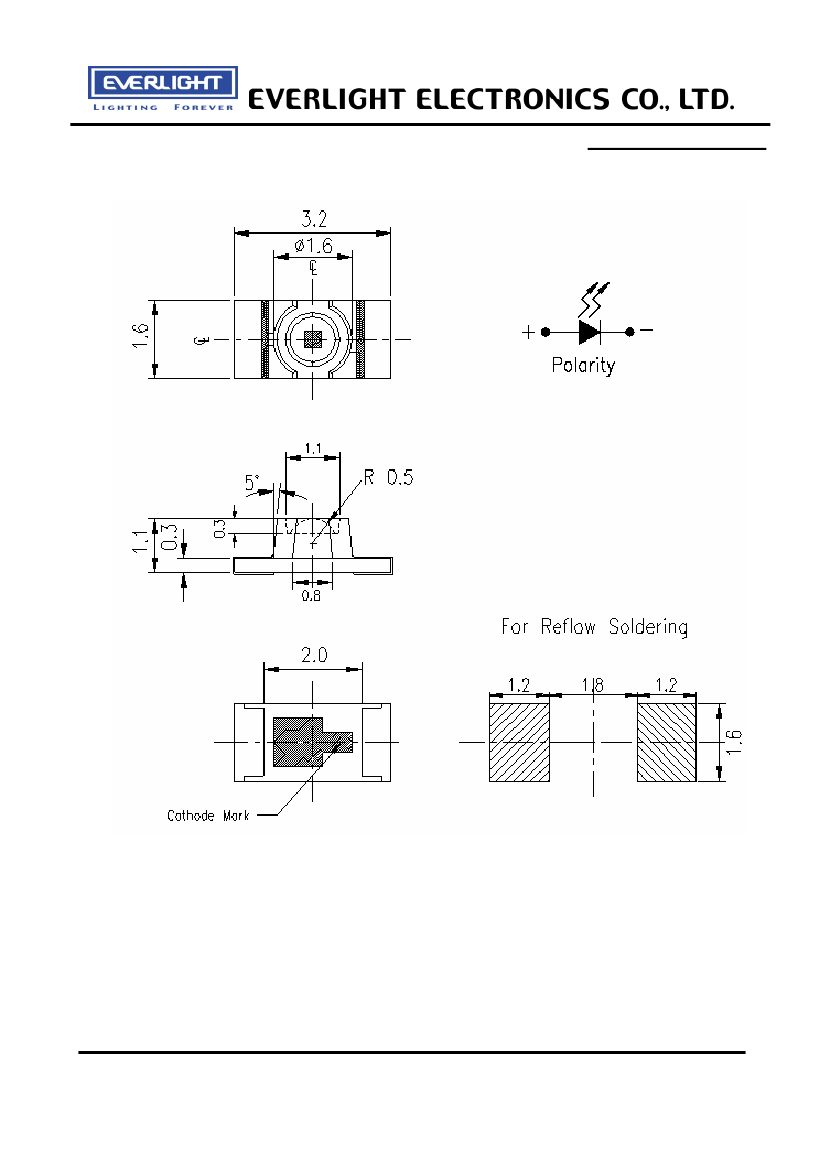

Package Outline Dimensions
Note:
The tolerances unless mentioned is
±0.1mm
,Unit = mm
Everlight Electronics Co., Ltd.
Device No:
http://www.everlight.com
Prepared date: 1-Jul-2011
Rev 2
Page: 2 of 11
Prepared by:Sam Feng
25-21BHC-APR2T
Absolute Maximum Ratings (Ta=25℃)
℃
Parameter
Reverse Voltage
Forward Current
Peak Forward Current
(Duty 1/10 @1KHz)
Power Dissipation
Electrostatic Discharge(HBM)
Operating Temperature
Storage Temperature
Soldering Temperature
I
FP
P
d
ESD
T
opr
T
stg
T
sol
100
95
150
-40 ~ +85
-40 ~ +90
mA
mW
V
℃
℃
Symbol
V
R
I
F
Rating
5
25
Unit
V
mA
Reflow Soldering : 260
℃
for 10 sec.
Hand Soldering : 350
℃
for 3 sec.
Electro-Optical Characteristics (Ta=25℃)
℃
Parameter
Luminous Intensity
Viewing Angle
Peak Wavelength
Dominant
Wavelength
Spectrum Radiation
Bandwidth
Forward Voltage
Reverse Current
Symbol
I
v
2θ
1/2
λ
p
λ
d
△λ
V
F
I
R
Min.
45.0
----
----
464.5
----
2.7
----
Typ.
----
60
468
----
25
3.3
----
Max.
180
----
----
476.5
----
3.7
50
Unit
mcd
deg
nm
Condition
I
F
=20mA
nm
nm
V
μA
V
R
=5V
Notes:
1.Tolerance of Luminous Intensity
±
11%
2.Tolerance of Dominant Wavelength
±
1nm
Everlight Electronics Co., Ltd.
Device No:
http://www.everlight.com
Prepared date: 1-Jul-2011
Rev 2
Page: 3 of 11
Prepared by:Sam Feng
25-21BHC-APR2T
Bin Range Of Dom. Wavelength
Group
Bin
A9
A
A10
A11
A12
Min
464.5
467.5
470.5
473.5
Max
467.5
470.5
473.5
476.5
nm
I
F
=20mA
Unit
Condition
Bin Range Of Luminous Intensity
Bin
P
Q
R
Min
45.0
72.0
112
Max
72.0
112
180
mcd
I
F
=20mA
Unit
Condition
Notes:
1.Tolerance of Luminous Intensity
±
11%
2.Tolerance of Dominant Wavelength
±
1nm
Everlight Electronics Co., Ltd.
Device No:
http://www.everlight.com
Prepared date: 1-Jul-2011
Rev 2
Page: 4 of 11
Prepared by:Sam Feng
25-21BHC-APR2T

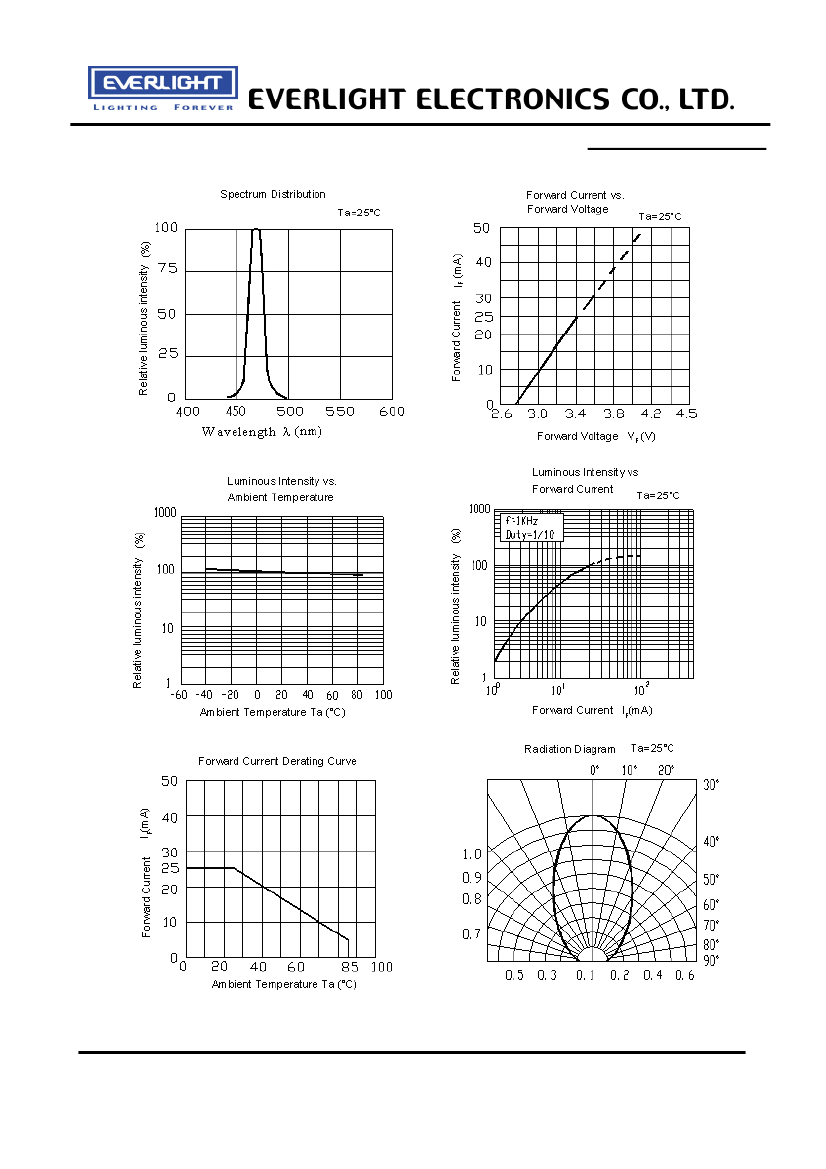

Typical Electro-Optical Characteristics Curves
Everlight Electronics Co., Ltd.
Device No:
http://www.everlight.com
Prepared date: 1-Jul-2011
Rev 2
Page: 5 of 11
Prepared by:Sam Feng
