EVERLIGHT ELECTRONICS CO.,LTD.
Technical Data Sheet

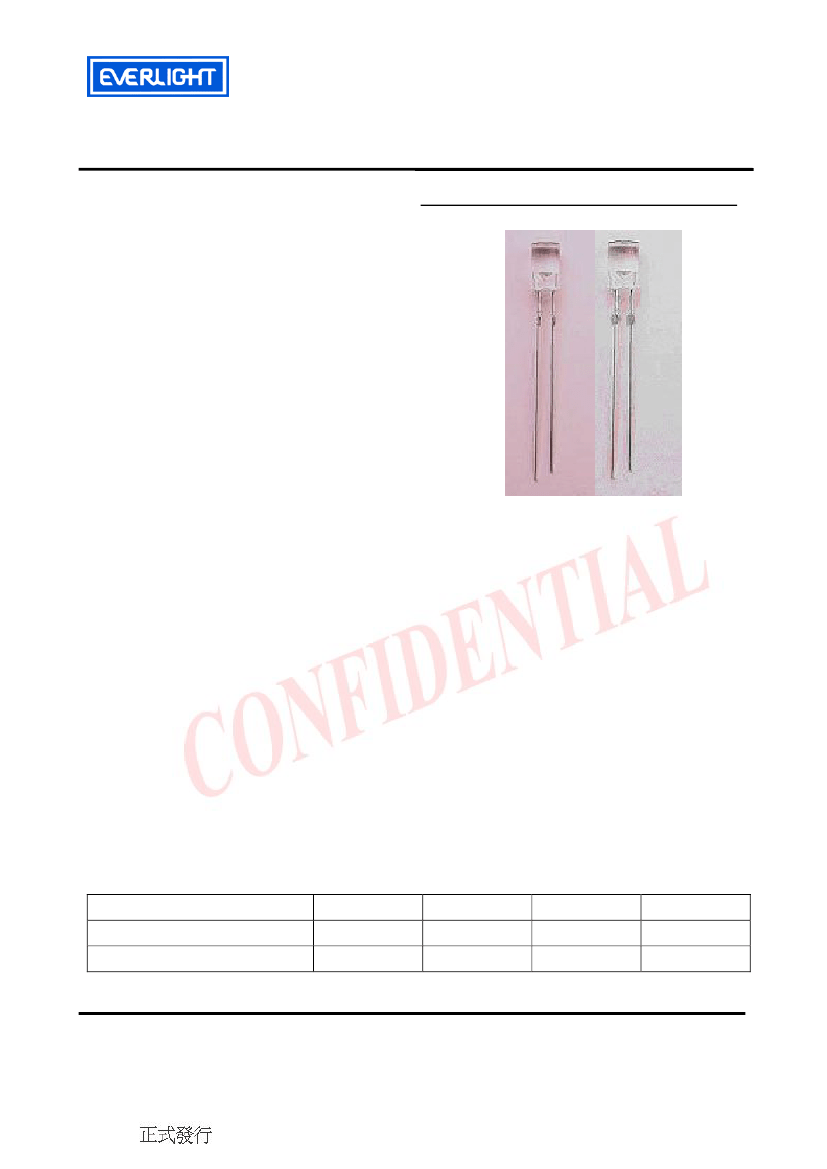

5 mm Cylindrical Shape
423-2ASUGC/S400-A6/X/TR1
Features
․Cylindrical
lens with white Diffused color .
․I.C
compatible.

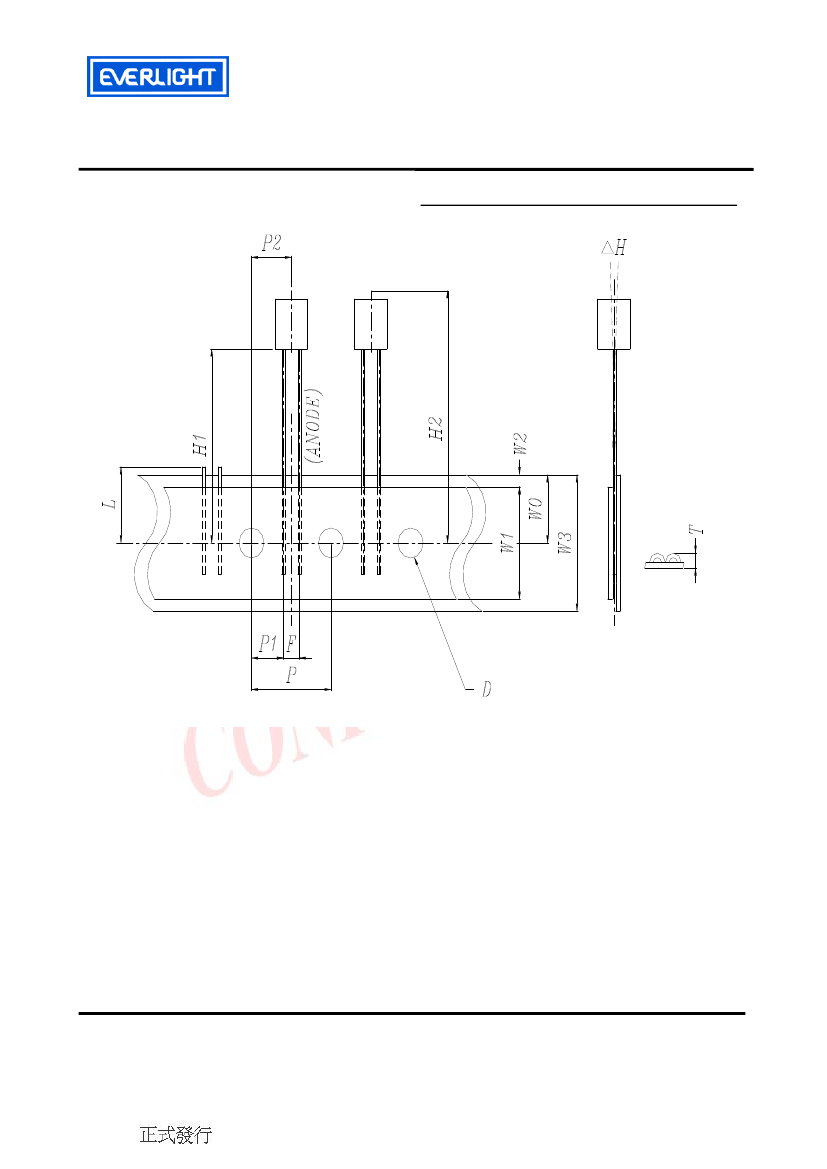

˙Available
on tape and reel.
˙Reliable
and robust.
˙Pb
free.
˙ESD-withstand
voltage: up to 4K V
Descriptions
˙The
series is specially designed for
applications requiring higher
brightness
․The
LED lamps are available with
different colors, intensities, epoxy
colors, etc.
Applications
․TV
set
․Monitor
․Telephone
․Computer
Device Selection Guide
LED Part No.
423-2ASUGC/S400-A6/P
423-2ASUGC/S400-A6
Chip Material Emitted Color
InGaN/SiC
InGaN/SiC
Super Green
Super Green
Lens Color
Water Clear
Water Clear
Stopper
Yes
No
Everlight Electronics Co., Ltd.
Device Number : DT1-042-004
http\\:www.everlight.com
Prepared date: 03-01-2005
Rev 1.0
Page: 1 of 8
Prepared by: Grace Shen
Revision
:1
Release Date:2008-09-20 00:15:59.0
Expired Period: Forever
LifecyclePhase:
EVERLIGHT ELECTRONICS CO.,LTD.
Technical Data Sheet
5 mm Cylindrical Shape
423-2ASUGC/S400-A6/X/TR1

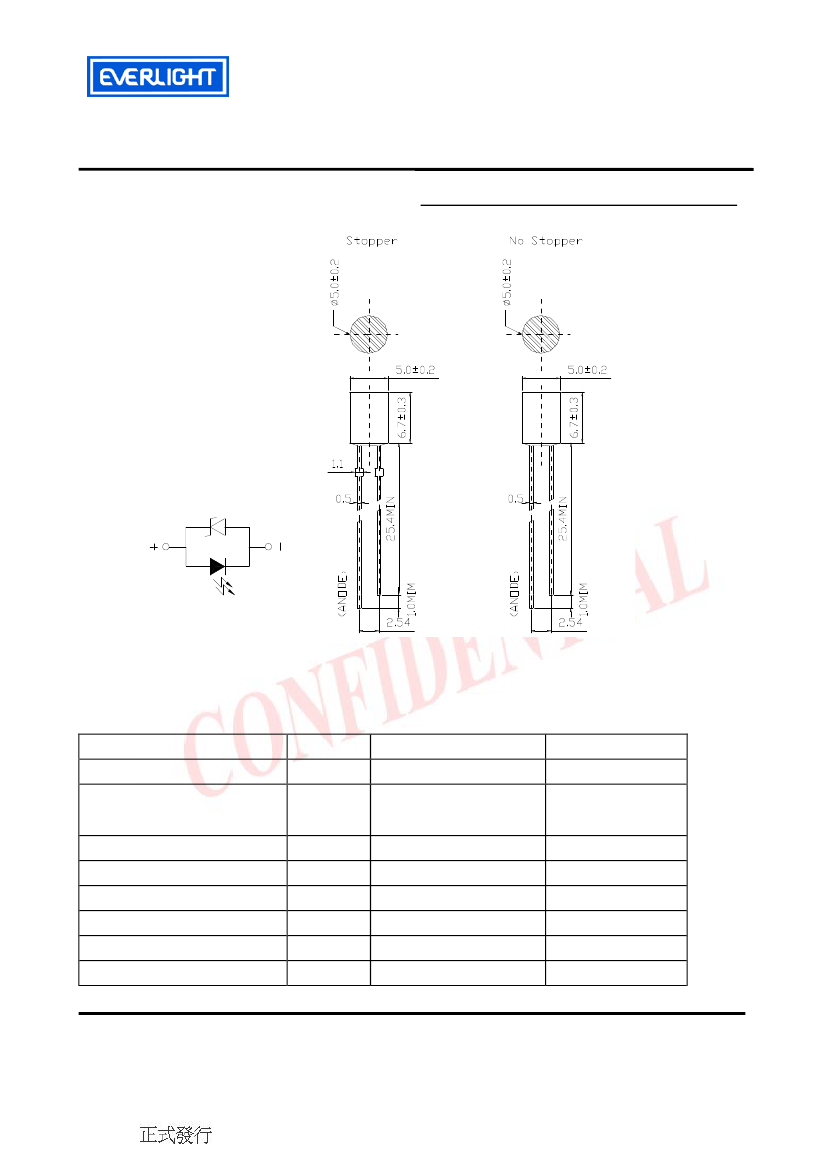

Package Dimensions
Notes:
˙All
dimensions are in millimeters, tolerance is 0.25mm except being specified.
˙Lead
spacing is measured where the lead emerges from the package.
˙Protruded
resin under flange is 1.5mm Max LED.
Absolute Maximum Ratings (Ta=25℃)
Parameter
Forward Current
Pulse Forward
Current(Duty1/10@ 1KHz)
Operating Temperature
Storage Temperature
Electrostatic Discharge
Soldering Temperature
*2
Power Dissipation
Symbol
I
F
I
FP
T
opr
T
stg
ESD
T
sol
P
d
Rating
30
100
-40 ~ +85
-40 ~ +100
4K
260±5
130
100
Units
mA
mA
℃
℃
V
℃
mW
mA
Zener Reverse Current
Iz
Notes:
Soldering time≦5 seconds.
Everlight Electronics Co., Ltd.
Device Number : DT1-042-004
http\\:www.everlight.com
Prepared date: 03-01-2005
Rev 1.0
Page: 2 of 8
Prepared by: Grace Shen
Revision
:1
Release Date:2008-09-20 00:15:59.0
Expired Period: Forever
LifecyclePhase:
EVERLIGHT ELECTRONICS CO.,LTD.
Technical Data Sheet
5 mm Cylindrical Shape
423-2ASUGC/S400-A6/X/TR1
Electro-Optical Characteristics (Ta=25℃)
Parameter
Forward Voltage
Zener Reverse Voltage
Luminous Intensity
Viewing Angle
Peak Wavelength
Dominant Wavelength
Spectrum Radiation
Bandwidth
Symbol
V
F
Vz
I
V
2θ1/2
λ
p
λ
d
Δλ
Condition
I
F
=20mA
Iz=5mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
Min.
--
--
450
--
--
--
--
Typ.
3.5
--
565
90
518
525
35
Max.
3.9
4.5
--
--
--
--
--
Units
V
V
mcd
deg
nm
nm
nm
Rank Combination (I
F
=20mA)
Rank
Luminous Intensity
F
450~565
G
565~715
H
715~900
Unit:mcd
J
900~1125
*Measurement Uncertainty of Luminous Intensity:
±15%
Rank
Forward Voltage
S
3.1~3.3
T
3.3~3.5
U
3.5~3.7
Unit:V
V
3.7~3.9
*Measurement Uncertainty of Forward Voltage:
±0.1V
Rank
Dominant Wavelength
3
4
5
528~532
Unit:nm
6
532~536
520~524
524~528
*Measurement Uncertainty of
Dominant Wavelength
±1.0nm
Everlight Electronics Co., Ltd.
Device Number : DT1-042-004
http\\:www.everlight.com
Prepared date: 03-01-2005
Rev 1.0
Page: 3 of 8
Prepared by: Grace Shen
Revision
:1
Release Date:2008-09-20 00:15:59.0
Expired Period: Forever
LifecyclePhase:
EVERLIGHT ELECTRONICS CO.,LTD.
Technical Data Sheet
5 mm Cylindrical Shape
423-2ASUGC/S400-A6/X/TR1

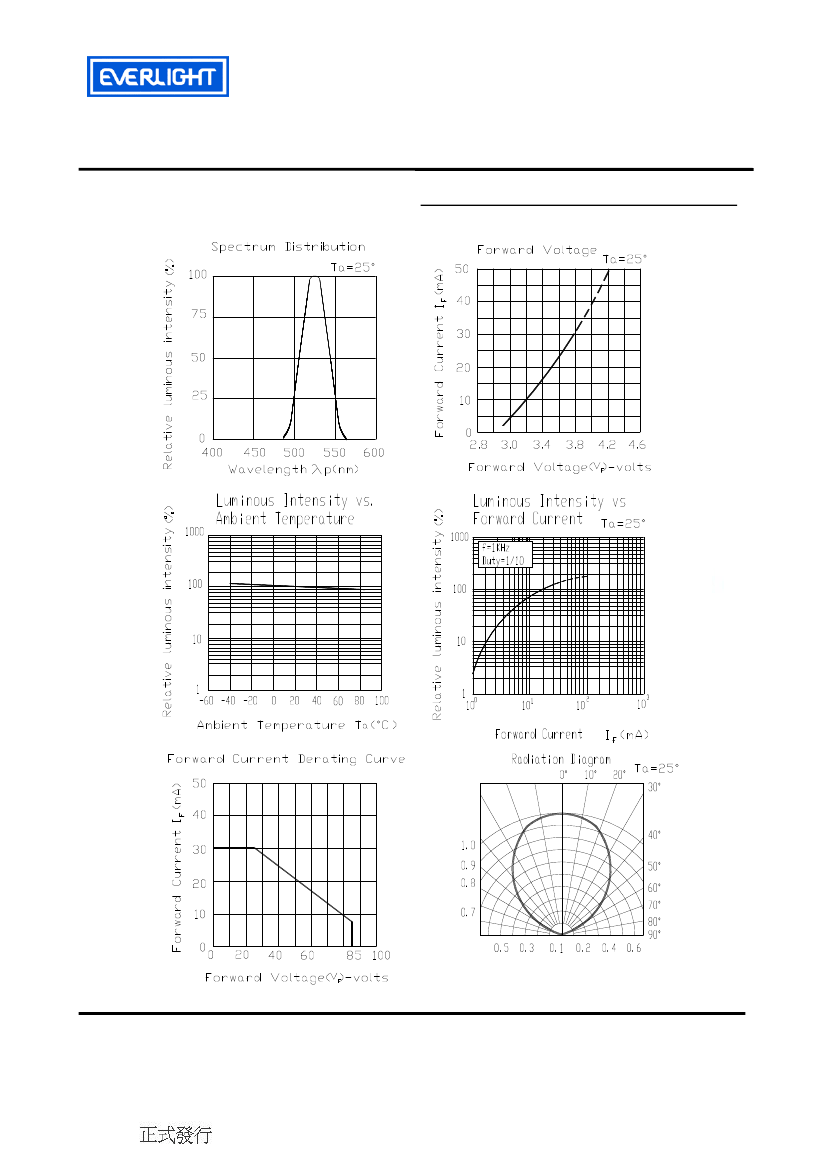

Typical Electro-Optical Characteristics Curves
