that uses a pair of optically coupled GaAIAs LEDs to
drive two photodiode arrays. When the input current
is applied to the LED, the light emitted activates
the photodiode array, and generates a voltage at the
output. The photodiode arrays are capable of
generating a floating source voltage and current
sufficient to drive high power MOSFET transistors.
The optical coupling provides a high level of input to
output isolation. The FDA215 is well suited for use in
discrete solid state relay designs and other isolated
switching applications.
Features
•
Optically Isolated, Input to Output
•
Dual Independent, Floating Outputs for Parallel,
Series, or Isolated Configuration
•
5mA Control Current
•
May Be Configured for AC and DC Switching
•
Replacement of Discrete Components
•
VDE Compatible
•
Solid State Reliability
•
No EMI/RFI Generation
•
Machine Insertable, Wave Solderable
•
Surface Mount and Tape & Reel Version Available
Applications
•
MOSFET Driver
•
Programmable Control
•
Process Control
•
Instrumentation
•
Telecommunications
Approvals
•
EN/IEC 60950-1 Certified Component:
TUV Certificate B 10 05 49410 006
Ordering Information
Part #
FDA215
FDA215S
FDA215STR
Description
8-Pin DIP (50/tube)
8-Pin Surface Mount (50/tube)
8-Pin Surface Mount (1000/reel)
Pin Configuration
1
Input
2
3
Input
4
– 8
Output
+
7
–
+
6
Output
5
+
–
+
–
P
V
P
V
Pb
RoHS
2002/95/EC
e
3
www.clare.com
1
DS-FDA215-R05
FDA215
Absolute Maximum Ratings @ 25ºC
Parameter
Reverse Input Voltage
Input Control Current
Peak (10ms)
Input Power Dissipation
1
Total Power Dissipation
2
Capacitance, Input to Output
Isolation Voltage, Input to Output
Operational Temperature
Storage Temperature
1
2
Ratings
5
100
1
150
500
1
3750
-40 to +85
-40 to +125
Units
V
mA
A
mW
mW
pF
V
rms
°C
°C
Absolute Maximum Ratings are stress ratings. Stresses in
excess of these ratings can cause permanent damage to
the device. Functional operation of the device at conditions
beyond those indicated in the operational sections of this
data sheet is not implied.
Derate linearly 1.33 mW / ºC
Derate linearly 6.67 mW / ºC
Electrical Characteristics @ 25ºC
Parameter
Output Characteristics
Open Circuit Voltage
Short Circuit Current
Switching Speeds
Turn-On
Turn-Off
Offstate Clamping Resistance
Input Characteristics
Input Control Current
Input Voltage Drop
Reverse Input Current
Common Characteristics
Capacitance, Input to Output
Conditions
I
F
=5mA
I
F
=5mA
I
F
=25mA
I
F
=5mA, C
LOAD
=200pF
V
L
=1V
-
I
F
=5mA
V
R
=5V
-
Symbol
V
OC
I
SC
t
on
t
off
R
CL
I
F
V
F
I
R
-
Min
3
1
2.5
-
-
100
-
0.9
-
-
Typ
5.5
2.5
3.5
-
-
250
-
1.2
-
3
Max
8
9
20
5
5
3300
5
1.4
10
-
Units
V
A
ms
mA
V
µA
pF
2
www.clare.com
R05
FDA215
Manufacturing Information
Moisture Sensitivity
All plastic encapsulated semiconductor packages are susceptible to moisture ingression. Clare classified all
of its plastic encapsulated devices for moisture sensitivity according to the latest version of the joint industry
standard,
IPC/JEDEC J-STD-020,
in force at the time of product evaluation. We test all of our products to
the maximum conditions set forth in the standard, and guarantee proper operation of our devices when handled
according to the limitations and information in that standard as well as to any limitations set forth in the information or
standards referenced below.
Failure to adhere to the warnings or limitations as established by the listed specifications could result in reduced
product performance, reduction of operable life, and/or reduction of overall reliability.
This product carries a
Moisture Sensitivity Level (MSL) rating
as shown below, and should be handled according
to the requirements of the latest version of the joint industry standard
IPC/JEDEC J-STD-033.
Device
FDA215 / FDA215S
Moisture Sensitivity Level (MSL) Rating
MSL 1
ESD Sensitivity
This product is
ESD Sensitive,
and should be handled according to the industry standard
JESD-625.
Reflow Profile
This product has a maximum body temperature and time rating as shown below. All other guidelines of
J-STD-020
must be observed.
Device
FDA215 / FDA215S
Maximum Temperature x Time
250ºC for 30 seconds
Board Wash
Clare recommends the use of no-clean flux formulations. However, board washing to remove flux residue is
acceptable. Since Clare employs the use of silicone coating as an optical waveguide in many of its optically isolated
products, the use of a short drying bake may be necessary if a wash is used after solder reflow processes.
Chlorine-based or Fluorine-based solvents or fluxes should not be used. Cleaning methods that employ ultrasonic
energy should not be used.
Pb
RoHS
2002/95/EC
e
3
R05
www.clare.com
3
FDA215

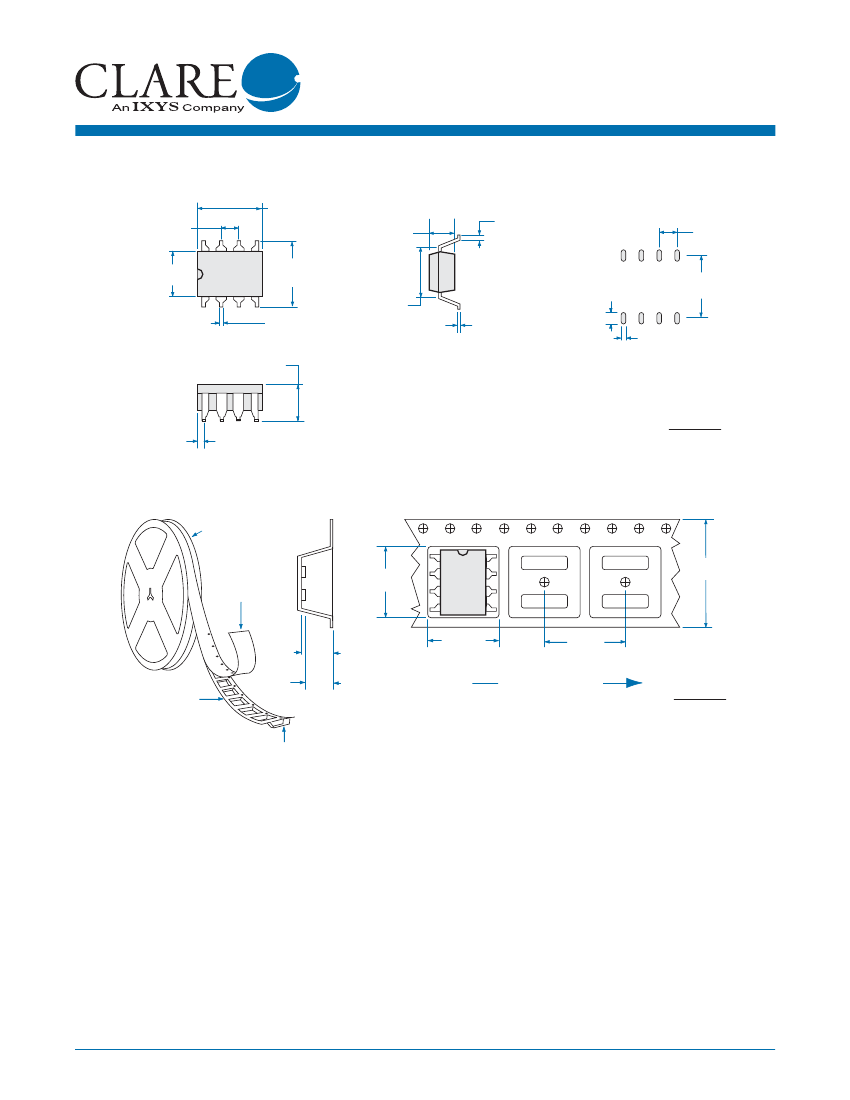

MECHANICAL DIMENSIONS
FDA215S
9.652 ± 0.381
(0.380 ± 0.015)
2.540 ± 0.127
(0.100 ± 0.005)
9.525 ± 0.254
(0.375 ± 0.010)
7.620 ± 0.254
(0.300 ± 0.010)
0.254 ± 0.127
(0.010 ± 0.0005)
3.302 ± 0.051
(0.130 ± 0.002)
0.635 ± 0.127
(0.025 ± 0.005)
PCB Land Pattern
2.54
(0.10)
6.350 ± 0.127
(0.250 ± 0.005)
1.65
(0.0649)
8.90
(0.3503)
0.457 ± 0.076
(0.018 ± 0.003)
4.445 ± 0.127
(0.175 ± 0.005)
0.65
(0.0255)
0.813 ± 0.120
(0.032 ± 0.004)
Dimensions
mm
(inches)
FDA215S Tape & Reel
330.2 DIA.
(13.00 DIA.)
Top Cover
Tape Thickness
0.102 MAX.
(0.004 MAX.)
W=16.00
(0.63)
Bo=10.30
(0.406)
K
0
=4.90
(0.193)
K
1
=4.20
(0.165)
Ao=10.30
(0.406)
P=12.00
(0.472)
User Direction of Feed
Dimensions
mm
(inches)
Embossed Carrier
Embossment
NOTES:
1. Dimensions carry tolerances of EIA Standard 481-2
2. Tape complies with all “Notes” for constant dimensions listed on page 5 of EIA-481-2
4
www.clare.com
R05
FDA215
FDA215
2.540 ± 0.127
(0.100 ± 0.005)
6.350 ± 0.127
(0.250 ± 0.005)
3.302 ± 0.051
(0.130 ± 0.002)
7.239 TYP.
(0.285)
0.254 TYP
(0.01)
9.652 ± 0.381
(0.380 ± 0.015)
7.620 ± 0.254
(0.300 ± 0.010)
PCB Hole Pattern
8-0.800 DIA.
(8-0.031 DIA.)
9.144 ± 0.508
(0.360 ± 0.020)
6.350 ± 0.127
(0.250 ± 0.005)
2.540 ± 0.127
(0.100 ± 0.005)
0.457 ± 0.076
(0.018 ± 0.003)
4.064 TYP
(0.160)
7.620 ± 0.127
(0.300 ± 0.005)
7.620 ± 0.127
(0.300 ± 0.005)
0.889 ± 0.102
(0.035 ± 0.004)
Dimensions
mm
(inches)
For additional information please visit our website at: www.clare.com
