J01271A0008 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> J01271A0008

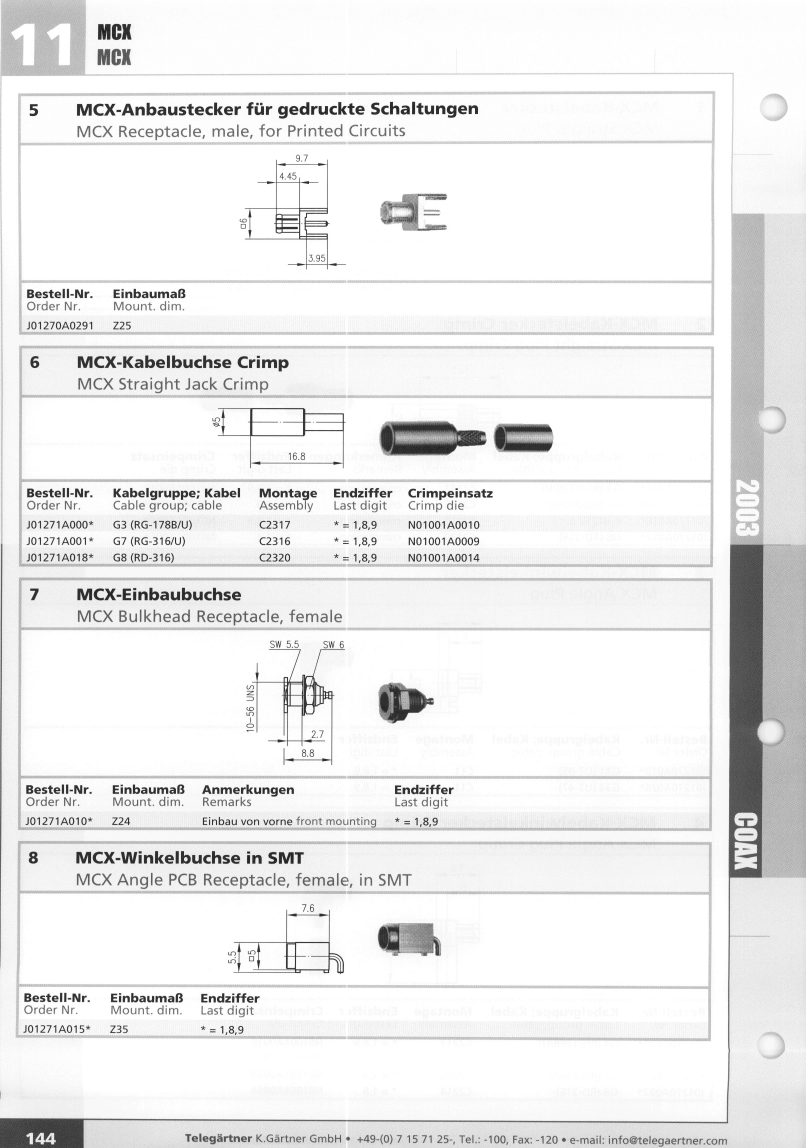

J01271A0008: DescriptionRF MCX Connector, Female, Cable Mount, Crimp Terminal, Jack,; CategoryThe connector The connector; File Size948KB，1 Pages; ManufacturerTelegartner Karl Gartner GmbH; Websitehttps://www.telegaertner.com

Download Datasheet Parametric Compare View All

J01271A0008 Overview

RF MCX Connector, Female, Cable Mount, Crimp Terminal, Jack,

J01271A0008 Parametric

Parameter Name	Attribute value
Maker	Telegartner Karl Gartner GmbH
Reach Compliance Code	compliant
Other features	STANDARD: IEC 169-19, APPLICABLE CABLE: RG-178B/U, VSWR MAX AT 1 GHZ
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF MCX CONNECTOR
Contact point gender	FEMALE
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	YES
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	6 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP
voltage standing wave ratio	1.58

Preview

Download Datasheet

View All

J01271A0008 Related Products

	J01271A0008	J01271A0109	J01271A0158	J01271A0019	J01271A0189	J01271A0159	J01271A0188	J01271A0018	J01271A0108
Description	RF MCX Connector, Female, Cable Mount, Crimp Terminal, Jack,	RF MCX Connector, Female, Panel Mount, Receptacle,	RF MCX Connector, Female, Board Mount, Surface Mount Terminal, Receptacle,	RF MCX Connector, Female, Cable Mount, Crimp Terminal, Jack,	RF MCX Connector, Female, Cable Mount, Crimp Terminal, Jack,	RF MCX Connector, Female, Board Mount, Surface Mount Terminal, Receptacle,	RF MCX Connector, Female, Cable Mount, Crimp Terminal, Jack,	RF MCX Connector, Female, Cable Mount, Crimp Terminal, Jack,	RF MCX Connector, Female, Panel Mount, Receptacle,
Maker	Telegartner Karl Gartner GmbH	Telegartner Karl Gartner GmbH	Telegartner Karl Gartner GmbH	Telegartner Karl Gartner GmbH	Telegartner Karl Gartner GmbH	Telegartner Karl Gartner GmbH	Telegartner Karl Gartner GmbH	Telegartner Karl Gartner GmbH	Telegartner Karl Gartner GmbH
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	STANDARD: IEC 169-19, APPLICABLE CABLE: RG-178B/U, VSWR MAX AT 1 GHZ	STANDARD: IEC 169-19, VSWR MAX AT 1 GHZ	STANDARD: IEC 169-19, VSWR MAX AT 1 GHZ	STANDARD: IEC 169-19, APPLICABLE CABLE: RG-316/U, VSWR MAX AT 1 GHZ	STANDARD: IEC 169-19, APPLICABLE CABLE: RD-316, VSWR MAX AT 1 GHZ	STANDARD: IEC 169-19, VSWR MAX AT 1 GHZ	STANDARD: IEC 169-19, APPLICABLE CABLE: RD-316, VSWR MAX AT 1 GHZ	STANDARD: IEC 169-19, APPLICABLE CABLE: RG-316/U, VSWR MAX AT 1 GHZ	STANDARD: IEC 169-19, VSWR MAX AT 1 GHZ
Body/casing type	JACK	RECEPTACLE	RECEPTACLE	JACK	JACK	RECEPTACLE	JACK	JACK	RECEPTACLE
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF MCX CONNECTOR	RF MCX CONNECTOR	RF MCX CONNECTOR	RF MCX CONNECTOR	RF MCX CONNECTOR	RF MCX CONNECTOR	RF MCX CONNECTOR	RF MCX CONNECTOR	RF MCX CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Coupling type	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	YES	YES	YES	YES	YES	YES	YES	YES	YES
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	RIGHT ANGLE	STRAIGHT	STRAIGHT	RIGHT ANGLE	STRAIGHT	STRAIGHT	STRAIGHT
Maximum operating frequency	6 GHz	6 GHz	6 GHz	6 GHz	6 GHz	6 GHz	6 GHz	6 GHz	6 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	YES	NO	NO	NO	NO	NO	NO	YES
voltage standing wave ratio	1.58	1.58	1.73	1.58	1.58	1.73	1.58	1.58	1.58
Installation type	CABLE	-	BOARD	CABLE	CABLE	BOARD	CABLE	CABLE	-
Termination type	CRIMP	-	SURFACE MOUNT	CRIMP	CRIMP	SURFACE MOUNT	CRIMP	CRIMP	-
