UNISONIC TECHNOLOGIES CO.,LTD.
XL/ML1225
MEDIUM POWER LOW
VOLTAGE TRANSISTOR
DESCRIPTION
The
XL1225/ML1225
silicon controlled rectifiers are high
performance planner diffused PNPN devices. These parts are
intended for low cost high volume applications.
SCR

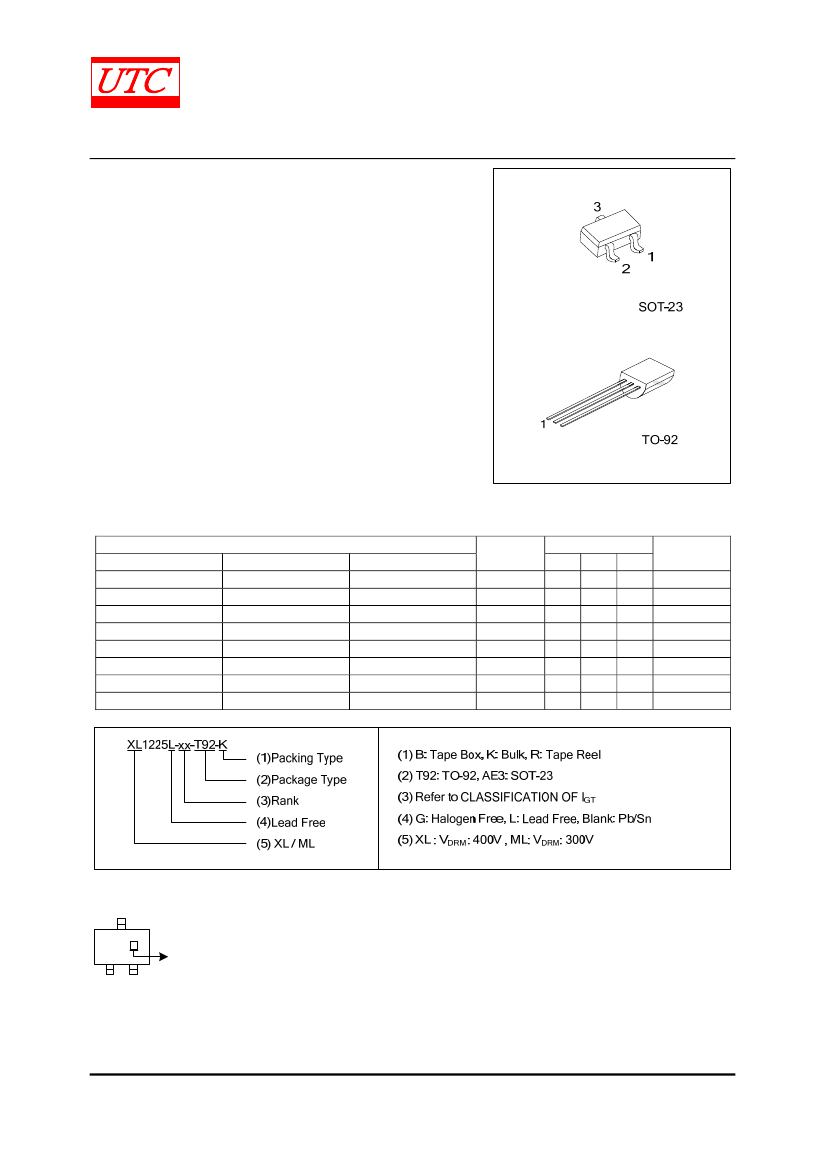

ORDERING INFORMATION
Ordering Number
Normal
Lead Free
XL1225-x-AE3-R
XL1225L-x-AE3-R
XL1225-x-T92-B
XL1225L-x-T92-B
XL1225-x-T92-K
XL1225L-x-T92-K
XL1225-x-T92-R
XL1225L-x-T92-R
ML1225-x-AE3-R
ML1225L-x-AE3-R
ML1225-x-T92-B
ML1225L-x-T92-B
ML1225-x-T92-K
ML1225L-x-T92-K
ML1225-x-T92-R
ML1225L-x-T92-R
Note: G: Gate, K:Cathode, A: Anode
Halogen Free
XL1225G-x-AE3-R
XL1225G-x-T92-B
XL1225G-x-T92-K
XL1225G-x-T92-R
ML1225G-x-AE3-R
ML1225G-x-T92-B
ML1225G-x-T92-K
ML1225G-x-T92-R
Package
SOT-23
TO-92
TO-92
TO-92
SOT-23
TO-92
TO-92
TO-92
Pin Assignment
1
2
3
G
K
A
K
G
A
K
G
A
K
G
A
G
K
A
K
G
A
K
G
A
K
G
A
Packing
Tape Reel
Tape Box
Bulk
Tape Reel
Tape Reel
Tape Box
Bulk
Tape Reel
MARKING
X25X
L: Lead Plating
G: Halogen Free
(SOT-23)
www.unisonic.com.tw
Copyright © 2011 Unisonic Technologies Co.,LTD.
1 of 3
QW-R301-003.F
XL/ML1225
ABSOLUATE MAXIUM RATINGS
(Ta= 25°C, unless otherwise specified)
SCR
PARAMETER
SYMBOL
RATINGS
UNIT
Repetitive Peak Off-State Voltage
XL1225
400
V
DRM
V
(T
J
=40 ~ 125°C, R
GK
=1kΩ )
ML1225
300
On-State Current (Tc=40°C)
I
T(RMS)
0.8
A
Average On-State Current
(Half Cycle=180,Tc=40°C)
I
T(AV)
0.5
A
Peak Reverse Gate Voltage (IGR=10μA)
V
GRM
1
V
Peak Gate Current (10μs Max.)
I
GM
0.1
A
Gate Dissipation (20ms Max.)
P
G(AV)
150
mW
Junction Temperature
T
J
+125
°C
Storage Temperature
T
STG
-40 ~ +150
°C
Note 1. Absolute maximum ratings are those values beyond which the device could be permanently damaged.
Absolute maximum ratings are stress ratings only and functional device operation is not implied.
2. The device is guaranteed to meet performance specification within 0℃~70
℃
operating temperature range
and assured by design from –20°C ~85°C.
ELECTRICAL CHARACTERISTICS
(Ta= 25°C, unless otherwise specified.)
PARAMETER
Off State Leakage Current
Off State Leakage Current
On State Voltage
On State Threshold Voltage
On State Slops Resistance
Gate Trigger Current
Gate Trigger Voltage
Holding Current
Latching Current
Critical Rate of Voltage Rise
Critical Rate of Current Rise
Gate Controlled Delay Time
Commutated Turn-off Time
SYMBOL
TEST CONDITIONS
MIN
I
DRM
V
DRM
(R
GK
=1KΩ), T
J
=125°C
I
DRM
V
DRM
(R
GK
=1KΩ), T
J
=25°C
AT I
T
=0.4A
V
T
AT I
T
=0.8A
V
T(TO)
T
J
=125°C
Rt
T
J
=125°C
I
GT
V
D
=7V
V
GT
V
D
=7V
I
H
R
GK
=1KΩ
I
L
R
GK
=1KΩ
DV/DT V
D
=0.67*V
DRM
(R
GK
=1KΩ),T
J
=125°C
DV/DT I
G
=10mA, dI
G
/dt=0.1A/μs,T
J
=125°C
T
GD
I
G
=10mA, dI
G
/dt=0.1A/μs
TG
T
J
=85°C, V
D
=0.67*V
DRM
, V
R
=35V, I
T
=I
T(AV)
TYP
MAX UNIT
0.1
mA
1.0
μA
1.4
V
2.2
0.95
V
600
m
200
μA
0.8
V
5
mA
6
mA
V/μs
A/μs
2.2
μs
200
μs
CLASSIFICATION OF I
GT
RANK
RANGE
B
50-100
C
100-200
AA
8-15
AB
15-20
AC
20-25
AD
25-50
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
2 of 3
QW-R301-003.F
XL/ML1225
■

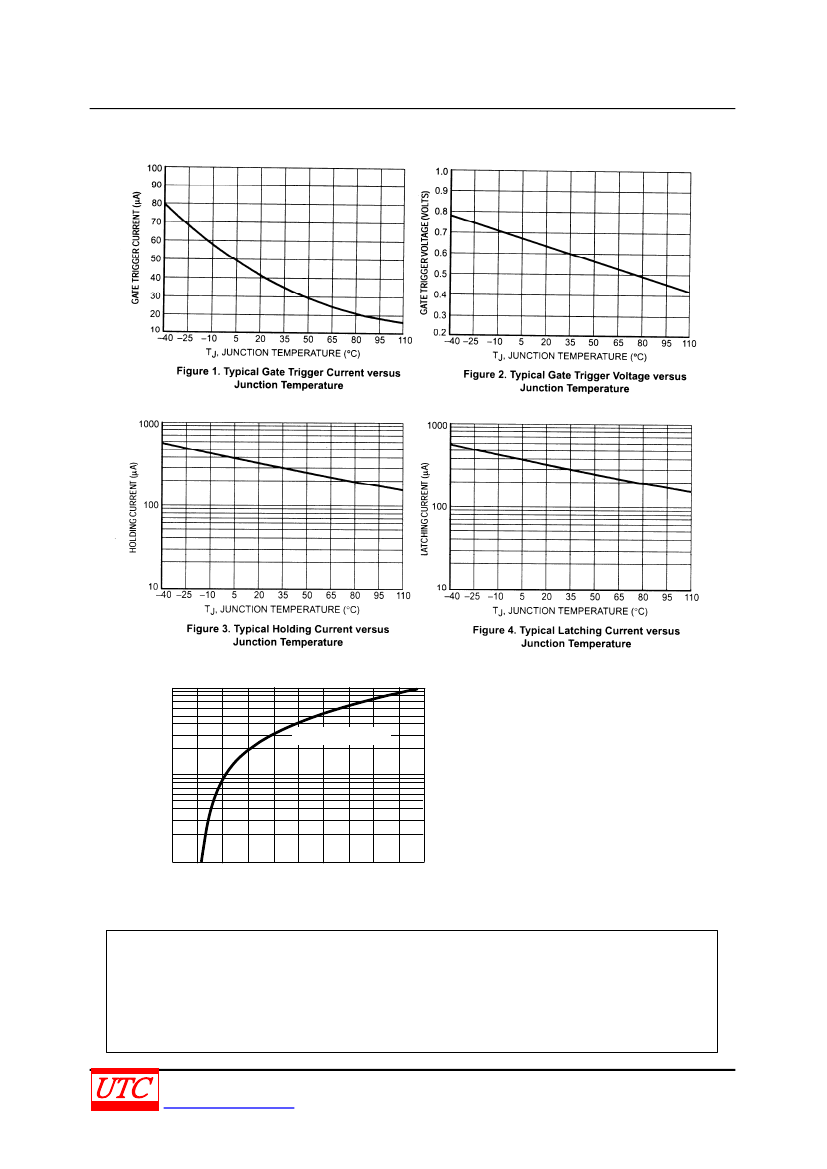

TYPICAL CHARACTERICS
SCR
10
I
T
,INSTANTANEOUS ON-STATE CURRENT (A)
MAXIMUM @Tj=25℃
1
0.1
0.5
0.8
1.1
1.4
1.7
2.0
2.3
2.6
2.9
3.2
3.5
V
T
,INSTANTANEOUS ON-STATE VOLTAGE (V)
Figure 5. Typical On-State Characteristics
