DS402ST09 datasheet, PDF - EEWORLD Datasheet

DS402ST09: DescriptionRectifier Diode, 1 Phase, 1 Element, 640A, 900V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size174KB，6 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

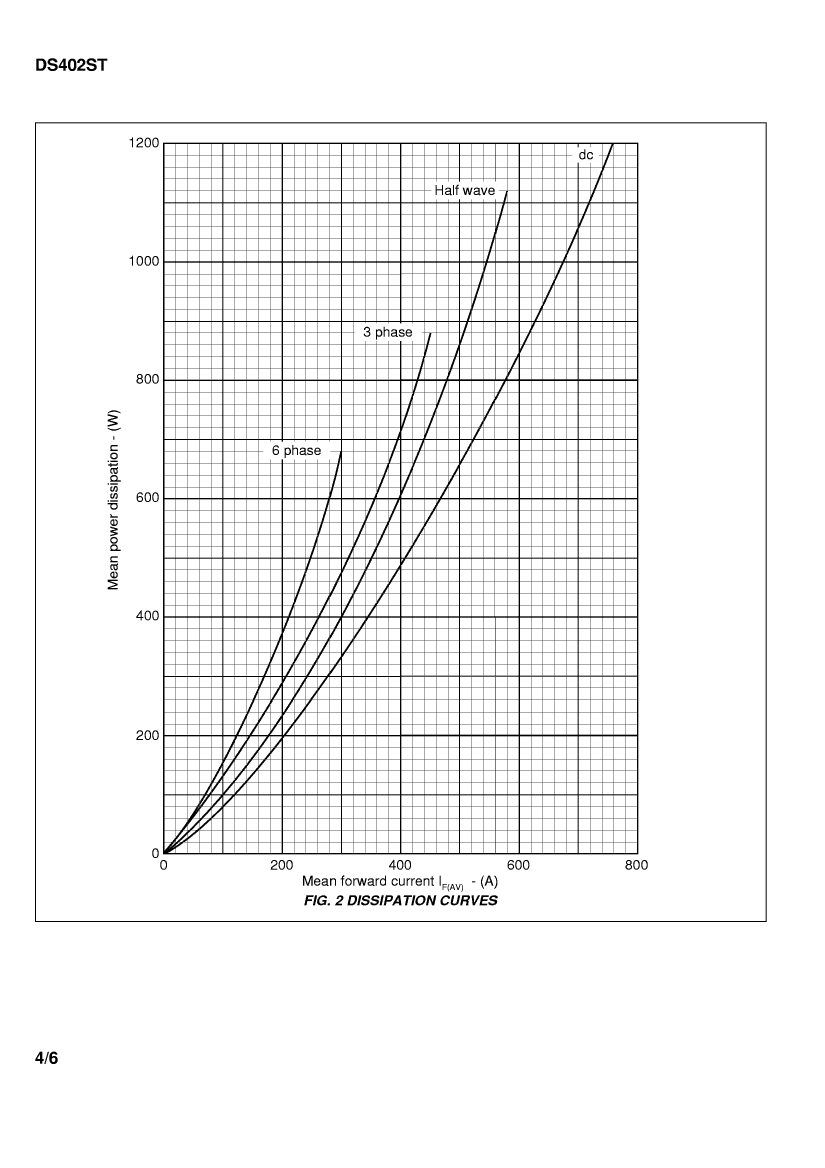

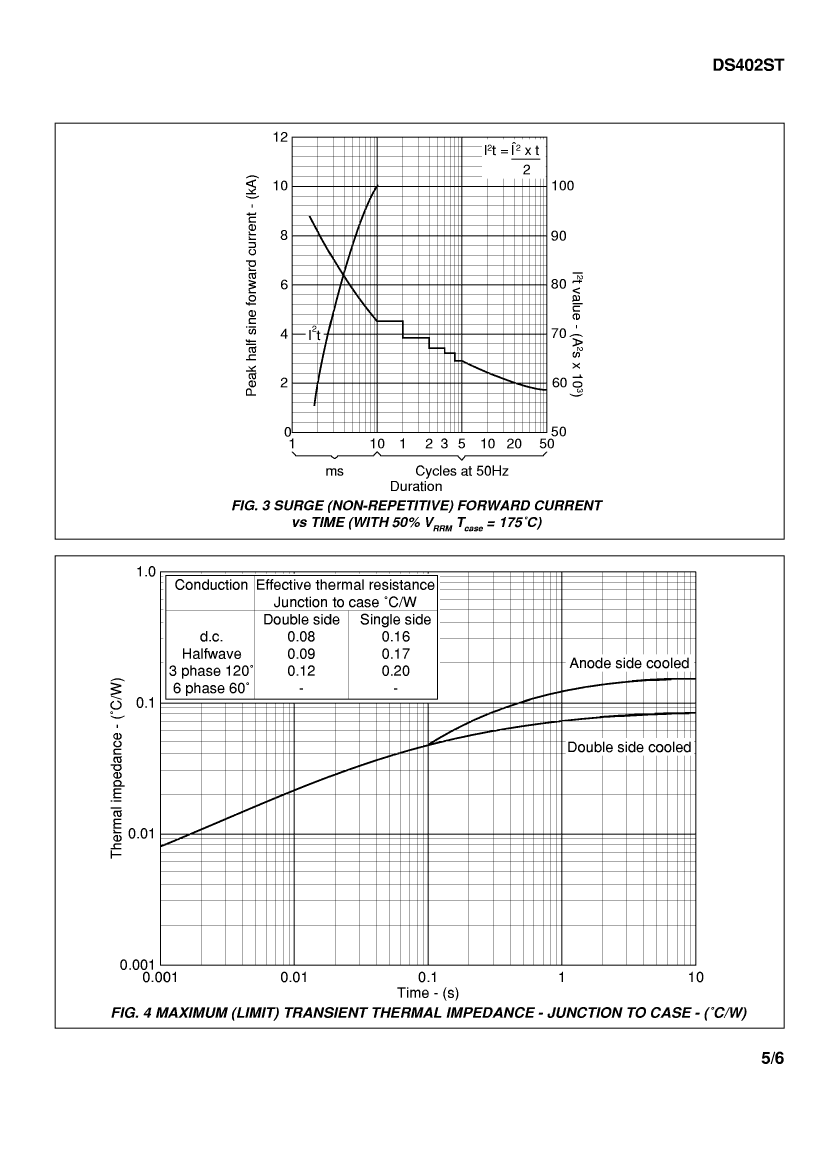

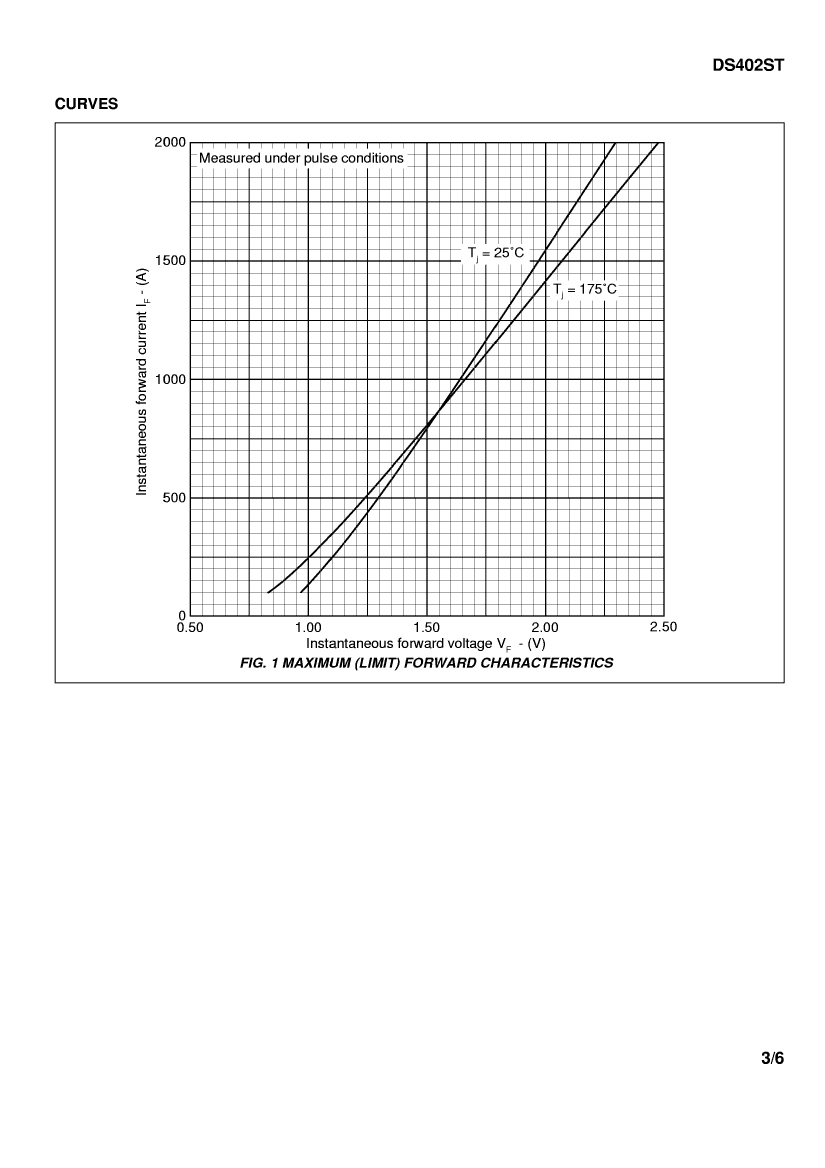

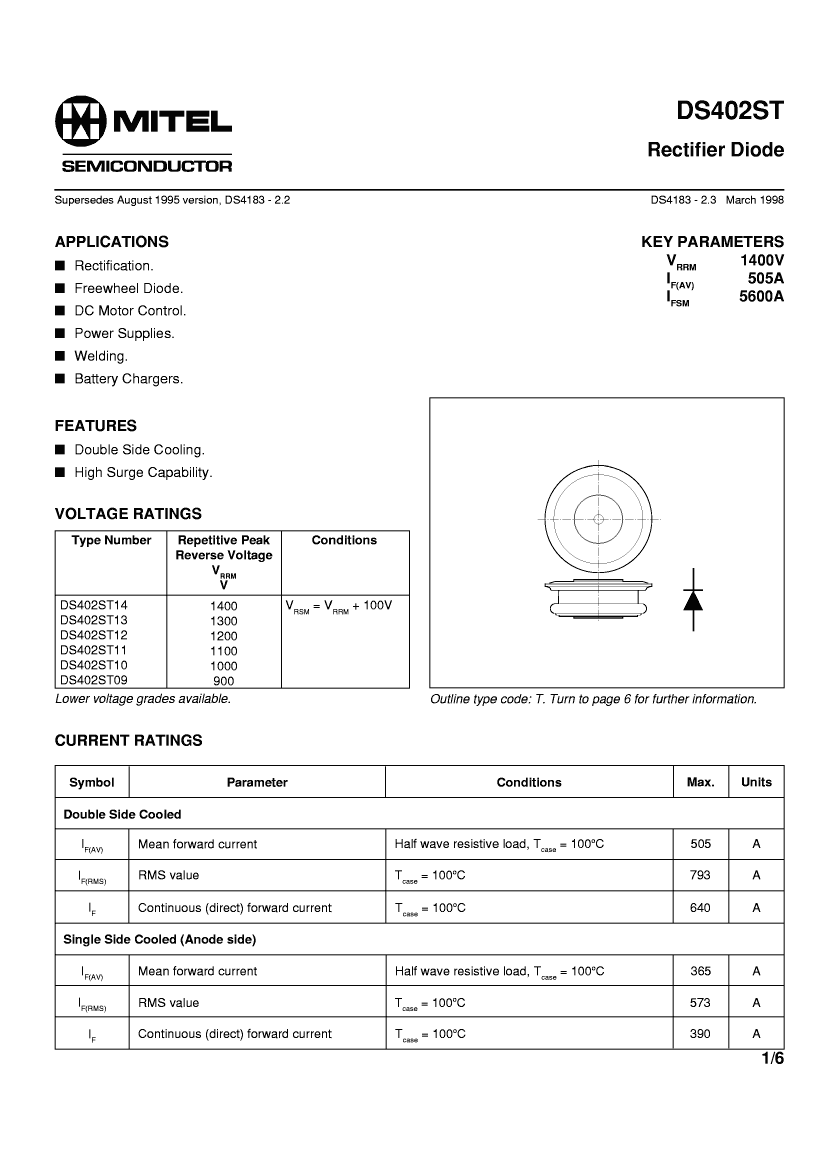

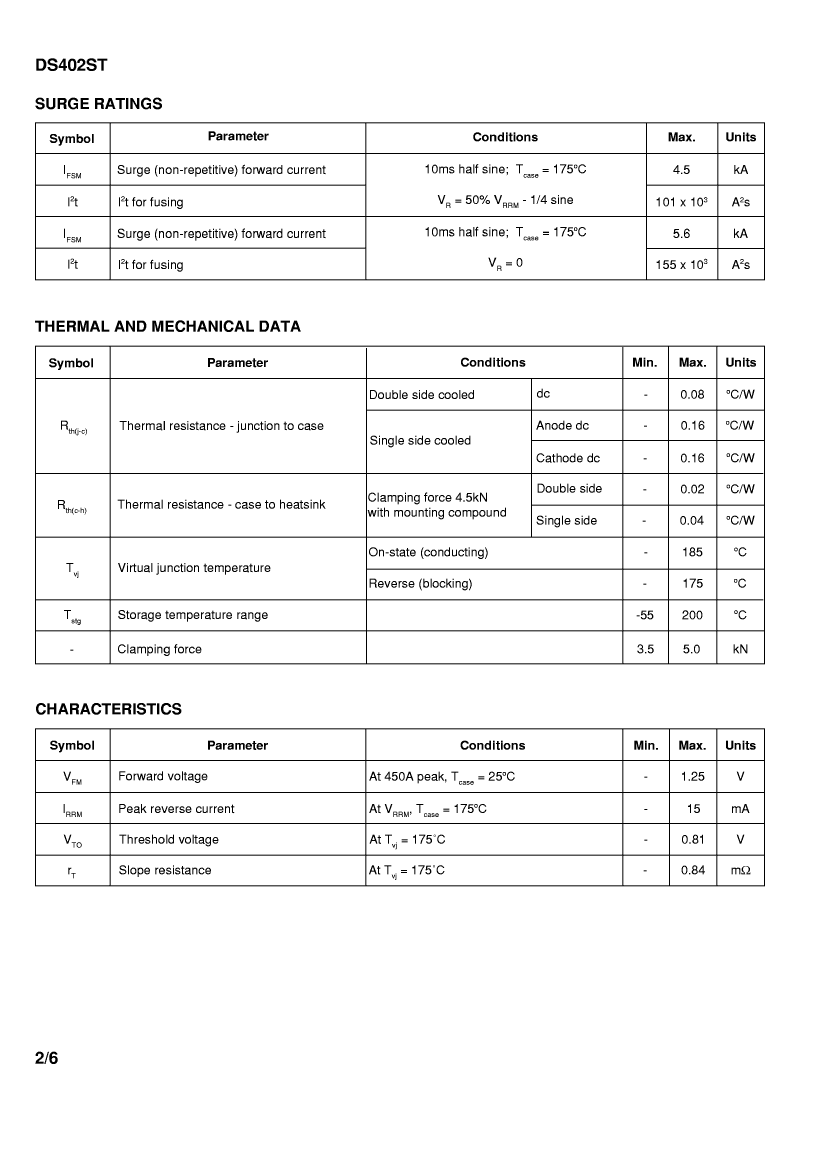

DS402ST09 Overview

Rectifier Diode, 1 Phase, 1 Element, 640A, 900V V(RRM), Silicon,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Microsemi
Reach Compliance Code	unknown
Configuration	SINGLE
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.25 V
Maximum non-repetitive peak forward current	4500 A
Number of components	1
Maximum operating temperature	175 °C
Maximum output current	500 A
Maximum repetitive peak reverse voltage	900 V
surface mount	NO

	DS402ST09	DS402ST10	DS402ST12	DS402ST11	DS402ST14	DS402ST13
Description	Rectifier Diode, 1 Phase, 1 Element, 640A, 900V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 640A, 1000V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 640A, 1200V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 640A, 1100V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 640A, 1400V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 640A, 1300V V(RRM), Silicon,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Microsemi	Microsemi	Microsemi	Microsemi	Microsemi	Microsemi
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.25 V	1.25 V	1.25 V	1.25 V	1.25 V	1.25 V
Maximum non-repetitive peak forward current	4500 A	4500 A	4500 A	4500 A	5600 A	5600 A
Number of components	1	1	1	1	1	1
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C
Maximum output current	500 A	500 A	500 A	500 A	505 A	505 A
Maximum repetitive peak reverse voltage	900 V	1000 V	1200 V	1100 V	1400 V	1300 V
surface mount	NO	NO	NO	NO	NO	NO
