DCR1008SF36 datasheet, PDF - EEWORLD Datasheet

DCR1008SF36: DescriptionSilicon Controlled Rectifier, 770000mA I(T), 3600V V(DRM),; CategoryAnalog mixed-signal IC Trigger device; File Size343KB，8 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

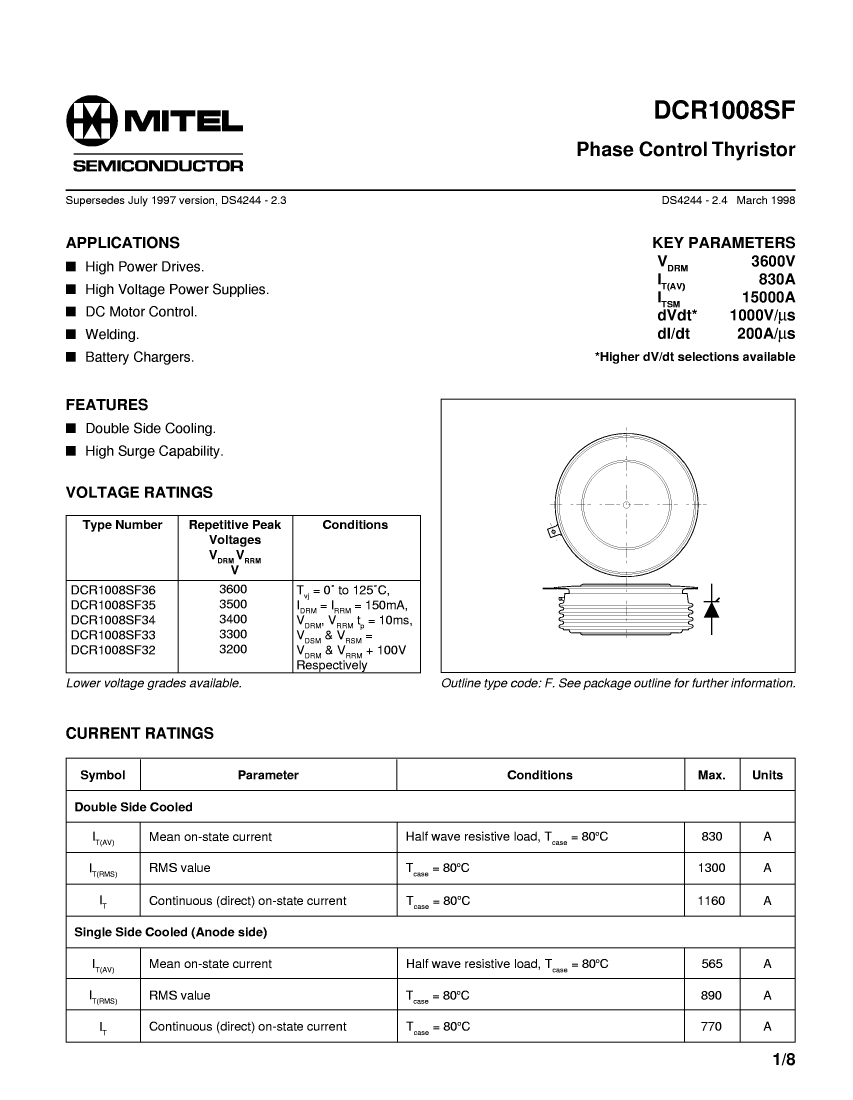

DCR1008SF36 Overview

Silicon Controlled Rectifier, 770000mA I(T), 3600V V(DRM),

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Microsemi
Reach Compliance Code	unknown
ECCN code	EAR99

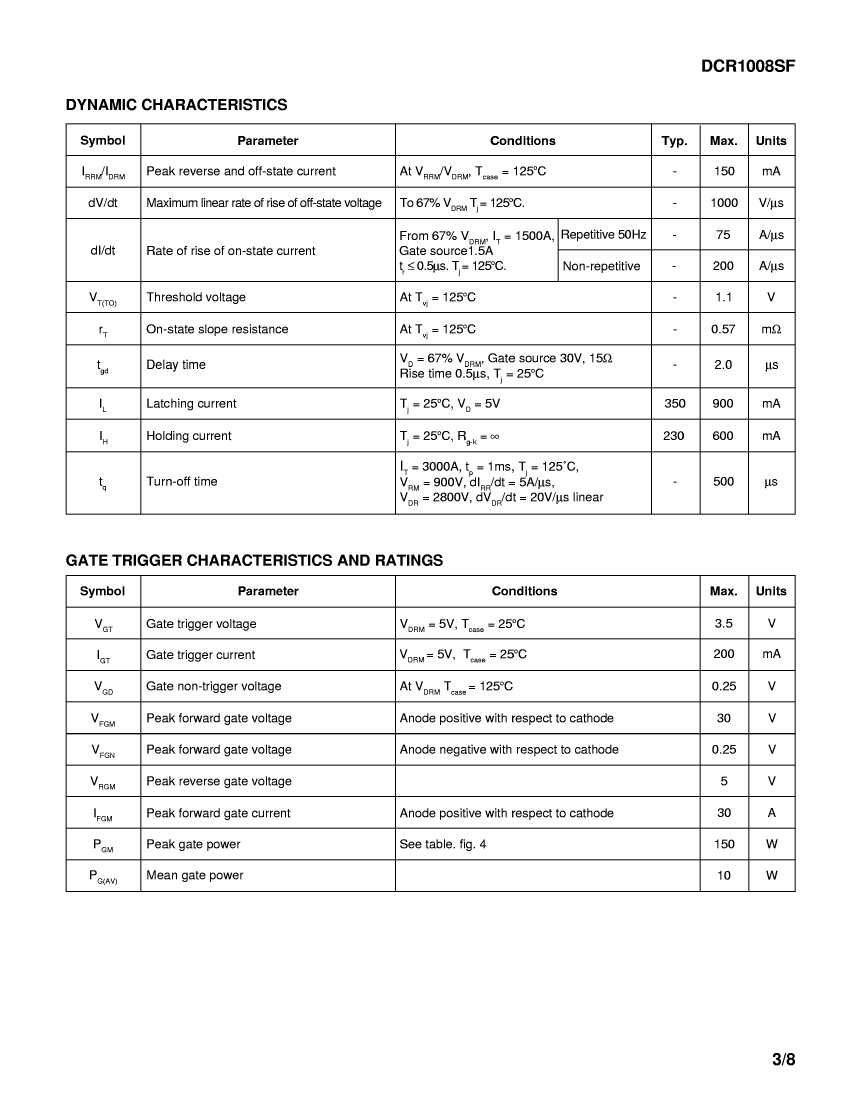

Nominal circuit commutation break time	500 µs
Critical rise rate of minimum off-state voltage	1000 V/us
Maximum DC gate trigger current	200 mA
Maximum DC gate trigger voltage	3.5 V
Maximum holding current	600 mA

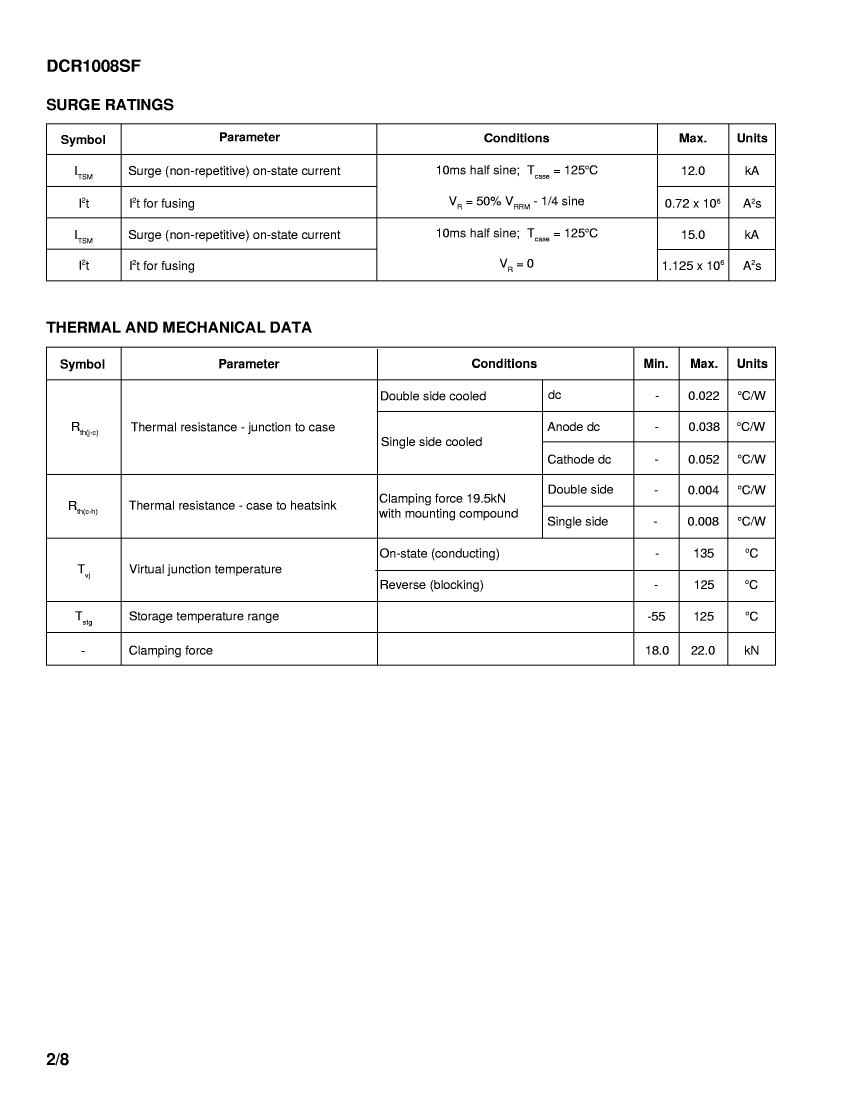

On-state non-repetitive peak current	12000 A

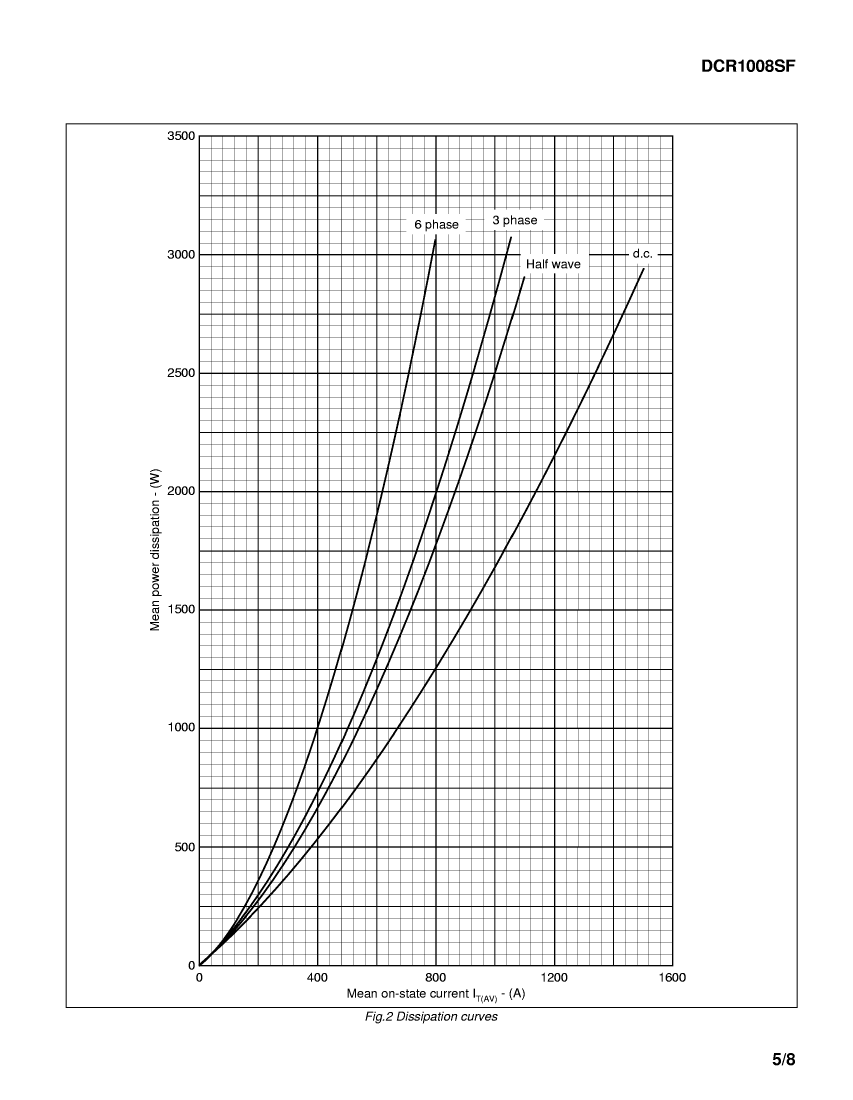

Maximum on-state current	770000 A
Maximum operating temperature	125 °C
Off-state repetitive peak voltage	3600 V
surface mount	NO
Trigger device type	SCR

	DCR1008SF36	DCR1008SF32	DCR1008SF33	DCR1008SF34	DCR1008SF35
Description	Silicon Controlled Rectifier, 770000mA I(T), 3600V V(DRM),	Silicon Controlled Rectifier, 770000mA I(T), 3200V V(DRM),	Silicon Controlled Rectifier, 770000mA I(T), 3300V V(DRM),	Silicon Controlled Rectifier, 770000mA I(T), 3400V V(DRM),	Silicon Controlled Rectifier, 770000mA I(T), 3500V V(DRM),
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Microsemi	Microsemi	Microsemi	Microsemi	Microsemi
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Nominal circuit commutation break time	500 µs	500 µs	500 µs	500 µs	500 µs
Critical rise rate of minimum off-state voltage	1000 V/us	1000 V/us	1000 V/us	1000 V/us	1000 V/us
Maximum DC gate trigger current	200 mA	200 mA	200 mA	200 mA	200 mA
Maximum DC gate trigger voltage	3.5 V	3.5 V	3.5 V	3.5 V	3.5 V
Maximum holding current	600 mA	600 mA	600 mA	600 mA	600 mA
On-state non-repetitive peak current	12000 A	12000 A	12000 A	12000 A	12000 A
Maximum on-state current	770000 A	770000 A	770000 A	770000 A	770000 A
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Off-state repetitive peak voltage	3600 V	3200 V	3300 V	3400 V	3500 V
surface mount	NO	NO	NO	NO	NO
Trigger device type	SCR	SCR	SCR	SCR	SCR
