UNISONIC TECHNOLOGIES CO., LTD
DTC114Y
NPN DIGITAL TRANSISTOR
(BUILT- IN BIAS RESISTORS)
FEATURES
* Built-in bias resistors that implies easy ON/OFF applications.
* The bias resistors are thin-film resistors with complete isolation to
allow negative input.
NPN SILICON TRANSISTOR
EQUIVALENT CIRCUIT
ORDERING INFORMATION
Ordering Number
Lead Free
Halogen Free
DTC114YL-AE3-R
DTC114YG-AE3-R
DTC114YL-AL3-R
DTC114YG-AL3-R
DTC114YL-AN3-R
DTC114YG-AN3-R
DTC114YL-T92-B
DTC114YG-T92-B
DTC114YL-T92-K
DTC114YG-T92-K
DTC114YL-T92-R
DTC114YG-T92-R
DTC114YL-T9S-K
DTC114YG-T9S-K
Package
SOT-23
SOT-323
SOT-523
TO-92
TO-92
TO-92
TO-92SP
Pin Assignment
1
2
3
G
I
O
G
I
O
G
I
O
G
O
I
G
O
I
G
O
I
G
O
I
Packing
Tape Reel
Tape Reel
Tape Reel
Tape Box
Bulk
Tape Reel
Bulk
MARKING
www.unisonic.com.tw
Copyright © 2011 Unisonic Technologies Co., Ltd
1 of 3
QW-R223-003,D
DTC114Y
ABSOLUTE MAXIMUM RATINGS
(T
A
=25°C)
PARAMETER
SYMBOL
V
CC
V
IN
I
OUT
I
O(MAX.)
NPN SILICON TRANSISTOR
RATINGS
UNIT
Supply Voltage
50
V
Input Voltage
-6 ~ +40
V
70
mA
Output Current
100
mA
SOT-23/SOT-323
200
SOT-523
150
Power Dissipation
P
D
mW
TO-92
625
TO-92SP
550
Junction Temperature
T
J
+150
°C
Storage Temperature
T
STG
-55 ~ +150
°C
Note: Absolute maximum ratings are those values beyond which the device could be permanently damaged.
Absolute maximum ratings are stress ratings only and functional device operation is not implied.
ELECTRICAL SPECIFICATIONS
(T
A
=25°C, unless others specified)
SYMBOL
TEST CONDITIONS
V
IN(OFF)
V
CC
=5V, I
OUT
=100μA
Input Voltage
V
IN(ON)
V
OUT
=0.3V, I
OUT
=1mA
Output Voltage
V
OUT(ON)
I
OUT
/I
IN
=5mA/0.25mA
Input Current
I
IN
V
IN
=5V
Output Current
I
OUT(OFF)
V
CC
=50V, V
IN
=0V
DC Current Gain
h
FE
V
OUT
=5V, I
OUT
=5mA
Input Resistance
R
1
R
2
Resistor Ratio
R
1
Transition Frequency
f
T
V
CE
=10V, I
E
=−5mA, f=100MHz
Note: Transition frequency of the device
PARAMETER
MIN
1.4
0.1
0.3
0.88
0.5
13
5.7
MHz
TYP
MAX
0.3
UNIT
V
V
V
mA
μA
KΩ
68
7
3.7
10
4.7
250
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
2 of 3
QW-R223-003,D
DTC114Y

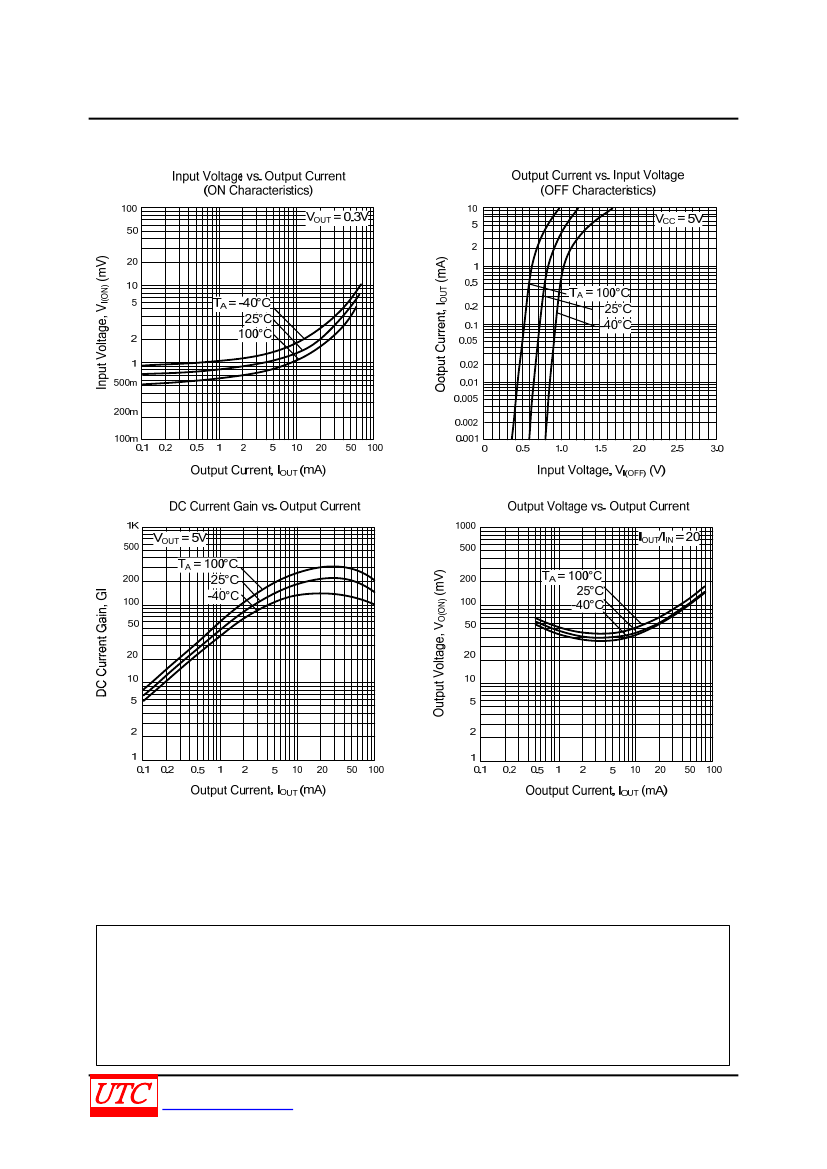

TYPICAL CHARACTERISTICS
