DTC124EG-AL3-R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> DTC124EG-AL3-R

DTC124EG-AL3-R: DescriptionNPN DIGITAL TRANSISTOR; CategoryDiscrete semiconductor The transistor; File Size170KB，3 Pages; ManufacturerUNISONIC TECHNOLOGIES CO.,LTD; Websitehttp://www.unisonic.com.tw/; Environmental Compliance

Download Datasheet Parametric Compare View All

DTC124EG-AL3-R Overview

NPN DIGITAL TRANSISTOR

DTC124EG-AL3-R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	UNISONIC TECHNOLOGIES CO.,LTD
package instruction	SMALL OUTLINE, R-PDSO-G3
Contacts	3
Reach Compliance Code	compli
ECCN code	EAR99
Other features	BUILT IN BIAS RESISTOR RATIO IS 1
Maximum collector current (IC)	0.1 A
Collector-emitter maximum voltage	50 V
Configuration	SINGLE WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)	56
JESD-30 code	R-PDSO-G3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	NPN
Maximum power dissipation(Abs)	0.2 W
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	250 MHz

Preview

Download Datasheet

View All

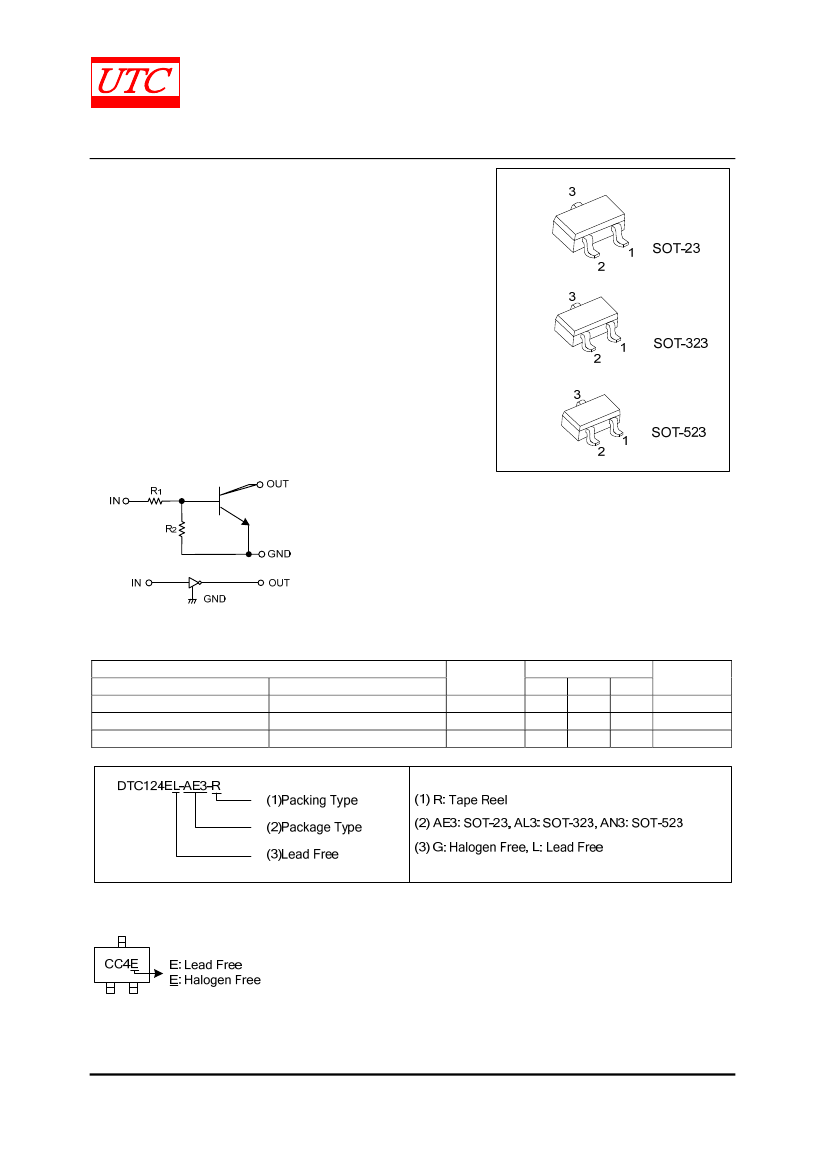

UNISONIC TECHNOLOGIES CO.,

DTC124E

NPN DIGITAL TRANSISTOR

(BUILT-IN RESISTORS)

FEATURES

NPN EPITAXIAL SILICON TRANSISTOR

*Built-in bias resistors enable the configuration of an inverter

circuit without connecting external input

resistors (see the equivalent circuit).

*The bias resistors consist of thin-film resistors with

complete isolation to allow positive biasing of the input

They also have the advantage of almost completely

eliminating parasitic effects.

*Only the on / off conditions need to be set for operation,

making device design easy.

EQUIVALENT CIRCUIT

ORDERING INFORMATION

Ordering Number

Lead Free

DTC124EL-AE3-R

DTC124EL-AL3-R

DTC124EL-AN3-R

Note: Pin Assignment: G: GND

Halogen Free

DTC124EG-AE3-R

DTC124EG-AL3-R

DTC124EG-AN3-R

I: IN O: OUT

Package

SOT-23

SOT-323

SOT-523

Pin Assignment

Packing

Tape Reel

MARKING

www.unisonic.com.tw

1 of 3

QW-R206-045,D

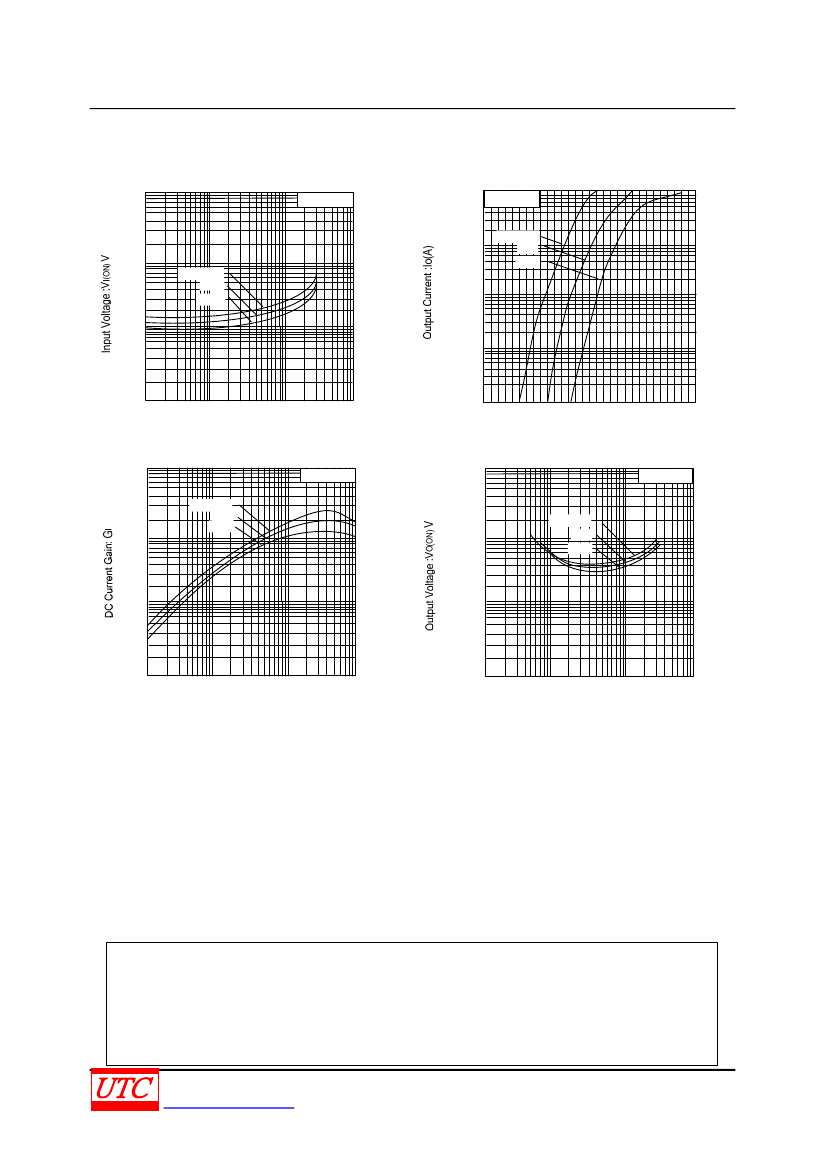

DTC124EG-AL3-R Related Products

	DTC124EG-AL3-R	DTC124EG-AE3-R	DTC124EG-AN3-R	DTC124EL-AL3-R	DTC124EL-AN3-R	DTC124E_11
Description	NPN DIGITAL TRANSISTOR	NPN DIGITAL TRANSISTOR	NPN DIGITAL TRANSISTOR	NPN DIGITAL TRANSISTOR	NPN DIGITAL TRANSISTOR	NPN DIGITAL TRANSISTOR
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	-
Maker	UNISONIC TECHNOLOGIES CO.,LTD	UNISONIC TECHNOLOGIES CO.,LTD	UNISONIC TECHNOLOGIES CO.,LTD	UNISONIC TECHNOLOGIES CO.,LTD	UNISONIC TECHNOLOGIES CO.,LTD	-
package instruction	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	-
Contacts	3	3	3	3	3	-
Reach Compliance Code	compli	compli	compli	compli	compli	-
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	-
Other features	BUILT IN BIAS RESISTOR RATIO IS 1	BUILT IN BIAS RESISTOR RATIO IS 1	BUILT IN BIAS RESISTOR RATIO IS 1	BUILT IN BIAS RESISTOR RATIO IS 1	BUILT IN BIAS RESISTOR RATIO IS 1	-
Maximum collector current (IC)	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	-
Collector-emitter maximum voltage	50 V	50 V	50 V	50 V	50 V	-
Configuration	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR	-
Minimum DC current gain (hFE)	56	56	56	56	56	-
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	-
Number of components	1	1	1	1	1	-
Number of terminals	3	3	3	3	3	-
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	-
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
Polarity/channel type	NPN	NPN	NPN	NPN	NPN	-
Maximum power dissipation(Abs)	0.2 W	0.2 W	0.15 W	0.2 W	0.15 W	-
surface mount	YES	YES	YES	YES	YES	-
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	-
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	-
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	-
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	-
Nominal transition frequency (fT)	250 MHz	250 MHz	250 MHz	250 MHz	250 MHz	-
