PE-53910 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> PE-53910

PE-53910: DescriptionData Line Filter, 2 Function(s), 250V, 3.6A, SURFACE MOUNT PACKAGE-4; CategoryAnalog mixed-signal IC filter; File Size100KB，1 Pages; ManufacturerPulse Electronics

Download Datasheet Parametric Compare View All

PE-53910 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PE-53910	-	-	View	Buy Now

PE-53910 Overview

Data Line Filter, 2 Function(s), 250V, 3.6A, SURFACE MOUNT PACKAGE-4

PE-53910 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Pulse Electronics
package instruction	SURFACE MOUNT PACKAGE-4
Reach Compliance Code	unknown
ECCN code	EAR99
Certification	VDE
Maximum DC resistance	0.05 Ω
filter type	DATA LINE FILTER
high	9.9 mm
inductance	600 µH
JESD-609 code	e0
length	19.56 mm
Installation type	SURFACE MOUNT
Number of functions	2
Maximum operating temperature	130 °C
Minimum operating temperature	-40 °C
physical size	L19.56XB17.02XH9.9 (mm)/L0.77XB0.67XH0.39 (inch)
Rated current	3.6 A
Rated voltage	250 V
Terminal surface	Tin/Lead (Sn/Pb)
width	17.02 mm

Preview

Download Datasheet

View All

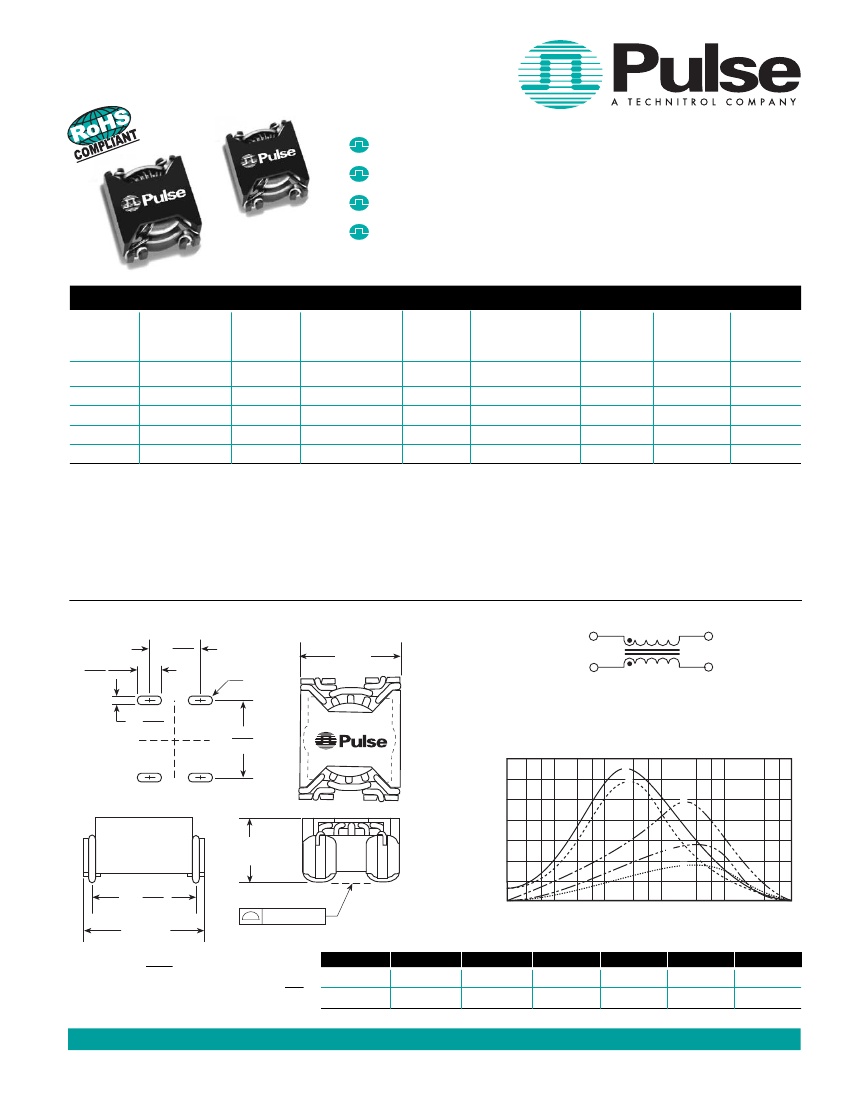

SMT COMMON MODE INDUCTORS

0.5A to 3.6A

Pick and place compatible

Rated voltage 250V

Low RFI toroid

Tape & Reel packaging available

Electrical Specifications @ 25°C — Operating Temperature -40°C to +130°C

Part

1,2

Number

PE-53914

PE-53913

PE-53912

PE-53911

PE-53910

Inductance

(mH MIN)

13.2

6.0

1.8

0.9

0.6

Irated

(A)

0.50

1.00

2.50

1.50

3.60

DCR (MAX)

(mΩ)

850

450

Typical

SRF

(MHz)

0.3

0.5

2.2

Impedance

Curve

Size

Code

LCCI-37

LCCI-50

LCCI-37

LCCI-50

Weight

(Grams)

2.4

5.2

2.5

5.3

Quantity

In Tube

NOTE:

1. Optional Tape & Reel packaging can be ordered by adding a "T"

suffix to the part number (i.e. PE-53914 becomes PE-53914T).

Pulse complies to industry standard tape and reel specification

EIA481.

2. To order RoHS compliant part, add the suffix "NL" to the part

number (i.e. PE-53914 becomes PE-53914NL and PE-53914T

becomes PE-53914NLT).

3. The temperature of the component (ambient plus temperature rise)

must be within the stated operating temperature range.

Mechanical

E± .005

0,13

.060

1,52

Schematic

MAX

1:1 ±2%

.175

4,45

F± .005

0,13

Typical Impedance Curves

Impedance

(Ω)

SUGGESTED PAD LAYOUT

MAX

D± .015

0,38

B MAX

.005/0,13

4 SURFACES

0.01

0.1

100

Frequency (MHz)

Size

LCCI-37

LCCI-50

.560/14,22

.670/17,02

.645/16,38

.770/19,56

.350/8,89

.390/9,90

.520/13,21

.650/16,51

.340/8,64

.445/11,30

.530/13,46

.660/16,76

Dimensions:

Inches

Unless otherwise specified, all tolerances are ± .010

0,25

USA 858 674 8100

•

Germany 49 7032 7806 0

•

Singapore 65 6287 8998

•

Shanghai

86 21 54643211 / 2

•

China 86 755 33966678

•

Taiwan 886 3 4641811

www.pulseeng.com

115

SPM2007 (7/07)

PE-53910 Related Products

	PE-53910	PE-53911T	PE-53911	PE-53912T	PE-53913T	PE-53914T	PE-53910T
Description	Data Line Filter, 2 Function(s), 250V, 3.6A, SURFACE MOUNT PACKAGE-4	Data Line Filter, 2 Function(s), 250V, 1.5A, SURFACE MOUNT PACKAGE-4	Data Line Filter, 2 Function(s), 250V, 1.5A, SURFACE MOUNT PACKAGE-4	Data Line Filter, 2 Function(s), 250V, 2.5A, SURFACE MOUNT PACKAGE-4	Data Line Filter, 2 Function(s), 250V, 1A, SURFACE MOUNT PACKAGE-4	Data Line Filter, 2 Function(s), 250V, 0.5A, SURFACE MOUNT PACKAGE-4	Data Line Filter, 2 Function(s), 250V, 3.6A, SURFACE MOUNT PACKAGE-4
Maker	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics
Reach Compliance Code	unknown	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Certification	VDE	VDE	VDE	VDE	VDE	VDE	VDE
Maximum DC resistance	0.05 Ω	0.06 Ω	0.06 Ω	0.08 Ω	0.45 Ω	0.85 Ω	0.05 Ω
filter type	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER
high	9.9 mm	8.89 mm	8.89 mm	9.9 mm	8.89 mm	8.89 mm	9.9 mm
inductance	600 µH	900 µH	900 µH	1800 µH	6000 µH	13200 µH	600 µH
length	19.56 mm	16.38 mm	16.38 mm	19.56 mm	16.38 mm	16.38 mm	19.56 mm
Installation type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	2	2	2	2	2	2	2
Maximum operating temperature	130 °C	130 °C	130 °C	130 °C	130 °C	130 °C	130 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
physical size	L19.56XB17.02XH9.9 (mm)/L0.77XB0.67XH0.39 (inch)	L16.38XB14.22XH8.89 (mm)/L0.645XB0.56XH0.35 (inch)	L16.38XB14.22XH8.89 (mm)/L0.645XB0.56XH0.35 (inch)	L19.56XB17.02XH9.9 (mm)/L0.77XB0.67XH0.39 (inch)	L16.38XB14.22XH8.89 (mm)/L0.645XB0.56XH0.35 (inch)	L16.38XB14.22XH8.89 (mm)/L0.645XB0.56XH0.35 (inch)	L19.56XB17.02XH9.9 (mm)/L0.77XB0.67XH0.39 (inch)
Rated current	3.6 A	1.5 A	1.5 A	2.5 A	1 A	0.5 A	3.6 A
Rated voltage	250 V	250 V	250 V	250 V	250 V	250 V	250 V
width	17.02 mm	14.22 mm	14.22 mm	17.02 mm	14.22 mm	14.22 mm	17.02 mm
package instruction	SURFACE MOUNT PACKAGE-4	SURFACE MOUNT PACKAGE-4	SURFACE MOUNT PACKAGE-4	SURFACE MOUNT PACKAGE-4	SURFACE MOUNT PACKAGE-4	SURFACE MOUNT PACKAGE-4	-
Manufacturer's serial number	-	PE-53911	PE-53911	-	PE-53913	PE-53914	PE-53910
method of packing	-	TAPE AND REEL	-	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
