UNISONIC TECHNOLOGIES CO., LTD
DTA113T
PNP DIGITAL TRANSISTOR
(BUILT- IN BIAS RESISTORS)
FEATURES
PNP SILICON TRANSISTOR
* Built-in bias resistors that implies easy ON/OFF applications.
* The bias resistors are thin-film resistors with complete isolation
to allow positive input.

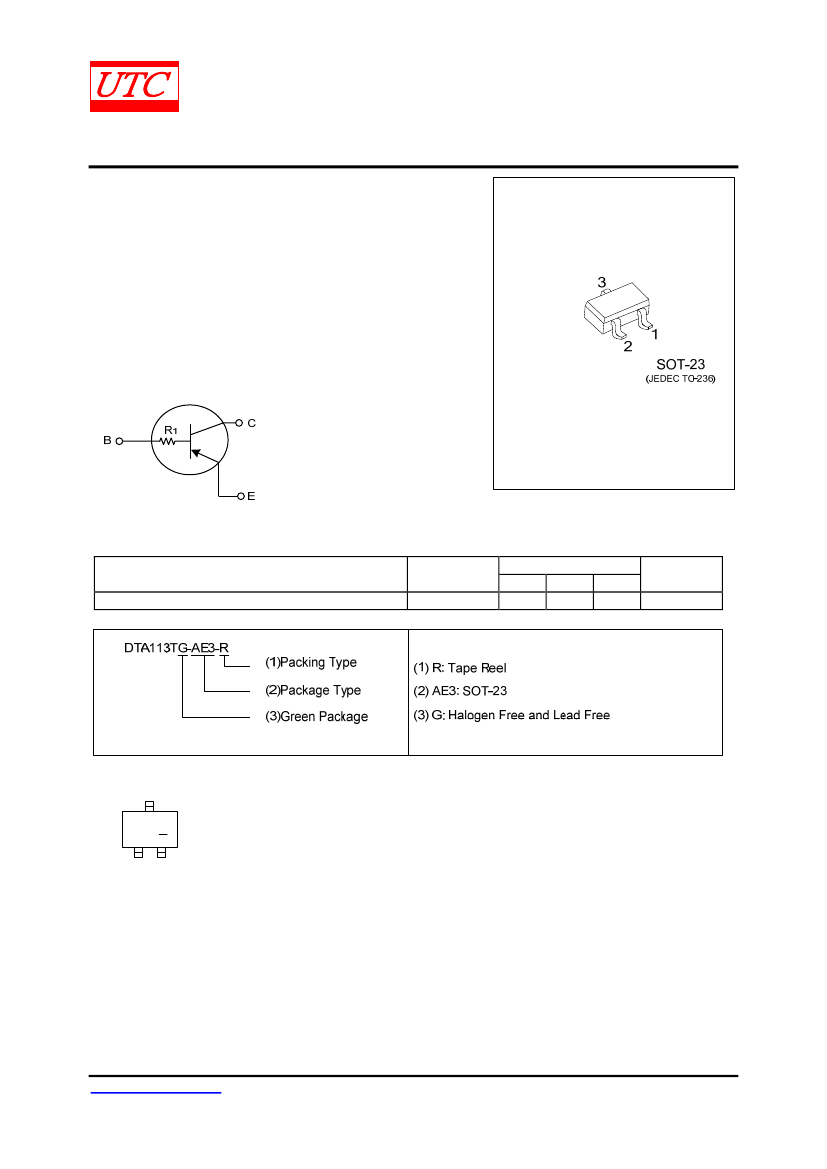

EQUIVALENT CIRCUIT
ORDERING INFORMATION
Ordering Number
Package
SOT-23
C: Collector
Pin Assignment
1
2
3
E
B
C
Packing
Tape Reel
Note:
DTA113TG-AE3-R
Pin assignment: E: Emitter
B: Base
MARKING
AB3T
www.unisonic.com.tw
Copyright © 2014 Unisonic Technologies Co., Ltd
1 of 3
QW-R206-091.D
DTA113T
PNP SILICON TRANSISTOR
ABSOLUTE MAXIMUM RATINGS
(T
A
=25C, unless otherwise specified)
PARAMETER
SYMBOL
RATINGS
UNIT
Collector-Base Voltage
V
CBO
-50
V
Collector-Emitter Voltage
V
CEO
-50
V
Emitter-Base Voltage
V
EBO
-6
V
Collector Current
I
C
-100
mA
Peak Collector Current
I
CM
-200
mA
Collector Power Dissipation
P
C
150
mW
Junction Temperature
T
J
150
°C
Storage Temperature
T
STG
-55~+150
°C
Note: Absolute maximum ratings are those values beyond which the device could be permanently damaged.
Absolute maximum ratings are stress ratings only and functional device operation is not implied.
ELECTRICAL CHARACTERISTICS
(T
A
=25C, unless otherwise specified)
SYMBOL
BV
CEO
V
CE(SAT)
I
CBO
h
FE
R
IN
f
T
TEST CONDITIONS
I
C
=-100μA, R
BE
=∞
I
C
=-10mA, I
B
=-0.5mA
V
CB
=-50V, I
E
=0
V
CE
=-5V, I
C
=-1mA
V
CE
=-6V, I
E
=10mA
MIN
-50
TYP
MAX
-0.3
-0.1
100
0.7
1.0
150
1.3
UNIT
V
V
μA
kΩ
MHz
PARAMETER
Collector-Emitter Breakdown Voltage
Collector-Emitter Saturation Voltage
Collector Cut-off Current
DC Current Gain
Input Resistance
Current Gain Bandwidth Product
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
2 of 3
QW-R206-091.D
DTA113T

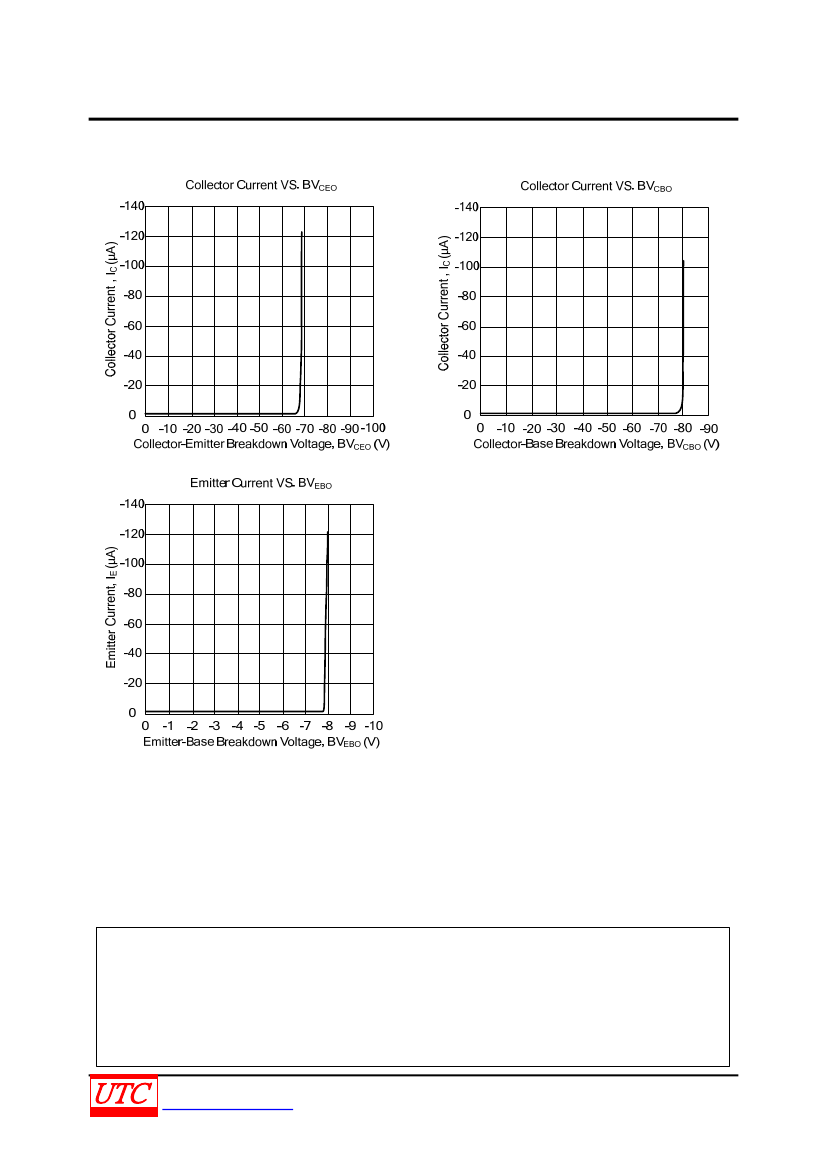

TYPICAL CHARACTERISTICS
PNP SILICON TRANSISTOR
UTC assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or
other parameters) listed in products specifications of any and all UTC products described or contained
herein. UTC products are not designed for use in life support appliances, devices or systems where
malfunction of these products can be reasonably expected to result in personal injury. Reproduction in
whole or in part is prohibited without the prior written consent of the copyright owner. The information
presented in this document does not form part of any quotation or contract, is believed to be accurate
and reliable and may be changed without notice.
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
3 of 3
QW-R206-091.D
