UNISONIC TECHNOLOGIES CO., LTD
DTA114T
DIGITAL TRANSISTORS
(BUILT- IN BIAS RESISTORS)
FEATURES
* Built-in bias resistors that implies easy ON/OFF applications.
* The bias resistors are thin-film resistors with complete isolation to
allow positive input.
PNP SILICON TRANSISTOR

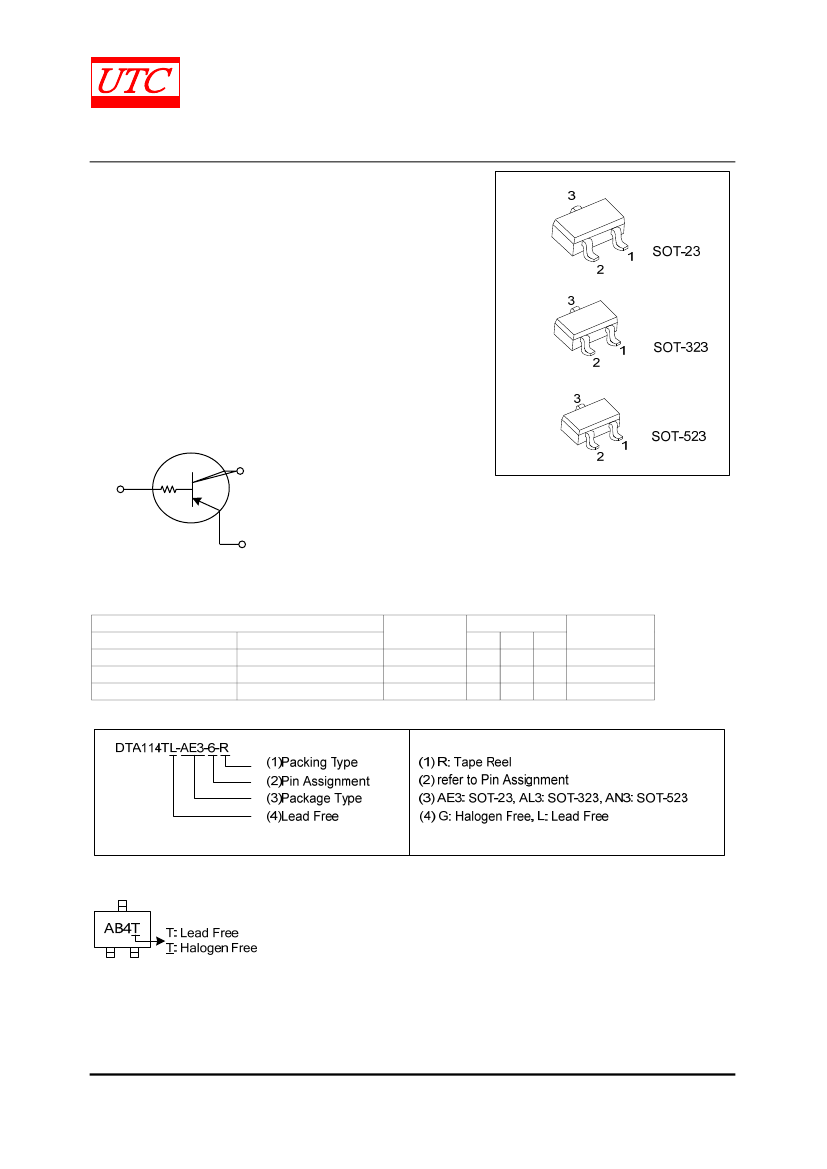

EQUIVALENT CIRCUIT
C
B
R1
E
ORDERING INFORMATION
Order Number
Lead Free
Halogen Free
DTA114TL-AE3-6-R
DTA114TG-AE3-6-R
DTA114TL-AL3-6-R
DTA114TG-AL3-6-R
DTA114TL-AN3-6-R
DTA114TG-AN3-6-R
Package
SOT-23
SOT-323
SOT-523
Pin Assignment
1
2
3
E
B
C
E
B
C
E
B
C
Packing
Tape Reel
Tape Reel
Tape Reel
MARKING
ofwww.unisonic.com.tw
Copyright © 2011 Unisonic Technologies Co., Ltd
1of 3
QW-R206-061.C
DTA114T
ABSOLUTE MAXIMUM RATINGS
(T
A
= 25℃)
PNP SILICON TRANSISTOR
PARAMETER
SYMBOL
RATING
UNIT
Collector-Base Voltage
V
CBO
-50
V
Collector-Emitter Voltage
V
CEO
-50
V
Emitter-Base Voltage
V
EBO
-5
V
Collector Current
I
C
-100
mA
SOT-23
200
Collector Power Dissipation
P
C
mW
SOT-323/SOT-523
150
Junction Temperature
T
J
+150
℃
Storage Temperature
T
STG
-55~+150
℃
Note Absolute maximum ratings are those values beyond which the device could be permanently damaged.
Absolute maximum ratings are stress ratings only and functional device operation is not implied.
ELECTRICAL CHARACTERISTICS
(T
A
= 25℃, unless otherwise specified)
PARAMETER
SYMBOL
TEST CONDITIONS
MIN
Collector-Base Breakdown Voltage
BV
CBO
I
C
=-50μA
-50
Collector-Emitter Breakdown Voltage
BV
CEO
I
C
=-1mA
-50
Emitter-Base Breakdown Voltage
BV
EBO
I
E
=-50μA
-5
Collector-Emitter Saturation Voltage
V
CE(SAT)
I
C
=-10mA, I
B
=-1mA
Collector Cutoff Current
I
CBO
V
CB
=-50V
Emitter Cutoff Current
I
EBO
V
EB
=-4V
DC Current Gain
h
FE
V
CE
=-5V, I
C
=-1mA
100
Input Resistance
R
1
7
Transition Frequency
f
T
V
CE
=-10V, I
E
=5mA,f=100MHz (Note)
Note: Transition frequency of the device
TYP MAX UNIT
V
V
V
-0.3
V
-0.5
μA
-0.5
μA
250 600
10
13
kΩ
250
MHz
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
2 of 3
QW-R206-061.C
DTA114T
■
PNP SILICON TRANSISTOR

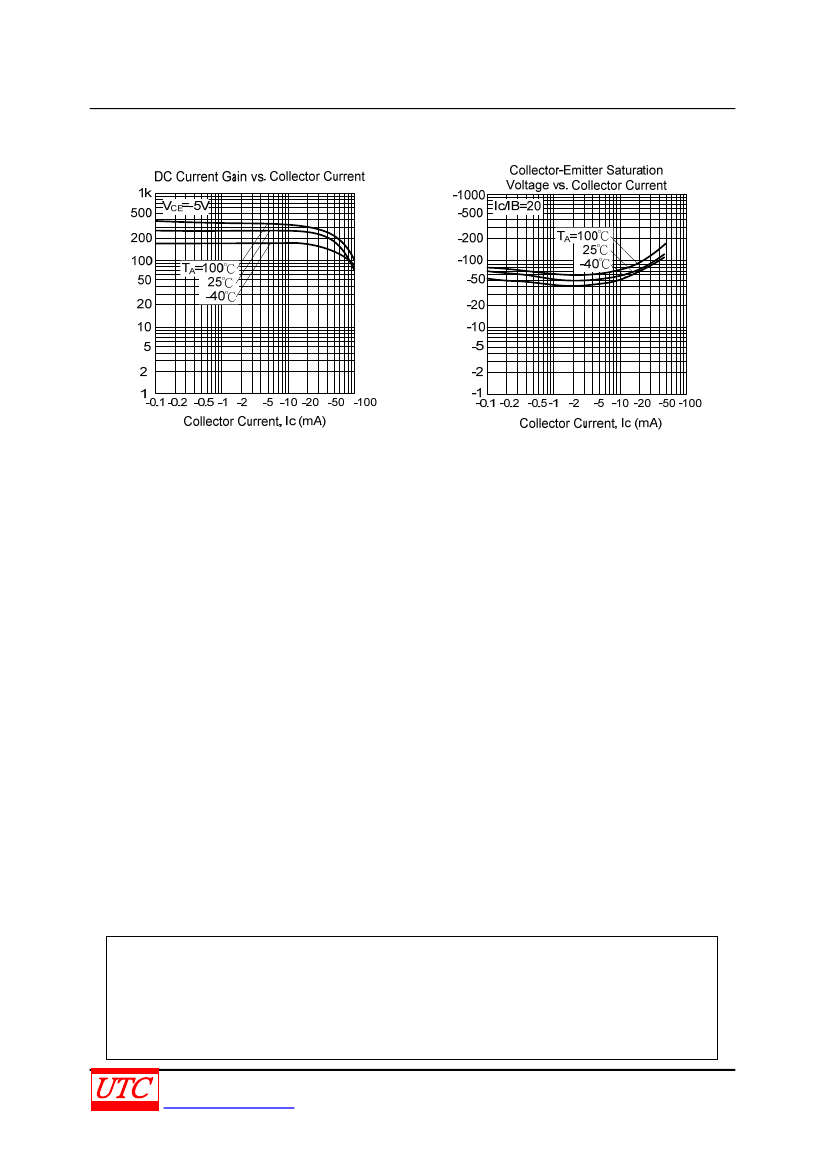

TYPICAL CHARACTERISTICS
