UF450L-T3P-T

Description
14A, 500V N-CHANNEL POWER MOSFET
CategoryDiscrete semiconductor    The transistor
File Size262KB,6 Pages
ManufacturerUNISONIC TECHNOLOGIES CO.,LTD
Websitehttp://www.unisonic.com.tw/
Environmental Compliance
Download Datasheet Parametric Compare View All

UF450L-T3P-T Overview

14A, 500V N-CHANNEL POWER MOSFET

UF450L-T3P-T Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerUNISONIC TECHNOLOGIES CO.,LTD
Parts packaging codeTO-3P
package instructionFLANGE MOUNT, R-PSFM-T3
Contacts3
Reach Compliance Codecompli
Avalanche Energy Efficiency Rating (Eas)760 mJ
ConfigurationSINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage500 V
Maximum drain current (ID)14 A
Maximum drain-source on-resistance0.4 Ω
FET technologyMETAL-OXIDE SEMICONDUCTOR
JESD-30 codeR-PSFM-T3
Number of components1
Number of terminals3
Operating modeENHANCEMENT MODE
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Polarity/channel typeN-CHANNEL
Maximum pulsed drain current (IDM)56 A
surface mountNO
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
Maximum time at peak reflow temperatureNOT SPECIFIED
transistor applicationsSWITCHING
Transistor component materialsSILICON

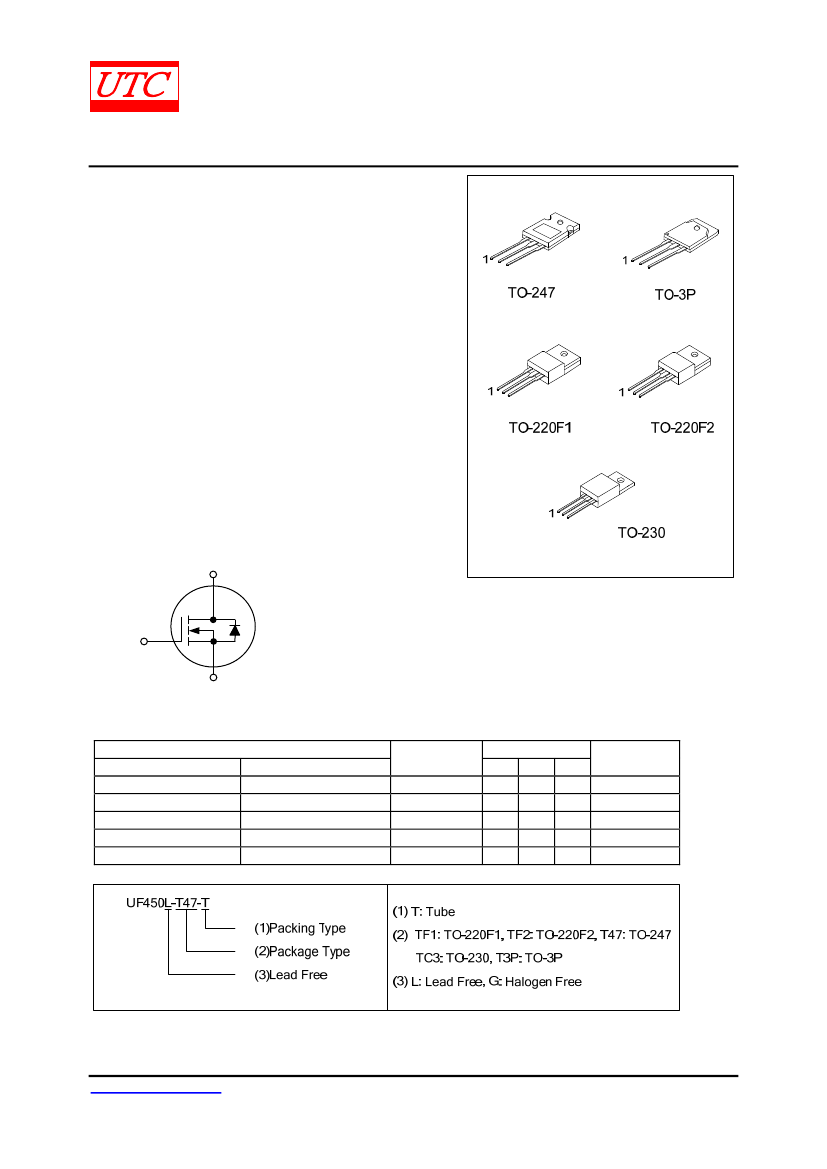

UNISONIC TECHNOLOGIES CO., LTD
UF450
14A, 500V N-CHANNEL
POWER MOSFET
DESCRIPTION
Power MOSFET
The
UF450
uses advanced UTC technology to provide
excellent R
DS (ON)
, low gate charge and operation with low gate
voltages. This device is suitable for use as a load switch, in PWM
applications, motor controls, inverters, choppers, audio amplifiers
and high energy pulse circuits.
FEATURES
* R
DS(ON)
< 0.4Ω@V
GS
= 10V
* Ultra Low Gate Charge (Max. 150nC )
* Low Reverse Transfer Capacitance ( C
RSS
= Typical 340pF )
* Fast Switching Capability
* Avalanche Energy Specified
* Improved dv/dt Capability
SYMBOL
2.Drain
1.Gate
3.Source
ORDERING INFORMATION
Ordering Number
Lead Free
Halogen Free
UF450L-TF1-T
UF450G-TF1-T
UF450L-TF2-T
UF450G-TF2-T
UF450L-T47-T
UF450G-T47-T
UF450L-TC3-T
UF450G-TC3-T
UF450L-T3P-T
UF450G-T3P-T
Package
TO-220F1
TO-220F2
TO-247
TO-230
TO-3P
Pin Assignment
1
2
3
G
D
S
G
D
S
G
D
S
G
D
S
G
D
S
Packing
Tube
Tube
Tube
Tube
Tube
www.unisonic.com.tw
Copyright © 2013 Unisonic Technologies Co., Ltd
1 of 6
QW-R502-185.H
