LCB21M5425A1

Description
Band Pass Filter, 5425MHz
CategoryAnalog mixed-signal IC    filter
File Size299KB，1 Pages
ManufacturerSAMSUNG
Websitehttp://www.samsung.com/Products/Semiconductor/
Download Datasheet Parametric View All

LCB21M5425A1 Overview

Band Pass Filter, 5425MHz

LCB21M5425A1 Parametric

Parameter NameAttribute value
MakerSAMSUNG
Reach Compliance Codeunknown
Center frequency or cutoff frequency (fo/fc)5425 MHz
filter typeBAND PASS FILTER
high0.95 mm
Maximum insertion loss1.8 dB
length2 mm
Manufacturer's serial numberLCB21M5425A1
Installation typeSURFACE MOUNT
physical sizeL2.0XB1.25XH0.95 (mm)/L0.079XB0.049XH0.037 (inch)
voltage standing wave ratio2.2
width1.25 mm

Preview

Download Datasheet
●

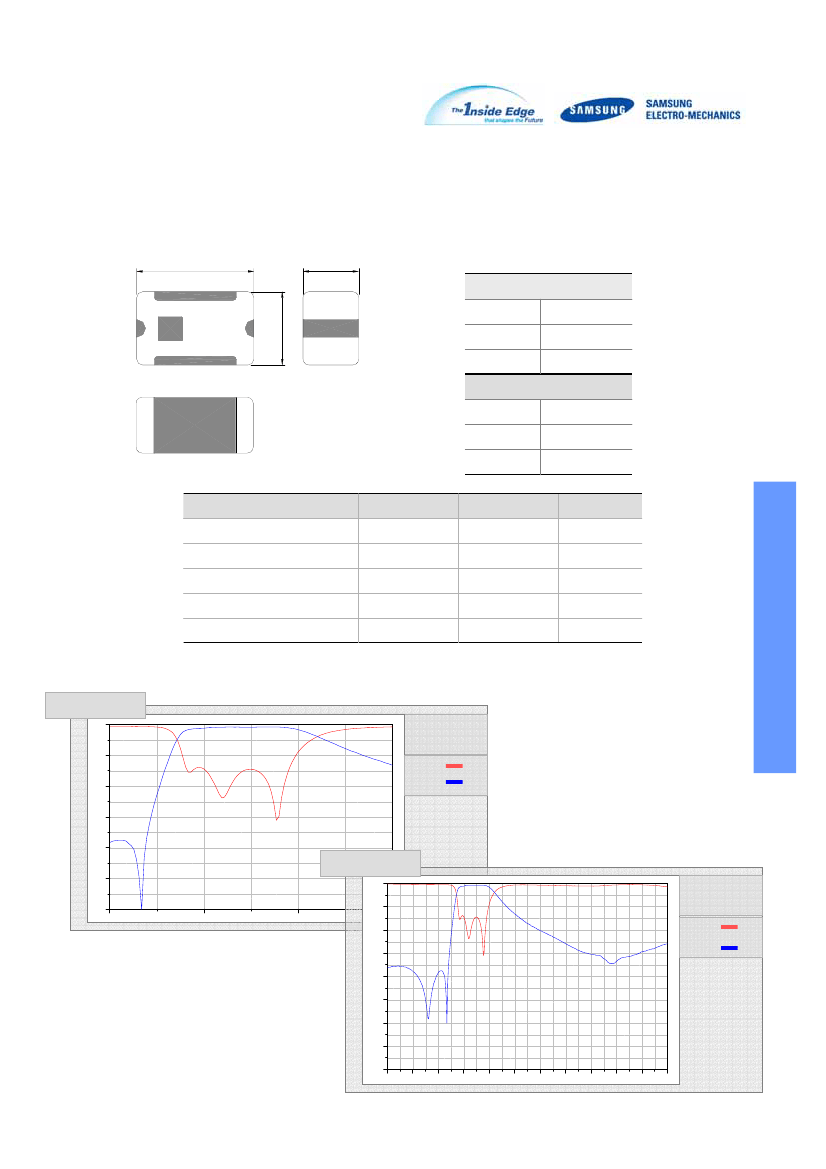

LCB21M5425A1
L
③
T
Dimension (mm)
L
2.00
±
0.15
1.25
±
0.10
0.95
±
0.10
Terminal
Input
Output
GND
Parameter
Pass Band
Insertion Loss
VSWR
Attenuation
Frequency
4900~5950
4900~5950
4900~5950
3900~4000
9800~11900
1.8
2.2
30
15
dB max
Max
SPEC.
④
②
①③
Unit
②
W
④
W
T
①
LC filter
dB min
dB min
Pass Band
0
Port1_ANT
Port2_ Low
-10
S11
-20
S21
-30
-40
Broad Band
-50
0
-10
4
5
6
7
Port1_Input
Port2_Output
S11
S21
-60
-20
-30
-40
-50
-60
-70
-80
2
3
4
5
6
7
8
9
10
11
12
13
[
]
