UNISONIC TECHNOLOGIES CO., LTD
UF601
0.185A, 600V N-CHANNEL
DEPLETION-MODE POWER
MOSFET
DESCRIPTION
Power MOSFET
The UTC
UF601
is an N-channel power MOSFET using UTC’s
advanced technology to provide the customers with high switching
speed.
FEATURES
* R
DS(ON)
< 120Ω @ V
GS
=0V, I
D
=3mA
* High Switching Speed
SYMBOL
ORDERING INFORMATION
Ordering Number
UF601G-AA3-R
UF601G-AE3-R
Pin Assignment: G: Gate D: Drain
Package
SOT-223
SOT-23
S: Source
Pin Assignment
1
2
3
S
G
D
S
G
D
Packing
Tape Reel
Tape Reel
Note:
MARKING
SOT-223
SOT-23
www.unisonic.com.tw
Copyright © 2014 Unisonic Technologies Co., Ltd
1 of 3
QW-R502-699.H
UF601
Power MOSFET
ABSOLUTE MAXIMUM RATINGS
(T
A
=25°C, unless otherwise specified)
SYMBOL
V
DSS
V
DGX
V
GSS
I
D
I
DM
RATINGS
UNIT
600
V
600
V
±20
V
0.185
A
Continuous
Drain Current
Pulsed
0.740
A
SOT-223
0.8
W
Power Dissipation
P
D
SOT-23
0.5
W
Junction Temperature
T
J
+150
°C
Storage Temperature
T
STG
-55~+150
°C
Notes: 1. Absolute maximum ratings are those values beyond which the device could be permanently damaged.
Absolute maximum ratings are stress ratings only and functional device operation is not implied.
2. T
J
=+25°C~+150°C
PARAMETER
Drain-Source Voltage (Note 2)
Drain-Gate Voltage (Note 2)
Gate-Source Voltage
THERMAL DATA
PARAMETER
SYMBOL
SOT-223
SOT-23
θ
JA
RATINGS
150
250
UNIT
°C/W
°C/W
Junction to Ambient
ELECTRICAL CHARACTERISTICS
(T
A
=25°C, unless otherwise specified)
MIN TYP MAX UNIT
600
0.1
+100
-100
-2.7
7.0
60
53
3000
2.6
7.6
4
0.4
42
20
80
300
1.4
-1.5
120
V
μA
nA
nA
V
mA
Ω
pF
pF
pF
nC
nC
nC
ns
ns
ns
ns
V
PARAMETER
SYMBOL
TEST CONDITIONS
OFF CHARACTERISTICS
Drain-Source Breakdown Voltage
BV
DSS
I
D
=250µA, V
GS
=-5V
Drain-Source Leakage Current
I
D(OFF)
V
DS
=600V, V
GS
=-5V
Forward
V
GS
=+20V, V
DS
=0V
Gate-Source Leakage Current
I
GSS
Reverse
V
GS
=-20V, V
DS
=0V
ON CHARACTERISTICS
Gate to Source Cut Off Voltage
V
GS(OFF)
V
DS
=3V, I
D
=8µA
Drain-Source Leakage Current
I
DSS
V
DS
=25V, V
GS
=0V
Static Drain-Source On-State Resistance
R
DS(ON)
V
GS
=0V, I
D
=3mA
DYNAMIC PARAMETERS
Input Capacitance
C
ISS
V
GS
=0V, V
DS
=25V,
Output Capacitance
C
OSS
f=1.0MHz
Reverse Transfer Capacitance
C
RSS
SWITCHING PARAMETERS
Total Gate Charge
Q
G
V
GS
=-5~5V, V
DS
=30V,
Gate to Source Charge
Q
GS
I
D
=5mA
Gate to Drain Charge
Q
GD
Turn-ON Delay Time
t
D(ON)
Rise Time
t
R
V
GS
=-5~5V, V
DD
=30V,
I
D
=5mA, R
G
=20Ω
Turn-OFF Delay Time
t
D(OFF)
Fall-Time
t
F
SOURCE- DRAIN DIODE RATINGS AND CHARACTERISTICS
Drain-Source Diode Forward Voltage
V
SD
I
SD
=3.0mA, V
GS
=-10V
Note: 1. Repetitive rating, pulse width limited by maximum junction temperature
2. Pulse width≤380μs; duty cycle≤2%
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
2 of 3
QW-R502-699.H
UF601
Power MOSFET

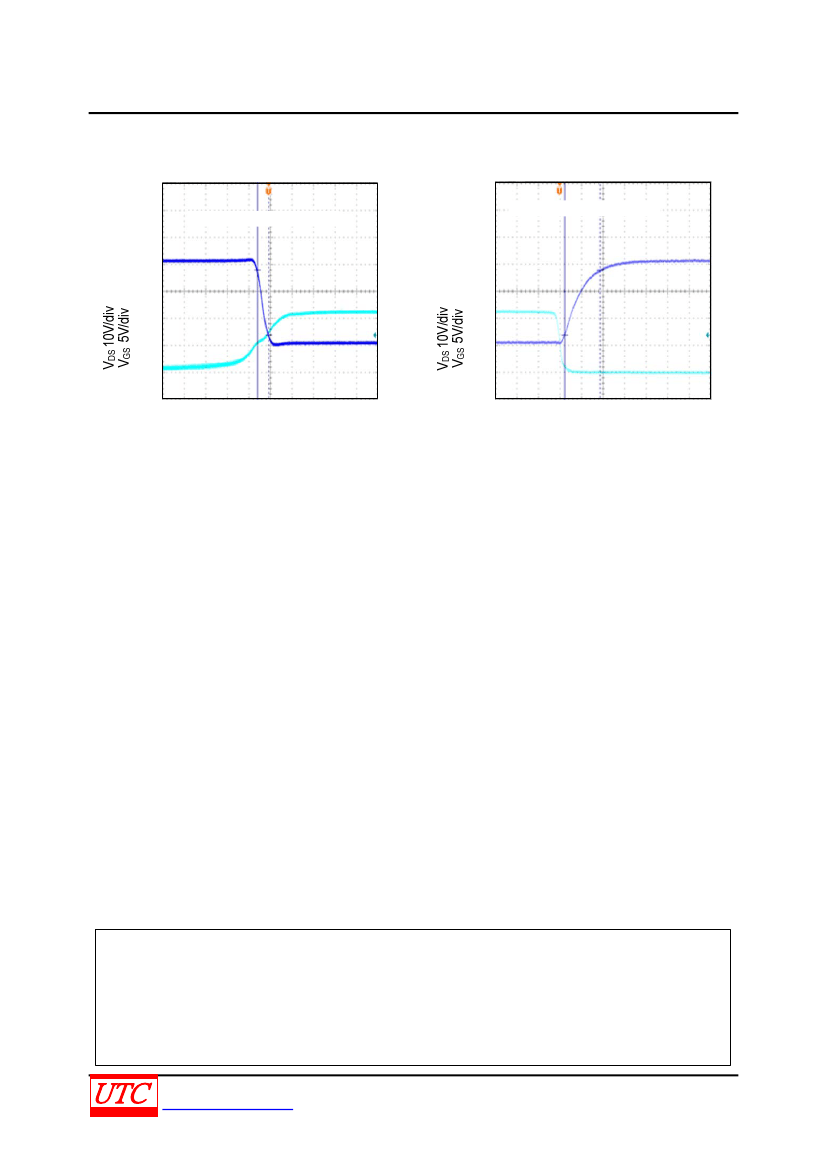

TYPICAL CHARACTERISTICS
TR
V
DD
=30V ,I
D
=5mA, R
G
=20Ω
TF
V
DD
=30V ,I
D
=5mA, R
G
=20Ω
10V
/5V
0
-10V
/-5V
0
200
Time (40ns/div)
400
10V
/5V
0
-10V
/-5V
0
1000
Time (200ns/div)
2000
