DBME3W3PK127 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DBME3W3PK127

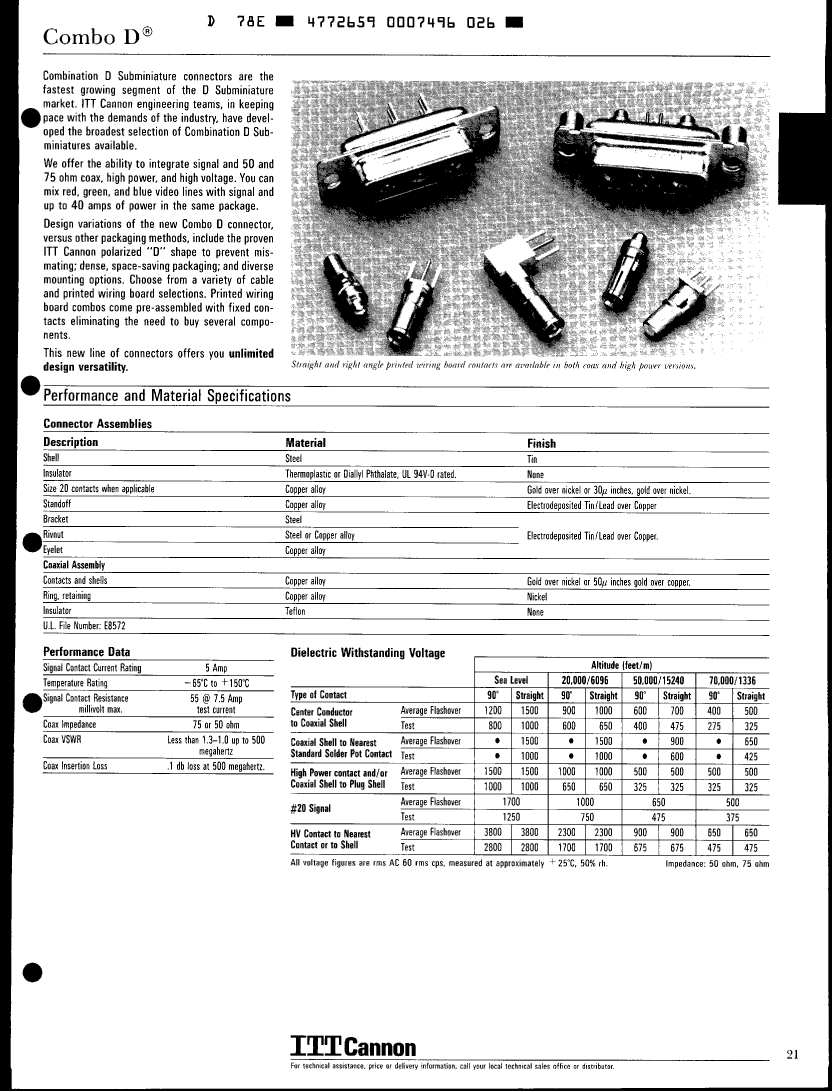

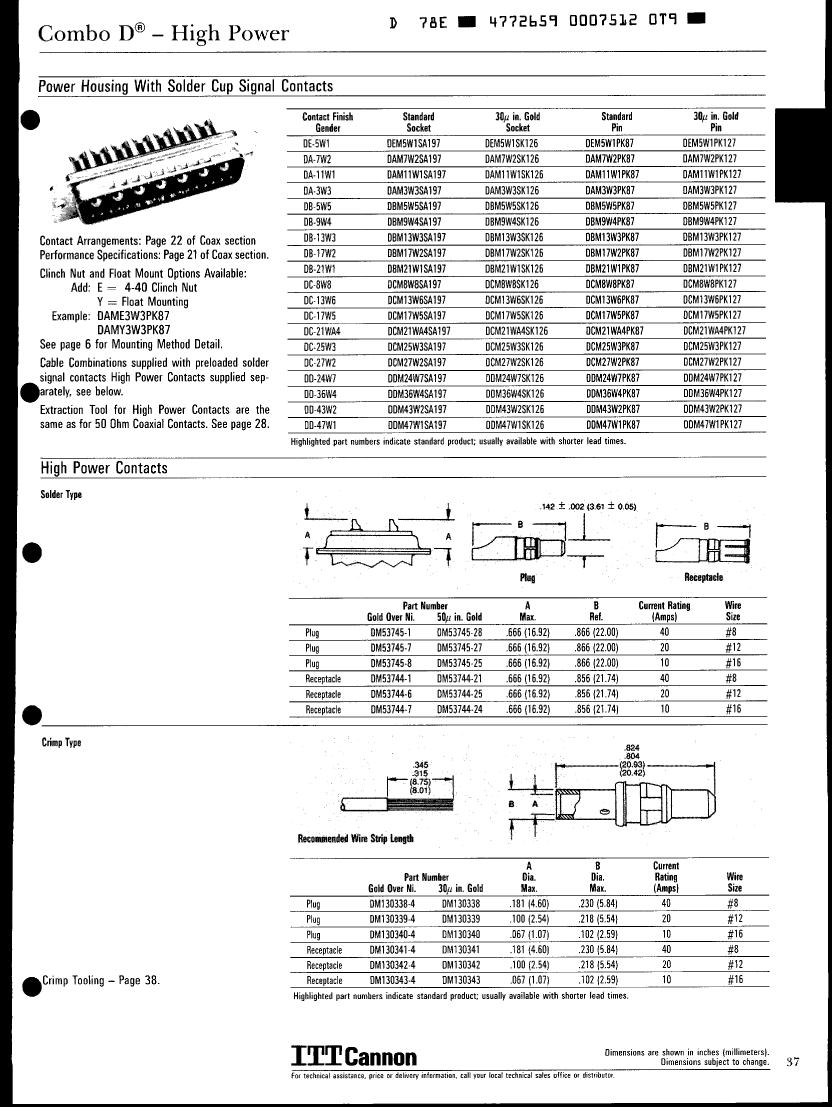

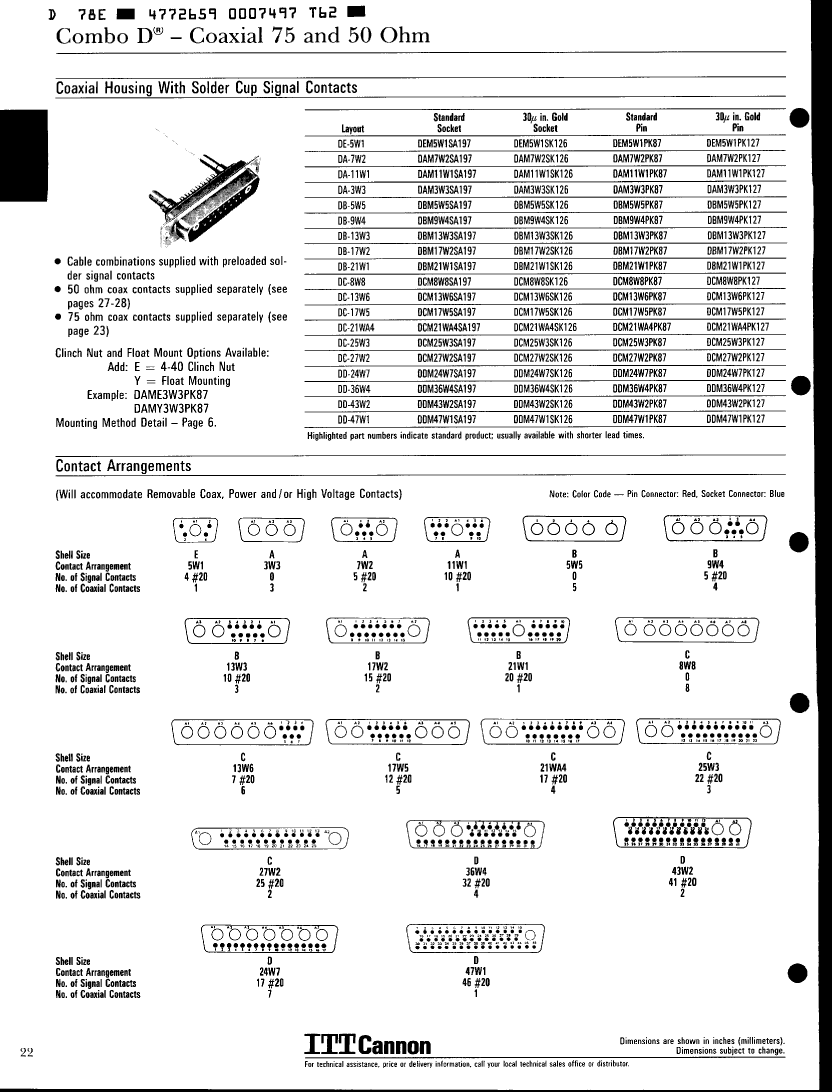

DBME3W3PK127: DescriptionD Type Connector, 3 Contact(s), Male, Solder Terminal, #4-40, Receptacle; CategoryThe connector The connector; File Size374KB，3 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric Compare View All

DBME3W3PK127 Overview

D Type Connector, 3 Contact(s), Male, Solder Terminal, #4-40, Receptacle

DBME3W3PK127 Parametric

Parameter Name	Attribute value
Maker	ITT
Reach Compliance Code	compliant
body width	0.494 inch
subject depth	0.206 inch
body length	2.087 inch
Body/casing type	RECEPTACLE
Contact arrangement	S0C3
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact resistance	55 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
insulator material	THERMOPLASTIC
Manufacturer's serial number	D*M
Mixed contacts	YES
Installation option 1	#4-40
Installation option 2	CLINCH NUT
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Plating thickness	30u inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Termination type	SOLDER
Total number of contacts	3

Preview

Download Datasheet

View All

DBME3W3PK127 Related Products

	DBME3W3PK127	DBM3W3SK126	DBME3W3SK126	DBMY3W3SA197	DBMY3W3PK87	DBMY3W3PK127	DBM3W3PK87	DBM3W3PK127	DBME3W3SA197	DBME3W3PK87
Description	D Type Connector, 3 Contact(s), Male, Solder Terminal, #4-40, Receptacle	D Type Connector, 3 Contact(s), Female, Solder Terminal, Hole .112-.124, Plug	D Type Connector, 3 Contact(s), Female, Solder Terminal, #4-40, Plug	D Type Connector, 3 Contact(s), Female, Solder Terminal, Hole .087-.098, Plug	D Type Connector, 3 Contact(s), Male, Solder Terminal, Hole .087-.098, Receptacle	D Type Connector, 3 Contact(s), Male, Solder Terminal, Hole .087-.098, Receptacle	D Type Connector, 3 Contact(s), Male, Solder Terminal, Hole .112-.124, Receptacle	D Type Connector, 3 Contact(s), Male, Solder Terminal, Hole .112-.124, Receptacle	D Type Connector, 3 Contact(s), Female, Solder Terminal, #4-40, Plug	D Type Connector, 3 Contact(s), Male, Solder Terminal, #4-40, Receptacle
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
body width	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch
subject depth	0.206 inch	0.196 inch	0.196 inch	0.196 inch	0.206 inch	0.206 inch	0.206 inch	0.206 inch	0.196 inch	0.206 inch
body length	2.087 inch	2.087 inch	2.087 inch	2.087 inch	2.087 inch	2.087 inch	2.087 inch	2.087 inch	2.087 inch	2.087 inch
Body/casing type	RECEPTACLE	PLUG	PLUG	PLUG	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	PLUG	RECEPTACLE
Contact arrangement	S0C3	S0C3	S0C3	S0C3	S0C3	S0C3	S0C3	S0C3	S0C3	S0C3
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact point gender	MALE	FEMALE	FEMALE	FEMALE	MALE	MALE	MALE	MALE	FEMALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Contact resistance	55 mΩ	55 mΩ	55 mΩ	55 mΩ	55 mΩ	55 mΩ	55 mΩ	55 mΩ	55 mΩ	55 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Manufacturer's serial number	D*M	D*M	D*M	D*M	D*M	D*M	D*M	D*M	D*M	D*M
Mixed contacts	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Installation option 1	#4-40	HOLE .112-.124	#4-40	HOLE .087-.098	HOLE .087-.098	HOLE .087-.098	HOLE .112-.124	HOLE .112-.124	#4-40	#4-40
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Rated current (signal)	5 A	5 A	5 A	5 A	5 A	5 A	5 A	5 A	5 A	5 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	3	3	3	3	3	3	3	3	3	3
Installation option 2	CLINCH NUT	-	CLINCH NUT	FLOAT MOUNT	FLOAT MOUNT	FLOAT MOUNT	-	-	CLINCH NUT	CLINCH NUT
Base Number Matches	-	1	1	1	1	1	1	1	-	-
