UNISONIC TECHNOLOGIES CO., LTD
1812A/1812B/1813
SINGLE SOUND GENERATOR
DESCRIPTION
The UTC
1812A/1812B/1813
is a CMOS LSI chip designed for
use in sound effect products .It is equipped with tone circuit, noise
circuit and other control logic to generate different sounds including
rifle gun, machine gun, booming sound, door bell, alarm etc. The
customer supplied sound source can be analyzed and
programmed into an internal ROM by changing a mask layer during
device fabrication. The UTC
1812A/1812B/1813
is suitable for
various toy applications.

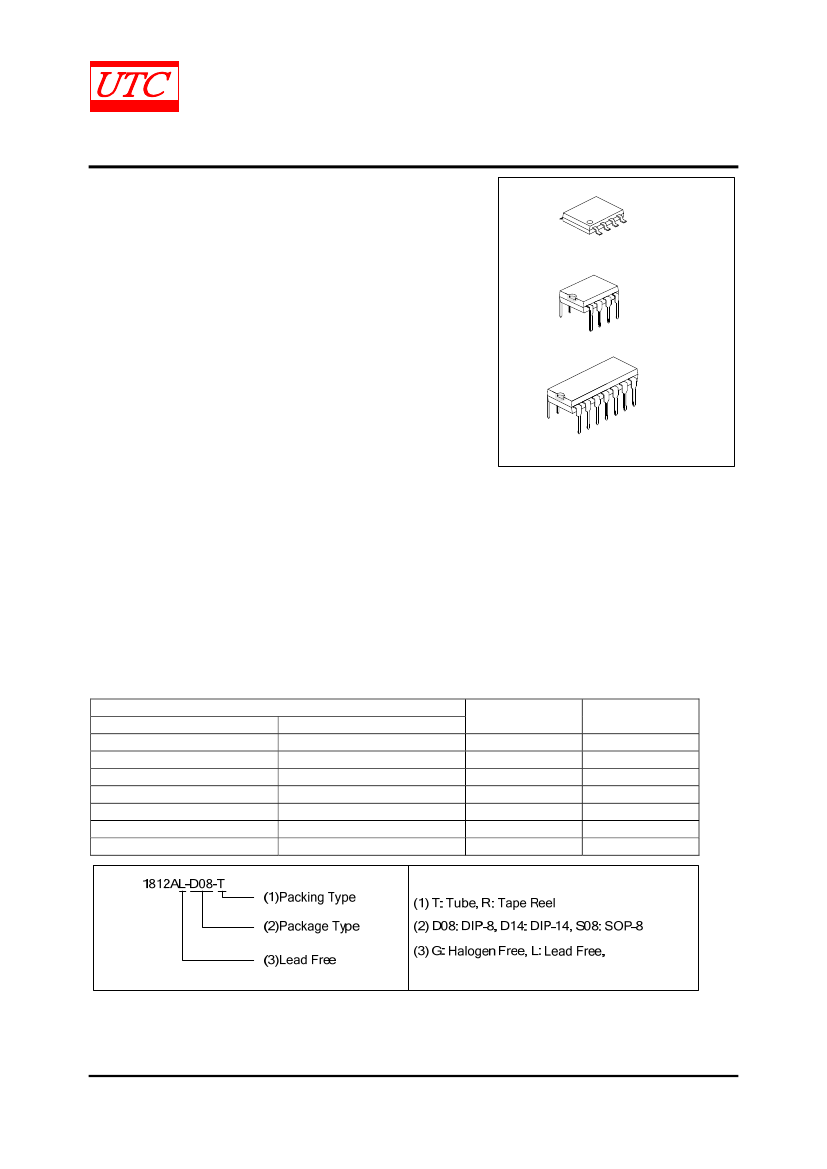

SOP-8
CMOS IC
DIP- 8
FEATURES
*Single power supply: 2.4~3.3V
*Low standby current at 3V, 1μA typ
*Auto power-off function
*Speaker or direct piezo. application
*Built-in envelope control circuit
*1Hz-8Hz programmable LED flash output
*Minimum external components
*Low operating current
*Strong driving capability
DIP-14
ORDERING INFORMATION
Ordering Number
Lead Free
1812AL-D08-T
1812AL-S08-R
1812AL-S08-T
1812BL-D08-T
1812BL-S08-R
1812BL-S08-T
1813L-D14-T
Halogen Free
1812AG-D08-T
1812AG-S08-R
1812AG-S08-T
1812BG-D08-T
1812BG-S08-R
1812BG-S08-T
1813G-D14-T
Package
DIP-8
SOP-8
SOP-8
DIP-8
SOP-8
SOP-8
DIP-14
Packing
Tube
Tape Reel
Tube
Tube
Tape Reel
Tube
Tube
www.unisonic.com.tw
Copyright © 2012 Unisonic Technologies Co., Ltd
1 of 7
QW-R502-006.F
1812A/1812B/1813
PIN CONFIGURATIONS
DIP-8/SOP-8
V
SS
OUT
OUT
LED
1
2
3
8
7
OSC1
OSC2
CMOS IC
DIP-8/SOP-8
TEST3 1
LED 2
V
DD
3
KEY 4
DIP-14
14 ENV
13 OUT
12 OUT
UTC
1813
11 NC
10 NC
9
V
SS
UTC
1812A
6
KEY
V
DD
4
5
OSC2 5
OSC1 6
TEST1 7
8 TEST2
PIN CONFIGURATIONS
PIN NO.
1812A 1812B 1813
1
1
9
2
2
12
3
3
13
4
-
2
-
4
14
5
5
3
6
6
4
7
7
5
8
8
6
-
-
7
-
-
8
-
-
1
-
-
10,11
SYMBOL
V
SS
OUT
OUT
LED
ENV
V
DD
KEY
OSC2
OSC1
TEST1
TEST2
TEST3
NC
DESCRIPTION
Negative power supply, GND
Sound output pad, out of phase to pad 3
Sound output pad
LED flash output pad
Sound envelope control pad
Positive power supply
Key input pad, low active
Oscillator output pad
Oscillator input pad
For IC test only
For IC test only
For IC test only
No connection

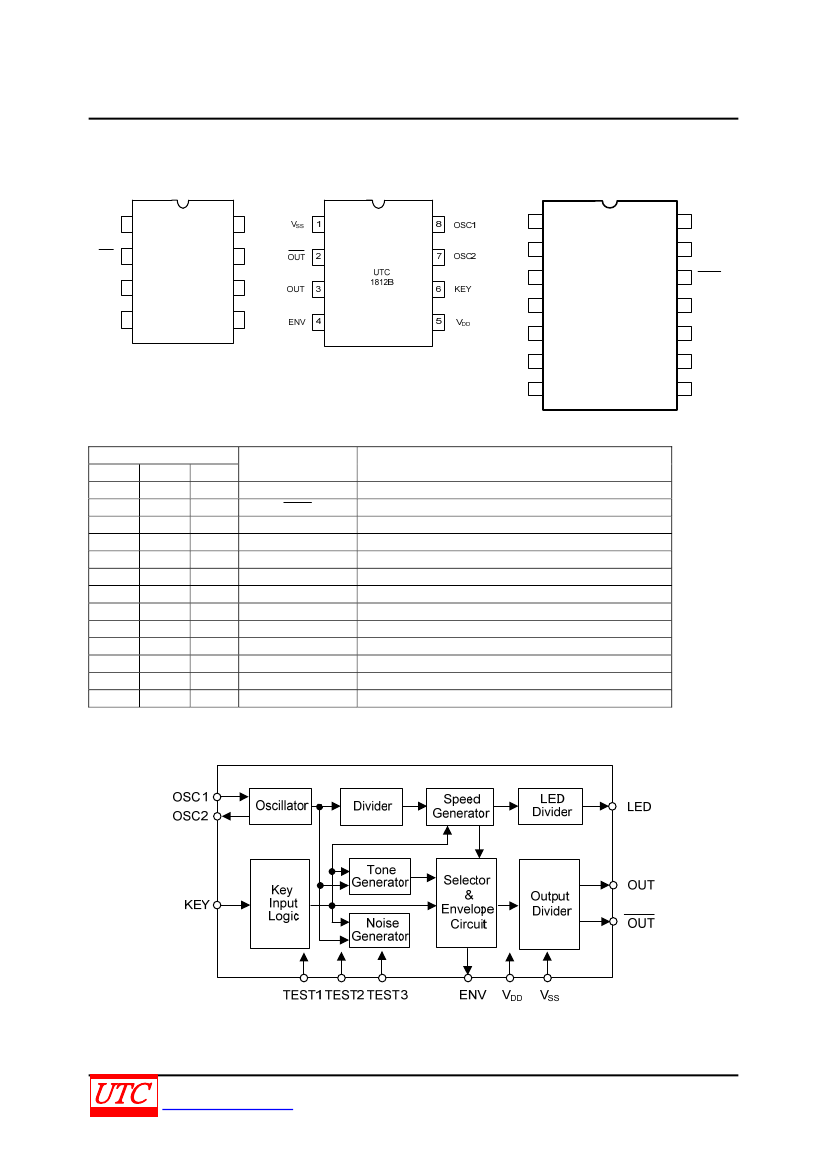

BLOCK DIAGRAM
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
2 of 7
QW-R502-006.F
1812A/1812B/1813
ABSOLUTE MAXIMUN RATINGS
PARAMETER
CMOS IC
SYMBOL
VALUE
UNIT
Supply Voltage
V
CC
-0.3~5
V
Input Voltage
V
IN
Vss-0.3 ~ V
DD
+0.3
V
Operating Temperature
T
OPR
0~+70
°C
Storage Temperature
T
STG
-40~+150
°C
Note: 1.Absolute maximum ratings are those values beyond which the device could be permanently damaged.
Absolute maximum ratings are stress ratings only and functional device operation is not implied.
ELECTRICAL CHARACTERISTICS
PARAMETER
Operating Voltage
“H” Input Voltage
“L” Input Voltage
Output Source Current
Output Sink Current
ENV Source Current
LED Source Current
Standby Current
Operating Current
Oscillator Frequency
SYMBOL
V
DD
V
IH
V
IL
I
OH
I
OL
I
ENV
I
LED
I
ST-BY
I
DD
F
OSC
TEST CONDITIONS
V
DD
=3V
V
DD
=3V
V
DD
=3V
V
DD
=3V, V
OH
=2.5V
V
DD
=3V, V
OL
=0.5V
V
DD
=3V, V
OH
=2.5V
V
DD
=3V, V
OH
=2.5V
V
DD
=3V
V
DD
=3V, NO LOAD
R=270kΩ
MIN
2.4
2.4
-1
1
-1
-1
TYP
3
MAX
3.3
0.6
-2
2
-2
-2
1
300
64
UNIT
V
V
V
mA
mA
mA
mA
μA
μA
kHz
5
600
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
3 of 7
QW-R502-006.F
1812A/1812B/1813
APPLICATION CIRCUITS
Speaker output with an envelope
CMOS IC
Speaker output without an envelope
V
DD
1 V
SS
3
100Ω
4
OSC1
8
Rosc
2 OUT OSC2 7
8050
OUT
LED
6
KEY
V
DD
5
V
DD
UTC 1812A
100Ω
Piezo output without an envelope
1
Piezo
V
SS
OSC1
8 Rosc
2 OUT OSC2 7
3
4
OUT
LED
6
KEY
V
DD
5
V
DD
UTC 1812A
100
Ω
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
5 of 7
QW-R502-006.F
