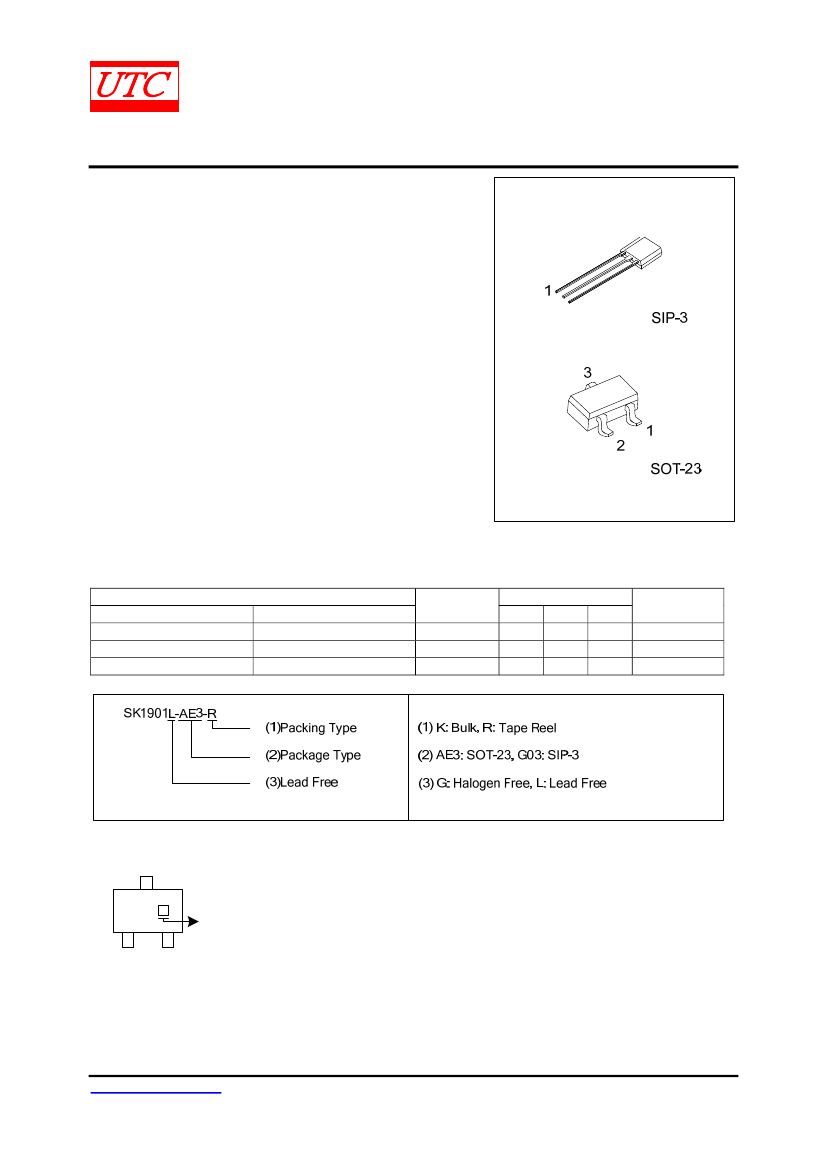

UNISONIC TECHNOLOGIES CO., LTD

SK1901

HALL-EFFECT SWITCH FOR

HIGH-TEMPERATURE

OPERATION

DESCRIPTION

SK1901

is a semiconductor integrated circuit utilizing the Hall

effect. It has been so designed as to operate in the alternating

magnetic field especially at low supply voltage and operation over

extended temperature ranges to +125°С.This Hall IC is suitable for

application to various kinds of sensors, contact-less switches, and

the like.

LINEAR INTEGRATED CIRCUIT

FEATURES

* Wide supply voltage range of 2.5V to 20V

* Wide temperature operation range of -20°С~+125°С

* TTL and MOS IC are directly drivable by the output

* The life is semipermanent because it employs contact-less parts

ORDERING INFORMATION

Ordering Number

Lead Free

Halogen Free

SK1901L-AE3-R

SK1901G-AE3-R

SK1901L-G03-B

SK1901G-G03-B

SK1901L-G03-K

SK1901G-G03-K

Note: Pin Assignment: I: V

O: V

OUT

G: GND

Package

SOT-23

SIP-3

Pin Assignment

Packing

Tape Reel

Tape Box

Bulk

MARKING INFORMATION

SOT-23

1901

L: Lead Free

G: Halogen Free

www.unisonic.com.tw

1 of 8

QW-R118-005,D

SK1901_12 Related Products

	SK1901_12	SK1901L-AE3-R	SK1901L-G03-B	SK1901L-G03-K
Description	MAGNETIC FIELD SENSOR-HALL EFFECT, 1-10mT, RECTANGULAR, SURFACE MOUNT	MAGNETIC FIELD SENSOR-HALL EFFECT, 1-10mT, RECTANGULAR, SURFACE MOUNT	MAGNETIC FIELD SENSOR-HALL EFFECT, 1-10mT, RECTANGULAR, SURFACE MOUNT	MAGNETIC FIELD SENSOR-HALL EFFECT, 1-10mT, RECTANGULAR, SURFACE MOUNT
Is it Rohs certified?	-	conform to	conform to	conform to
Maker	-	UNISONIC TECHNOLOGIES CO.,LTD	UNISONIC TECHNOLOGIES CO.,LTD	UNISONIC TECHNOLOGIES CO.,LTD
package instruction	-	TO-236	SIP3,.03,50	SIP3,.03,50
Reach Compliance Code	-	compli	compli	compli
Body length or diameter	-	2.9 mm	4.1 mm	4.089 mm
lag	-	9 mT	9 mT	9 mT
input mode	-	UNIPOLAR	UNIPOLAR	UNIPOLAR
Maximum magnetic field range	-	10 mT	10 mT	10 mT
Minimum magnetic field range	-	1 mT	1 mT	1 mT
Installation features	-	SURFACE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Number of terminals	-	3	3	3
Maximum working current	-	10 mA	10 mA	10 mA
Maximum operating temperature	-	125 °C	125 °C	125 °C
Minimum operating temperature	-	-20 °C	-20 °C	-20 °C
output	-	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR
Output polarity	-	NON-INVERTING	NON-INVERTING	NON-INVERTING
Package body material	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Encapsulate equivalent code	-	TO-236	SIP3,.03,50	SIP3,.03,50
Package Shape/Form	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
power supply	-	2.5/20 V	2.5/20 V	2.5/20 V
Sensor/temperature sensor type	-	MAGNETIC FIELD SENSOR,HALL EFFECT	MAGNETIC FIELD SENSOR,HALL EFFECT	MAGNETIC FIELD SENSOR,HALL EFFECT
Maximum supply voltage	-	20 V	20 V	20 V
Minimum supply voltage	-	2.5 V	2.5 V	2.5 V
surface mount	-	YES	NO	NO
Termination type	-	SOLDER	SOLDER	SOLDER
