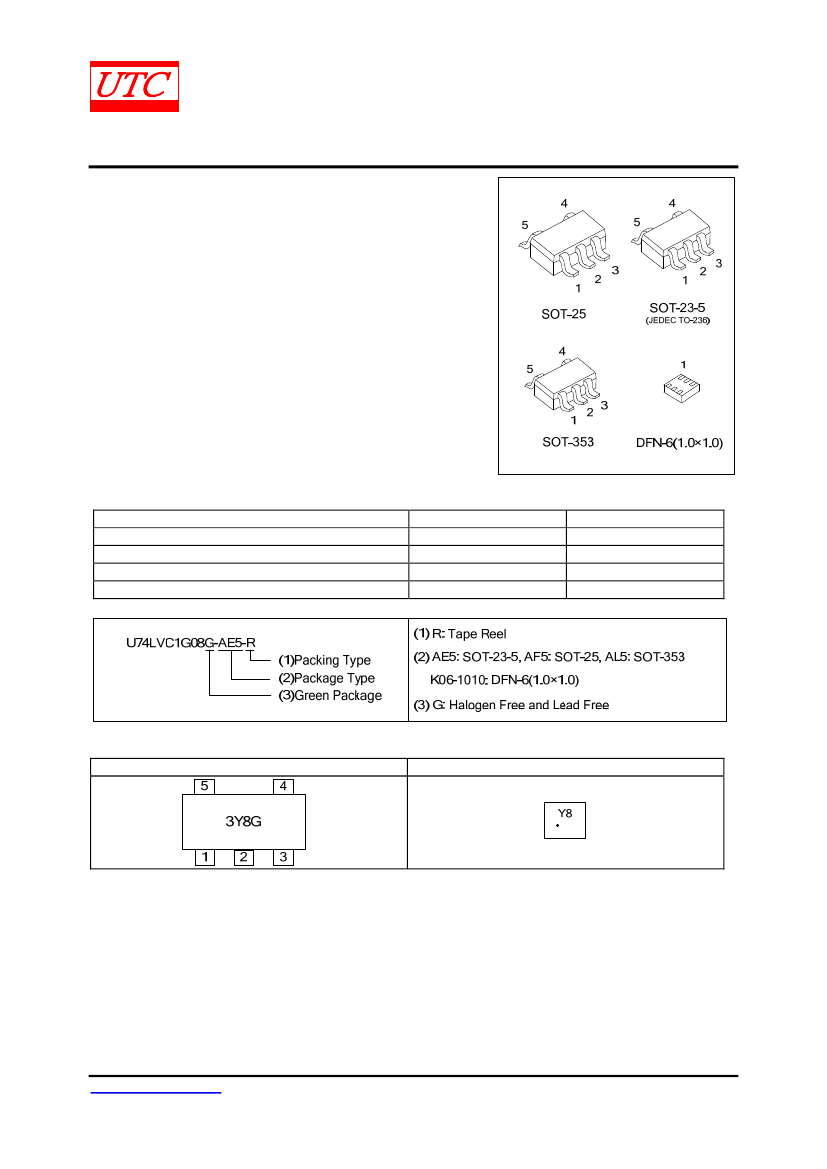

UNISONIC TECHNOLOGIES CO., LTD
U74LVC1G08
2-INPUT AND GATE
DESCRIPTION
CMOS IC
The
U74LVC1G08
is a 2-input AND gate which provides the
Function Y=A×B.
This device has power-down protective circuit to prevent device
form destruction when it is powered down.
FEATURES
* Operation Voltage Range: 1.6V ~ 5.5V
* Low Power Current: I
CC
=10μA (Max.)
* ±24mA Output Drive (V
CC
=3.0V)
* Power Down Protection
ORDERING INFORMATION
Ordering Number
U74LVC1G08G-AE5-R
U74LVC1G08G-AF5-R
U74LVC1G08G-AL5-R
U74LVC1G08G-K06-1010-R
Package
SOT-23-5
SOT-25
SOT-353
DFN-6(1.0×1.0)
Packing
Tape Reel
Tape Reel
Tape Reel
Tape Reel
MARKING
SOT-23-5 / SOT-25 / SOT-353
DFN-6(1.0×1.0)
www.unisonic.com.tw
Copyright © 2015 Unisonic Technologies Co., Ltd
1 of 5
QW-R502-223.H
U74LVC1G08
PIN CONFIGURATION
V
CC
5
Y
4
GND 3
A 2
B 1
4 Y
5 N.C
6 V
CC
CMOS IC
1
A
2
B
3
GND
SOT-23-5 / SOT-25 / SOT-353
DFN-6(1.0×1.0)
(TOP VIEW)
FUNCTION TABLE
(each gate)
INPUT
A
L
L
H
H
B
L
H
L
H
OUTPUT
Y
L
L
L
H
A
B
LOGIC DIAGRAM
(positive logic)
1
2
Logic symbol
4
A
B
1
2
&
4
Y
Y
IEC logic symbol
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
2 of 5
QW-R502-223.H
U74LVC1G08
ABSOLUTE MAXIMUM RATING
(T
A
=25°С, unless otherwise specified) (Note 2)
SYMBOL
V
CC
V
IN
V
OUT
TEST CONDITIONS
RATINGS
-0.5~6.5
-0.5~6.5
-0.5~V
CC
+0.5
-0.5~6.5
PARAMETER
Supply Voltage
Input Voltage
Output Voltage
CMOS IC
UNIT
V
V
V
V
Output in the high or low state
Output in the power-off state
Continuous V
CC
or GND
I
CC
±100
mA
Current
Continuous Output Current
I
OUT
±50
mA
Input Clamp Current
I
IK
V
IN
<0
-50
mA
Output Clamp Current
I
OK
V
OUT
<0
-50
mA
Storage Temperature Range
T
STG
-65 ~+150
°C
Notes: 1. Absolute maximum ratings are those values beyond which the device could be permanently damaged.
Absolute maximum ratings are stress ratings only and functional device operation is not implied.
2. The input and output voltage ratings may be exceeded if the input and output current ratings are observed.
THERMAL DATA
SYMBOL
θ
JA
RATINGS
280
230
350
250
UNIT
°C/W
°C/W
°C/W
°C/W
PARAMETER
SOT-23-5
SOT-25
Junction to Ambient
SOT-353
DFN-6(1.0×1.0)
RECOMMENDED OPERATING CONDITIONS
PARAMETER
SYMBOL
V
CC
V
IN
V
OUT
t/v
T
A
TEST CONDITIONS
Operating
Data retention only
High or low state
V
CC
=1.8V±0.15V
V
CC
=2.5V±0.2V
V
CC
=3.3V±0.3V
V
CC
=5V±0.5V
MIN
1.65
1.5
0
0
TYP
MAX
5.5
5.5
V
CC
32
20
10
125
UNIT
V
V
V
V
ns/V
ns/V
ns/V
°C
Supply Voltage
Input Voltage
Output Voltage
Input Transition Rise or Fall Rate
Operating Temperature
-40
STATIC CHARACTERISTICS
(T
A
=25°С, unless otherwise specified)
PARAMETER
SYMBOL
V
IH
TEST CONDITIONS
V
CC
=1.65V~1.95V
V
CC
=2.3V~2.7V
V
CC
=3.0V~3.6V
V
CC
=4.5V~5.5V
V
CC
=1.65V~1.95V
V
CC
=2.3V~2.7V
V
CC
=3.0V~3.6V
V
CC
=4.5V~5.5V
V
CC
=1.65V ~ 5.5V, I
OH
=-100μA
V
CC
=1.65V, I
OH
=-4mA
V
CC
=2.3V, I
OH
=-8mA
I
OH
=-16mA
V
CC
=3.0V
I
OH
=-24mA
V
CC
=4.5V, I
OH
=-32mA
MIN
0.65×V
CC
TYP
MAX
UNIT
V
High-Level Input Voltage
1.7
2
0.7×V
CC
0.35×V
CC
Low-Level Input Voltage
V
IL
0.7
0.8
0.3×V
CC
V
High-Level Output Voltage
V
OH
V
CC
-0.1
1.2
1.9
2.4
2.3
3.8
V
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
3 of 5
QW-R502-223.H
U74LVC1G08
STATIC CHARACTERISTICS (Cont.)
PARAMETER
SYMBOL
TEST CONDITIONS
V
CC
=1.65V ~ 5.5V, I
OL
=100μA
V
CC
=1.65V, I
OL
=4mA
V
CC
=2.3V, I
OL
=8mA
I
OL
=16mA
V
CC
=3.0V
I
OL
=24mA
V
CC
=4.5V, I
OL
=32mA
V
CC
=0V ~ 5.5V, V
IN
=5.5V or GND
V
CC
=0V, V
IN
or V
OUT
=5.5V
V
CC
=1.65V~5.5V, V
IN
=5.5V or
GND I
OUT
=0
V
CC
=3V~5.5V,One input at
V
CC
-0.6V, other inputs at V
CC
or
GND
V
CC
=3.3V, V
IN
=V
CC
or GND
MIN
TYP
CMOS IC
Low-Level Output Voltage
V
OL
Input Leakage Current
Power OFF Leakage Current
Quiescent Supply Current
Additional Quiescent Supply
Current
Input Capacitance
I
I(LEAK)
I
OFF
I
Q
I
Q
C
IN
MAX
0.1
0.45
0.3
0.4
0.55
0.55
±5
±10
10
500
UNIT
V
μA
μA
μA
μA
pF
4
DYNAMIC CHARACTERISTICS
(T
A
=25°С, unless otherwise specified)
PARAMETER
SYMBOL
TEST CONDITIONS
V
CC
=1.8V±0.15V
V
CC
=2.5V±0.2V
C
L
=15pF
V
CC
=3.3V±0.3V
V
CC
=5V±0.5V
V
CC
=1.8V±0.15V
V
CC
=2.5V±0.2V
C
L
=30 or
50pF
V
CC
=3.3V±0.3V
V
CC
=5V±0.5V
MIN
1.5
0.7
0.8
0.8
2.4
1.1
1
1
TYP
MAX
7.2
4.4
3.6
3.4
8
5.5
4.5
4
UNIT
ns
ns
ns
ns
ns
ns
ns
ns
Propagation delay from input
(A or B) to output(Y)
t
PLH
/t
PHL
OPERATING CHARACTERISTICS
(f=10MHz, T
A
=25°С, unless otherwise specified)
PARAMETER
SYMBOL
C
PD
TEST CONDITIONS
V
CC
=1.8V
V
CC
=2.5V
V
CC
=3.3V
V
CC
=5V
MIN
TYP
21
24
26
31
MAX
UNIT
pF
pF
pF
pF
Power Dissipation
Capacitance
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
4 of 5
QW-R502-223.H
U74LVC1G08
TEST CIRCUIT AND WAVEFORMS
CMOS IC
Note:
C
L
includes probe and jig capacitance.
V
CC
1.8V±0.15V
2.5V±0.2V
3.3V±0.3V
5V±0.5V
1.8V±0.15V
2.5V±0.2V
3.3V±0.3V
5V±0.5V
V
IN
V
CC
V
CC
3V
V
CC
V
CC
V
CC
3V
V
CC
t
R
,/t
F
≤2ns
≤2ns
≤2.5ns
≤2.5ns
≤2ns
≤2ns
≤2.5ns
≤2.5ns
V
M
V
CC
/2
V
CC
/2
1.5V
V
CC
/2
V
CC
/2
V
CC
/2
1.5V
V
CC
/2
V
LOAD
2×V
CC
2×V
CC
6V
2×V
CC
2V
CC
2×V
CC
6V
2×V
CC
C
L
15pF
15pF
15pF
15pF
30pF
30pF
50pF
50pF
R
L
1MΩ
1MΩ
1MΩ
1MΩ
1KΩ
500Ω
500Ω
500Ω
V
△
0.15V
0.15V
0.3V
0.3V
0.15V
0.15V
0.3V
0.3V
UTC assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or
other parameters) listed in products specifications of any and all UTC products described or contained
herein. UTC products are not designed for use in life support appliances, devices or systems where
malfunction of these products can be reasonably expected to result in personal injury. Reproduction in
whole or in part is prohibited without the prior written consent of the copyright owner. The information
presented in this document does not form part of any quotation or contract, is believed to be accurate
and reliable and may be changed without notice.
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
5 of 5
QW-R502-223.H
