UNISONIC TECHNOLOGIES CO., LTD
12N40
Preliminary
Power MOSFET
12A, 400V N-CHANNEL
POWER MOSFET
1
DESCRIPTION
The UTC
12N40
is an N-channel mode power MOSFET using
UTC’ s advanced technology to provide customers with planar stripe
and DMOS technology. This technology specializes in allowing a
minimum on-state resistance and superior switching performance. It
also can withstand high energy pulse in the avalanche and
commutation mode.
The UTC
12N40
is universally applied in electronic lamp ballast
based on half bridge topology and high efficient switched mode
power supply.
TO-220
1
TO-220F1
FEATURES
* R
DS(ON)
=0.47Ω @ V
GS
=10V
* High switching speed
* 100% avalanche tested
SYMBOL
2.Drain
1.Gate
3.Source
ORDERING INFORMATION
Ordering Number
Lead Free
Halogen Free
12N40L-TA3-T
12N40G-TA3-T
12N40L-TF1-T
12N40G-TF1-T
Note: Pin Assignment: G: Gate D: Drain
S: Source
Package
TO-220
TO-220F1
Pin Assignment
1
2
3
G
D
S
G
D
S
Packing
Tube
Tube
www.unisonic.com.tw
Copyright © 2011 Unisonic Technologies Co., Ltd
1 of 4
QW-R502-574.b
12N40
Preliminary
Power MOSFET
ABSOLUTE MAXIMUM RATINGS
(T
C
=25°C, unless otherwise specified)
PARAMETER
SYMBOL
RATINGS
UNIT
Drain-Source Voltage
V
DSS
400
V
Gate-Source Voltage
V
GSS
±30
V
Continuous (T
C
=25°C)
I
D
12
A
Drain Current
48
A
Pulsed (Note 2)
I
DM
Single Pulsed Avalanche Energy
E
AS
474
mJ
TO-220
192
W
Power Dissipation
TO-220F1
42
W
P
D
TO-220
1.53
W/°C
Derate above 25°C
TO-220F1
0.33
W/°C
Junction Temperature
T
J
+150
°C
Storage Temperature
T
STG
-55~+150
°C
Note: 1. Absolute maximum ratings are those values beyond which the device could be permanently damaged.
Absolute maximum ratings are stress ratings only and functional device operation is not implied.
2. Repetitive Rating: Pulse width limited by maximum junction temperature
THERMAL DATA
PARAMETER
Junction to Ambient
Junction to Case
TO-220
TO-220F1
SYMBOL
θ
JA
θ
JC
RATINGS
62.5
0.65
3.0
UNIT
°C/W
°C/W
ELECTRICAL CHARACTERISTICS
(T
C
=25°C, unless otherwise noted)
PARAMETER
SYMBOL
TEST CONDITIONS
OFF CHARACTERISTICS
Drain-Source Breakdown Voltage
BV
DSS
I
D
=250µA, V
GS
=0V
Drain-Source Leakage Current
I
DSS
V
DS
=400V, V
GS
=0V
Forward
V
GS
=+30V, V
DS
=0V
Gate- Source Leakage Current
I
GSS
Reverse
V
GS
=-30V, V
DS
=0V
ON CHARACTERISTICS
Gate Threshold Voltage
V
GS(TH)
V
DS
=V
GS
, I
D
=250µA
Static Drain-Source On-State Resistance
R
DS(ON)
V
GS
=10V, I
D
=12A
DYNAMIC PARAMETERS
Input Capacitance
C
ISS
V
GS
=0V, V
DS
=25V, f=1.0MHz
Output Capacitance
C
OSS
Reverse Transfer Capacitance
C
RSS
SWITCHING PARAMETERS
Turn-ON Delay Time
t
D(ON)
V
DD
=200V, I
D
=12A, R
G
=25Ω
Rise Time
t
R
(Note 1, 2)
Turn-OFF Delay Time
t
D(OFF)
Fall-Time
t
F
SOURCE- DRAIN DIODE RATINGS AND CHARACTERISTICS
Drain-Source Diode Forward Voltage
V
SD
I
S
=12A, V
GS
=0V
Maximum Body-Diode Continuous Current
I
S
Maximum Body-Diode Pulsed Current
I
SM
Notes: 1. Pulse Test: Pulse width
≤
300µs, Duty cycle
≤
2%
2. Essentially independent of operating temperature
MIN TYP MAX UNIT
400
V
1
µA
+100 nA
-100 nA
4.0
0.34 0.47
V
Ω
2.0
3000 pF
900 pF
400 pF
30
105
480
140
50
150
750
200
1.4
12
48
ns
ns
ns
ns
V
A
A
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
2 of 4
QW-R502-574.b
12N40
D.U.T.
Preliminary
Power MOSFET
TEST CIRCUITS AND WAVEFORMS
+
V
DS
-
+
-
L
R
G
Driver
V
GS
Same Type
as D.U.T.
* dv/dt controlled by R
G
* I
SD
controlled by pulse period
* D.U.T.-Device Under Test
V
DD
Peak Diode Recovery dv/dt Test Circuit
V
GS
(Driver)
Period
P.W.
D=
P. W.
Period
V
GS
= 10V
I
FM
, Body Diode Forward Current
I
SD
(D.U.T.)
I
RM
Body Diode Reverse Current
di/dt
Body Diode Recovery dv/dt
V
DS
(D.U.T.)
V
DD
Body Diode
Forward Voltage Drop
Peak Diode Recovery dv/dt Waveforms
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
3 of 4
QW-R502-574.b
12N40
Preliminary
Power MOSFET
TEST CIRCUITS AND WAVEFORMS (Cont.)
V
DS
90%
V
GS
10%
t
D(ON)
t
R
t
D(OFF)
t
F

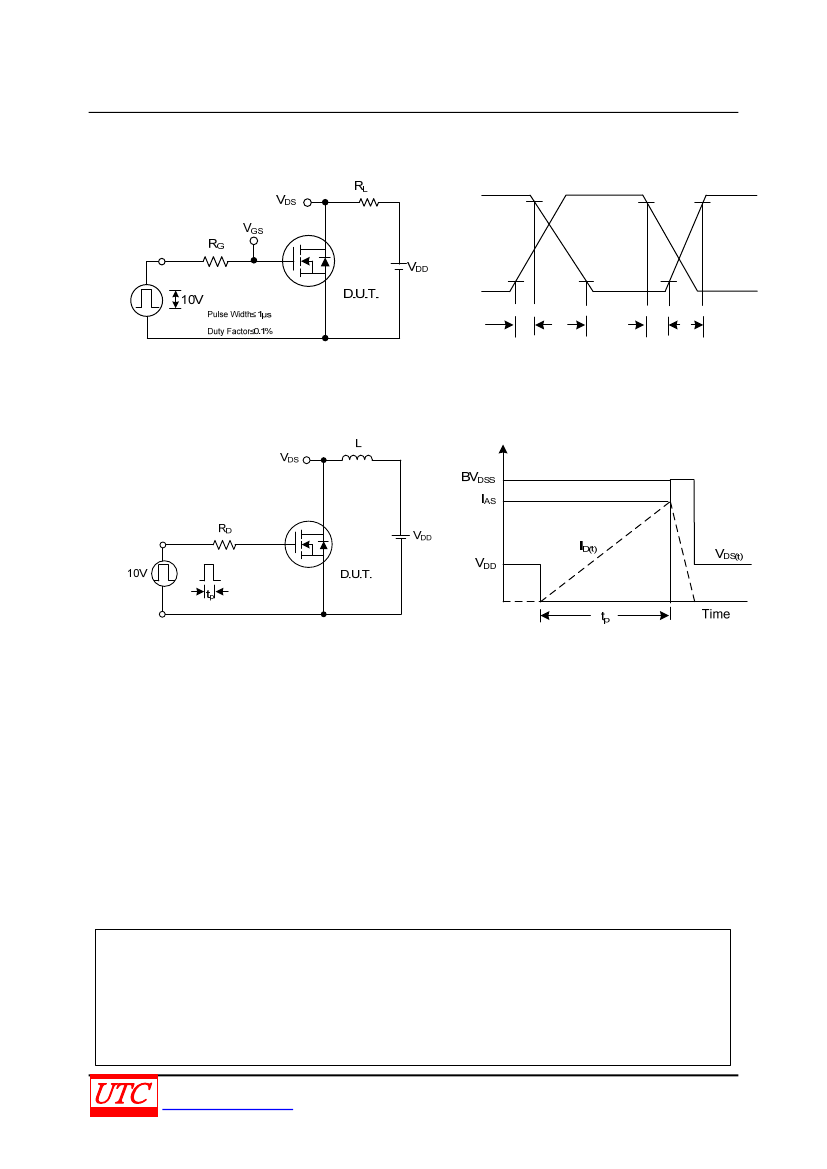

Switching Test Circuit
Switching Waveforms
Unclamped Inductive Switching Test Circuit
Unclamped Inductive Switching Waveforms
UTC assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or
other parameters) listed in products specifications of any and all UTC products described or contained
herein. UTC products are not designed for use in life support appliances, devices or systems where
malfunction of these products can be reasonably expected to result in personal injury. Reproduction in
whole or in part is prohibited without the prior written consent of the copyright owner. The information
presented in this document does not form part of any quotation or contract, is believed to be accurate
and reliable and may be changed without notice.
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
4 of 4
QW-R502-574.b
