MSL1
Customer Name
System
Part Number
Standard
Band 28 Block A Duplexer
D5FC773M0K3NC
TAIYO YUDEN Mobile Technology Co., Ltd.
Mar. 06, 2018
Date
Final
Version 4.1daC
Table 1-1. Electrical Specification
Item
Condition
(MHz)
Min.
Insertion loss
703－733
703.25－732.75
703－733
Tx
Ant
703－733
703－733
Specification
Typ.
2.0
2.0
1.3
1.9
1.8
+29dBm,
CW,
+50℃,5000h
Max.
2.9
2.7
2.4
2.2
2.1
Unit
dB (*1)
dB (*1)
dB
-
-
Remarks
-
-
-
-
-
Ripple
VSWR
-
+29dBm,
LTE 3MHz 1RB,
+50℃,5000h
-
+29.5dBm,
CW,
+50℃,2000h
Input Power
Tx to Ant
703－733
-
+29.5dBm,
LTE 3MHz 1RB,
+50℃,2000h
-
+30dBm,
CW,
+50℃,1000h
-
+30dBm,
LTE 3MHz 1RB,
+50℃,1000h
10－694
694－698
758－788
Absolute attenuation
1406－1466
1565－1606
2109－2199
2400－2500
-
18
3
47
23
20
30
35
30
11
54
29
24
34
40
-
-
-
-
-
-
-
dB
dB
dB
dB
dB
dB
dB
Rx
2f0
GPS
3f0
ISM
1/13
MSL1
Customer Name
System
Part Number
Standard
Band 28 Block A Duplexer
D5FC773M0K3NC
TAIYO YUDEN Mobile Technology Co., Ltd.
Mar. 06, 2018
Date
Final
Version 4.1daC
Table 1-2. Electrical Specification
Item
Insertion loss
Insertion loss
Ripple
Ant to Rx
Ant
Rx
Condition
(MHz)
Min.
758－788
758.25－787.75
758－788
758－788
758－788
703－733
2400－2500
703－733
758－788
Tx port
Specification
Typ.
1.8
1.7
0.9
1.8
1.8
64
68
63
58
50//12 nH
50
50//8.2 nH
-30 to +85
-
-
100
1.8 x 1.4 x 0.44
5
Max.
2.6
2.4
2.0
2.0
2.0
-
-
-
-
Unit
dB (*1)
dB (*1)
dB
-
-
dB
dB
dB
dB
Ω
Ω
Ω
℃
VDC
MΩ
mm
Remarks
-
-
-
-
-
50
30
60
55
VSWR
Absolute attenuation
Tx
ISM
Tx
Rx
Tx to Rx
Isolation
Terminating Impedance
Rx port
Ant port
Operating Temperature
Maximum DC in all ports
DC impedance to ground
Device size (L max. x W max. x H max.)
Device only
Device only
(*1) Specification of insertion loss excludes loss that comes from the test board.
2/13
MSL1
Customer Name
System
Part Number
Standard
Band 28 Block A Duplexer
D5FC773M0K3NC
TAIYO YUDEN Mobile Technology Co., Ltd.
Mar. 06, 2018
Date
Final
Version 4.1daC
Dimensions
Unit: mm
Figure 1. Dimensions
Pin Assignment
Table 2. Pin Assignment
Pin No.
1
2
3
4
5
6
7
8
Pin name
Rx
GND
Tx
GND
GND
ANT
GND
GND
Description
Receiver
Ground
Transmitter
Ground
Ground
Antenna
Ground
Ground
3/13
MSL1
Customer Name
System
Part Number
Standard
Band 28 Block A Duplexer
D5FC773M0K3NC
TAIYO YUDEN Mobile Technology Co., Ltd.
Mar. 06, 2018
Date
Final
Version 4.1daC

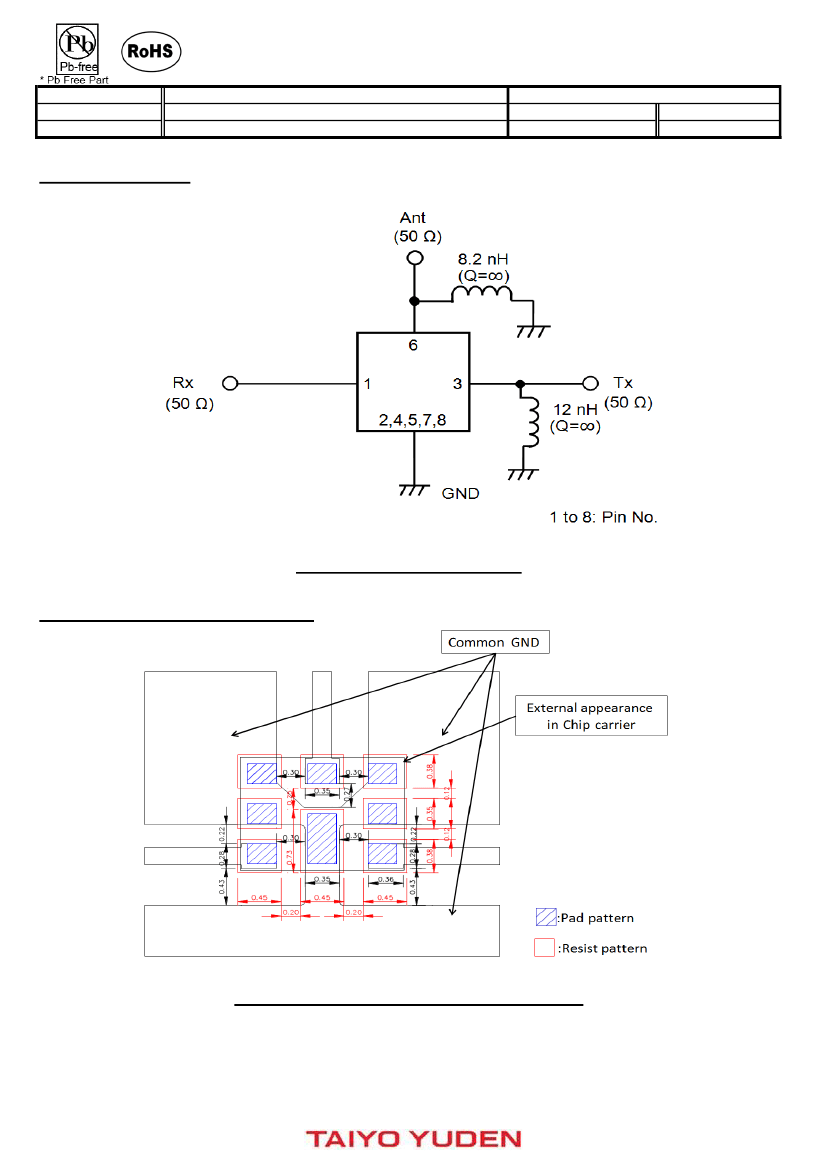

Evaluation Circuit
Figure 2. Evaluation Circuit
Recommended Foot Print Pattern
Figure 3. Recommended Foot Print Pattern
4/13
MSL1
Customer Name
System
Part Number
Standard
Band 28 Block A Duplexer
D5FC773M0K3NC
TAIYO YUDEN Mobile Technology Co., Ltd.
Mar. 06, 2018
Date
Final
Version 4.1daC
Tx to Ant
Ant to Rx

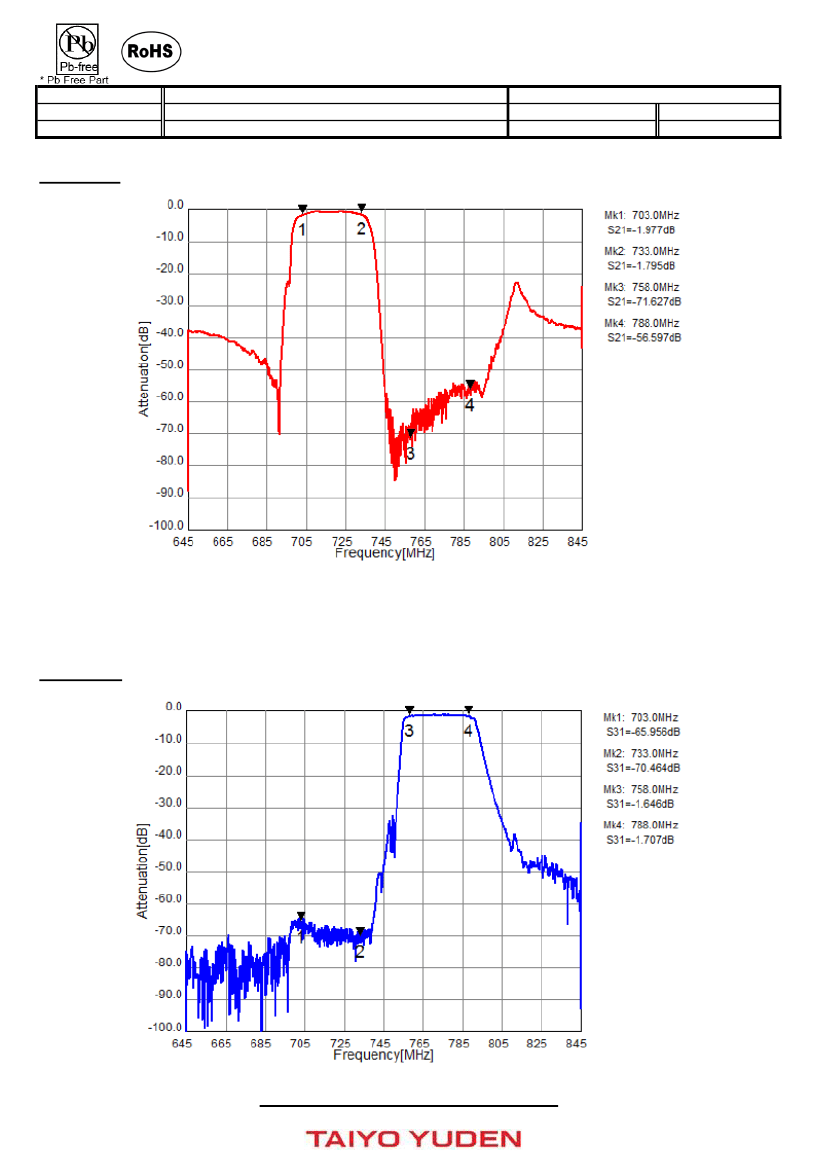

Figure 4-1. Electrical Characteristics
These data excludes loss that comes from the test board
5/13
