A-BASE BROAD BANDS & COLLINEARS
The
ANTENEX
®

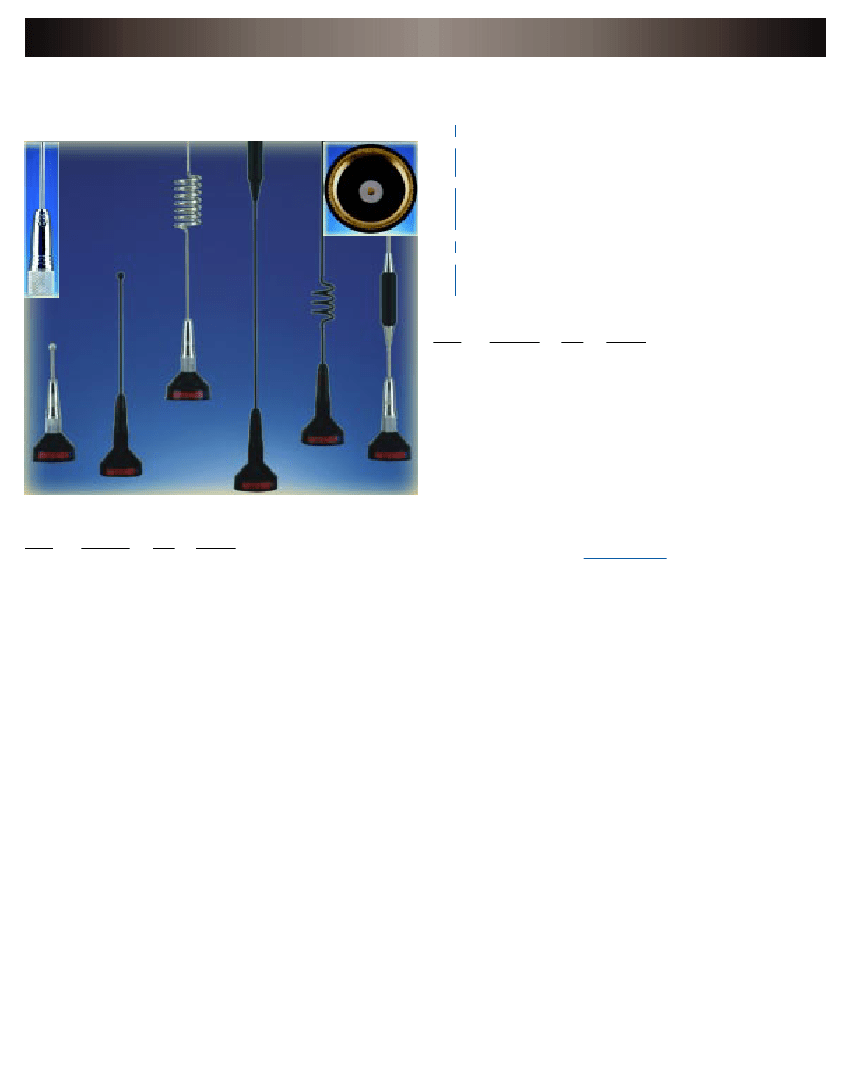

“A-Base” style antenna offers a durable mount-
ing chassis that supports a wide range of rod styles, frequencies,
and gain choices. The “A-Base” features rugged ABS body and a
triple-chrome plated ferrule. The base contact is a highly reliable
gold plated push pin design.
Ordering Guide -
Clear, Easy & Sensible!
AB4503CS
= Low profile base, black, 450-470 MHz, 3.5 dB, closed coil, spring.
A
B
Antenna Style
Finish
A
= Low Profile Base
Blank
= Chrome Finish
B
= Black Finish
450
Frequency
Frequency component of part number in bold below:
xxx
= Specify Center Frequency,
FT
= Field Tunable
118-512 150-174
450-470 470-490
490-512 806-896
896-970
0
= Unity Gain
3
= 3 dB or 3.5 dB
5
= 5 dB
3
C
Gain
Coil Option
Blank
= Straight Rod or Open coil
C
= Closed Phasing Coil
CT
= Closed Trillinear Phasing Coil
S
= Spring Option
S
Model
Spring Option
Frequency
Gain
Radiator
800/900 MHz ANTENNAS
Chrome Models
A8063
A8963
A8063C
A8963C
A8065CT
A8965CT
AB8063
AB8963
AB8063C
AB8963C
AB8065CT
AB8965CT
806-896 MHz
896-970 MHz
806-896 MHz
896-970 MHz
806-896 MHz
896-970 MHz
806-896 MHz
896-970 MHz
806-896 MHz
896-970 MHz
806-896 MHz
896-970 MHz
3 dB
3 dB
3.5 dB
3.5 dB
5 dB
5 dB
3 dB
3 dB
3.5 dB
3.5 dB
5 dB
5 dB
Open Collinear
Open Collinear
Closed Collinear
Closed Collinear
Closed Trillinear
Closed Trillinear
Open Collinear
Open Collinear
Closed Collinear
Closed Collinear
Closed Trillinear
Closed Trillinear
Black Models
A800, AB450, A4503, AB4503C, AB8063, A8063C
Inset: Tuning Ferrule, Inset: Gold Contact
Model
Frequency
Gain
Radiator
800/900 MHz ANTENNAS WITH SPRING
Chrome Models
A8063S
A8963S
A8063CS
A8963CS
A8065CTS
A8965CTS
AB8063S
AB8963S
AB8063CS
AB8963CS
AB8065CTS
AB8965CTS
806-896 MHz
896-970 MHz
806-896 MHz
896-970 MHz
806-896 MHz
896-970 MHz
806-896 MHz
896-970 MHz
806-896 MHz
896-970 MHz
806-896 MHz
896-970 MHz
3 dB
3 dB
3.5 dB
3.5 dB
5 dB
5 dB
3 dB
3 dB
3.5 dB
3.5 dB
5 dB
5 dB
Open Collinear
Open Collinear
Closed Collinear
Closed Collinear
Closed Trillinear
Closed Trillinear
Open Collinear
Open Collinear
Closed Collinear
Closed Collinear
Closed Trillinear
Closed Trillinear
RUGGED BROADBAND QUARTERWAVE MODELS
Chrome Models
AFT
118-896 MHz Unity
0.100" Dia. 1/4 Wave
A150
150-174 MHz Unity
0.100" Dia. 1/4 Wave
A450
450-470 MHz Unity
0.100" Dia. 1/4 Wave
A470
470-490 MHz Unity
0.100” Dia. 1/4 Wave
A800
800-896 MHz Unity
0.100" Dia. 1/4 Wave
Axxx
Factory Tuned (xxx = your center frequency)
Chrome Models With Spring add.
Black Models
Black Models
ABFT
118-896 MHz
Unity
0.100" Dia. 1/4 Wave
AB150
150-174 MHz
Unity
0.100" Dia. 1/4 Wave
AB450
450-470 MHz
Unity
0.100" Dia. 1/4 Wave
AB470
470-490 MHz
Unity
0.100" Dia. 1/4 Wave
AB800
800-896 MHz
Unity
0.100" Dia. 1/4 Wave
ABxxx
Factory Tuned (xxx = your center frequency)
Black Models With Spring add.
Note: 800 and 900 MHz models are not available with a spring.
ACCESSORIES
AS
ASB
Low Profile Base Chrome Spring w/Key & Set Screw
Low Profile Base Black Spring w/Key & Set Screw
UHF COLLINEARS
Chrome Models
A4503
A4703
A4903
A4063C
A4303C
A4503C
A4703C
A4903C
450-470 MHz
470-490 MHz
490-512 MHz
406-430 MHz
430-450 MHz
450-470 MHz
470-490 MHz
490-512 MHz
3.5 dB
3.5 dB
3.5 dB
3.5 dB
3.5 dB
3.5 dB
3.5 dB
3.5 dB
Open Collinear
Open Collinear
Open Collinear
Closed Collinear
Closed Collinear
Closed Collinear
Closed Collinear
Closed Collinear
Technical Data
-
Product Features & Information
l
l
l
l
l
Gain:
Frequency Range:
VSWR:
Maximum Power:
Bandwidth:
Black Models
AB4503
AB4703
AB4903
AB4063C
AB4303C
AB4503C
AB4703C
AB4903C
450-470 MHz
470-490 MHz
490-512 MHz
406-430 MHz
430-450 MHz
450-470 MHz
470-490 MHz
490-512 MHz
3.5 dB
3.5 dB
3.5 dB
3.5 dB
3.5 dB
3.5 dB
3.5 dB
3.5 dB
Open Collinear
Open Collinear
Open Collinear
Closed Collinear
Closed Collinear
Closed Collinear
Closed Collinear
Closed Collinear
l
Impedance:
l
Mounting Base:
l
Radiator:
l
Brass Fittings:
l
Contacts:
See model.
See model.
<1.5:1
200 watts
VHF - up to 25 MHz (with spring),
UHF/800/900 - 100 MHz+
50 ohms
High temperature molded ABS with threaded
brass insert.
Type 302 stainless steel with a brite drawn or black
chrome plate finish for .062" diameter rods. 17-7ph
stainless steel with a centerless ground finish or
black chrome plate for all other models.
Highly polished brite or black chrome plated ferrule
Gold plated push pin contact on A style.
