100mA POSITIVE VOLTAGE REGULATOR

General Description

The AS78LXX series are three terminal positive regu-

lators designed for a wide variety of applications

including local, on-card regulation.

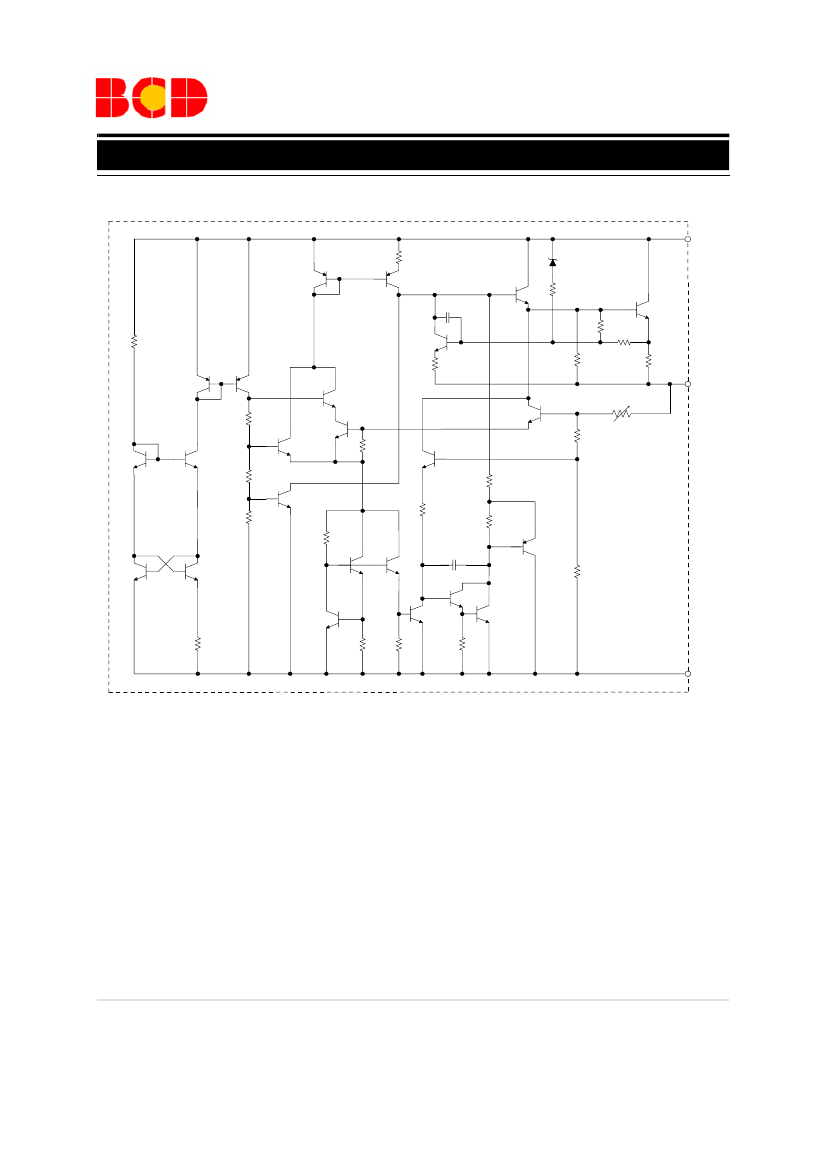

This series of regulators are complete with internal

current limiting, thermal shutdown protection, and

safe-area compensation which make them virtually

immune from output overload. If adequate heat sinking

are provided, these regulators can deliver output cur-

rents up to 100mA.

The AS78LXX series are available in TO-92 (bulk or

ammo packing), SOT-89 and SOIC-8 packages.

AS78LXX

Features

Output Current up to 100mA

Fixed Output Voltages of 5V, 12V, 15V, 18V and

24V

Output Voltage Accuracy of

±5%

over the Full

Temperature Range

Internal Short Circuit Current Limiting

Internal Thermal Overload Protection

No External Components

Output Transistor Safe-area Protection

Applications

Consumer Electronics

Microprocessor Power Supply

Mother Board

TO-92(Bulk Packing)

TO-92(Ammo Packing)

SOT-89

SOIC-8

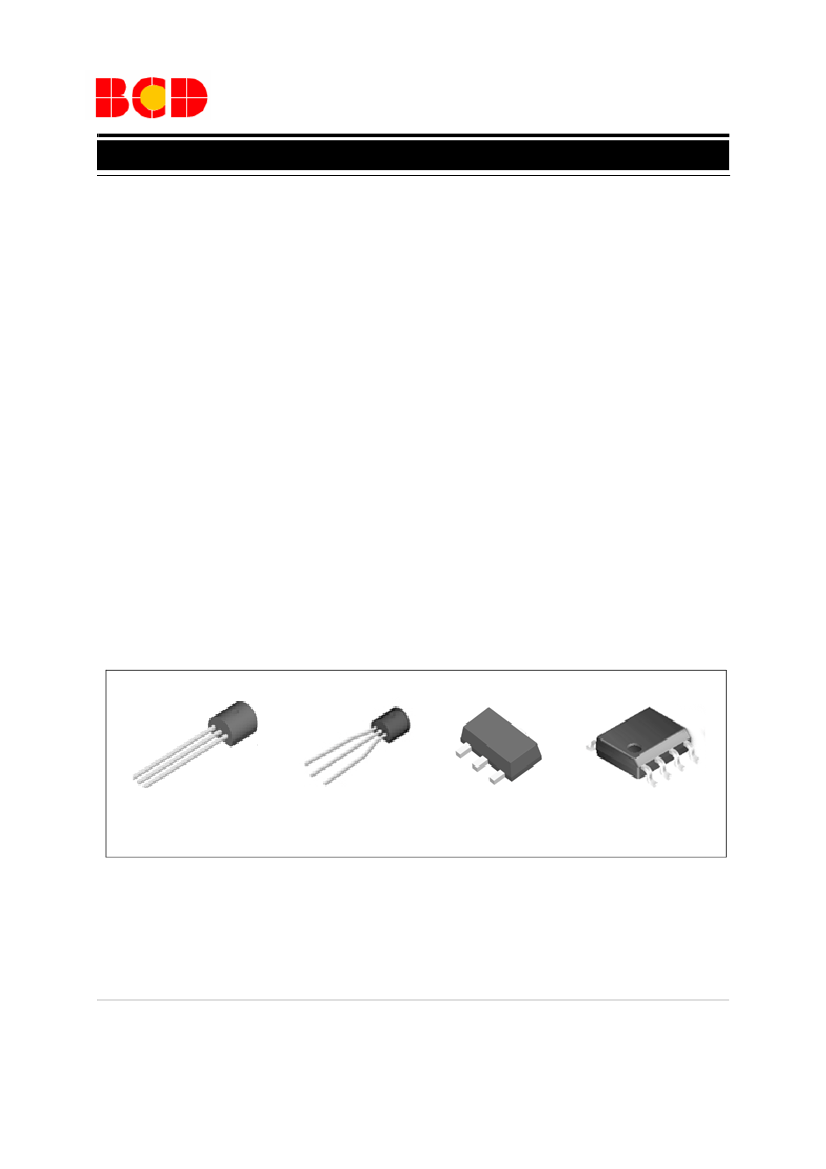

Figure 1. Package Types of AS78LXX
