Data Sheet

5A LOW DROPOUT LINEAR REGULATOR

General Description

The AZ1084 is a series of low dropout positive voltage

regulators with a maximum dropout of 1.5V at 5A of

load current.

The series features on-chip thermal limiting which pro-

vides protection against any combination of overload

and ambient temperatures that would create excessive

junction temperatures. It also includes a trimmed band-

gap reference and a current limiting circuit.

The AZ1084 is available in 1.5V, 1.8V, 2.5V, 3.3V and

5.0V versions. The fixed versions integrate the adjust

resistors. It is also available in an adjustable version

which can set the output voltage with two external

resistors.

The AZ1084 series is available in standard packages of

TO-263-3, TO-263-2, TO-220-3, TO-252-2 (1), TO-

252-2 (2), TO-252-2 (3) and TO-252-2 (4).

AZ1084

Features

Low Dropout Voltage: 1.3V Typical at 5A

Current Limiting and Thermal Protection

Output Current: 5A

Current Limit: 6.5A

Operating Junction Temperature Range: 0 to

125

Line Regulation (Adj Version): 0.015% (Typical)

Load Regulation (Adj Version): 0.1% (Typical)

Applications

High Efficiency Linear Regulators

Battery Chargers

Post Regulation for Switching Supply

Microprocessor Supply

Desktop PCs, RISC and Embedded Processors'

Supply

TO-263-3

TO-263-2

TO-220-3

TO-252-2 (1)

TO-252-2 (2)

TO-252-2 (3)

TO-252-2 (4)

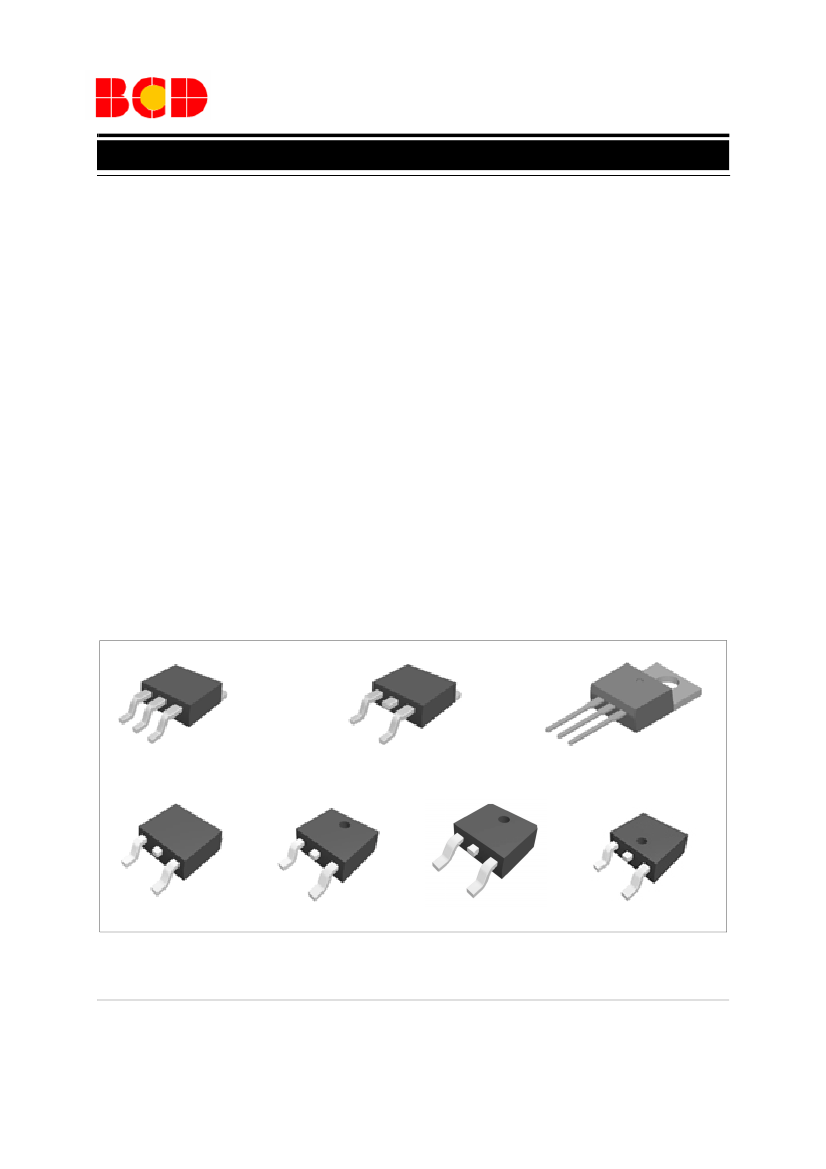

Figure 1. Package Types of AZ1084

Sept. 2011 Rev. 2. 2
