MC74VHC1GT32DBVT1G

Description
Single 2-Input OR Gate, TTL Level, 3000-REEL
Categorylogic    logic
File Size200KB,14 Pages
ManufacturerON Semiconductor
Websitehttp://www.onsemi.cn
Environmental Compliance
Download Datasheet Parametric Compare View All

MC74VHC1GT32DBVT1G Online Shopping

Suppliers Part Number Price MOQ In stock
MC74VHC1GT32DBVT1G - - View Buy Now

MC74VHC1GT32DBVT1G Overview

Single 2-Input OR Gate, TTL Level, 3000-REEL

MC74VHC1GT32DBVT1G Parametric

Parameter NameAttribute value
Brand NameON Semiconductor
Is it lead-free?Lead free
MakerON Semiconductor
package instructionTSOP, TSOP5/6,.11,37
Manufacturer packaging code318BQ
Reach Compliance Codecompliant
Factory Lead Time43 weeks 1 day
Samacsys DescriptionLogic Gates Single 2-Input OR Gate TTL Level
seriesAHC/VHC
JESD-30 codeR-PDSO-G5
length3 mm
Load capacitance (CL)50 pF
Logic integrated circuit typeOR GATE
MaximumI(ol)0.008 A
Number of functions1
Number of entries2
Number of terminals5
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialPLASTIC/EPOXY
encapsulated codeTSOP
Encapsulate equivalent codeTSOP5/6,.11,37
Package shapeRECTANGULAR
Package formSMALL OUTLINE, THIN PROFILE
method of packingTR
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Maximum supply current (ICC)0.04 mA
Prop。Delay @ Nom-Sup10 ns
propagation delay (tpd)15.5 ns
Schmitt triggerNO
Maximum seat height1.1 mm
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)2 V
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyCMOS
Temperature levelMILITARY
Terminal formGULL WING
Terminal pitch0.95 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
width1.5 mm

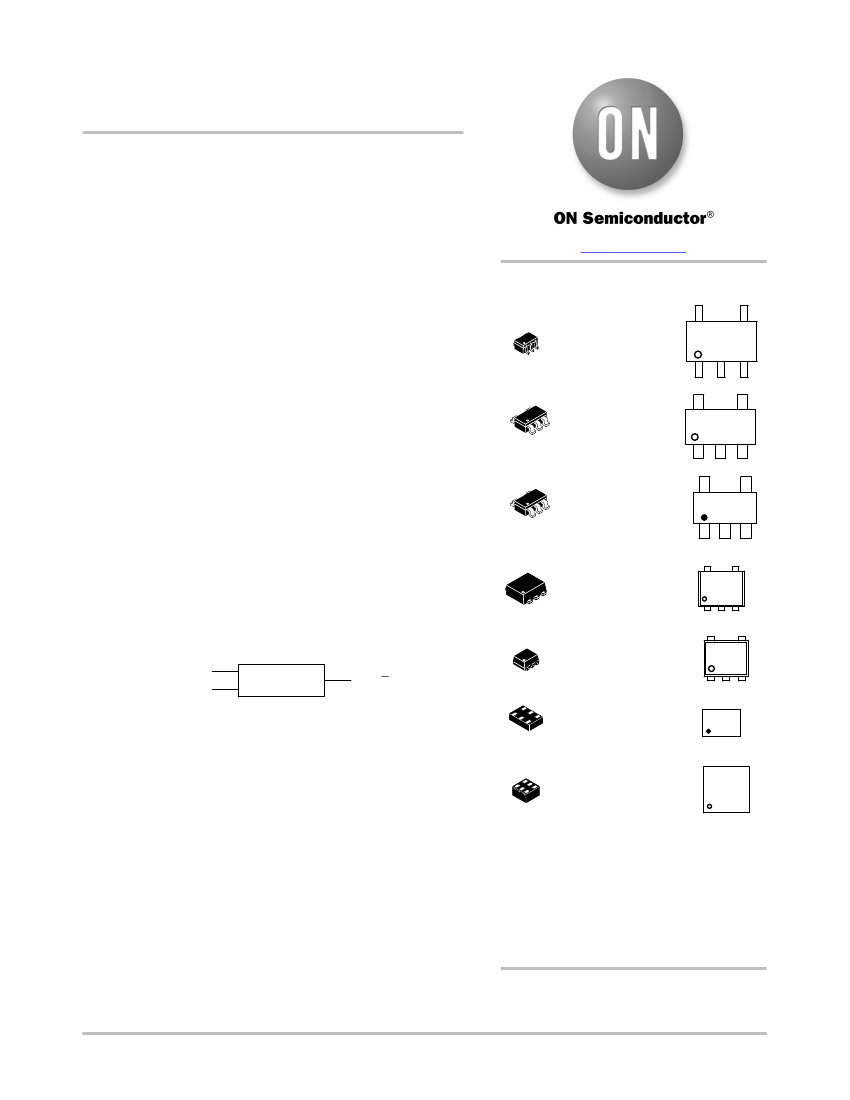

MC74VHC1G32,
MC74VHC1GT32
Single 2-Input OR Gate
The MC74VHC1G32 / MC74VHC1GT32 is a single 2−input OR
Gate in tiny footprint packages. The MC74VHC1G32 has
CMOS−level input thresholds while the MC74VHC1GT32 has
TTL−level thresholds.
The input structures provide protection when voltages up to 5.5 V
are applied, regardless of the supply voltage. This allows the device to
be used to interface 5 V circuits to 3 V circuits. The output structures
also provide protection when V
CC
= 0 V and when the output voltage
exceeds V
CC
. These input and output structures help prevent device
destruction caused by supply voltage
input/output voltage mismatch,
battery backup, hot insertion, etc.
Features
www.onsemi.com
MARKING
DIAGRAMS
SC−88A
DF SUFFIX
CASE 419A
XX MG
G
Designed for 2.0 V to 5.5 V V
CC
Operation
3.5 ns t
PD
at 5 V (typ)
Inputs/Outputs Over−Voltage Tolerant up to 5.5 V
I
OFF
Supports Partial Power Down Protection
Source/Sink 8 mA at 3.0 V
Available in SC−88A, SC−74A, TSOP−5, SOT−553, SOT−953 and
UDFN6 Packages
Chip Complexity < 100 FETs
NLV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q100
Qualified and PPAP Capable
These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant
IN A
IN B
≥1
OUT Y
SC−74A
DBV SUFFIX
CASE 318BQ
XXX MG
G
5
5
1
TSOP−5
DT SUFFIX
CASE 483
1
SOT−553
XV5 SUFFIX
CASE 463B
XX MG
G
XX MG
G
SOT−953
P5 SUFFIX
CASE 527AE
UDFN6
1.45 x 1.0
CASE 517AQ
XM
1
Figure 1. Logic Symbol
1
XM
UDFN6
1.0 x 1.0
CASE 517BX
XX
M
G
XM
1
= Specific Device Code
= Date Code*
= Pb−Free Package
(Note: Microdot may be in either location)
*Date Code orientation and/or position may
vary depending upon manufacturing location.
ORDERING INFORMATION
See detailed ordering, marking and shipping information in the
package dimensions section on page 7 of this data sheet.
©
Semiconductor Components Industries, LLC, 2011
November, 2018
Rev. 21
1
Publication Order Number:
MC74VHC1G32/D
