UNISONIC TECHNOLOGIES CO., LTD

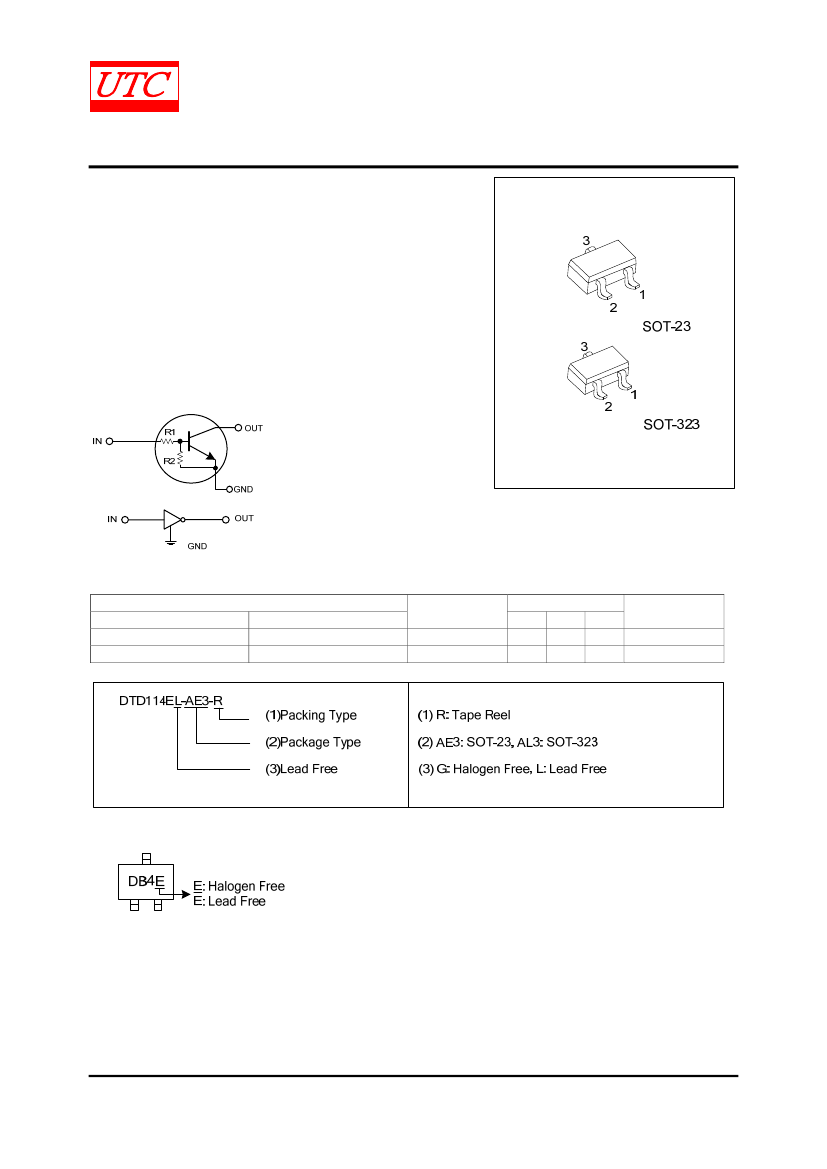

DTD114E
NPN DIGITAL TRANSISTOR
(BUILT- IN BIAS RESISTORS)
FEATURES
* Built-in bias resistors that implies easy ON/OFF applications.
* The bias resistors are thin-film resistors with complete isolation to
allow negative input.
NPN SILICON TRANSISTOR
EQUIVALENT CIRCUIT
ORDERING INFORMATION
Ordering Number
Lead Free
Halogen Free
DTD114EL-AE3-R
DTD114EG-AE3-R
DTD114EL-AL3-R
DTD114EG-AL3-R
Package
SOT-23
SOT-323
Pin Assignment
1
2
3
G
I
O
G
I
O
Packing
Tape Reel
Tape Reel
MARKING
www.unisonic.com.tw
Copyright © 2011 Unisonic Technologies Co., Ltd
1 of 3
QW-R206-043,C
DTD114E
ABSOLUTE MAXIMUM RATINGS
(Ta=25°C)
NPN SILICON TRANSISTOR
PARAMETER
SYMBOL
RATING
UNIT
Supply Voltage
V
CC
50
V
Input Voltage
V
IN
-10~+40
V
Output Current
I
OUT
500
mA
Power Dissipation
P
D
200
mW
Junction Temperature
T
J
150
°C
Storage Temperature
T
STG
-40 ~ +150
°C
Note Absolute maximum ratings are those values beyond which the device could be permanently damaged.
Absolute maximum ratings are stress ratings only and functional device operation is not implied.
ELECTRICAL SPECIFICATIONS
(Ta=25°C, unless others specified)
SYMBOL
V
IN(OFF)
Input Voltage
V
IN(ON)
Output Voltage
V
OUT(ON)
Input Current
I
IN
Output Current
I
OUT(OFF)
DC Current Gain
h
FE
Input Resistance
R
1
Resistance Ratio
R
2
/R
1
Transition Frequency
f
T
*Transition frequency of the device
PARAMETER
TEST CONDITIONS
V
CC
=5V, I
OUT
=100μA
V
OUT
=0.3V, I
OUT
=10mA
I
OUT
/I
IN
=50mA/2.5mA
V
IN
=5V
V
CC
=50V, V
IN
=0V
V
OUT
=5V, I
OUT
=50mA
MIN
3
0.1
0.3
0.88
0.5
13
1.2
TYP
MAX
0.5
UNIT
V
V
mA
μA
kΩ
MHz
56
7
0.8
V
CE
=10V, I
E
=−50mA, f=100MHz
10
1
200
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
2 of 3
QW-R206-043,C
DTD114E

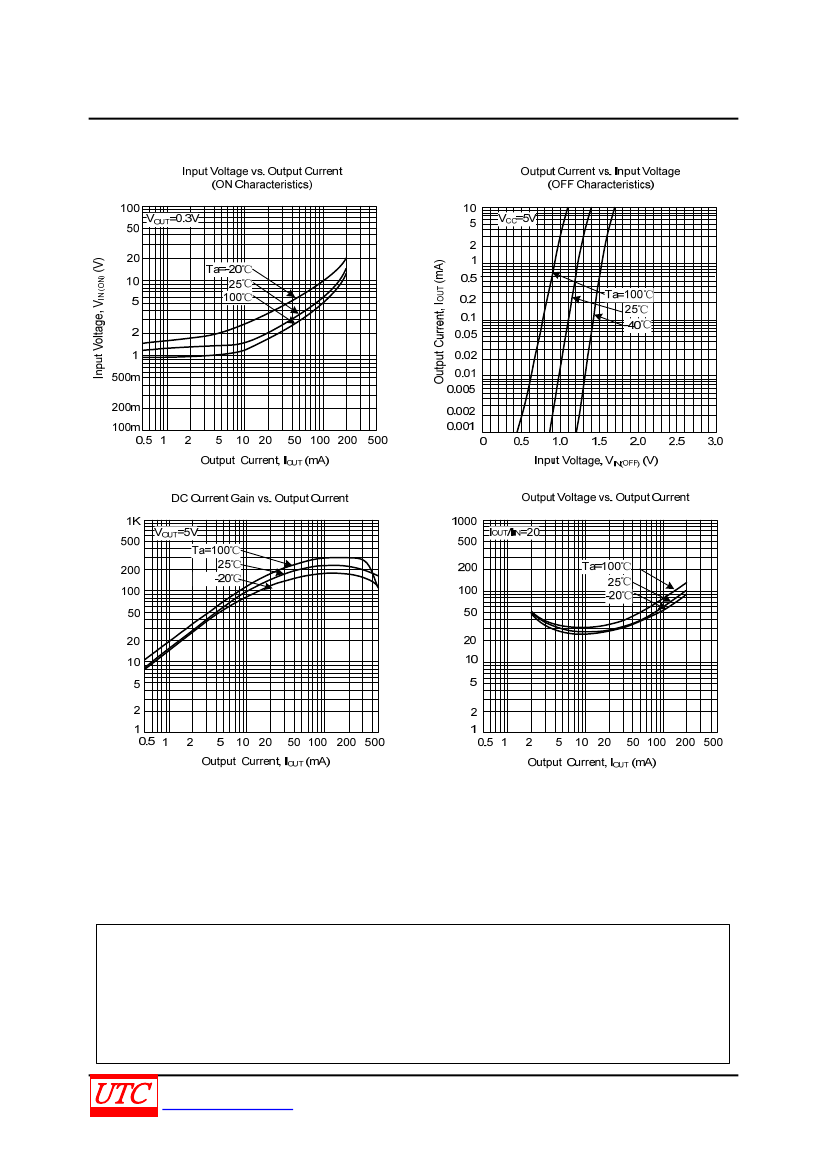

TYPICAL CHARACTERISTICS
