UNISONIC TECHNOLOGIES CO., LTD
F1836
LOW-SATURATION,
TWO-CHANNEL
BIDIRECTIONAL MOTOR
DRIVER IC FOR USE IN
LOW-VOLTAGE APPLICATIONS
DESCRIPTION
LINEAR INTEGRATED CIRCUIT
The UTC
F1836
is a bipolar stepper-motor driver IC for use in
low-voltage applications. And, It is a low-saturation two-channel
bidirectional motor driver IC which is ideal for use in cameras,
printers, and other portable devices.
FEATURES
* Operating under low voltage range (Minimum: 2.5V)
* Low saturation voltage (only 0.48V for 0.4A)
* Parallel connection (only 0.5V for 0.8A)
* Built-in Spark killer diodes
* Built-in Thermal shutdown Protection Function
* Separate motor power supply and logic power supply
* Brake function
* Compact package
ORDERING INFORMATION
Ordering Number
F1836G-S14-R
Package
SOP-14
Packing
Tape Reel
F1836G-S14-R
(1)Packing Type
(2)Package Type
(3)Green Package
(1) R: Tape Reel
(2) S14: SOP-14
(3) G: Halogen Free and Lead Free
MARKING
14 13
12
11
10
9
8
UTC
F1836G
1
2
3
4
5
6
7
Date Code
Lot Code
www.unisonic.com.tw
Copyright © 2015 Unisonic Technologies Co., Ltd
1 of 6
QW-R109-029.C
F1836
PIN CONFIGURATION
LINEAR INTEGRATED CIRCUIT
V
CC
1
IN1 2
OUT1 3
Vs 1 4
OUT2 5
IN2 6
GND 7
14 GND
13 IN3
12 OUT3
11 Vs 2
10 OUT4
9
8
IN4
V
CONT
PIN DESCRIPTION
PIN NO.
1
2
3
4
5
6
7, 14
8
9
10
11
12
13
PIN NAME
V
CC
IN1
OUT1
V
S
1
OUT2
IN2
GND
V
CONT
IN4
OUT4
V
S
2
OUT3
IN3
DESCRIPTION
Power Supply
The input of the channel 1
The output of the channel 1
The power supply of channel 1
The output of the channel 1
The input of the channel 1
Ground The ground potential of the IC
The output of a reference voltage
The input of the channel 2
The output of the channel 2
The power supply of channel 2
The output of the channel 2
The input of the channel 2
TRUTH TABLE
IN 1, 3
H
L
H
L
IN 2, 4
L
H
H
L
OUT 1, 3
H
L
L
OFF
OUT 2, 4
L
H
L
OFF
Mode
Forward
Reverse
Brake
Standby
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
2 of 6
QW-R109-029.C
F1836
BLOCK DIAGRAM
LINEAR INTEGRATED CIRCUIT
V
CC
Thermal
shutdown
V
CONT
V
S
2
V
S
1
Output 1
Output 2
Reference
voltage
Ctrl 1
Ctrl 2
IN3
IN4
IN1
IN2
OUT1 OUT2
OUT3
OUT4
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
3 of 6
QW-R109-029.C
F1836
ABSOLUTE MAXIMUM RATING
(T
A
=25°C)
PARAMETER
SYMBOL
V
CC
V
S
V
OUT
V
IN
LINEAR INTEGRATED CIRCUIT
RATINGS
UNIT
-0.3~+10.5
V
Supply Voltage
-0.3~+10.5
V
Output Voltage
V
S
+V
SF
V
Input Voltage
-0.3~+10
V
I
GND
1.0
A
Ground Pin Flow-Out current Per channel
Power Dissipation
With board (Note 2)
P
D
800
mW
Operating Temperature
T
OPR
-20~+75
°C
Storage Temperature
T
STG
-40~+125
°C
Notes: 1. Absolute maximum ratings are those values beyond which the device could be permanently damaged.
Absolute maximum ratings are stress ratings only and functional device operation is not implied.
2. Mounted on 30×30×1.5 mm
3
glass epoxy PCB
ALLOWABLE OPERATING RANGES
(T
A
=25°C)
PARAMETER
SYMBOL
V
CC
V
S
V
IH
V
IL
RATINGS
2.5~9.0
1.8~9.0
1.8~9.0
-0.3~+0.7
UNIT
V
V
V
V
Supply Voltage
Input High-Level Voltage
Input Low-Level Voltage
ELECTRICAL CHARACTERISTICS
(T
A
=25°C, V
CC
=V
S
=3V)
PARAMETER
SYMBOL
I
CC
0
I
CC
1
I
CC
2
V
OUT
1
V
OUT
2
V
OUT
3
V
OUT
4
V
O(SUS)
I
IN
I
S(LEAK)
V
SF
TEST CONDITIONS
V
IN
1, 2, 3, 4=0V, I
CC
+I
S
V
IN
1=3V, V
IN
2, 3, 4=0V, I
CC
+I
S
V
IN
1, 2=3V, V
IN
3, 4=0V, I
CC
+I
S
I
OUT
=200mA
I
OUT
=400mA
I
OUT
=400mA, parallel connection
I
OUT
=800mA, parallel connection
I
OUT
=400mA
V
IN
=2V, V
CC
=6V
V
CC
1, 2=9V
I
OUT
=400mA
MIN
TYP
0.1
14
34
0.24
0.48
0.25
0.50
MAX
10
20
38
0.35
0.70
0.40
0.80
80
30
1.7
UNIT
µA
mA
mA
V
V
V
V
V
µA
µA
V
Supply Current
Output Saturation Voltage
Output Sustaining Voltage
Input Current
Spark Killer Diode Reverse Current
Spark Killer Diode Forward Voltage
9
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
4 of 6
QW-R109-029.C
F1836

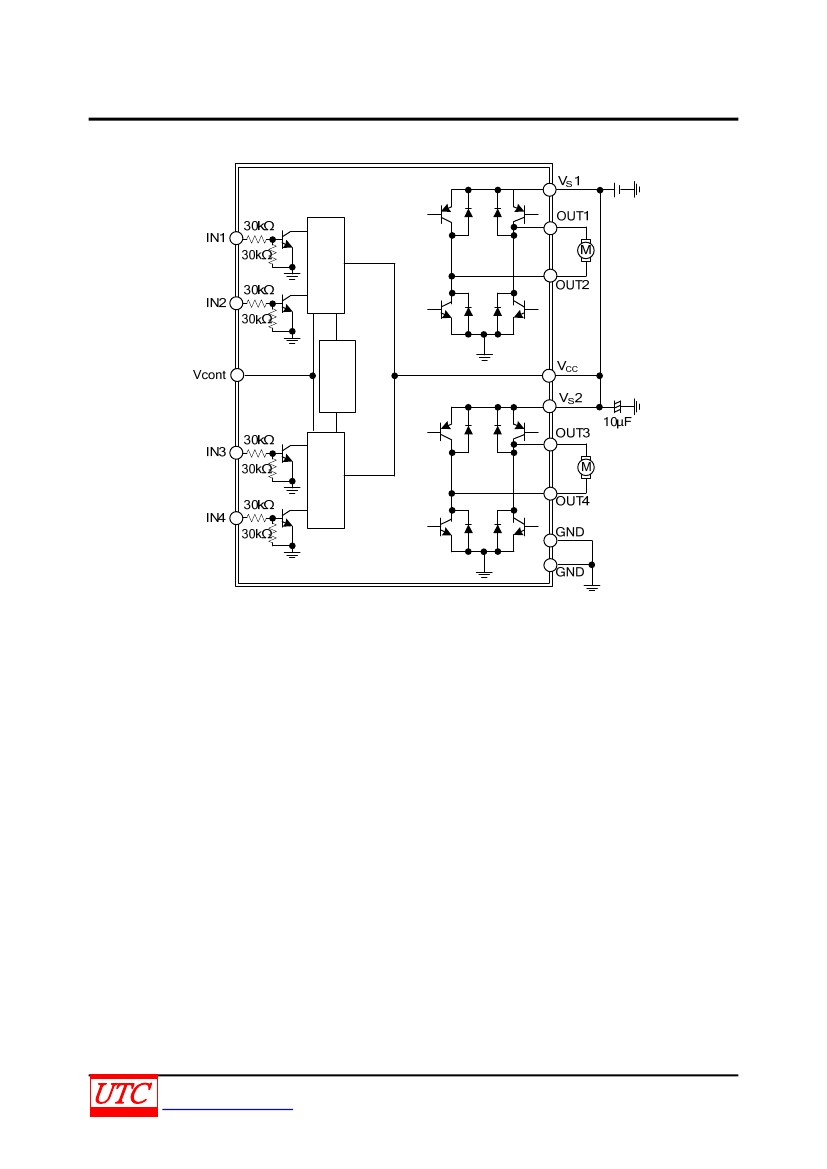

TYPICAL APPLICATION CIRCUIT
LINEAR INTEGRATED CIRCUIT
Note: There are no restrictions on the relationship of each voltage level in comparison with the others (regarding
which is higher or lower), as long as the voltages applied to V
CC
, V
S
1, V
S
2, and IN1 through IN4 are within the
limits set by the absolute maximum ratings. (Ex: V
CC
=3V, V
S
1, 2=2V, IN1 to IN4=5V)
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
Control
Thermal
shutdown
Control
5 of 6
QW-R109-029.C
