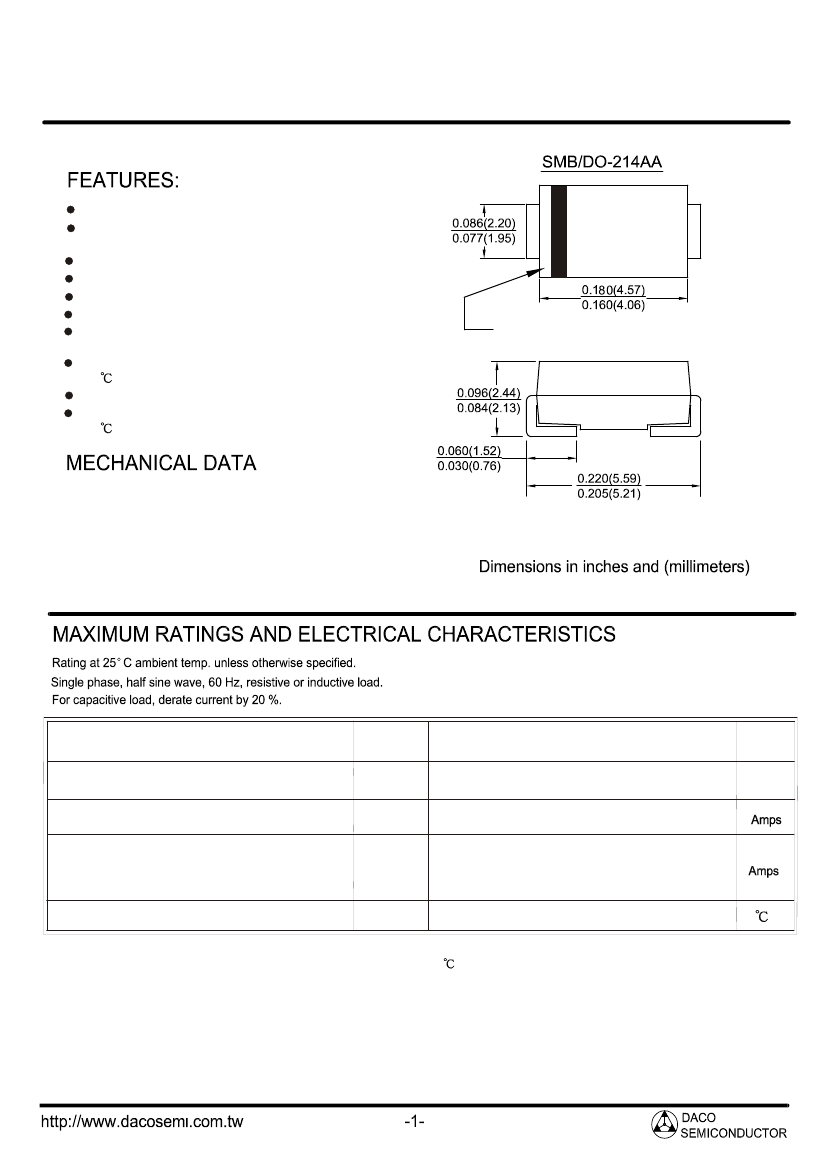

SMBJ5.0A(CA)
THRU
SMBJ440A(CA)
600 WATT PEAK POWER
VOLTAGE - 5.0 TO 440 VOLTS
Low profile package
For surface mounted application inorder to optimize
board space
Bulit-in strainrelief
Glass passivated junction
Excellent clamping capability
Repetition rate (duty cycle) : 0.01%
Fast response time : typically less thatn 1.0 ps from
0 volts to V(br) for unidirectional types
Hgh temperature soldering guaranteed :
250
/10 seconds at terminal
Typical IR less than 1uA ABOVE 10V
Plastic package has Underwriters Laboratory
Flammability 94V-0
Cathode Band(Undiirectional)
Case:JEDEC DO-214AA, Molded plastic over glass passivated
Terminals: Solder plated, Solderable per
MIL-STD-705, Method 2026
Polarity: Color band denots positive end(cathode)
except Bidiirectional
Weight: 0.093 grams
Suffix "A"
UNDIRECTIONAL
Suffix "CA"
DIRECTIONAL
Characteristic
Minimum peak power dissipation on 10/1000us
wavefrom ( note1~2,fig.1)
Maximum peak pulse current of on 10/1000us
wavefrom ( note1,fig3)
Maximum forward Surge current, 8.3ms
Single Hlaf Sine-Wave
Supermposed on rated load
Unidirectional only
(Note2~ 3)
Operating and storage temperature range
Symbol
PPK
I PPM
Value
Units
W
600
SEE TABLE1~2
I FSM
100
-55 to+150
TJ, Tstg
NOTES :
1. Non-repetitive current pulse, per Fig.3 and derated above Ta=25
per Fig.2
2. Mounted on 5.0mmx5.0mm copper pads to each terminal
3. Measured on 8.3mS Singal half sine-wave or equivalent square wave ,duty cycle =4pulses
per minute maximum

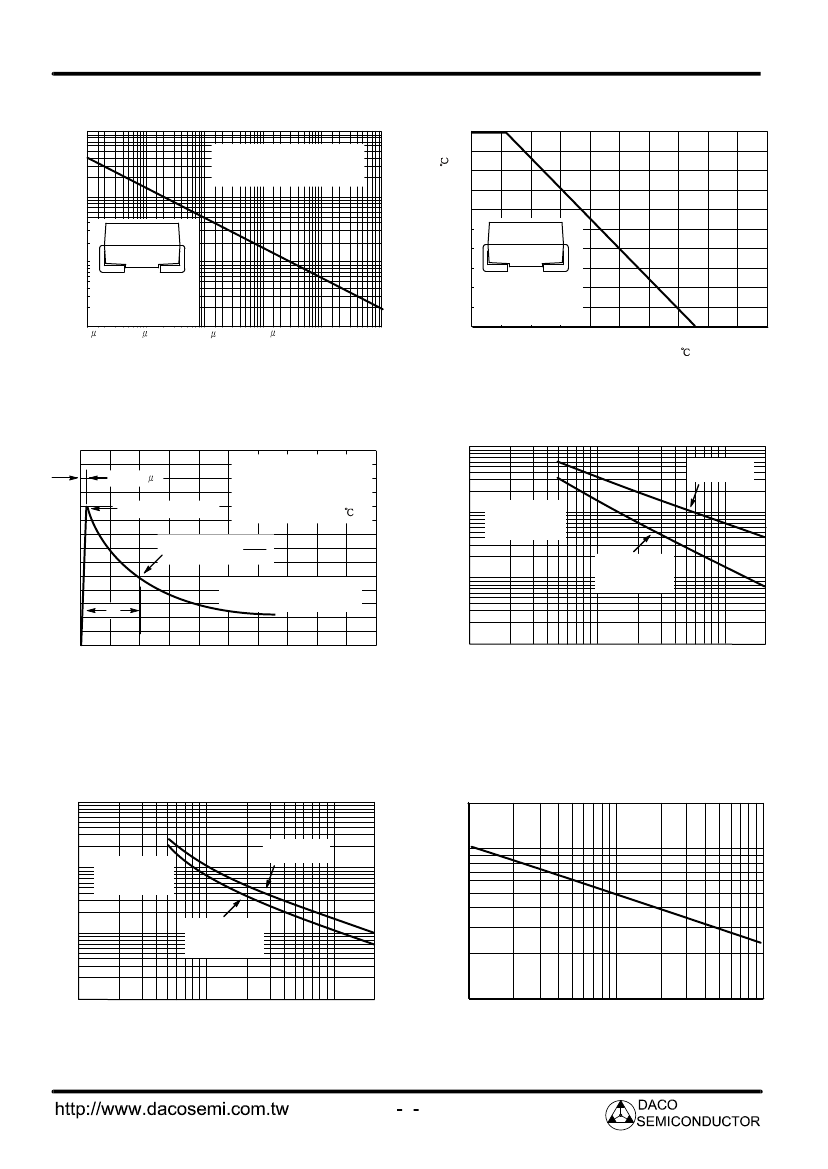

RATINGS AND CHARACTERISTIC CURVES SMBJ5.0A(CA) THRU SMBJ440A(CA)
Figure 1.-Pulse Rating Cure
100
P K , PEAK POWER (kW)
P
NONREPETITIVE PULSE
WAVEFORM SHOWN IN
PEAK PULSE POWER OR CURRENT
DERATING IN % @ TA = 25
100
Figure 2.-Pulse Derating Curve
Figure 3
10
80
60
40
20
0
0
1
MOUNTED ON
5mmx5mm
COPPER PADS
1 s
10 s
100 s
1 ms
10 ms
MOUNTED ON
5mmx5mm
COPPER PADS
20
40
60
80 100 120
140 160 180 200
T
A
, AMBIENT TEMPERATURE
( )
0.1
0.1 s
t
p
, PULSE WIDTH
Figure 3.-Pulse Waveform
T
f
= 10 s
100
VALUE (%)
PEAK VALUE
–
I
PP
M
PULSE WIDTH (t
p
) IS
DEFINED AS THAT POINT
WHERE THE PEAK
CURRENT DECAYS T O
50% OF I
PP
. TA = 25
I
PP
2
C
J
-JUNCTION CAPACITANCE(
P
F)
10000
Figure 4.-TYPICAL JUNCTION CAPACITANCE
UNIDIRECTIONAL
MEASURED AT
ZERO BIAS
TJ=25
f=1MHz
Vsig=50mVp-p
MEASURED AT
STAND-OFF
VOLTAGE,VWM
1000
HALF VALUE
ALUE –
50
t
P
0
0
1.0
10/1000usec Waveform
as defined by R.E.A.
100
3.0
2.0
t, TIME (ms)
T
4.0
5.0
10
1
10
100
200
V
(BR)
-BREAKDOWN VOLTAGE (V)
C
J
-JUNCTION CAPACITANCE(
P
F)
10000
Figure 5.-TYPICAL JUNCTION CAPACITANCE
BIDIRECTIONAL
PEAK FORWARD SURGE
CURRENT AMPERS
200
Figure 6.-Maximum Non-Repetitive Peak
Forward Surge Current UNIDIRECTIONAL
1000
TJ=25
f=1MHz
Vsig=50mVp-p
MEASURED AT
ZERO BIAS
100
100
MEASURED AT
STAND-OFF
VOLTAGE,VWM
10
100
1
10
100
200
1
10
100
V
(BR)
-BREAKDOWN VOLTAGE (V)
NUMBER OF CUCLE AT 60HZ
3
RATINGS AND CHARACTERISTIC CURVES SMBJ5.0A(CA) THRU SMBJ440A(CA)
TABLE 1
Device
Type
Breakdown
V
BR
Voltage
at I
T
(Voltage)
Min
SMBJ5.0A(CA)
SMBJ6.0A(CA)
SMBJ6.5A(CA)
SMBJ7.0A(CA)
SMBJ7.5A(CA)
SMBJ8.0A(CA)
SMBJ8.5A(CA)
SMBJ9.0A(CA)
SMBJ10A(CA)
SMBJ11A(CA)
SMBJ12A(CA)
SMBJ13A(CA)
SMBJ14A(CA)
SMBJ15A(CA)
SMBJ16A(CA)
SMBJ17A(CA)
SMBJ18A(CA)
SMBJ20A(CA)
SMBJ22A(CA)
SMBJ24A(CA)
SMBJ26A(CA)
SMBJ28A(CA)
SMBJ30A(CA)
SMBJ33A(CA)
SMBJ36A(CA)
SMBJ40A(CA)
SMBJ43A(CA)
SMBJ45A(CA)
SMBJ48A(CA)
SMBJ51A(CA)
SMBJ54A(CA)
SMBJ58A(CA)
SMBJ60A(CA)
SMBJ64A(CA)
SMBJ70A(CA)
SMBJ75A(CA)
SMBJ78A(CA)
SMBJ85A(CA)
SMBJ90A(CA)
SMBJ100A(CA)
SMBJ110A(CA)
SMBJ120A(CA)
6.40
6.67
7.22
7.78
8.33
8.89
9.44
10.0
11.1
12.2
13.3
14.4
15.6
16.7
17.8
18.9
20.0
22.2
24.4
26.7
28.9
31.1
33.3
36.7
40.0
44.4
47.8
50.0
53.3
56.7
60.0
64.4
66.7
71.1
77.8
83.3
86.7
94.4
100
111
122
133
Max
7.00
7.37
7.98
8.60
9.21
9.83
10.4
11.1
12.3
13.5
14.7
15.9
17.2
18.5
19.7
20.9
22.1
24.5
26.9
29.5
31.9
34.4
36.8
40.6
44.2
49.1
52.8
55.3
58.9
62.7
66.3
71.2
73.7
78.6
86.0
92.1
95.8
104
111
123
Test
Current
I
T
Working
Peak
Reverse
Voltage
V
RWM
Volts
5.00
6.00
6.50
7.00
7.50
8.00
8.50
9.00
10.0
11.0
12.0
13.0
14.0
15.0
16.0
17.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
33.0
36.0
40.0
43.0
45.0
48.0
51.0
54.0
58.0
60.0
64.0
70.0
75.0
78.0
85.0
90.0
100
110
120
Maximun
Reverse
Leakage
at V
RWM
I
R
(mA)
A
800
800
500
200
100
50
10
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
Maximun
Peak Pulse
Surge Current
I
PPM
Amps
65.2
58.3
53.6
50.0
46.5
44.1
41.7
39.0
35.3
33.0
30.2
28.0
25.9
24.6
23.1
Maximmum
Clamping
Voltage (V
C
) at
I
PPM
Volts
9.20
10.3
11.2
12.0
12.9
13.6
14.4
15.4
17.0
18.2
19.9
21.5
23.2
24.4
26.0
27.6
29.2
32.4
35.5
38.9
42.1
45.4
48.4
53.3
58.1
64.5
69.4
72.7
77.4
82.4
87.1
93.6
96.8
103
113
121
126
137
146
162
177
193
UNI
KE
KG
KK
KM
KP
KR
KT
KV
KX
KZ
LE
LG
LK
LM
LP
LR
LT
LV
LX
LZ
ME
MG
MK
MM
MP
MR
MT
MV
MX
MZ
NE
NG
NK
NM
NP
NR
NT
NV
NX
NZ
PE
PG
Device
Marking code
BI
AE
AG
AK
AM
AP
AR
AT
AV
AX
AZ
BE
BG
BK
BM
BP
BR
BT
BV
BX
BZ
CE
CG
CK
CM
CP
CR
CT
CV
CX
CZ
DE
DG
DK
DM
DP
DR
DT
DV
DX
DZ
EE
EG
10
10
10
10
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
21.8
20.6
18.6
16.9
15.5
14.3
13.3
12.4
11.3
10.3
9.3
8.6
8.3
7.8
7.3
6.9
6.5
6.2
5.9
5.3
5.0
4.8
4.4
4.1
3.7
3.4
3.1
135
147
For bidirectional type having Vrwm of 10 Volts and less. The IR limit is double.
