8284AXC datasheet, PDF - EEWORLD Datasheet

8284AXC: DescriptionProcessor Specific Clock Generator, 24MHz, Bipolar, DIE; CategoryThe embedded processor and controller Microcontrollers and processors; File Size230KB，9 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric Compare View All

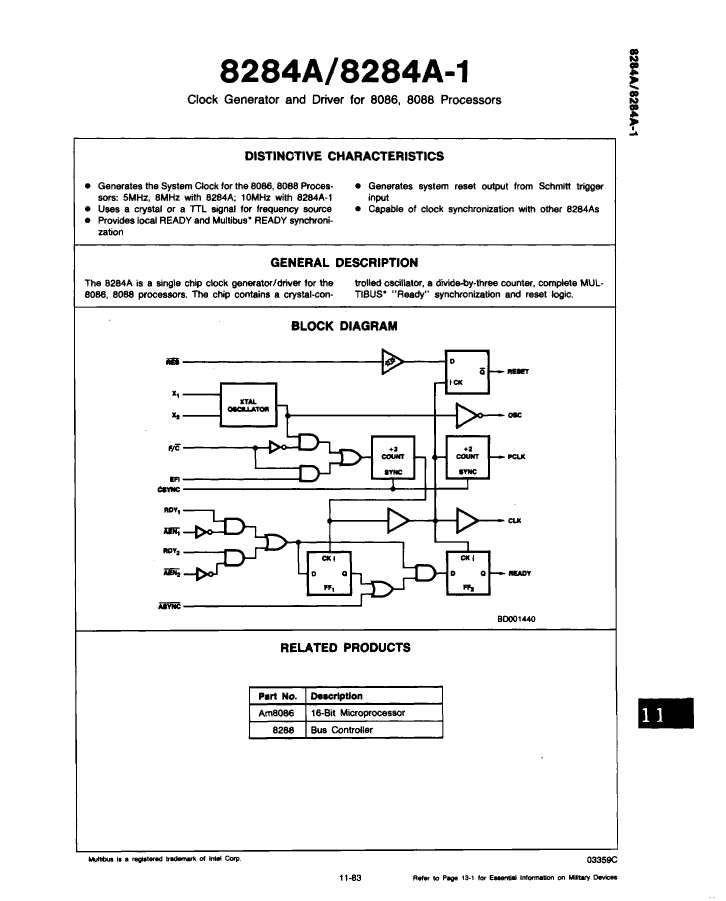

8284AXC Overview

Processor Specific Clock Generator, 24MHz, Bipolar, DIE

Parameter Name	Attribute value
Maker	AMD
Parts packaging code	DIE
package instruction	DIE,
Contacts	18
Reach Compliance Code	unknown
ECCN code	EAR99
JESD-30 code	R-XUUC-N18
Number of terminals	18
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum output clock frequency	24 MHz
Package body material	UNSPECIFIED
encapsulated code	DIE
Package shape	RECTANGULAR
Package form	UNCASED CHIP
Master clock/crystal nominal frequency	24 MHz
Certification status	Not Qualified
Maximum slew rate	162 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal location	UPPER
uPs/uCs/peripheral integrated circuit type	CLOCK GENERATOR, PROCESSOR SPECIFIC

	8284AXC	8284AXM
Description	Processor Specific Clock Generator, 24MHz, Bipolar, DIE	Processor Specific Clock Generator, 24MHz, Bipolar, DIE
Maker	AMD	AMD
Parts packaging code	DIE	DIE
package instruction	DIE,	DIE,
Contacts	18	18
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
JESD-30 code	R-XUUC-N18	R-XUUC-N18
Number of terminals	18	18
Maximum operating temperature	70 °C	125 °C
Maximum output clock frequency	24 MHz	24 MHz
Package body material	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIE	DIE
Package shape	RECTANGULAR	RECTANGULAR
Package form	UNCASED CHIP	UNCASED CHIP
Master clock/crystal nominal frequency	24 MHz	24 MHz
Certification status	Not Qualified	Not Qualified
Maximum slew rate	162 mA	162 mA
Maximum supply voltage	5.25 V	5.5 V
Minimum supply voltage	4.75 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	YES	YES
technology	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	MILITARY
Terminal form	NO LEAD	NO LEAD
Terminal location	UPPER	UPPER
uPs/uCs/peripheral integrated circuit type	CLOCK GENERATOR, PROCESSOR SPECIFIC	CLOCK GENERATOR, PROCESSOR SPECIFIC
