PDM21532LA100SOI datasheet, PDF

Datasheet> All Categories > storage> storage> PDM21532LA100SOI

PDM21532LA100SOI: DescriptionStandard SRAM, 64KX16, 100ns, CMOS, PDSO44; Categorystorage storage; File Size345KB，9 Pages; ManufacturerParadigm Technology Inc

Download Datasheet Parametric Compare View All

PDM21532LA100SOI Overview

Standard SRAM, 64KX16, 100ns, CMOS, PDSO44

PDM21532LA100SOI Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Paradigm Technology Inc
package instruction	SOJ, SOJ44,.44
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	100 ns
I/O type	COMMON
JESD-30 code	R-PDSO-J44
JESD-609 code	e0
memory density	1048576 bit
Memory IC Type	STANDARD SRAM
memory width	16
Number of functions	1
Number of terminals	44
word count	65536 words
character code	64000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	64KX16
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SOJ
Encapsulate equivalent code	SOJ44,.44
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	2.7 V
Certification status	Not Qualified
Maximum standby current	0.0008 A
Minimum standby current	2.5 V
Maximum slew rate	0.045 mA
Maximum supply voltage (Vsup)	2.9 V
Minimum supply voltage (Vsup)	2.5 V
Nominal supply voltage (Vsup)	2.7 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

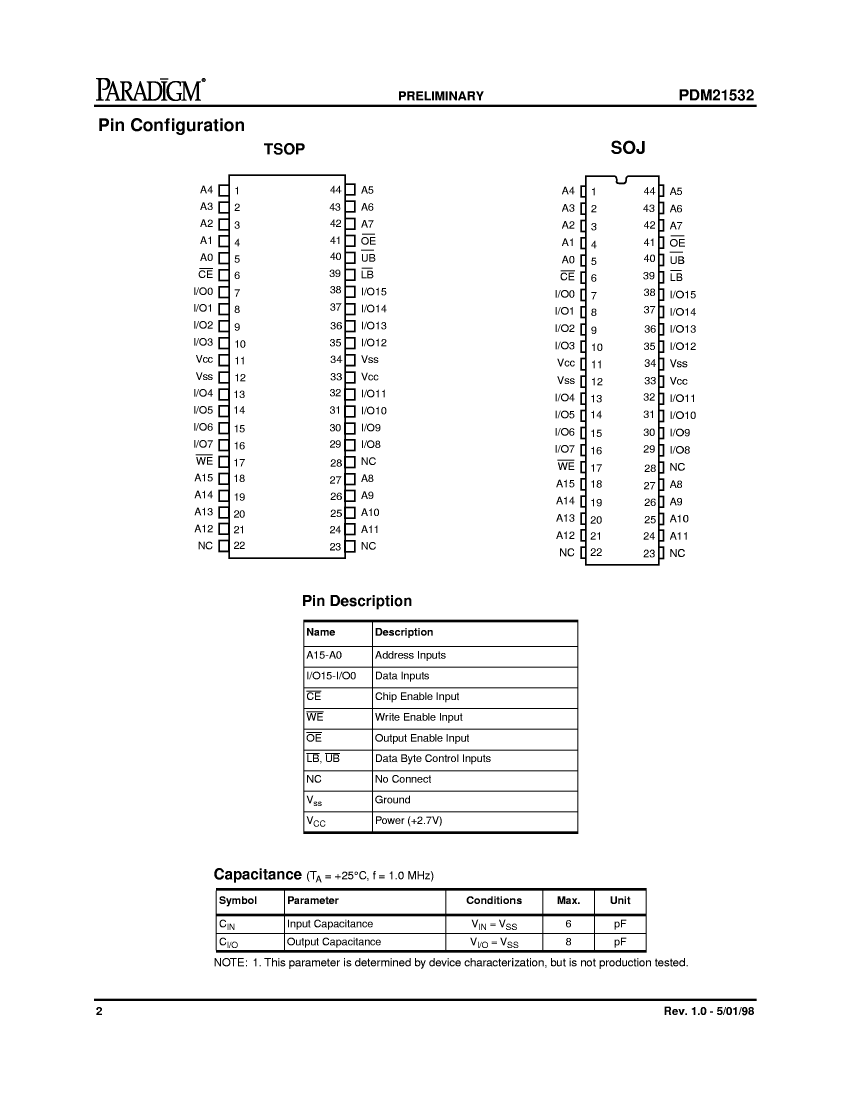

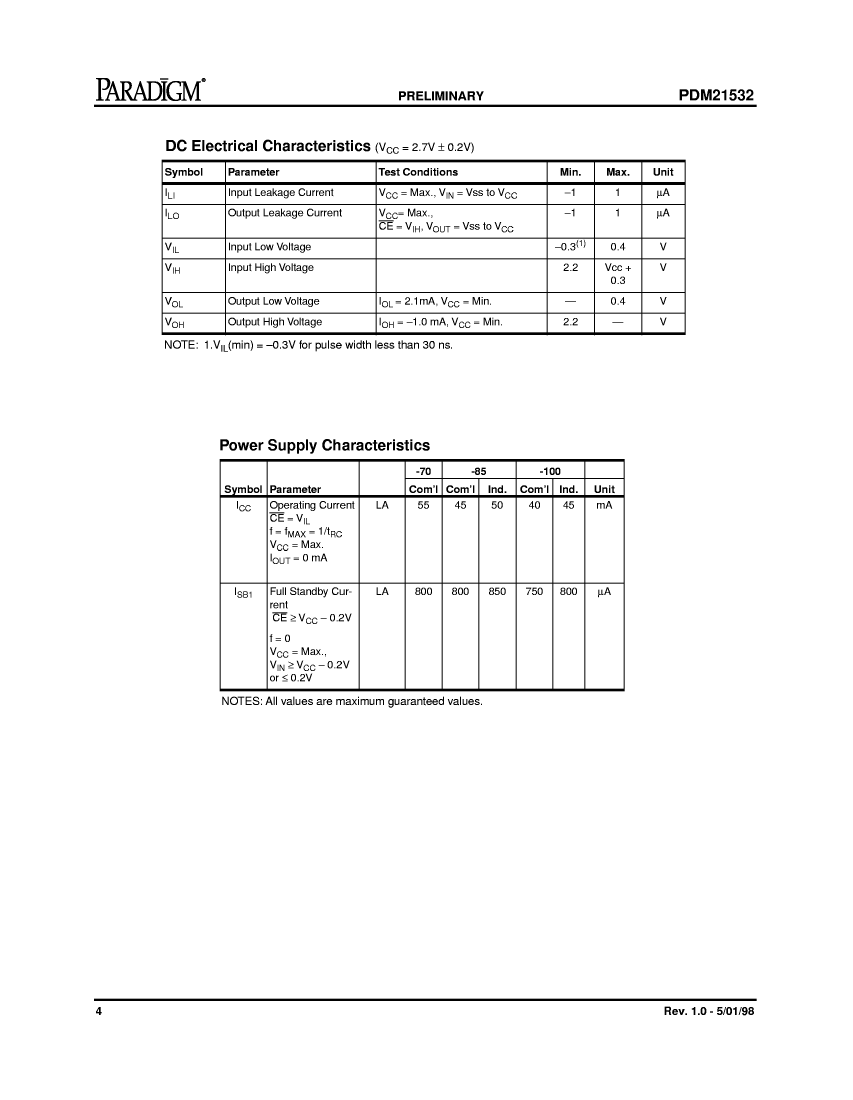

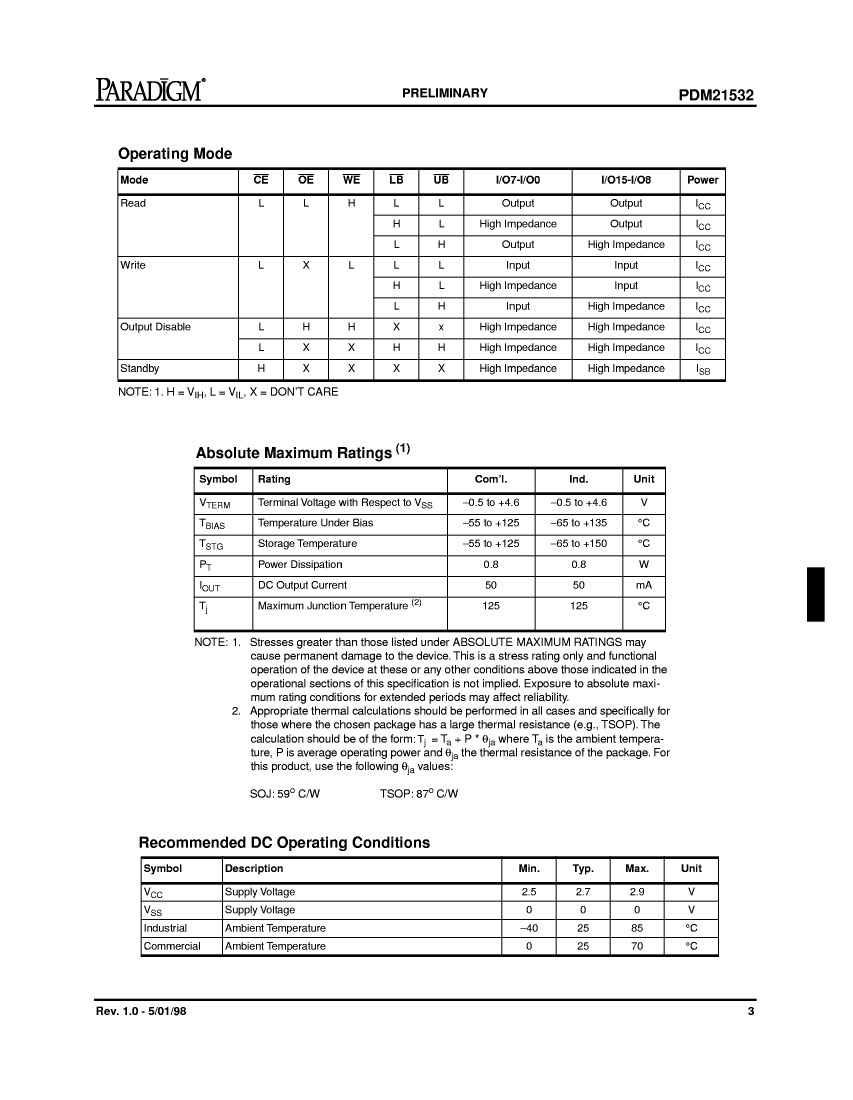

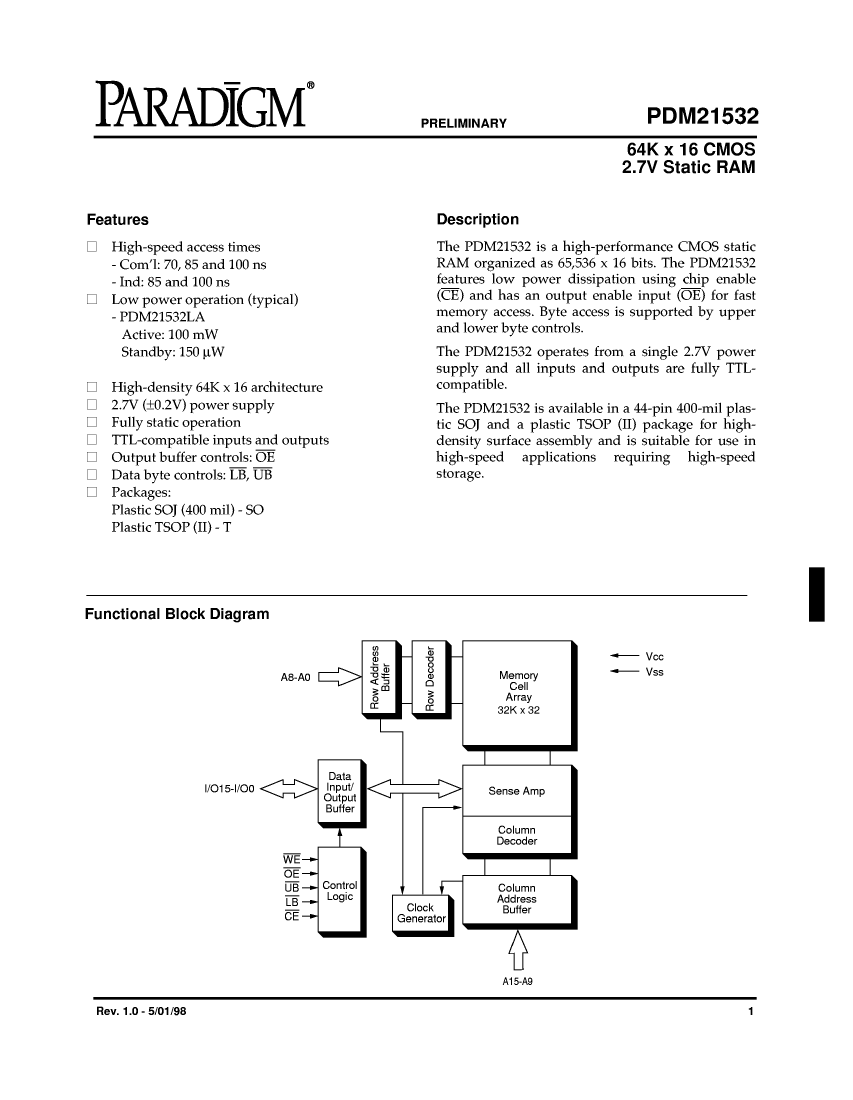

Preview

Download Datasheet

View All

PDM21532LA100SOI Related Products

	PDM21532LA100SOI	PDM21532LA85T	PDM21532LA85TI	PDM21532LA100SO	PDM21532LA85SO	PDM21532LA85SOI	PDM21532LA70T	PDM21532LA100T	PDM21532LA100TI
Description	Standard SRAM, 64KX16, 100ns, CMOS, PDSO44	Standard SRAM, 64KX16, 85ns, CMOS, PDSO44	Standard SRAM, 64KX16, 85ns, CMOS, PDSO44	Standard SRAM, 64KX16, 100ns, CMOS, PDSO44	Standard SRAM, 64KX16, 85ns, CMOS, PDSO44	Standard SRAM, 64KX16, 85ns, CMOS, PDSO44	Standard SRAM, 64KX16, 70ns, CMOS, PDSO44	Standard SRAM, 64KX16, 100ns, CMOS, PDSO44	Standard SRAM, 64KX16, 100ns, CMOS, PDSO44
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	SOJ, SOJ44,.44	TSOP, TSOP44,.46,32	TSOP, TSOP44,.46,32	SOJ, SOJ44,.44	SOJ, SOJ44,.44	SOJ, SOJ44,.44	TSOP, TSOP44,.46,32	TSOP, TSOP44,.46,32	TSOP, TSOP44,.46,32
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	100 ns	85 ns	85 ns	100 ns	85 ns	85 ns	70 ns	100 ns	100 ns
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-PDSO-J44	R-PDSO-G44	R-PDSO-G44	R-PDSO-J44	R-PDSO-J44	R-PDSO-J44	R-PDSO-G44	R-PDSO-G44	R-PDSO-G44
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
memory density	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	16	16	16	16	16	16	16	16	16
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	44	44	44	44	44	44	44	44	44
word count	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words
character code	64000	64000	64000	64000	64000	64000	64000	64000	64000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	85 °C	70 °C	85 °C	70 °C	70 °C	85 °C	70 °C	70 °C	85 °C
organize	64KX16	64KX16	64KX16	64KX16	64KX16	64KX16	64KX16	64KX16	64KX16
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOJ	TSOP	TSOP	SOJ	SOJ	SOJ	TSOP	TSOP	TSOP
Encapsulate equivalent code	SOJ44,.44	TSOP44,.46,32	TSOP44,.46,32	SOJ44,.44	SOJ44,.44	SOJ44,.44	TSOP44,.46,32	TSOP44,.46,32	TSOP44,.46,32
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum standby current	0.0008 A	0.0008 A	0.00085 A	0.00075 A	0.0008 A	0.00085 A	0.0008 A	0.00075 A	0.0008 A
Minimum standby current	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V
Maximum slew rate	0.045 mA	0.045 mA	0.05 mA	0.04 mA	0.045 mA	0.05 mA	0.055 mA	0.04 mA	0.045 mA
Maximum supply voltage (Vsup)	2.9 V	2.9 V	2.9 V	2.9 V	2.9 V	2.9 V	2.9 V	2.9 V	2.9 V
Minimum supply voltage (Vsup)	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V
Nominal supply voltage (Vsup)	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	GULL WING	GULL WING	J BEND	J BEND	J BEND	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	0.8 mm	0.8 mm	1.27 mm	1.27 mm	1.27 mm	0.8 mm	0.8 mm	0.8 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maker	Paradigm Technology Inc	-	-	-	Paradigm Technology Inc	Paradigm Technology Inc	Paradigm Technology Inc	Paradigm Technology Inc	Paradigm Technology Inc
