C&K D Series
Miniature Snap-in Power Rocker Switches
Features/Benefits
Models Available
S
S
S
S
S
S
S
Low cost
Momentary and maintained models
PC and quick connect terminals
Recessed bracket available—
prevents accidental actuation
Computers
Vacuum cleaners
Coffee makers
Typical Applications
Build-A-Switch
Our easy Build-A-Switch concept allows you to mix and match options to create the switch you need. Below is a complete
listing of options shown in catalog. To order, simply select desired option from each category and place in the appropriate box.
Switches with standard options are shown on page F-50. Available options are shown and described on pages F-50 thru F-52.
For additional options not shown in catalog, consult Customer Service Center.
D 1
0
1
J
1
2
S
2
1 5
Q A
Switch Function
D101
(STD.) SPDT, On None On
D201
(STD.) DPDT, On None On
D501
(STD.) SPDT, On None On
D601
(STD.) DPDT, On None On
D102
SPST, On None Off
D103
SPDT, On Off On
D105
SPDT, Mom. Off Mom.
D108
SPDT, Mom. None On
D202
DPST, On None Off
D203
DPDT, On Off On
D208
DPDT, Mom. None On
D502
SPST, On None Off
D503
SPDT, On Off On
D508
SPDT, Mom. None On
D602
DPST, On None Off
D603
DPDT, On Off On
D608
DPDT, Mom. None On
Actuator
J1
(STD.) Rocker
J5
Lever
Actuator Color
2
(STD.) Black
1
White
Mounting Style/Color
3
Red
S2
(STD.) Snap in, black
T
Beige
B2
Recessed snap in bracket, black
S1
Snap in, white
S3
Snap in, red
Terminations
ST
Snap in, beige
15
(STD.) Quick connect
A
Right angle, PC thru hole
02
PC Thru hole
05
Twisted quick connect
06
Extended PC thru hole
17
Wirable quick connect
Actuator Markings
NONE
(STD.) No marking
D
ON OFF
Contact Material
H
O I
QA
(STD.) Silver (UL/CSA)
N
Large dot
QF
(STD.) Silver (UL/CSA/VDE)
P
O-
R
Red rectangle on end
U
Large dot on end
F
Specifications
CONTACT RATING: D10X and D20X Models: 4 AMPS @ 125 V AC;
2 AMPS @ 250 V AC. D50X and D60X Models: 10 AMPS @
125 V AC; 5 AMPS @ 250 V AC.
ELECTRICAL LIFE: 10,000 make-and-break cycles at full load.
INSULATION RESISTANCE: 10
9
ohms min.
DIELECTRIC STRENGTH: 1,000 V RMS min. @ sea level.
NOTE:
Specifications and materials listed above are for standard switches.
For information on specific and custom switches, consult Customer Service Center.
ACTUATOR & HOUSING: 6/6 nylon (UL 94V-2), color black,
standard; finish: matte.
MOVABLE CONTACTS: D10X and D20X Models: Copper, silver plated.
D50X and D60X Models: Coin silver, silver plated.
STATIONARY CONTACTS AND TERMINALS: Copper or brass,
silver plated.
CONTACT SPRING: Music wire or stainless steel.
ITT Industries
Cannon
F-49
www.ittcannon.com
INDICATORS
Materials
PUSHBUTTON
ROCKERS
SLIDES
ROTARY
Typical Example:
CAMLOCKS
MINIATURE SL
SWITCHLOCKS
Rocker
C&K D Series
Miniature Snap-in Power Rocker Switches

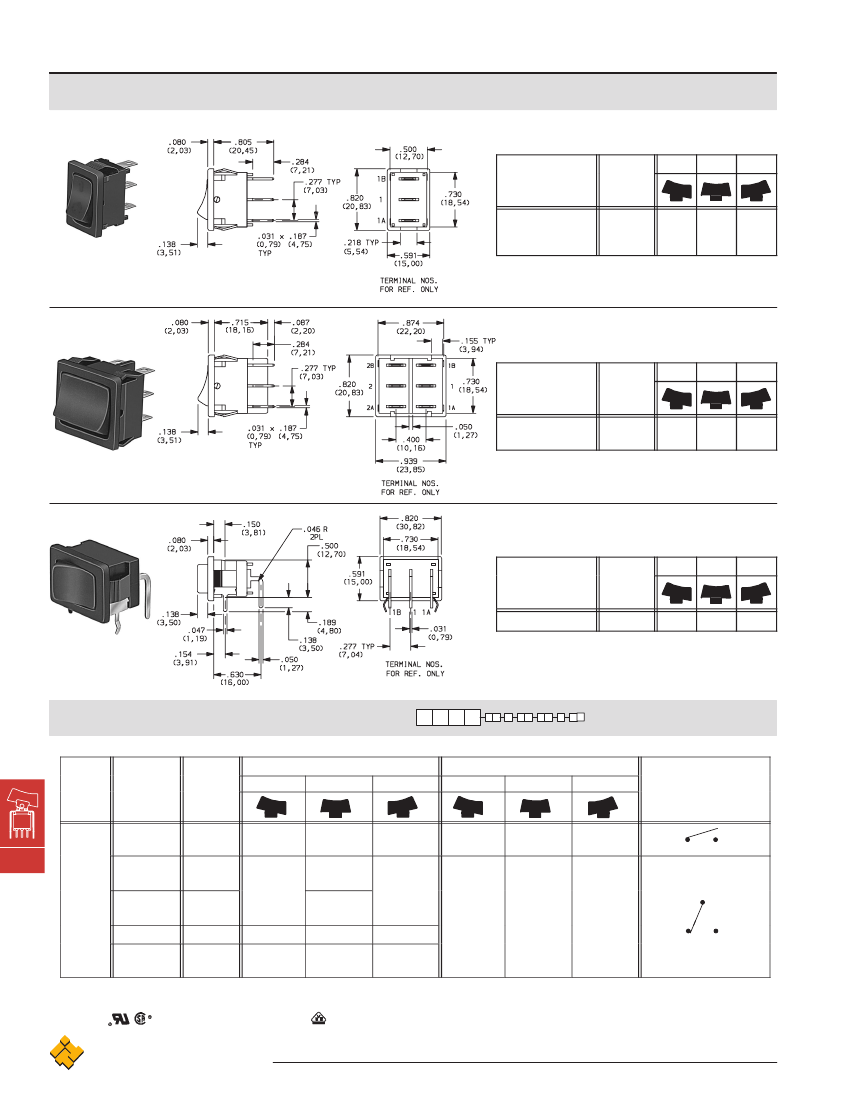

SWITCHES WITH STANDARD OPTIONS
POS. 1
POS. 2
POS. 3
PART NUMBER
FUNCTION
SPDT
SPDT
SPST
ON
ON
ON
D102J12S215QA
D501J12S215QA
D502J12S215QA
D102J12S215QA
SPDT
NOTE:
For panel mounting information, see page F-51.
ACTUATOR SHOWN IN POSITION 1
POS. 1
PART NUMBER
FUNCTION
DPDT
DPST
ON
ON
D201J12S215QA
D602J12S215QA
D201J12S215QA
ACTUATOR SHOWN IN POSITION 1
NOTE:
For panel mounting information, see page F-51.
DPDT
POS. 1
PART NUMBER
FUNCTION
SPDT
ON
D501J12S2AQA
D501J12S2AQA
Horizontal Actuation
NOTE:
For PC mounting information, see page F-52.
SPDT
SWITCH FUNCTION
SWITCH FUNCTION
POS. 1
NO.
POLES
MODEL
NO.
AMP
RATING*
4
10
4
10
ON
4
10
4
4
10
MOM.
MOM.
OFF
NONE
MOM.
ON
OFF
1 1A
1-1A
OPEN
1 1B
1–1B
SPDT
1A
1B
CONNECTED TERMINALS
POS. 3
POS. 1
POS. 2
POS. 3
SCHEMATIC
OFF
1-1A
OPEN
OPEN
POS. 2
D102
D502
ON
NONE
SPST
F
Rocker
SP
D101
(STD.)
D501
(STD.)
D103
D503
D105
D108
D508
MOM. = MOMENTARY
NONE
ON
*AMP RATING: D10X and D20X models: 4 AMPS @ 125 V AC; 2 AMPS @ 250 V AC. D50X and D60X models: 10 AMPS @ 125 V AC; 5 AMPS @ 250 V AC.
All models
. DX01, DX02 models also available with
. See CONTACT MATERIALS, page F-52.
ITT Industries
Cannon
F-50
www.ittcannon.com
ÑÑÑ
ÑÑÑ
NONE
NONE
NONE
POS. 2
OFF
ON
OFF
POS. 3
ÑÑÑ
ÑÑÑ
NONE
NONE
POS. 2
ON
OFF
POS. 3
ÑÑÑ
ÑÑÑ
NONE
1
1A
1
ON
ÑÑÑÑ
ÑÑÑÑ
C&K D Series
Miniature Snap-in Power Rocker Switches
SWITCH FUNCTION
SWITCH FUNCTION
CONNECTED TERMINALS
POS. 3
POS. 1
POS. 2
POS. 3
SCHEMATIC
1
2
NO.
POLES
MODEL
NO.
AMP
RATING*
D202
D602
D201
(STD.)
D601
(STD.)
D203
D603
D208
D608
MOM. = MOMENTARY
4
10
ON
4
10
ON
4
10
4
10
MOM.
MOM
NONE
OFF
ON
1-1A, 2-2A
1 1A 2 2A
OPEN
1-1B, 2-2B
1 1B 2 2B
DPDT
1A
1B
2A
2B
DP
*AMP RATING: D10X and D20X models: 4 AMPS @ 125 V AC; 2 AMPS @ 250 V AC. D50X and D60X models: 10 AMPS @ 125 V AC; 5 AMPS @ 250 V AC.
All models
. DX01, DX02 models also available with
. See CONTACT MATERIALS, page F-52.
ACTUATOR COLOR
J1
(STD.) ROCKER
SP
DP
MOUNTING STYLE/COLOR
S
(STD.) SNAP-IN
OPTION
CODE
HOUSING
COLOR
(STD.) BLACK
WHITE
RED
BEIGE

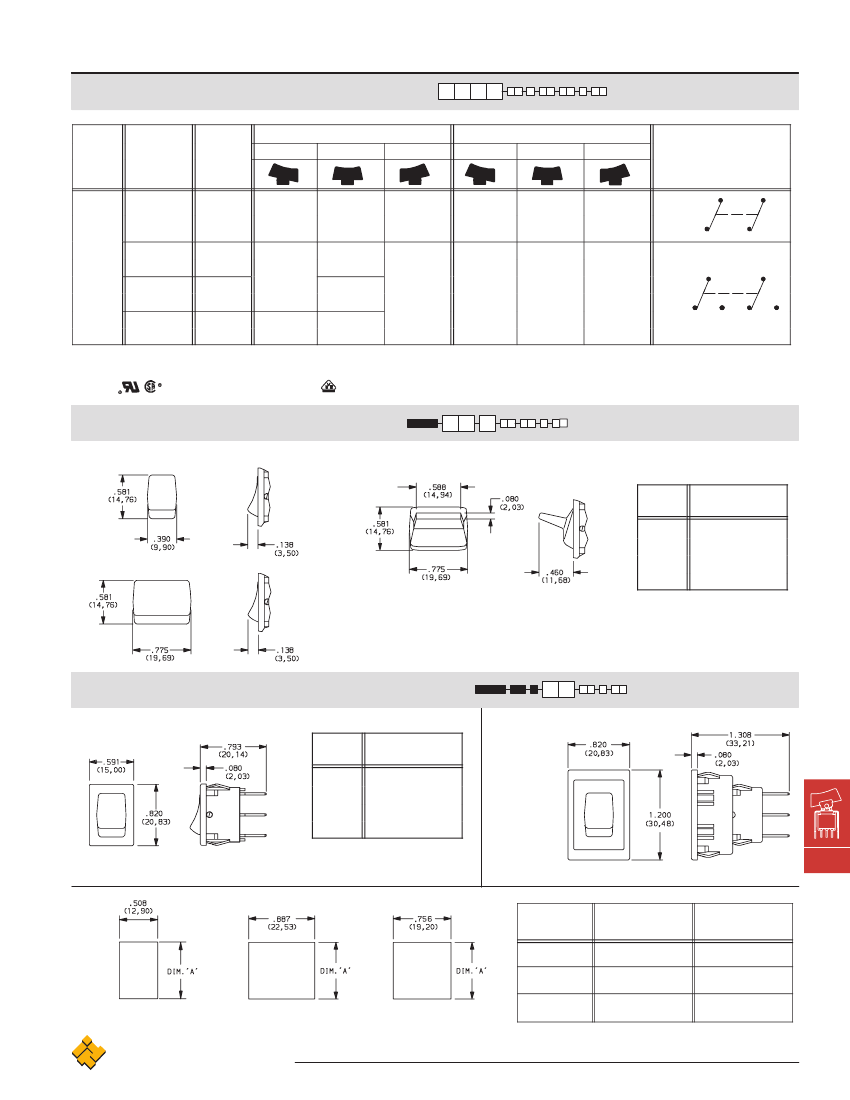

PANEL MOUNTING
DIM. ‘A’
SP & DP MODELS
‘S’ MOUNTING STYLE
.756
(19,20)
.764
(19,40)
.780
(19,80)
DIM. ‘A’
SP MODELS
‘B’ MOUNTING STYLE
1.068
(27,13)
1.076
(27,33)
1.092
(27,74)
SP MODELS
‘S’ mounting style
DP MODELS
‘S’ mounting style
ITT Industries
Cannon
F-51
www.ittcannon.com
ÑÑÑÑ
ÑÑÑÑ
NONE
NONE
POS. 1
POS. 2
OFF
1-1A, 2-2A
1 1A 2 2A
OPEN
OPEN
DPST
1A
2A
1
2
ACTUATOR
ACTUATOR
J5
LEVER
OPTION
CODE
ACTUATOR
COLOR
(STD.) BLACK
WHITE
RED
BEIGE
2
1
3
T
‘J5’ actuator available only with DP
models D201, D202, D601 and D602.
NOTE:
Actuator finish: matte.
Other colors available, consult
Customer Service Center.
B
RECESSED SNAP-IN BRACKET
2
1
3
T
NOTE:
Frame finish on housing: matte.
Other colors available, consult Customer
Service Center.
F
NOTE:
Available in black, vertical mount, SP models only.
Rocker
PANEL THK.
.030–.049
(0,75) (1,25)
.049–.079
(1,25) (2,00)
SP MODELS
‘B’ mounting style
.079–.118
(2,00) (3,00)
C&K D Series
Miniature Snap-in Power Rocker Switches

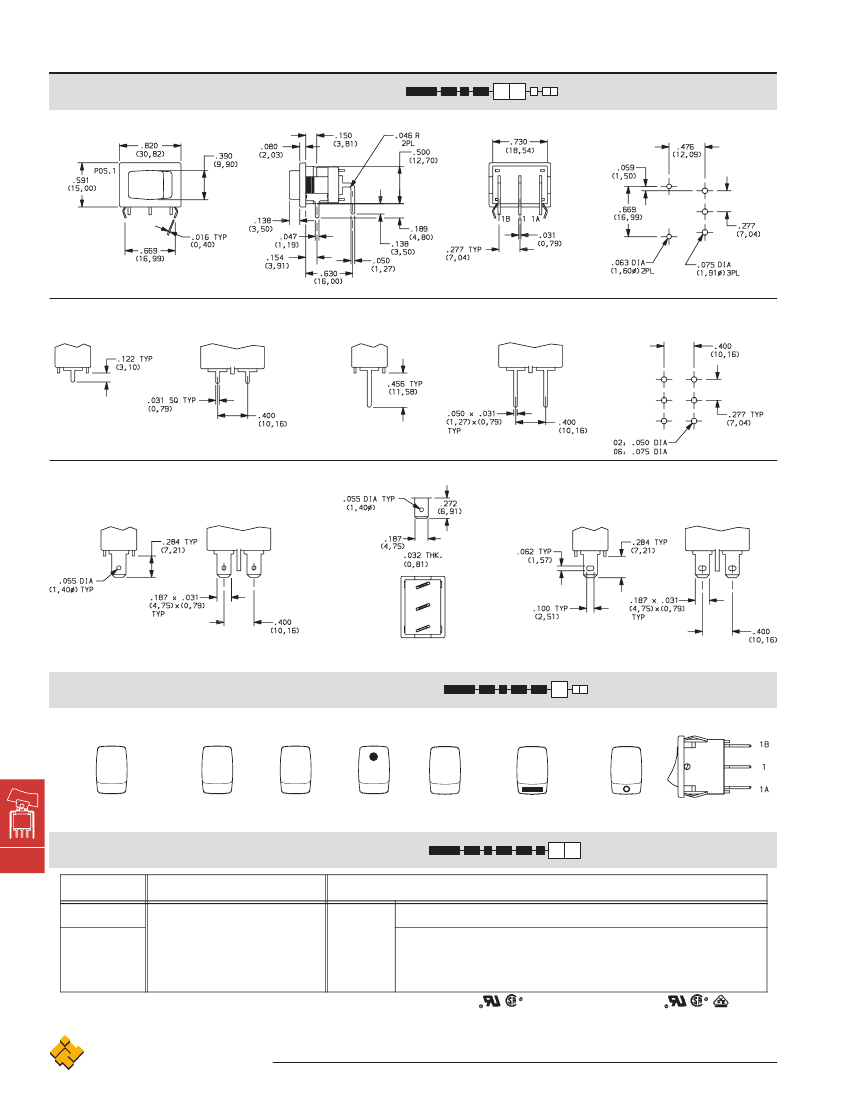

TERMINATIONS
A
RIGHT ANGLE, PC THRU-HOLE
PC MOUNTING
Available with D101, D102, D501, D502 SP models only.
02
PC THRU-HOLE
DP
06
EXTENDED PC THRU-HOLE
SP
DP
SP
PC MOUNTING
(02 and 06)
Available with DX01 and DX02 models only.
Available with DX01 and DX02 models only.
15
(STD.) QUICK CONNECT
05
DP
TWISTED QUICK CONNECT
17
WIRABLE QUICK CONNECT
SP
SP
DP
Available with DX01 and DX02 models only.
NOTE:
Terminals are twisted. Available
with DX03, DX05 and DX08 models only.
Available with DX01 and DX02 models only.
ACTUATOR MARKINGS
NONE
(STD.) NO MARKING
D
ON-OFF
H
OI
N
LARGE DOT
P
O–
R
RED RECTANGLE
ON END
U
LARGE DOT ON END
ON
OFF
O
I
O
NOTE:
Orientation of actuator
markings and terminals.
‘D, H, P & U’ marking options: marking color white, standard for all actuator colors except white. Black marking color, standard
for white actuators. ‘R & N’ marking option: red marking color, standard. consult Customer Service Center for other available marking colors.
F
Rocker
OPTION
CODE
CONTACT MATERIAL
CONTACT AND TERMINAL MATERIAL
RATINGS
D10X and D20X MODELS: 4 AMPS @ 125 V AC; 2 AMPS @ 250 V AC (UL/CSA).
D50X and D60X MODELS: 10 AMPS @ 125 V AC; 5 AMPS @ 250 V AC (UL/CSA).
D10X and D20X MODELS: 4 AMPS @ 125 V AC; 2 AMPS @ 250 V AC (UL/CSA).
4(2) AMPS @ 125 V AC; 2(1) AMPS @ 250 V AC, T85 (VDE).
2(1) AMPS @ 250 V AC.
D50X and D60X MODELS: 10 AMPS @ 125 V AC; 5 AMPS @ 250 V AC (UL/CSA).
10(6) AMPS @ 125 V AC: 5(3) AMPS @ 250 V AC, T85 (VDE).
5(3) AMPS @ 250 V AC.
All models
with all options. DX01, DX02 models
when ordered with ‘QF’ contact material.
I
QA
(STD.)
SILVER
1
POWER
QF
(STD.)
1
MOVABLE CONTACT: D10X and D20X MODELS: Copper, silver plated.
D50X and D60X MODELS: Coin silver, silver plated.
STATIONARY CONTACTS & TERMINALS: Copper or brass, silver plated.
ITT Industries
Cannon
F-52
www.ittcannon.com
