LC82270K2%B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> LC82270K2%B

LC82270K2%B: DescriptionArray/Network Resistor, Isolated, Metal Glaze/thick Film, 200V, 2% +/-Tol, 100ppm/Cel, Through Hole Mount, SIP; CategoryPassive components The resistor; File Size177KB，1 Pages; ManufacturerSEI(Stackpole Electronics Inc.); Websitehttps://www.seielect.com/

Download Datasheet Parametric View All

LC82270K2%B Overview

Array/Network Resistor, Isolated, Metal Glaze/thick Film, 200V, 2% +/-Tol, 100ppm/Cel, Through Hole Mount, SIP

LC82270K2%B Parametric

Parameter Name	Attribute value
Maker	SEI(Stackpole Electronics Inc.)
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Component power consumption	0.125 W
The first element resistor	270000 Ω
Manufacturer's serial number	LC
Installation features	THROUGH HOLE MOUNT
Network Type	ISOLATED
Number of components	1
Number of functions	4
Number of terminals	8
Maximum operating temperature	125 °C
Package shape	RECTANGULAR PACKAGE
method of packing	BULK
Rated temperature	70 °C
Resistor type	ARRAY/NETWORK RESISTOR
surface mount	NO
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	100 ppm/°C
Terminal shape	FLAT
Tolerance	2%
Operating Voltage	200 V

Preview

Download Datasheet

View All

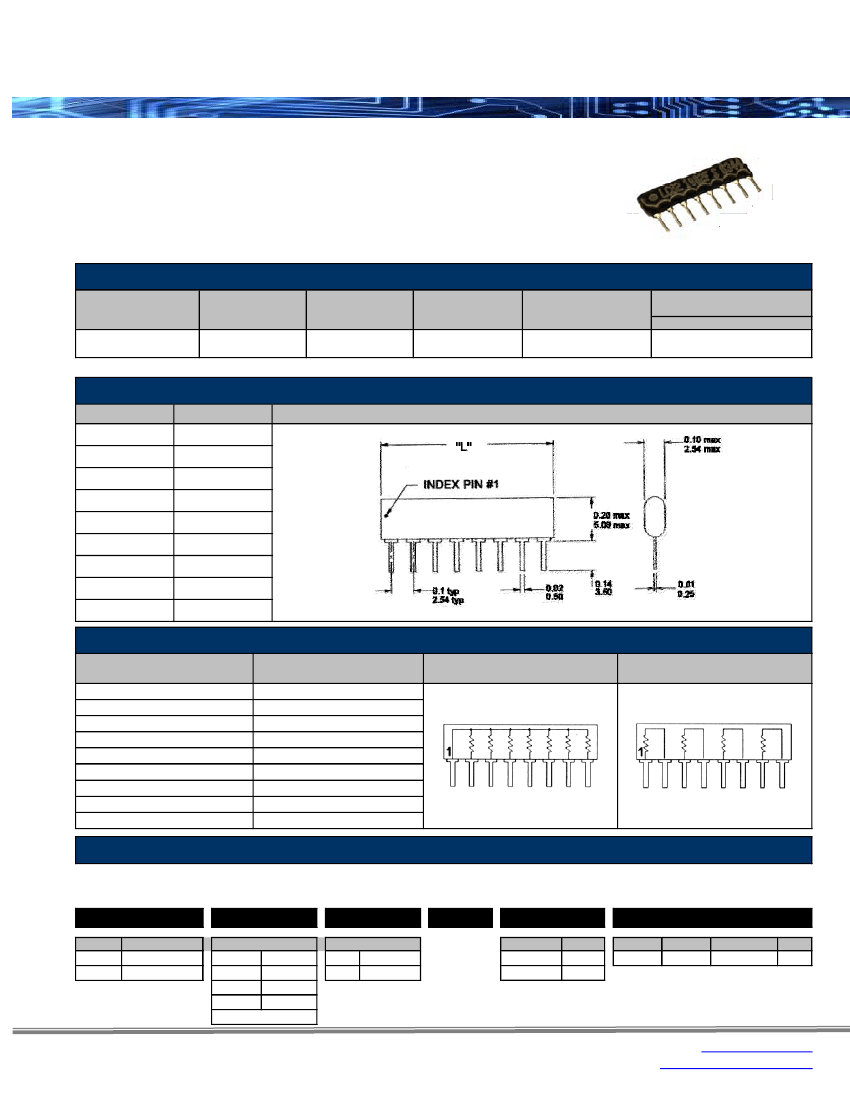

LC Series

SIP Thick Film Resistor Networks

Features:

•

Standard low profile

6, 8 or 10 pins standard

4, 5, 7, 9, 11 and 12 pins available

Steel leads standard

Conformally coated

Absolute TCR typically better than ±100ppm

TCR tracking typically better than ±50ppm

RoHS compliant / lead-free available (LCF)

Stackpole Electronics, Inc.

Resistive Product Solutions

Electrical Specifications

Type / Code

Power Rating

(Watts) @ 70ºC

0.125w

Each resistor

Derated to

0 Load @

125ºC

Max Working

Voltage1

200V

Resistance Temperature

Coefficient

±100 ppm/ºC

Ohmic Range and Tolerance

1%, 2%

30Ω - 100KΩ

1Lesser

√PR

or maximum working voltage

Mechanical Specifications

(inches – mm)

No. of Pins

"L" Max.

0.41 (10.41)

0.51 (12.95)

0.61 (15.49)

0.71 (18.03)

0.81 (20.57)

0.91 (23.11)

1.01 (25.65)

1.11 (28.19)

1.21 (30.73)

Low Profile - LC Series

Performance Characteristics

Test

Thermal Shock

Low Temperature Operation

Short Time Overload

Moisture Resistance

Load Life @ 70ºC - 1,000 Hours

Resistance to Soldering Heat

Terminal Strength

Shock (Specified Pulse)

Vibration (High Frequency)

Test Results per MIL-R-S83401

(%∆R max.)

±0.5%

±1%

±0.25%

Standard Configurations – Low Profile SIP Package

Single Common (Bussed)

Up / Pull-Down

Pull-

Discrete (Isolated) Terminator

How to Order

SEI Type

Pin Count

Circuit Type

Nominal

Resistance

Tolerance

Packaging

Type

LCF

Description

Standard

RoHS

Pin Count

4 = 4 pin 8 = 8 pin

5 = 5 pin 9 = 9 pin

6 = 6 pin 0 = 10 pin

7 = 7 pin 1 = 11 pin

2 = 12 pin

Circuit Type

Bussed

Isolated

2.2K

Tolerance

Value

E24

Type

All

Qty

1,000

Description Code

Bulk

Rev Date: 9/30/2009

This specification may be changed at any time without prior notice

Please confirm technical specifications before you order and/or use.

www.seielect.com
