HMC340ALP5
/
340ALP5E
v00.0710
GaAs MMIC SMT Double-bAlAnCeD
DuAl MIxer, 1.7 - 4.5 GHz
Features
Conversion Loss: 8.0 dB
LO/rF isolation: 45 dB
LO/iF isolation: 33 dB
input iP3: +20 dBm
Conversion Gain Balance: 0.1 dB
32 Lead 5x5mm sMT Package: 25mm
2
Typical Applications
The HMC340ALP5 / HMC340ALP5e Dual Mixer
is ideal for:
10
Mixers - siNGLe & DOUBLe BALANCeD - sMT
• Wireless infrastructure
• Wireless Local Loop
• image reject Mixer
• i/Q Modulator
• ssB Modulator

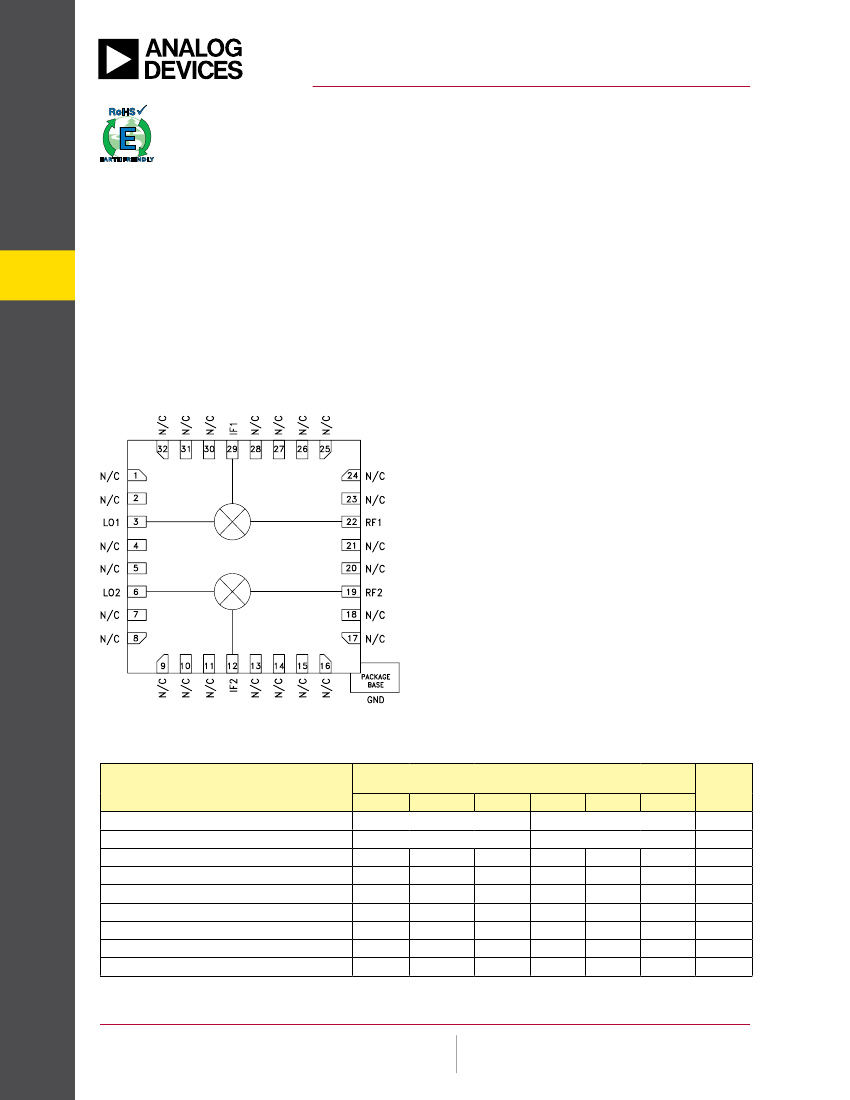

Functional Diagram
General Description
electrical Specifications,
T
A
= +25° C, As a Function of lo Drive
O
Parameter
B
SO
Min.
Frequency range, rF & LO
Frequency range, iF
Conversion Loss
Conversion Gain Amplitude Balance
Noise Figure (ssB)
LO to rF isolation
LO to iF isolation
iP3 (input)
1 dB Gain Compression (input)
30
25
8
8
45
33
20
12
The HMC340ALP5(e) is a double balanced dual mixer
covering 1.7 - 4.5 GHz rF/LO range. This passive
MMiC mixer is constructed of GaAs schottky diodes
and on-chip baluns. The device can be used as an
upconverter, downconverter, bi-phase (de)modula-
tor, or phase comparator. The mixer symmetry of the
HMC340ALP5(e) make it ideal for combining with
external hybrids to implement a single sideband
upconverter or image reject downconverter assembly.
The consistent MMiC performance will improve system
operation and assure regulatory compliance. A roHs
compliant, leadless 5x5 mm QFN surface mount
package (LP5) houses the dual MMiC mixer iC.
LE
LO = +13 dBm
iF = 100 MHz
Typ.
1.7 - 4.5
DC - 1.5
10
0.25
10
40
33
Max.
Min.
0.10
* Unless otherwise noted, all measurements performed as single channel downconverter.
TE
Typ.
3.4 - 3.8
DC - 1.5
8
0.10
8
47
38
23
13
10
0.25
10
Max.
Units
GHz
GHz
dB
dB
dB
dB
dB
dBm
dBm
10 - 1
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
For price,
20 Alpha
to place orders: Analog Devices, Inc.,
For price, delivery and to place
nor for any
Hittite Microwave Corporation,
delivery, and
Road, Chelmsford, MA 01824
responsibility is assumed by Analog Devices for its use,
orders:
infringements of patents or other
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
rights of third parties that may result from its use. Specifications subject to change without notice. No
Phone: 978-250-3343
Fax: 978-250-3373
Phone: 781-329-4700
www.hittite.com
Order On-line at
• Order online at www.analog.com
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Application Support: Phone: 1-800-ANALOG-D
Trademarks and registered trademarks are the property of their respective owners.
Application Support: Phone: 978-250-3343 or apps@hittite.com
HMC340ALP5 / 340ALP5E
v00.0710
GaAs MMIC SMT Double-bAlAnCeD
DuAl MIxer, 1.7 - 4.5 GHz

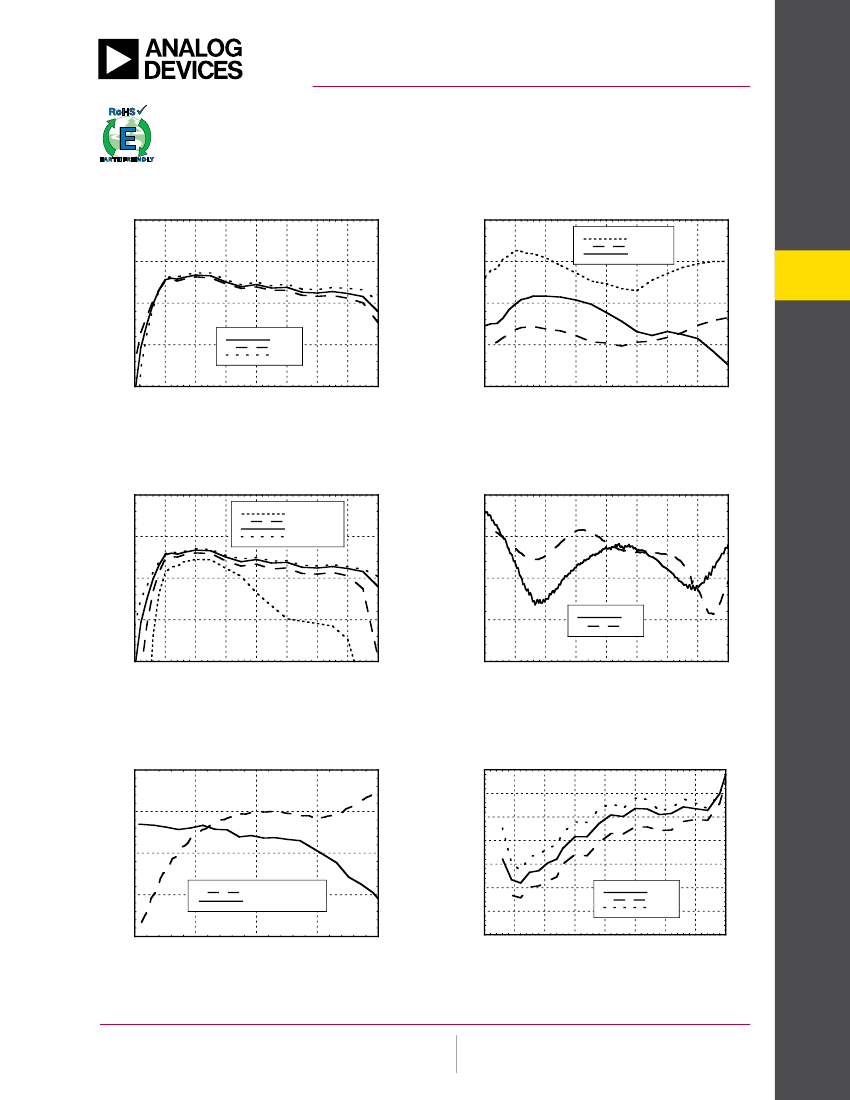

Single Channel:
Isolation @ lo = +13 dbm
0
RF TO IF
LO TO RF
LO TO IF
Single Channel: Conversion Gain
vs. Temperature @ lo = +13 dbm
0
CONVERSION GAIN (dB)
-5
ISOLATION (dB)
-15
-10
-30
10
4.5
5
-15
+25 C
+85 C
- 40 C
-45
-20
1
1.5
2
2.5
3
3.5
4
4.5
5
RF FREQUENCY (GHz)
-60
1
1.5
2
2.5
3
3.5
4
FREQUENCY (GHz)
0
LO= +9 dBm
LO= +11 dBm
LO= +13 dBm
LO= +15 dBm
CONVERSION GAIN (dB)
SO
RETURN LOSS (dB)
-5
-10
LE
0
-5
-10
-15
-20
1
1.5
2
4.5
5
15
14
13
P1dB (dBm)
12
11
10
9
8

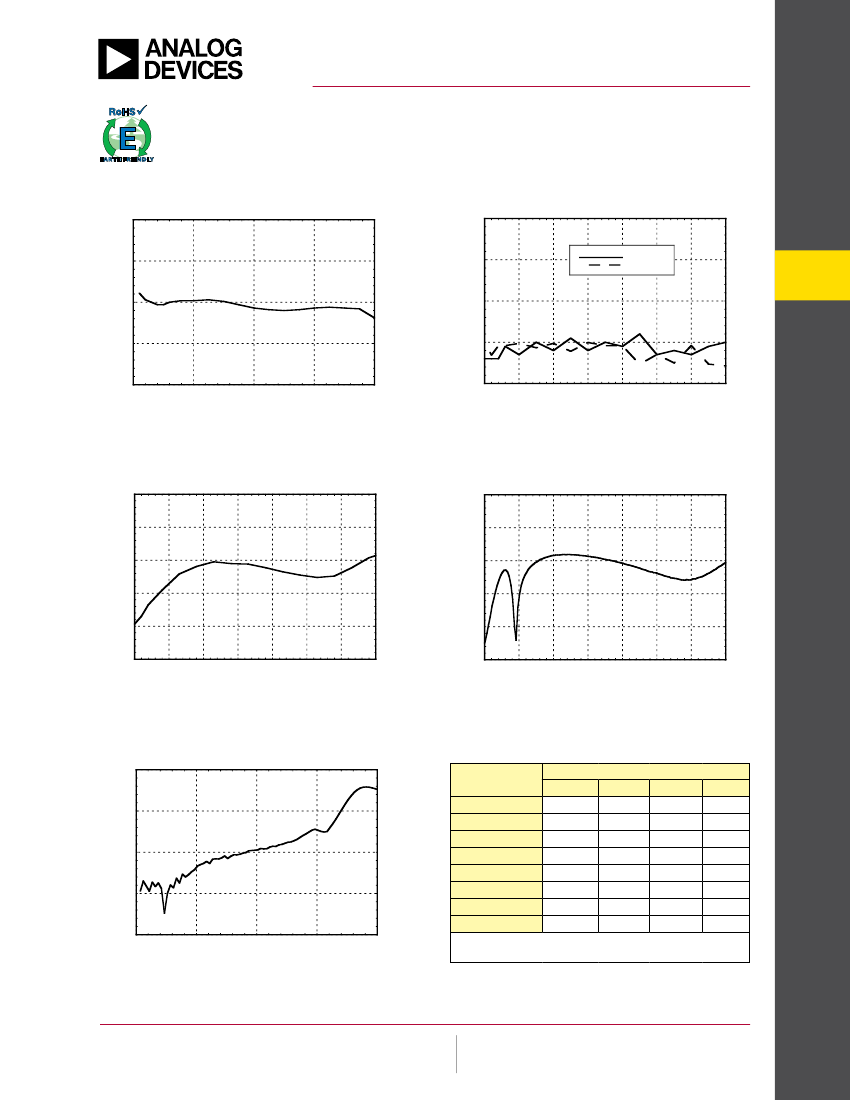

Single Channel:
Conversion Gain vs. lo Drive
Single Channel:
return loss @ lo = +13 dbm
-15
LO
RF
-20
1
1.5
2
2.5
3
3.5
4
2.5
3
3.5
4
4.5
5
B
RF FREQUENCY (GHz)
FREQUENCY (GHz)
Single Channel:
IF bandwidth @ lo = +13 dbm
Single Channel: Input P1db
vs. Temperature @ lo = +13 dbm
0
-5
RESPONSE (dB)
-10
-15
RETURN LOSS
CONVERSION GAIN
+25 C
+85 C
- 40 C
-20
0
0.5
1
IF FREQUENCY (GHz)
1.5
2
1
1.5
2
2.5
3
3.5
4
4.5
5
RF FREQUENCY (GHz)
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
For price,
20 Alpha
to place orders: Analog Devices, Inc.,
For price, delivery and to place
nor for any
Hittite Microwave Corporation,
delivery, and
Road, Chelmsford, MA 01824
responsibility is assumed by Analog Devices for its use,
orders:
infringements of patents or other
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
rights of third parties that may result from its use. Specifications subject to change without notice. No
Phone: 978-250-3343
Fax: 978-250-3373
Phone: 781-329-4700
www.hittite.com
Order On-line at
• Order online at www.analog.com
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Application Support: Phone: 1-800-ANALOG-D
Trademarks and registered trademarks are the property of their respective owners.
Application Support: Phone: 978-250-3343 or apps@hittite.com
10 - 2
Mixers - siNGLe & DOUBLe BALANCeD - sMT
O
TE
HMC340ALP5 / 340ALP5E
v00.0710
GaAs MMIC SMT Double-bAlAnCeD
DuAl MIxer, 1.7 - 4.5 GHz

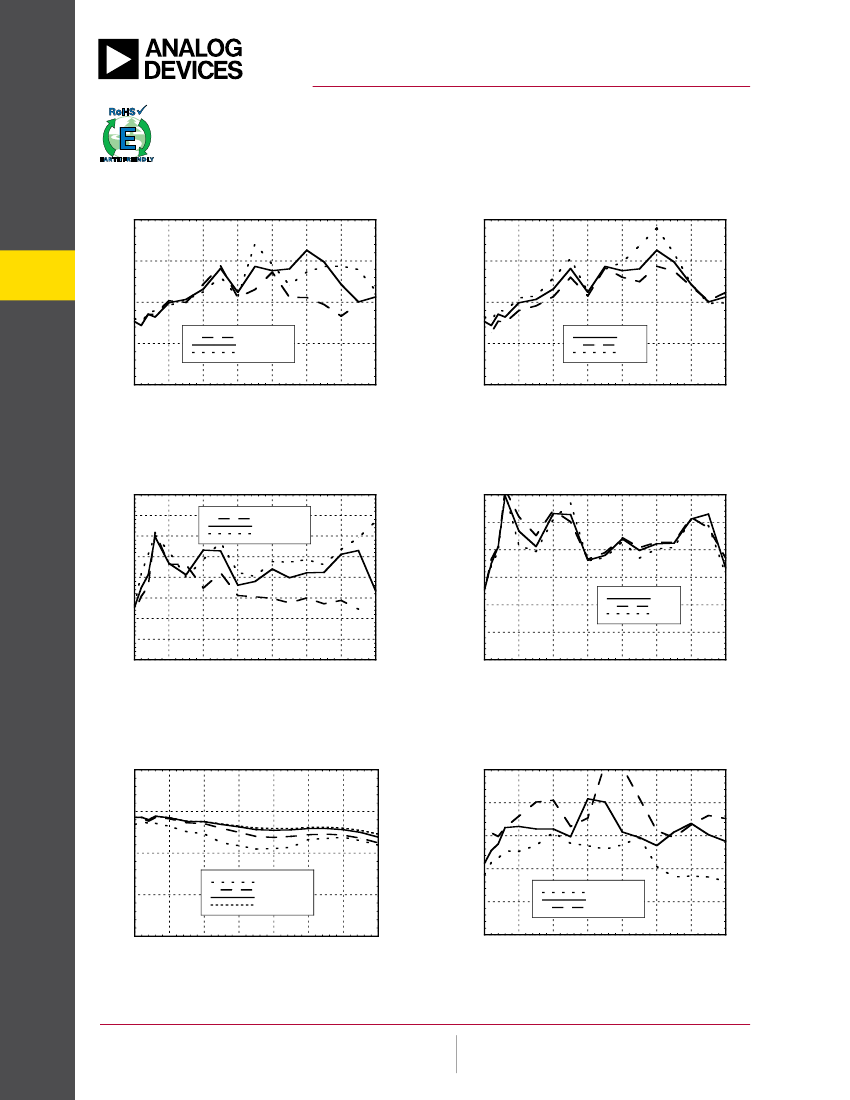

Single Channel: Input IP3
vs. Temperature @ lo = +13 dbm
30
Single Channel:
Input IP3 vs. lo Drive
30
IP3 (dBm)
20
IP3 (dBm)
LO= +11 dBm
LO= +13 dBm
LO= +15 dBm
10
Mixers - siNGLe & DOUBLe BALANCeD - sMT
25
25
20
15
10
1.5
2
2.5
3
3.5
4
4.5
5
TE
15
+25C
+85C
-40C
10
1.5
2
2.5
3
3.5
4
4.5
5
RF FREQUENCY (GHz)
RF FREQUENCY (GHz)
70
65
60
IP2 (dBm)
55
50
45
40
35
30
1.5
LO= +11 dBm
LO= +13 dBm
LO= +15 dBm
SO
3
3.5
4
4.5
5
LO= +9 dBm
LO= +11 dBm
LO= +13 dBm
LO= +15 dBm
IP2 (dBm)
LE
60
55
50
45
40
35
30
1.5
2
2.5
30
25
IP3 (dBm)
20
15
10
Single Channel:
Input IP2 vs. lo Drive
Single Channel: Input IP2
vs. Temperature @ lo = +13 dbm
+25C
+85C
-40C
2
2.5
3
3.5
4
4.5
5
RF FREQUENCY (GHz)
RF FREQUENCY (GHz)
Single Channel: upconverter
Conversion Gain vs. lo Drive
B
Single Channel:
upconverter IP3 vs. lo Drive
CONVERSION GAIN (dB)
O
0
-5
-10
-15
LO= +11 dBm
LO= +13 dBm
LO= +15 dBm
-20
1.5
2
2.5
3
3.5
4
4.5
5
5
1.5
2
2.5
3
3.5
4
4.5
5
RF FREQUENCY (GHz)
RF FREQUENCY (GHz)
10 - 3
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
For price,
20 Alpha
to place orders: Analog Devices, Inc.,
For price, delivery and to place
nor for any
Hittite Microwave Corporation,
delivery, and
Road, Chelmsford, MA 01824
responsibility is assumed by Analog Devices for its use,
orders:
infringements of patents or other
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
rights of third parties that may result from its use. Specifications subject to change without notice. No
Phone: 978-250-3343
Fax: 978-250-3373
Phone: 781-329-4700
www.hittite.com
Order On-line at
• Order online at www.analog.com
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Application Support: Phone: 1-800-ANALOG-D
Trademarks and registered trademarks are the property of their respective owners.
Application Support: Phone: 978-250-3343 or apps@hittite.com
HMC340ALP5 / 340ALP5E
v00.0710
GaAs MMIC SMT Double-bAlAnCeD
DuAl MIxer, 1.7 - 4.5 GHz
Dual Channel:
Channel to Channel Isolation
-70
Dual Channel:
Conversion Gain Amplitude balance
1
AMPLITUDE BALANCE (dB)
0.5
ISOLATION (dB)
-80
RF1 TO IF2
RF2 TO IF1
0
-90
10
4.5
5
-0.5
-100
-1
1
2
3
FREQUENCY (GHz)
4
5
-110
1.5
2
2.5
3
3.5
4
RF FREQUENCY (GHz)
-20
-30
ISOLATION (dB)
-50
SO
-40
ISOLATION (dB)
-60
-70
1.5
2
2.5
3
3.5
4
4.5
LE
-20
-30
-40
-50
-60
5
-70
1.5
2
2.5
Dual Channel:
lo1 to lo2 Isolation
Dual Channel:
rF1 to rF2 Isolation
3
3.5
4
4.5
5
LO FREQUENCY (GHz)
RF FREQUENCY (GHz)
Dual Channel:
IF1 to IF2 Isolation
-20
Harmonics of lo
LO Freq. (GHz)
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
nLO spur at rF Port
1
39
40
43
44
44
42
38
36
2
29
26
28
38
48
49
49
53
3
57
63
41
63
66
63
63
59
4
68
68
63
67
70
67
83
89
-40
ISOLATION (dB)
-60
-80
-100
0
0.5
1
IF FREQUENCY (GHz)
1.5
2
LO = +13 dBm
Values in dBc below input LO level measured at rF Port.
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
For price,
20 Alpha
to place orders: Analog Devices, Inc.,
For price, delivery and to place
nor for any
Hittite Microwave Corporation,
delivery, and
Road, Chelmsford, MA 01824
responsibility is assumed by Analog Devices for its use,
orders:
infringements of patents or other
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
rights of third parties that may result from its use. Specifications subject to change without notice. No
Phone: 978-250-3343
Fax: 978-250-3373
Phone: 781-329-4700
www.hittite.com
Order On-line at
• Order online at www.analog.com
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Application Support: Phone: 1-800-ANALOG-D
Trademarks and registered trademarks are the property of their respective owners.
Application Support: Phone: 978-250-3343 or apps@hittite.com
10 - 4
Mixers - siNGLe & DOUBLe BALANCeD - sMT
O
B
TE
HMC340ALP5 / 340ALP5E
v00.0710
GaAs MMIC SMT Double-bAlAnCeD
DuAl MIxer, 1.7 - 4.5 GHz
Mxn Spurious outputs
nLO
mrF
0
1
2
3
4
0
xx
19
71
86
86
1
11
0
67
86
86
2
20
26
67
85
86
3
36
37
68
78
86
4
45
41
71
78
86
Absolute Maximum ratings
rF / iF input
LO Drive
+13 dBm
+27 dBm
150°C
1.07 W
60.4 °C/W
-65 to +150 °C
-40 to +85 deg °C
10
Mixers - siNGLe & DOUBLe BALANCeD - sMT
Channel Temperature
Continuous Pdiss (T = 85°C)
(derate 16.55 mW/°C above 85°C)
Thermal resistance (r
TH
)
(junction to package base)
storage Temperature
Operating Temperature
rF = 3.5 GHz @ -10 dBm
LO = 3.6 GHz @ +13 dBm
All values in dBc below iF power level
eLeCTrOsTATiC seNsiTiVe DeViCe
OBserVe HANDLiNG PreCAUTiONs

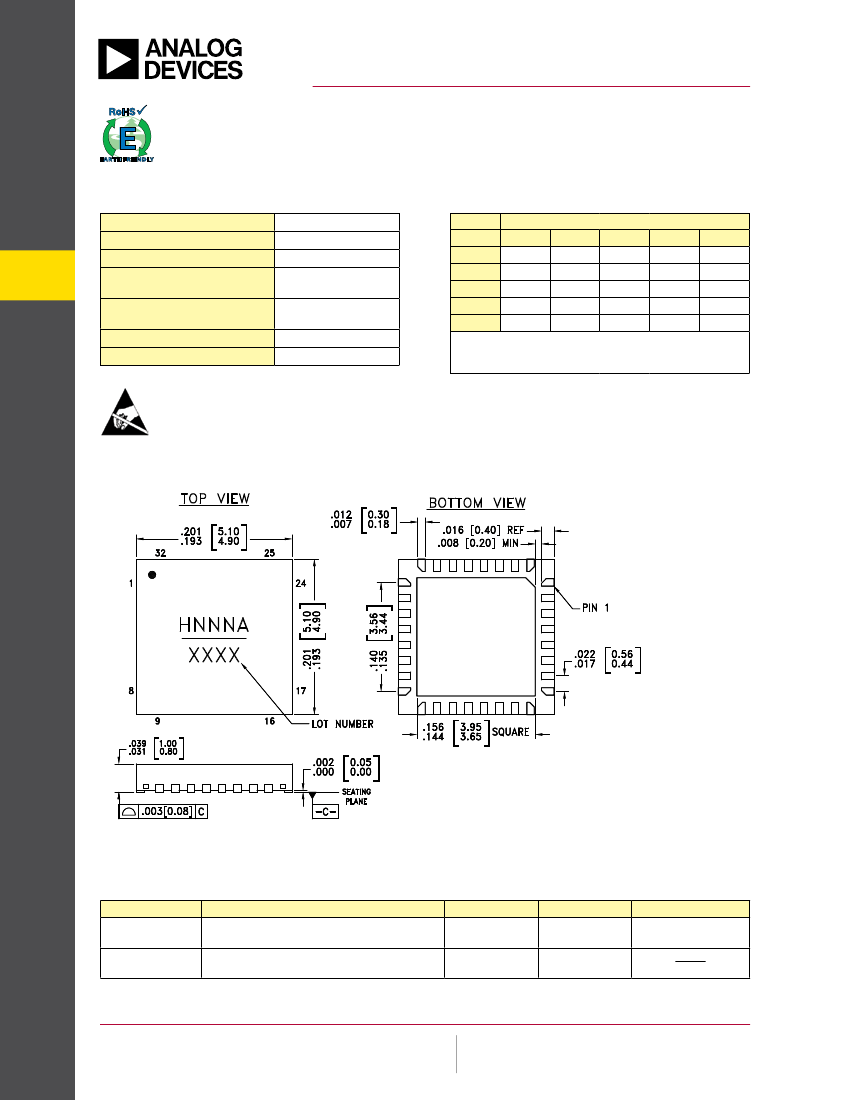

outline Drawing
B
O
Package Information
Part Number
HMC340ALP5
HMC340ALP5e
Package Body Material
Low stress injection Molded Plastic
roHs-compliant Low stress injection Molded Plastic
SO
NOTes:
1. LeADFrAMe MATeriAL: COPPer ALLOY
2. DiMeNsiONs Are iN iNCHes [MiLLiMeTers]
3. LeAD sPACiNG TOLerANCe is NON-CUMULATiVe.
4. PAD BUrr LeNGTH sHALL Be 0.15mm MAxiMUM.
PAD BUrr HeiGHT sHALL Be 0.05mm MAxiMUM.
5. PACKAGe WArP sHALL NOT exCeeD 0.05mm.
6. ALL GrOUND LeADs AND GrOUND PADDLe MUsT Be
sOLDereD TO PCB rF GrOUND.
7. reFer TO HiTTiTe APPLiCATiON NOTe FOr sUGGesTeD
LAND PATTerN.
LE
Lead Finish
sn/Pb solder
100% matte sn
MsL rating
MsL1
MsL1
[1]
[1] Max peak reflow temperature of 235 °C
[2] Max peak reflow temperature of 260 °C
[3] 4-Digit lot number xxxx
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
For price,
20 Alpha
to place orders: Analog Devices, Inc.,
For price, delivery and to place
nor for any
Hittite Microwave Corporation,
delivery, and
Road, Chelmsford, MA 01824
responsibility is assumed by Analog Devices for its use,
orders:
infringements of patents or other
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
rights of third parties that may result from its use. Specifications subject to change without notice. No
Phone: 978-250-3343
Fax: 978-250-3373
Phone: 781-329-4700
www.hittite.com
Order On-line at
• Order online at www.analog.com
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Application Support: Phone: 1-800-ANALOG-D
Trademarks and registered trademarks are the property of their respective owners.
Application Support: Phone: 978-250-3343 or apps@hittite.com
10 - 5
TE
Package Marking
[3]
H340A
xxxx
H340A
xxxx
[2]
京公网安备 11010802033920号
EEWORLD
