CL-194WH-D: DescriptionSINGLE COLOR LED, HIGH BRIGHT WHITE, 1.60 X 0.80 MM, 0.30 MM HEIGHT, LEAD FREE PACKAGE; CategoryLED optoelectronic/LED photoelectric; File Size519KB，2 Pages; ManufacturerCITIZEN; Websitehttp://ce.citizen.co.jp/e/index.html

Download Datasheet Parametric Compare View All

CL-194WH-D Overview

SINGLE COLOR LED, HIGH BRIGHT WHITE, 1.60 X 0.80 MM, 0.30 MM HEIGHT, LEAD FREE PACKAGE

CL-194WH-D Parametric

Parameter Name	Attribute value
Maker	CITIZEN
package instruction	1.60 X 0.80 MM, 0.30 MM HEIGHT, LEAD FREE PACKAGE
Reach Compliance Code	unknown
color	HIGH BRIGHT WHITE
Configuration	SINGLE
Maximum forward current	0.01 A
Nominal luminous intensity	170.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	80 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	SINGLE COLOR LED
total height	0.3 mm
method of packing	BULK
shape	RECTANGULAR
surface mount	YES

Preview

Download Datasheet

View All

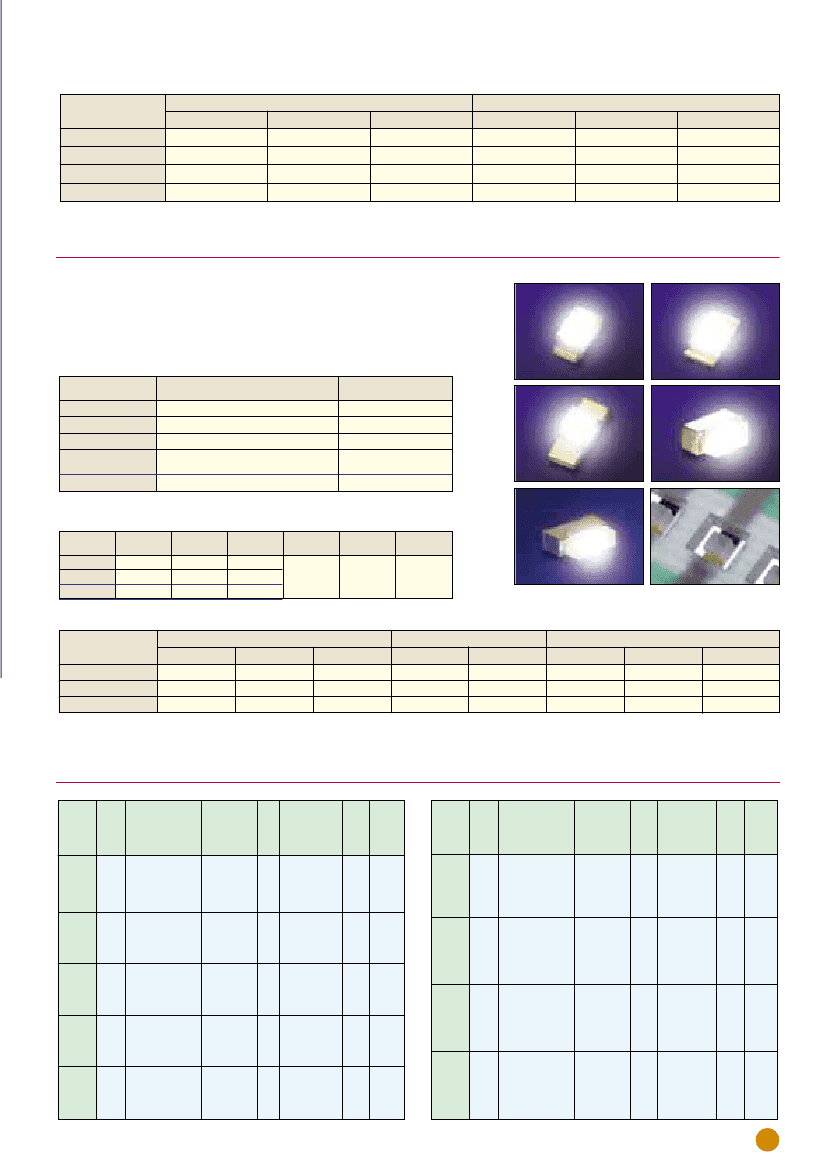

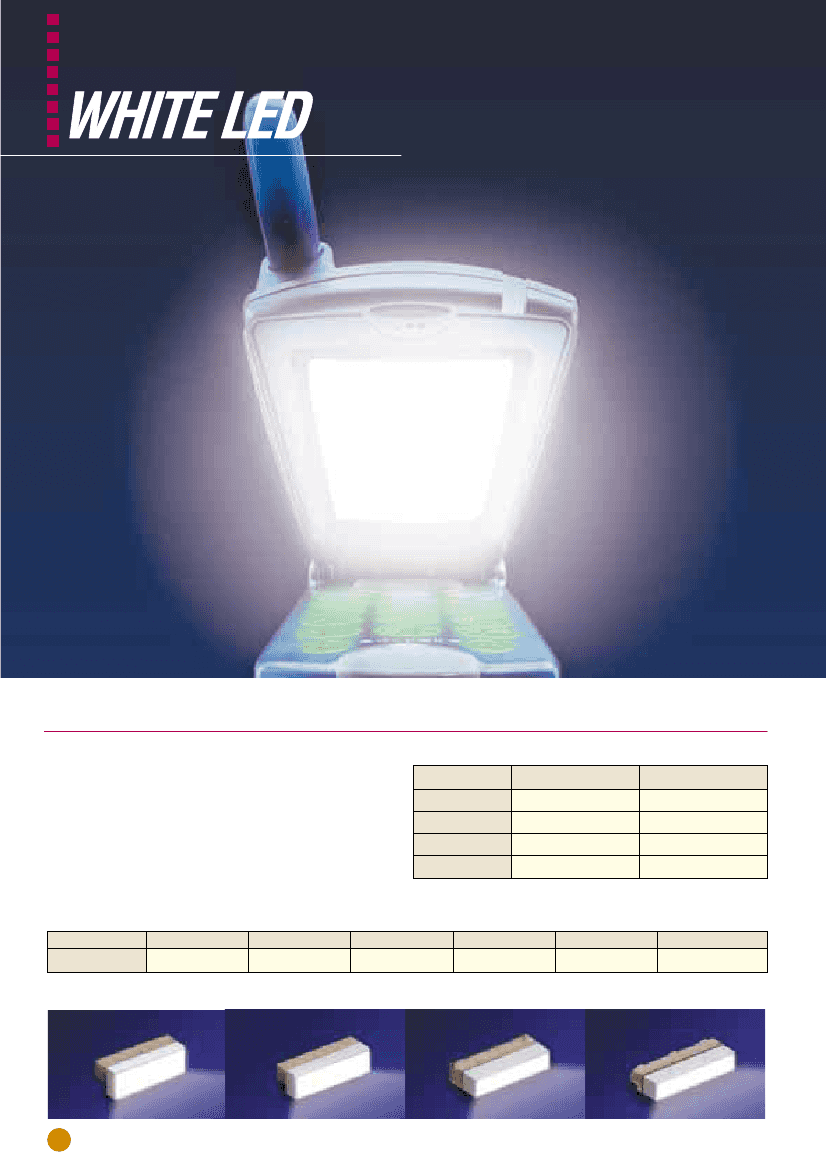

高輝度½色LED

世界トップレベルの薄さと明るさ。

高いコストパフォーマンスを誇る

½色 LED。

With the world's thinnest surface and highest

brightness, the white LED boasts superb cost

performance.

High brightness White Chip LED

White LED

■ カラー LCD バックライト用／

For Color LCD

● カラーLCDバックライトに適した、

超高輝度から超薄型

まで4種類のパッケージより選べます。

Four kinds of packages (can achieve a luminous efficacy/a

thin surface structured) are available, as to the LCD back

light sources.

● 対応パッケージ/Available

Package Nos.

Series

CL-430S-WF

CL-431S-WF

CL-432S-WF

＊

CL-434S-WF

Refrector

⃝

Size(L W H)mm

・・

2.8x1.0x1.0

2.8x1.0x0.8

2.8x1.0x0.6

2.8x0.85x0.5

● 全てのWhiteLEDは鉛フリー対応½品です。

All White LED are lead free correspondence products.

＊

開発中/Under

development

● 絶対最大定格/Absolute

maximum rating

Type

WF

（Ta 25℃）

I

FP

(mA)

100

P(mw)

135

I

F

(mA)

30

V

R

(V)

5

Top(℃)

-25∼+80

Tst(℃)

-30∼+85

CL-430S

CL-431S

CL-432S

CL-434S

18
