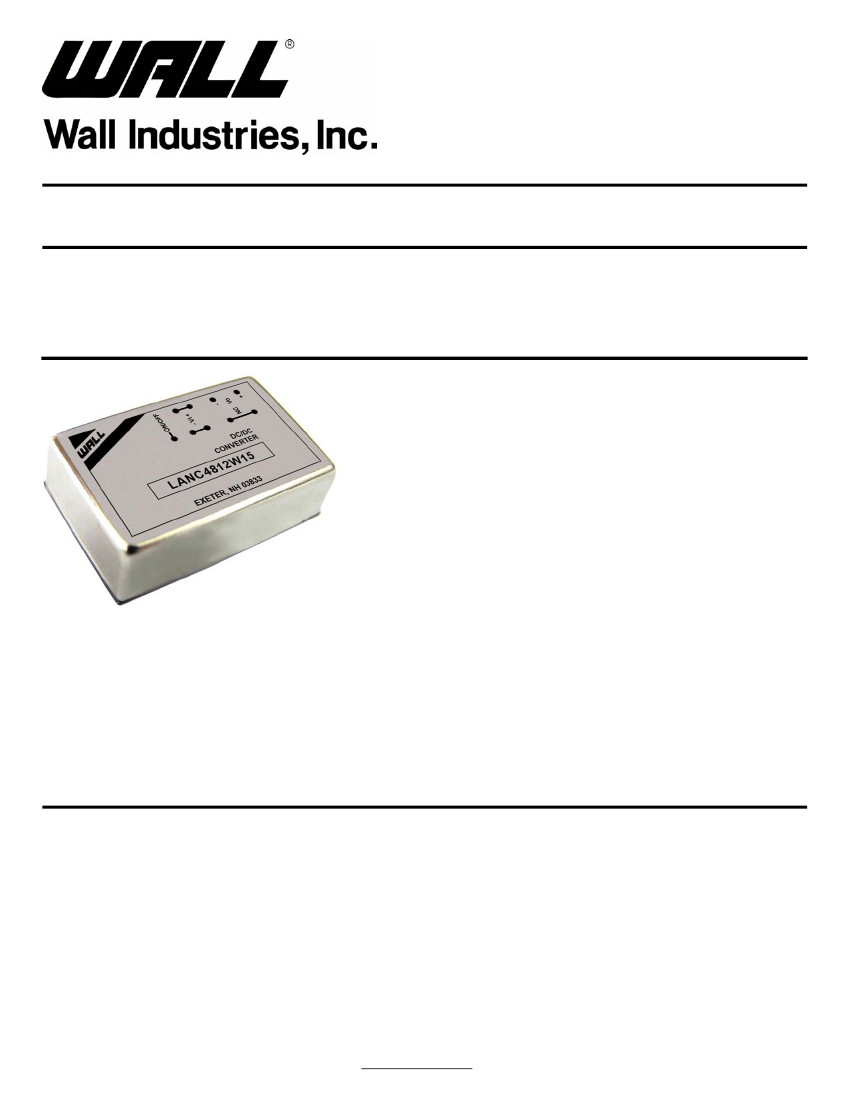

LANCW15 SERIES
2:1 Wide Input Voltage Range
Single and Dual Outputs
24 Pin DIP Package
15 Watt DC/DC Power Converters
FEATURES
Single and Dual Outputs
Low Profile
High Power Density with 15 Watts Output Power
2:1 Wide Input Voltage Range
High Efficiency up to 91%
1600VDC I/O Isolation
Output Current up to 4A
Positive Logic Remote ON/OFF
Fixed Switching Frequency
Over Voltage, Over Load, and Short Circuit Protection
APPLICATIONS
Wireless Networks
Telecom / Datacom
Measurement Equipment
Industry Control Systems
Semiconductor Equipment
Low Standby Power Dissipation
Input Under Voltage Lockout
Six-Sided Continuous Shield
Standard 24 Pin DIP Package
UL60950-1, EN60950-1, and IEC60950-1 Safety Approvals
Compliant to RoHS EU Directive 2002/95/EC
DESCRIPTION
The LANCW15 series of DC/DC power converters provides 15 watts of output power in a 1.25 x 0.80 x 0.40 inch DIP
package. This series has single and dual output models with 2:1 wide input voltage ranges of 9-18VDC, 18-36VDC, and
36-75VDC. Some features include high efficiency, 1600VDC I/O isolation, six-sided shielding, and positive logic remote
ON/OFF. These converters are also protected against over voltage (single outputs only), over load, and short circuit
conditions. All models are RoHS compliant and have UL60950-1, EN60950-1, and IEC60950-1 safety approvals. This
series is best suited for use in wireless networks, telecom/datacom, measurement equipment, industry control systems, and
semiconductor equipment.
11/15/2010
Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833
603-778-2300 www.wallindustries.com Fax 603-778-9797
Page 1 of 5
Rev. A
LANCW15 Series
Single & Dual Outputs
2:1 Input Voltage Range
15 Watt DC/DC Power Converters
SPECIFICATIONS: LANCW15 Series
All specifications are based on 25°C, Nominal Input Voltage, and Maximum Output Current unless otherwise noted.
We reserve the right to change specifications based on technological advances.
SPECIFICATION
INPUT SPECIFICATIONS
Input Voltage Range
Input Surge Voltage (1 sec max)
Start-Up Voltage
Shutdown Voltage
Input Reflected Ripple Current
Input Filter
OUTPUT SPECIFICATIONS
Output Voltage
Line Regulation
Load Regulation
Cross Regulation (Dual Outputs)
Voltage Accuracy
Output Power
Output Current
Ripple & Noise
(See Note 6)
Transient Response Recovery Time
Start-Up Time
Minimum Load
Temperature Coefficient
PROTECTION
Over Load Protection
Short Circuit Protection
Over Voltage Protection (Single Outputs only)
GENERAL SPECIFICATIONS
Efficiency
Switching Frequency
Isolation Voltage
Isolation Resistance
Isolation Capacitance
REMOTE ON/OFF
Positive Logic
(See Note 7)
DC/DC ON
DC/DC OFF
Nominal Vin
Nominal Vin
With derating
Input Current of Remote Control Pin
Remote Off State Input Current
ENVIRONMENTAL SPECIFICATIONS
Operating Ambient Temperature
Maximum Case Temperature
Storage Temperature
Relative Humidity
Thermal Shock
Vibration
Thermal Impedance
MTBF
(See Note 1)
PHYSICAL SPECIFICATIONS
Weight
Case Material
Base Material
Potting Material
Dimensions (L x W x H)
SAFETY & EMC CHARACTERISTICS
Safety Approvals
EMI
(See Note 8)
ESD
Radiated Immunity
Fast Transient
(See Note 9)
Surge
(See Note 9)
Conducted Immunity
EN55022
EN55022
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
TEST CONDITIONS
12VDC nominal input models
24VDC nominal input models
48VDC nominal input models
12VDC nominal input models
24VDC nominal input models
48VDC nominal input models
12VDC nominal input models
24VDC nominal input models
48VDC nominal input models
12VDC nominal input models
24VDC nominal input models
48VDC nominal input models
Nominal Vin and full load
Min
9
18
36
Nom
12
24
48
Max
18
36
75
36
50
100
9
18
36
Unit
VDC
VDC
VDC
VDC
mAp-p
8
16
33
20
Pi type
See Table
Single Output
Dual Output
Single Output
Dual Output
-0.2
-0.5
-0.5
-1
-5
-1
See Table
85
250
Power Up
0
-0.02
30
+0.02
150
Hiccup, automatic recovery
See Table
See Table
330
+0.2
+0.5
+0.5
+1
+5
+1
15
Low line to high line at full load
No load to full load
Asymmetrical load 25% to 100% full load
Full load an nominal Vin
20MHz Bandwidth
25% load step change
Nominal Vin and constant resistive load
%
%
%
%
W
mVp-p
µs
ms
%
%/°C
%
% of full load at nominal input
Nominal Vin and full load
Input tot Output
Input to Case
Output tot Case
1600
1600
1600
10
KHz
VDC
2000
GΩ
pF
-0.5
-40
-55
5
Open or 3.0V < Vr < 12V
Short or 0V < Vr < 1.2V
+0.5
2.5
+100
+105
+105
95
MIL-STD-810F
MIL-STD-810F
20
3,378,000 hours
464,500 hours
mA
mA
°C
°C
°C
% RH
°C/Watt
Natural Convection
BELLCORE TR-NWT-000332
MIL-HDBK-217F
0.51oz (14.4g)
Nickel-coated copper
FR4 PCB
Epoxy (UL94-V0)
1.25 x 0.80 x 0.40 inches (31.8 x 20.3 x 10.2 mm)
IEC60950-1, UL60950-1, EN60950-1
Class A
Class B
Air
Contact
±8KV
±6KV
10 V/m
±2KV
±1KV
10 Vrms
Perf. Criteria A
Perf. Criteria A
Perf. Criteria A
Perf. Criteria A
Perf. Criteria A
11/15/2010
Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833
603-778-2300 www.wallindustries.com Fax 603-778-9797
Page 2 of 5
Rev. A
LANCW15 Series
Single & Dual Outputs
2:1 Input Voltage Range
15 Watt DC/DC Power Converters
MODEL SELECTION TABLES
SINGLE OUTPUT MODELS
Model Number
LANC1233W15
LANC1251W15
LANC1212W15
LANC1215W15
LANC2433W15
LANC2451W15
LANC2412W15
LANC2415W15
LANC4833W15
LANC4851W15
LANC4812W15
LANC4815W15
48 VDC
(36 – 75 VDC)
24 VDC
(18 – 36 VDC)
12 VDC
(9 – 18 VDC)
Input Voltage
Range
Output
Voltage
3.3 VDC
5.1 VDC
12 VDC
15 VDC
3.3 VDC
5.1 VDC
12 VDC
15 VDC
3.3 VDC
5.1 VDC
12 VDC
15 VDC
Output Current
Input Current
Min. Load Full Load No Load
(3)
Full Load
(2)
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
4000mA
3000mA
1250mA
1000mA
4000mA
3000mA
1250mA
1000mA
4000mA
3000mA
1250mA
1000mA
10mA
10mA
5mA
10mA
6mA
6mA
4mA
6mA
4mA
4mA
4mA
4mA
1325mA
1482mA
1453mA
1453mA
654mA
741mA
718mA
718mA
327mA
371mA
363mA
359mA
Over Voltage
Protection
3.9 VDC
6.2 VDC
15 VDC
18 VDC
3.9 VDC
6.2 VDC
15 VDC
18 VDC
3.9 VDC
6.2 VDC
15 VDC
18 VDC
Output
Power
13.2W
15W
15W
15W
13.2W
15W
15W
15W
13.2W
15W
15W
15W
Efficiency
(4)
87%
90%
90%
90%
88%
90%
91%
91%
88%
90%
90%
91%
Maximum
(5)
Capacitive Load
4700µF
3300µF
600µF
400µF
4700µF
3300µF
600µF
400µF
4700µF
3300µF
600µF
400µF
DUAL OUTPUT MODELS
Model Number
LANC1205DW15
LANC1212DW15
LANC1215DW15
LANC2405DW15
LANC2412DW15
LANC2415DW15
LANC4805DW15
LANC4812DW15
LANC4815DW15
Input Voltage
Range
12 VDC
(9 – 18 VDC)
Output
Voltage
±5 VDC
±12 VDC
±15 VDC
±5 VDC
±12 VDC
±15 VDC
±5 VDC
±12 VDC
±15 VDC
Output Current
Input Current
Min. Load Full Load No Load
(3)
Full Load
(2)
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
±1500mA
±625mA
±500mA
±1500mA
±625mA
±500mA
±1500mA
±625mA
±500mA
10mA
6mA
10mA
4mA
6mA
6mA
4mA
4mA
4mA
1524mA
1453mA
1453mA
753mA
726mA
727mA
376mA
363mA
363mA
Output
(6)
Ripple & Noise
85mVp-p
85mVp-p
85mVp-p
85mVp-p
85mVp-p
85mVp-p
85mVp-p
85mVp-p
85mVp-p
Output
Power
15W
15W
15W
15W
15W
15W
15W
15W
15W
Efficiency
(4)
86%
90%
90%
87%
90%
90%
87%
90%
90%
Maximum
(5)
Capacitive Load
±1500µF
±288µF
±200µF
±1500µF
±288µF
±200µF
±1500µF
±288µF
±200µF
24 VDC
(18 – 36 VDC)
48 VDC
(36 – 75 VDC)
NOTES
1. BELLCORE TR-NWT-000332. Case 1: 50% Stress, Temperature at 40°C.
MIL-HDBK-217F Notice2 @Ta=25°C, Full load (Ground, Benign, controlled environment).
2. Maximum value at nominal input voltage and full load.
3. Typical value at nominal input voltage and no load.
4. Typical value at nominal input voltage and full load.
5. Test by minimum Vin and constant resistive load.
6. Ripple and Noise is measured with a 1µF ceramic capacitor in parallel with the output pins.
7. The ON/OFF control pin voltage is referenced to -Vin.
8. The LANCW15 series can meet EN55022 Class B with an external filter on the input pins to the converter. The filter capacitor suggested is TBD.
9. An external input filter capacitor is required if the module has to meet EN61000-4-4, EN61000-4-5. The filter capacitor suggested is TBD.
Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833
603-778-2300 www.wallindustries.com Fax 603-778-9797
11/15/2010
Page 3 of 5
Rev. A
LANCW15 Series
Single & Dual Outputs
2:1 Input Voltage Range
15 Watt DC/DC Power Converters

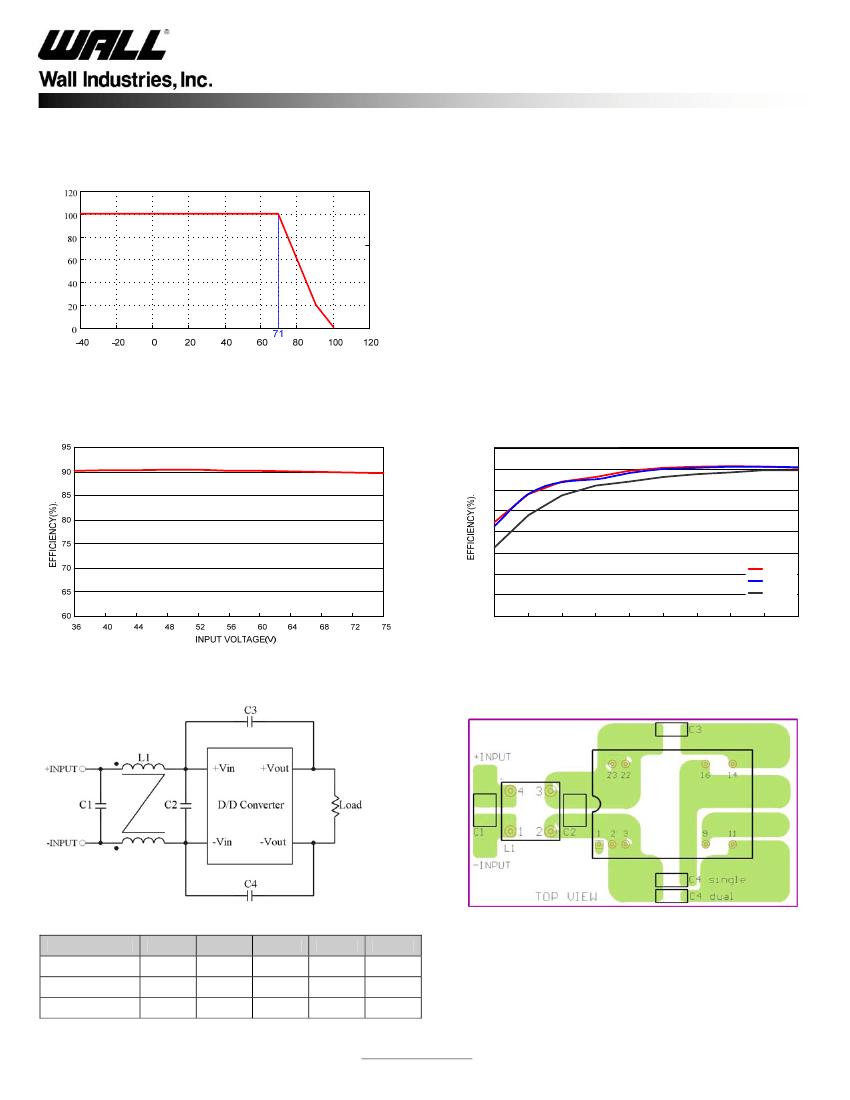

DERATING CURVE
LANC4851W15 DERATING CURVE
OUTPUT POWER (%)
AMBIENT TEMPERATURE (°C)
CHARACTERISTICS
LANC4851W15
EFFICIENCY VS INPUT VOLTAGE
95
90
85
80
75
70
65
60
55
10
20
30
40
50
60
70
80
90
100
Vin= 36V
Vin= 48V
Vin= 75V
LANC4851W15
EFFICIENCY VS LOAD
EFFICIENCY VS LOAD
% of FULL LOAD
Recommended Filter for EN55022 Class B Compliance
Recommended EN55022 Class B Filter Circuit Layout
The components used in the figure above are as follows: TBD
C1
LANC12xxW15
LANC24xxW15
LANC48xxW15
TBD
TBD
TBD
C2
TBD
TBD
TBD
C3
TBD
TBD
TBD
C4
TBD
TBD
TBD
L1
TBD
TBD
TBD
11/15/2010
Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833
603-778-2300 www.wallindustries.com Fax 603-778-9797
Page 4 of 5
Rev. A
LANCW15 Series
Single & Dual Outputs
2:1 Input Voltage Range
15 Watt DC/DC Power Converters

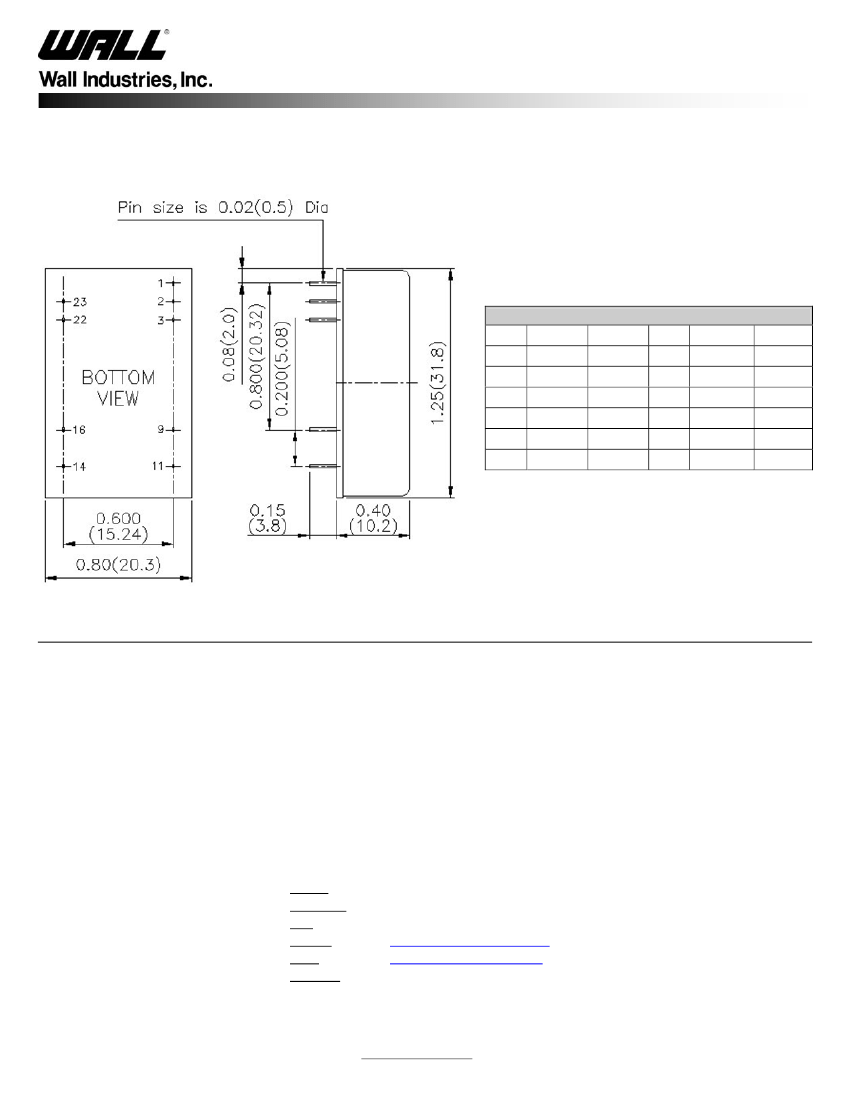

MECHANICAL DRAWING
Unit: inches (mm)
PIN CONNECTIONS
PIN
1
2
3
SINGLE
CTRL
-INPUT
-INPUT
DUAL
CTRL
-INPUT
-INPUT
23
22
+INPUT
+INPUT
+INPUT
+INPUT
PIN
SINGLE
DUAL
9
11
NC
NC
COMMON
-OUTPUT
16
14
-OUTPUT COMMON
+OUTPUT +OUTPUT
1. Tolerance: x.xx±0.02 (x.x±0.5)
x.xxx±0.01 (x.xx±0.25)
2. Pin Pitch Tolerance: ±0.01 (0.25)
COMPANY INFORMATION
Wall Industries, Inc. has created custom and modified units for over 50 years. Our in-house research and development
engineers will provide a solution that exceeds your performance requirements on-time and on budget. Our ISO9001-2008
certification is just one example of our commitment to producing a high quality, well-documented product for our customers.
Our past projects demonstrate our commitment to you, our customer. Wall Industries, Inc. has a reputation for working
closely with its customers to ensure each solution meets or exceeds form, fit and function requirements. We will continue to
provide ongoing support for your project above and beyond the design and production phases. Give us a call today to discuss
your future projects.
Contact
Wall Industries
for further information:
Phone:
Toll Free:
Fax:
E-mail:
Web:
Address:
(603)778-2300
(888)587-9255
(603)778-9797
sales@wallindustries.com
www.wallindustries.com
5 Watson Brook Rd.
Exeter, NH 03833
11/15/2010
Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833
603-778-2300 www.wallindustries.com Fax 603-778-9797
Page 5 of 5
京公网安备 11010802033920号
EEWORLD
