TS902C2
(10A)
LOW LOSS SUPER HIGH SPEED RECTIFIER
( 200V / 10A )
Outline drawings, mm
10
+0.5
0.9
±0.3
4.5
±0.2
1.32
1.5 Max
9.3
±0.5
1.2
±0.2
5.08
0.8
—0.1
2.7
+0.2
0.4
+0.2
Features
Surface-mount device
Low V
F
Super high speed switching
High reliability by planer design
JEDEC
EIAJ
1. Gate
2, 4. Drain
3. Source
Connection diagram
Applications
High speed power switching
1
2
4
3
Maximum ratings and characteristics
Absolute maximum ratings
Item
Repetitive peak reverse voltage
Average output current
Surge current
Operating junction temperature
Storage temperature
Symbol
V
RRM
I
O
I
FSM
T
j
T
stg
Square wave, duty=1/2, Tc=125°C
Sine wave 10ms
Conditions
Rating
200
10*
50
-40 to +150
-40 to +150
Unit
V
A
A
°C
°C
*
Average forward current of centertap full wave connection
Electrical characteristics (Ta=25°C Unless otherwise specified )
Item
Forward voltage drop
Reverse current
Reverse recovery time
Thermal resistance
Symbol
V
FM
I
RRM
t
rr
R
th(j-c)
Conditions
I
FM
=5.0A
V
R
=V
RRM
I
F
=0.1A, I
R
=0.2A, I
rec
=0.05A
Junction to case
Max.
0.95
100
35
2.5*
Unit
V
µA
ns
°C/W
3.0
±0.3
(200V / 10A )

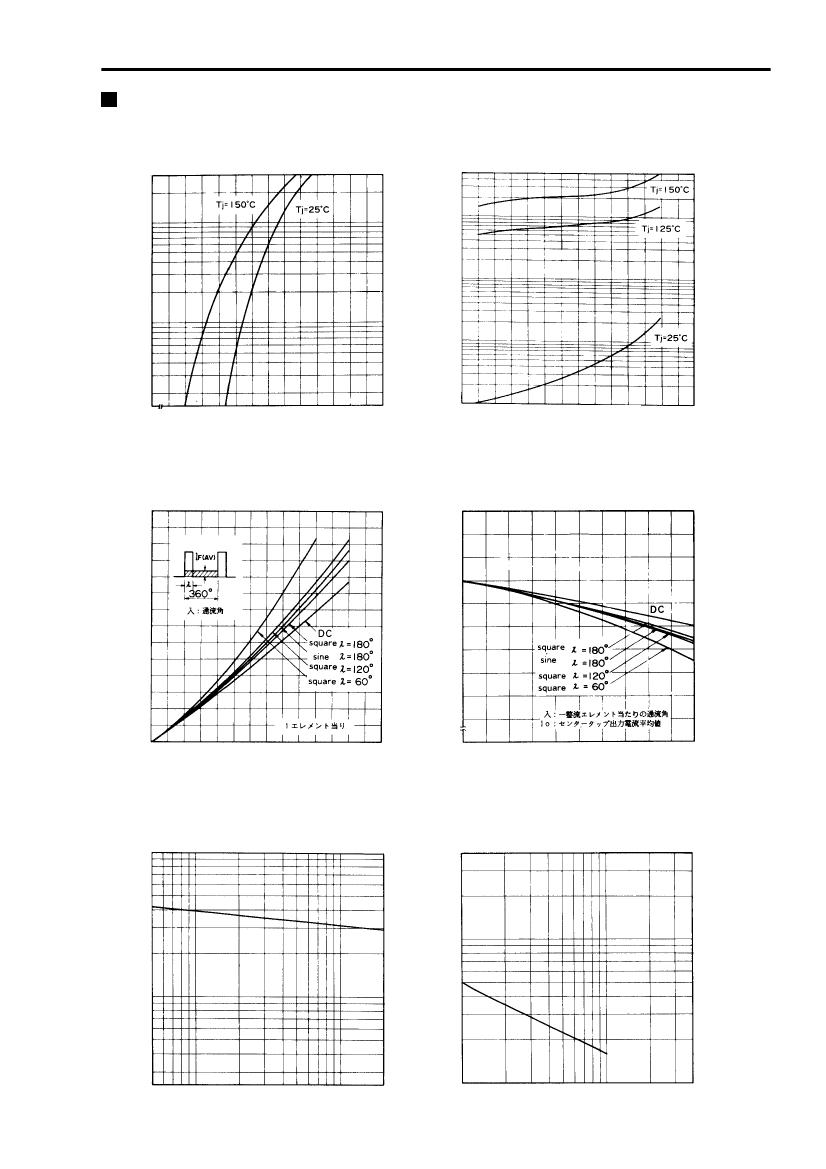

Characteristics
Forward characteristics
30
5000
3000
1000
300
TS902C2 (10A)
Reverse characteristics
10
5
I
F
[A]
3
I
R
100
[
µ
A]
30
1
10
0.5
0.3
0.1
0
0.4
0.6
0.8
1.0
1.2
1.4
1.6
3
1
0
100
200
V
F
[V]
V
R
[V]
Forward power dissipation
7
6
160
5
4
180
Output current-case temperature
T
c
[°C]
140
W
F
[W]
3
2
120
100
1
0
0
1
2
3
4
5
6
7
0
0
2
4
6
8
10
I
o
[A]
I
o
[A]
Junction capacitance characteristics
100
300
50
30
Surge capability
C
j
[pF]
10
100
I
FSM
[A]
50
30
5
3
5
10
30
50
100
200
10
1
3
5
10
30
V
R
[V]
[time] (at 50Hz)
