FREQXOPL72050ITA datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> FREQXOPL72050ITA

FREQXOPL72050ITA: DescriptionLVPECL Output Clock Oscillator, 150MHz Min, 700MHz Max, ROHS COMPLIANT, MINIATURE, SMD, 6 PIN; CategoryPassive components oscillator; File Size278KB，1 Pages; ManufacturerEuroquartz; Websitehttp://www.euroquartz.co.uk/; Environmental Compliance

Download Datasheet Parametric Compare View All

FREQXOPL72050ITA Overview

LVPECL Output Clock Oscillator, 150MHz Min, 700MHz Max, ROHS COMPLIANT, MINIATURE, SMD, 6 PIN

FREQXOPL72050ITA Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Euroquartz
Reach Compliance Code	compliant
Other features	TRISTATE; ENABLE/DISABLE FUNCTION
maximum descent time	1.5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Installation features	SURFACE MOUNT
Maximum operating frequency	700 MHz
Minimum operating frequency	150 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	LVPECL
physical size	7.5mm x 5.0mm x 1.8mm
longest rise time	1.5 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	45/55 %

Preview

Download Datasheet

View All

EURO

QUARTZ

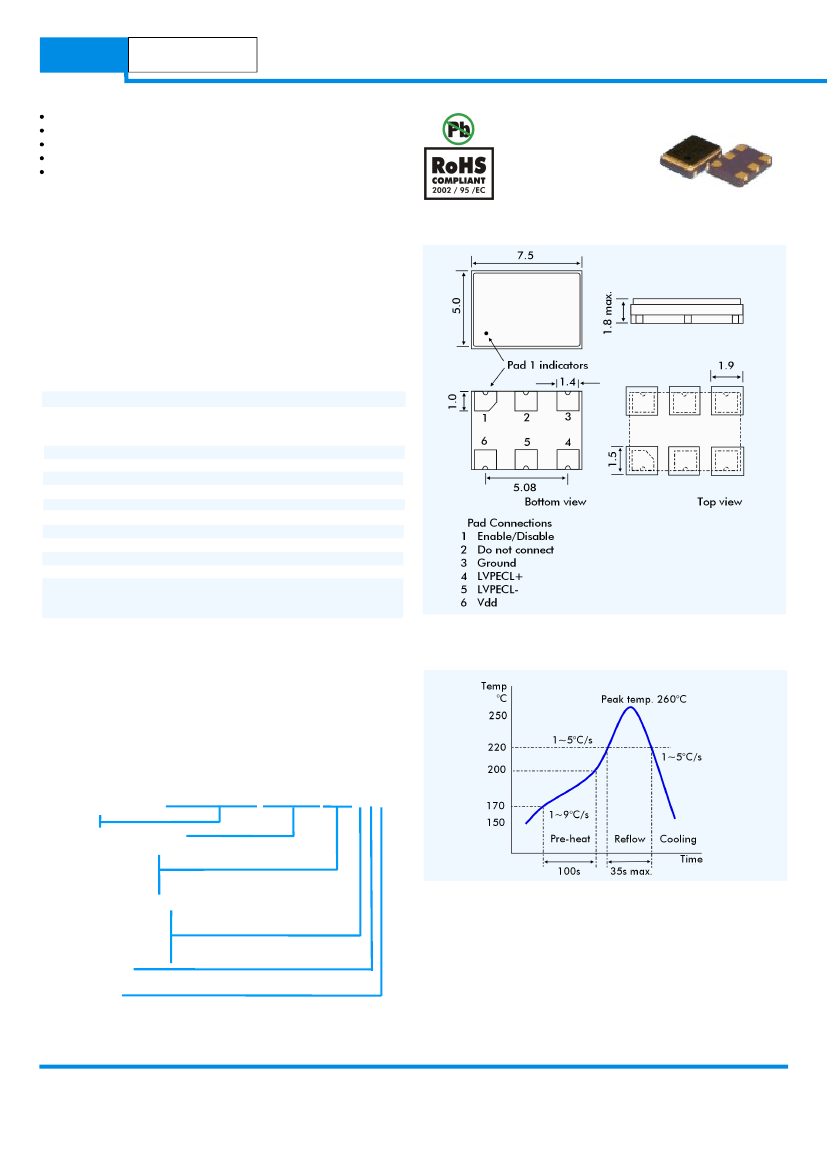

Industry-standard 7 x 5mm package

Wide frequency range 150MHz to 700MHz

Factory programmable for quick delivery

Supply voltage 3.3Volts

Tristate function

XOPL72 Series Oscillators

7 x 5mm Programmable LVPECL Oscillator

DESCRIPTION

OUTLINE & DIMENSIONS

XOPL72 programmable oscillators provide a high frequency,

differential output LVPECL signals in a miniature, low-profile and

industry-standard 7 x 5mm package. As such the parts are ideal for

applications including serial communications, routers, switches, WAN

interfaces and test equipment. The factory programmable parts

ensure quick delivery to customer's requirements.

SPECIFICATION

Frequency Range:

Frequency Stability

Commercial:

Industrial:

Supply Voltage:

Operating Temperature:

Storage Temperature:

Symmetry:

Start-up Time:

Ageing:

Static Discharge Voltage:

Supply Current:

Short Circuit Current:

Jitter (RMS) Period:

Output Voltage

VOH:

VOL:

Rise/Fall Time:

150.0MHz to 700.0MHz

±25ppm to ±100ppm 0° to +70°C

±25ppm to ±100ppm -40° to +85°C

+3.3 Volts ±5%

From -40° to +85°C

-55° to +125°C

45/55%

3ms typical, 10ms maximum

±5ppm in first year of use

2000V

130mA maximum

50mA typical

10ps

Vdd-1.025 Volts minimum

Vdd-1.62 Volts maximum

0.6ns typical, 1.5ns maximum

SOLDER TEMPERATURE PROFILE

PART NUMBERING

Example:

420.00MHz XOPL72025CTA

Frequency

Series Designation XOPL61

Stability

100 = ±100ppm

050 = ±50ppm

025 = ±25ppm

Operating Temp. Range

C = Commercial

(0°~70°C)

I = Industrial

(-40°~+85°C)

Tristate Function

Supply Voltage

3.3 Volts

EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE

Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 Email: info@euroquartz.co.uk www.euroquartz.co.uk

FREQXOPL72050ITA Related Products

	FREQXOPL72050ITA	FREQXOPL72050CTA	FREQXOPL72100ITA	FREQXOPL72025ITA
Description	LVPECL Output Clock Oscillator, 150MHz Min, 700MHz Max, ROHS COMPLIANT, MINIATURE, SMD, 6 PIN	LVPECL Output Clock Oscillator, 150MHz Min, 700MHz Max, ROHS COMPLIANT, MINIATURE, SMD, 6 PIN	LVPECL Output Clock Oscillator, 150MHz Min, 700MHz Max, ROHS COMPLIANT, MINIATURE, SMD, 6 PIN	LVPECL Output Clock Oscillator, 150MHz Min, 700MHz Max, ROHS COMPLIANT, MINIATURE, SMD, 6 PIN
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant
Other features	TRISTATE; ENABLE/DISABLE FUNCTION	TRISTATE; ENABLE/DISABLE FUNCTION	TRISTATE; ENABLE/DISABLE FUNCTION	TRISTATE; ENABLE/DISABLE FUNCTION
maximum descent time	1.5 ns	1.5 ns	1.5 ns	1.5 ns
Frequency Adjustment - Mechanical	NO	NO	NO	NO
frequency stability	50%	50%	100%	25%
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating frequency	700 MHz	700 MHz	700 MHz	700 MHz
Minimum operating frequency	150 MHz	150 MHz	150 MHz	150 MHz
Maximum operating temperature	85 °C	70 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-	-40 °C	-40 °C
Oscillator type	LVPECL	LVPECL	LVPECL	LVPECL
physical size	7.5mm x 5.0mm x 1.8mm	7.5mm x 5.0mm x 1.8mm	7.5mm x 5.0mm x 1.8mm	7.5mm x 5.0mm x 1.8mm
longest rise time	1.5 ns	1.5 ns	1.5 ns	1.5 ns
Maximum supply voltage	3.465 V	3.465 V	3.465 V	3.465 V
Minimum supply voltage	3.135 V	3.135 V	3.135 V	3.135 V
Nominal supply voltage	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES
maximum symmetry	45/55 %	45/55 %	45/55 %	45/55 %
Maker	Euroquartz	-	Euroquartz	Euroquartz
