ACPL-W611-000

Description
1 CHANNEL LOGIC OUTPUT OPTOCOUPLER
CategoryLED optoelectronic/LED    photoelectric
File Size91KB，10 Pages
ManufacturerAVAGO
Websitehttp://www.avagotech.com/
Download Datasheet Parametric Compare View All

ACPL-W611-000 Overview

1 CHANNEL LOGIC OUTPUT OPTOCOUPLER

ACPL-W611-000 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerAVAGO
Reach Compliance Codecompliant
ConfigurationSINGLE
Number of components1
Optoelectronic device typesLOGIC IC OUTPUT OPTOCOUPLER

ACPL-W611-000 Preview

ACPL-W611/ACPL-P611
High CMR, High Speed TTL Compatible Optocoupler
Data Sheet
Description
The ACPL-W611/ACPL-P611 is an optically coupled gate
that combines a GaAsP light emitting diode and an
integrated high gain photo detector. The output of the
detector IC is an open collector Schottky clamped
transistor. The internal shield provides a guaranteed
common mode transient immunity specification of
10,000 V/µs for the ACPL-W611.
This unique design provides maximum ac and dc circuit
isolation while achieving T TL compatibility. The
optocoupler ac and dc operational parameters are
guaranteed from -40°C to +85°C allowing trouble-free
system performance.
The ACPL-W611/ACPL-P611 is suitable for high speed
logic interfacing, input/output buffering, as line
receivers in environments that conventional line receivers
cannot tolerate and are recommended for use in
extremely high ground or induced noise environments.
Features
• 10 kV/µs minimum Common Mode Rejection (CMR)
at VCM = 1000 V
• High speed: 10 MBd typical
• LSTTL/TTL compatible
• Low input current capability: 5 mA
• Guaranteed ac and dc performance over temperature:
-40°C to +85°C
• Stretched SO-6 package
• Safety Approval:
– UL Recognized: 3750 V rms for 1 minute and 5000 V
rms* for 1 minute per UL1577– pending approval
– CSA: pending approval
– IEC/EN/DIN EN 60747-5-2: pending approval
Applications
•
•
•
•
•
•
•
•
•
•
Isolated line receiver
Computer-peripheral interfaces
Microprocessor system interfaces
Digital isolation for A/D, D/A conversion
Switching power supply
Instrument input/output isolation
Ground loop elimination
Pulse transformer replacement
Power transistor isolation in motor drives
Isolation of high speed logic systems
Functional Diagram
ACPL-W611/ACPL-P611
ANODE
1
2
CATHODE
3
6
5
4
V
CC
V
O
GND
SHIELD
TRUTH TABLE
(POSITIVE LOGIC)
LED
ON
OFF
OUTPUT
L
H
A 0.1
µF
bypass capacitor must be connected
between pins V
CC
and GND.
CAUTION: It is advised that normal static precautions be taken in handling and assembly of this component to
prevent damage and/or degradation which may be induced by ESD.
Schematic Diagram
I
F
1+
I
O
5
ACPL-W60L
I
CC
6
V
CC
V
O
V
F
–
3
SHIELD
4
GND
Ordering Information
Specify part number followed by option number (if desired).
Example:
ACPL-W611-XXXE
000 = Standard SS0-6 package, 100 per tube.
500 = Tape and Reel Packaging Option.
060 = IEC/EN/DIN EN 60747-5-2, V
IORM
= 630 V
PEAK
XXXE = Lead Free Option.
Option data sheets available. Contact Avago Technologies sales representative, authorized distributor, or visit our WEB site at
http://www.avagotech.com/optocouplers.
2

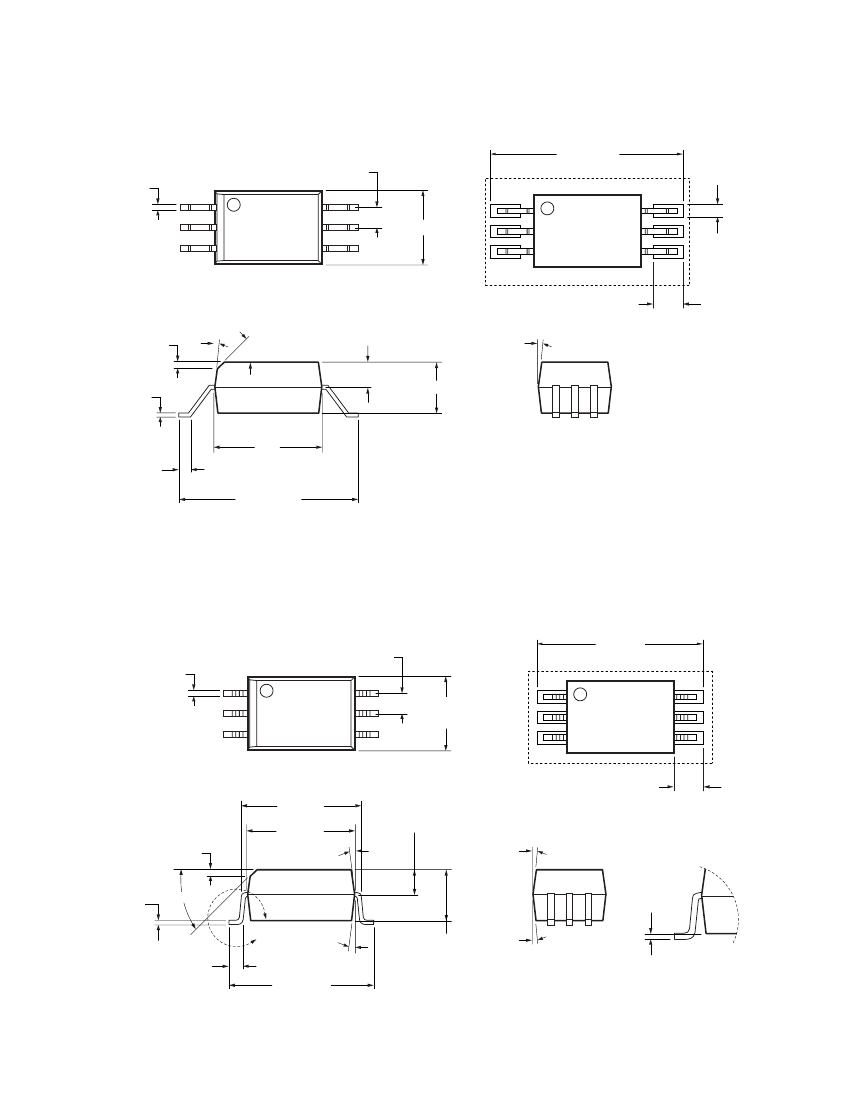

Package Outline Drawings
ACPL-W611 Stretched SO-6 Package
LAND PATTERN RECOMMENDATION
12.650 (0.498)
1.270 (0.050)
0.381 (0.015)
1
2
3
6
0.760 (0.030)
5
4
4.580 (0.180)
1.905 (0.075)
0.450 (0.018)
7°
45°
1.590 (0.063)
7°
0.200
±
0.100
(0.008
±
0.004)
3.180 (0.125)
6.807
(0.268)
0.750 (0.0295)
11.500
±
0.300
(0.453
±
0.012)
DIMENSIONS IN MILLIMETERS AND (INCHES).
COPLANARITY = 0.10 mm (0.004 INCHES).
ACPL-P611 Stretched SO-6 Package
LAND PATTERN RECOMMENDATION
10.7 (0.421)
1.27 (0.050) BSG
0.38
±
0.127
(0.015
±
0.005)
1
2
3
6
5
4
4.580
0
+0.254
+0.010
(0.180
-0.000
)
2.16 (0.085)
7.62 (0.300)
6.81 (0.268)
0.450 (0.018)
1.590
±
0.127
(0.063
±
0.005)
7.00°
7°
0.20
±
0.10
(0.008
±
0.004)
45.00°
0.20 (0.008)
A
1
±
0.250
(0.040
±
0.010)
7.00°
3.180
±
0.127
(0.125
±
0.005)
7°
DETAIL A
9.7
±
0.250
(0.382
±
0.010)
DIMENSIONS IN MILLIMETERS AND (INCHES).
COPLANARITY = 0.10 mm (0.004 INCHES).
3
Recommended Solder Reflow Thermal Profile
300
PREHEATING RATE 3°C + 1°C/–0.5°C/SEC.
REFLOW HEATING RATE 2.5°C
±
0.5°C/SEC.
PEAK
TEMP.
245°C
PEAK
TEMP.
240°C
PEAK
TEMP.
230°C
2.5°C
±
0.5°C/SEC.
160°C
150°C
140°C
3°C + 1°C/–0.5°C
30
SEC.
30
SEC.
SOLDERING
TIME
200°C
TEMPERATURE (°C)
200
100
PREHEATING TIME
150°C, 90 + 30 SEC.
50 SEC.
TIGHT
TYPICAL
LOOSE
ROOM
TEMPERATURE
0
0
50
100
TIME (SECONDS)
150
200
250
Note:
Use of non chlorine-activated fluxes is highly recommended.
Recommended Pb-Free IR Profile
TIME WITHIN 5
°C
of ACTUAL
PEAK TEMPERATURE
20-40 SEC.
Regulatory Information
The ACPL-W611 and ACPL-P611 is pending approval by
the following organizations:
IEC/EN/DIN
EN 60747-5-2 (Option 060 only)
Approval under:
IEC 60747-5-2 :1997 + A1:2002
EN 60747-5-2:2001 + A1:2002
DIN EN 60747-5-2 (VDE 0884 Teil 2):2003-01
UL
Approval under UL 1577, component recognition
program up to V
ISO
= 3750 V
RMS
. File E55361.
CSA
Approval under CSA Component Acceptance Notice #5,
File CA 88324.
t
p
T
p
T
L
260 +0/-5
°C
217
°C
RAMP-UP
3
°C/SEC.
MAX.
150 - 200
°C
TEMPERATURE
T
smax
T
smin
RAMP-DOWN
6
°C/SEC.
MAX.
t
s
PREHEAT
60 to 180 SEC.
25
t
L
60 to 150 SEC.
t 25
°C
to PEAK
TIME
NOTES:
THE TIME FROM 25
°C
to PEAK TEMPERATURE = 8 MINUTES MAX.
T
smax
= 200
°C,
T
smin
= 150
°C
Note:
Use of non chlorine-activated fluxes is highly recommended.
4
Insulation and Safety Related Specifications
Parameter
Minimum External Air Gap
(External Clearance)
Minimum External Tracking
(External Creepage)
Minimum Internal Plastic Gap
(Internal Clearance)
Symbol
L(101)
ACPL-P611
7
ACPL-W611
8
Units
mm
Conditions
Measured from input
terminals to output terminals,
shortest distance through air.
Measured from input terminals
to output terminals, shortest
distance path along body.
Through insulation distance
conductor to conductor,
usually the straight line
distance thickness between
the emitter and detector.
DIN IEC 112/VDE 0303 Part 1
Material Group (DIN VDE 0110,
1/89, Table 1)
L(102)
8
8
mm
0.08
0.08
mm
Tracking Resistance
(Comparative Tracking Index)
Isolation Group
CTI
175
IIIa
175
IIIa
V
IEC/EN/DIN EN 60747-5-2 Insulation Characteristics* (ACPL-W611/ ACPL-P611 Option 060)
Description
Installation classification per DIN VDE 0110/1.89, Table 1
for rated mains voltage
≤
150 V
rms
for rated mains voltage
≤
300 V
rms
for rated mains voltage
≤
600 V
rms
Climatic Classification
Pollution Degree (DIN VDE 0110/1.89)
Maximum Working Insulation Voltage
Input to Output Test Voltage, Method b*
V
IORM
x 1.875=V
PR
, 100% Production Test with t
m
= 1 sec,
Partial discharge < 5 pC
Input to Output Test Voltage, Method a*
V
IORM
x 1.5=V
PR
, Type and Sample Test, t
m
= 60 sec, Partial discharge < 5 pC
Highest Allowable Overvoltage (Transient Overvoltage t
ini
= 10 sec)
Safety-Limiting Values – maximum values allowed in the event of a failure.
Case Temperature
Input Current**
Output Power**
Insulation Resistance at TS, V
IO
= 500 V
* Refer to the optocoupler section of the Isolation and Control
Components Designer’s Catalog, under Product Safety Regula-
tions section, (IEC/EN/DIN EN 60747-5-2) for a detailed description
of Method a and Method b partial discharge test profiles.
** Refer to the following figure for dependence of P
S
and I
S
on
ambient temperature.
POWER OUTPUT – P
S
(mW), INPUT CURRENT – I
S
(mA)
Symbol
Characteristic
I – IV
I – III
I – II
55/100/21
2
630
1181
Unit
V
IORM
V
PR
V
peak
V
peak
V
PR
V
IOTM
T
S
I
S, INPUT
P
S, OUTPUT
R
S
945
6000
175
230
600
>10
9
V
peak
V
peak
°C
mA
mW
Ω
700
600
500
400
300
200
100
0
0
25
50
75
100 125 150 175 200
P
S
(mW)
I
S
(mA)
T
S
– CASE TEMPERATURE –
°C
5
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

ACPL-W611-000 Related Products

ACPL-W611-000 ACPL-P611-500 ACPL-W611-060 ACPL-P611-060 ACPL-P611-020
Description 1 CHANNEL LOGIC OUTPUT OPTOCOUPLER 1 CHANNEL LOGIC OUTPUT OPTOCOUPLER 1 CHANNEL LOGIC OUTPUT OPTOCOUPLER 1 CHANNEL LOGIC OUTPUT OPTOCOUPLER 1 CHANNEL LOGIC OUTPUT OPTOCOUPLER
Maker AVAGO AVAGO AVAGO AVAGO AVAGO
Reach Compliance Code compliant compliant compliant compliant unknown
Configuration SINGLE SINGLE SINGLE SINGLE SINGLE
Number of components 1 1 1 1 1
Optoelectronic device types LOGIC IC OUTPUT OPTOCOUPLER LOGIC IC OUTPUT OPTOCOUPLER LOGIC IC OUTPUT OPTOCOUPLER LOGIC IC OUTPUT OPTOCOUPLER LOGIC IC OUTPUT OPTOCOUPLER
Is it lead-free? Contains lead Contains lead Contains lead Contains lead -
Is it Rohs certified? incompatible incompatible incompatible incompatible -

Recommended Resources

Ultrasonic drilling machine circuit

Ship navigation signal light circuit

One of the irreversible speed regulation circuits for small DC motors

non-logic circuit

DC converter circuit for handheld radio transceiver

Computer motherboard circuit diagram 820 2_09

【i.MX6ULL】Driver Development 10——Blocking & Non-blocking Key Detection
The previous article: [i.MX6ULL] Driver Development 9 - Linux IO Model Analysis , introduced the five I/O models in Linux. This article will use blocking I/O and non-blocking I/O to perform key readin...
DDZZ669 ARM Technology
Vxworks network programming questions
I implemented Ethernet communication under Vxworks, using UDP protocol. In debugging state, the program runs normally. Pinging the target machine and testing the program with the ping command are both...
youngboy Real-time operating system RTOS
ATMega48 Bootloader Software Practical Method
It's a very good method worth learning ....
rain Test/Measurement
Solar water heater automatic water supply circuit
[i=s]This post was last edited by jameswangsynnex on 2015-3-3 20:02[/i]Time: 2010-08-26 19:40:45[i=s] This post was last edited by jameswangsynnex on 2015-3-3 20:02 [/i] My home is controlled by a mic...
探路者 Energy Infrastructure?
Which "ground" should be paved? Thank you
[i=s]This post was last edited by wolfcan on 2016-4-24 18:23[/i] After a period of study, my first board is finally going to be completed, but I still have some questions to ask the teachers: First: M...
wolfcan PCB Design
Understand the performance test of 18650 lithium battery - cycle test
After the basic electrochemical performance test, the 18650 lithium battery can be subjected to in-depth performance research to select batteries with good consistency and low impedance for various pe...
szkairidianzi LED Zone
Shortcut:   A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR AS AT AU AV AW AX AY AZ B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 BA BB BC BD BE BF BG BH BI BJ BK BL BM BN BO BP BQ BR BS BT BU BV BW BX BY BZ C0 C1 C2 C3 C4 C5 C6 C7 C8 C9 CA CB CC CD CE CF CG CH CI CJ CK CL CM CN CO CP CQ CR CS CT CU CV CW CX CY CZ D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF DG DH DI DJ DK DL DM DN DO DP DQ DR DS DT DU DV DW DX DZ

Popular Components

  1. SiT9001AC-44-33E3-2.04800
  2. RT0603CRE0733KL
  3. 1200JGH2008B3LB
  4. SP210.280.25LF
  5. CA3102E32-17PXB-01
  6. 74BCT125PCQR
  7. 406022980000.25LF
  8. PRA100C81K10.5%0.05%TR
  9. RS607
  10. PG4001-AU_LU_10001
  11. 1.5SMCJ220CAT/R7
  12. HQ1005C2N7ST

Popular Articles

  1. Congratulations to Mouser for surpassing one million ECAD model downloads
  2. Global Gaming Laptop Shipments Forecast to Reach 14.79 Million Units in 2021
  3. 32-Fire alarm based on 51 single chip microcomputer
  4. Keysight Technologies Launches 64GBd Multimode Optical-Electrical Integrated Module
  5. Application of dust concentration detector
  6. Design of WiFi temperature and humidity intelligent switch based on 51 single chip microcomputer
  7. Lingming Photonics completed its B1 round of financing and focused on high-performance dToF depth sensor chips
  8. Apple Watch 7 disassembly review: No interesting new features found
  9. B001-Atmega16-Watchdog WDT-(ques=1)
  10. s3c2440 ARM9 bare metal driver first article - GPIO driver (C)

Technical ResourceMore

  1. Analog oscilloscope driver
  2. Application of high-precision lithography machines in large-scale integrated circuits
  3. stm32f10x_stdperiph_lib_3.0.0 standard library file
  4. Signal processing and oversampling conversion (PDG).
  5. Photoelectric encoder position detection program
  6. Analysis on the Current Situation and Development of Intelligent Transportation System
  7. Design of UHF RFID Reader-Writer Based on ARM7
  8. RTOS routines based on STM32
  9. Verilog Public Responsibility Manual
  10. Various development practical circuit diagrams

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 248  832  576  2727  1099  5  17  12  55  23
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
