2SK780 datasheet, PDF - EEWORLD Datasheet

2SK780: DescriptionRF Small Signal Field-Effect Transistor, 1-Element, X Band, Gallium Arsenide, N-Channel, Metal Semiconductor FET; CategoryDiscrete semiconductor The transistor; File Size72KB，3 Pages; ManufacturerHitachi （Renesas ）; Websitehttp://www.renesas.com/eng/

Download Datasheet Parametric View All

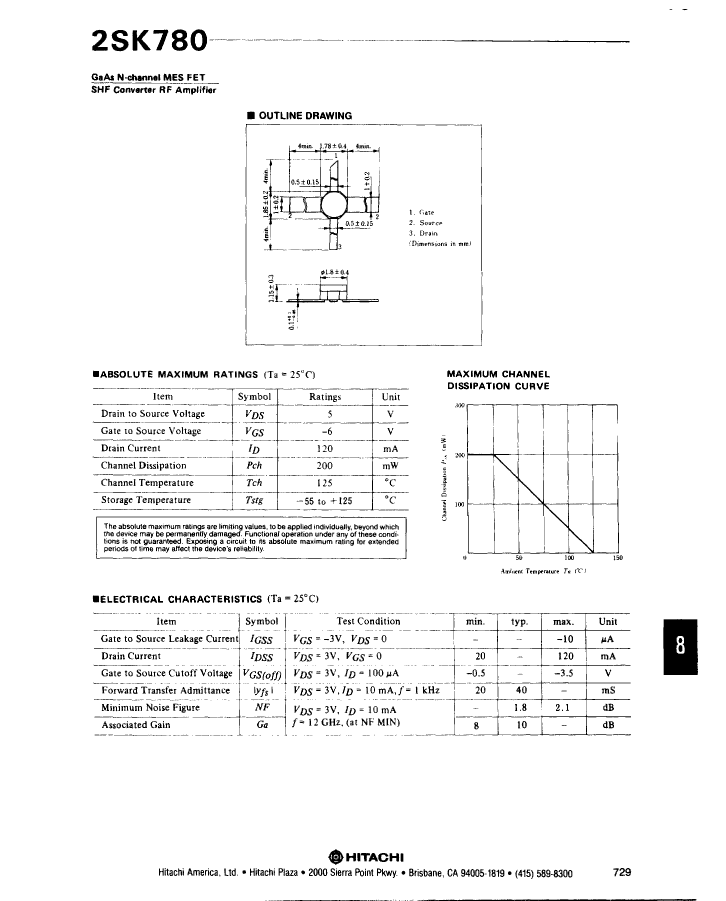

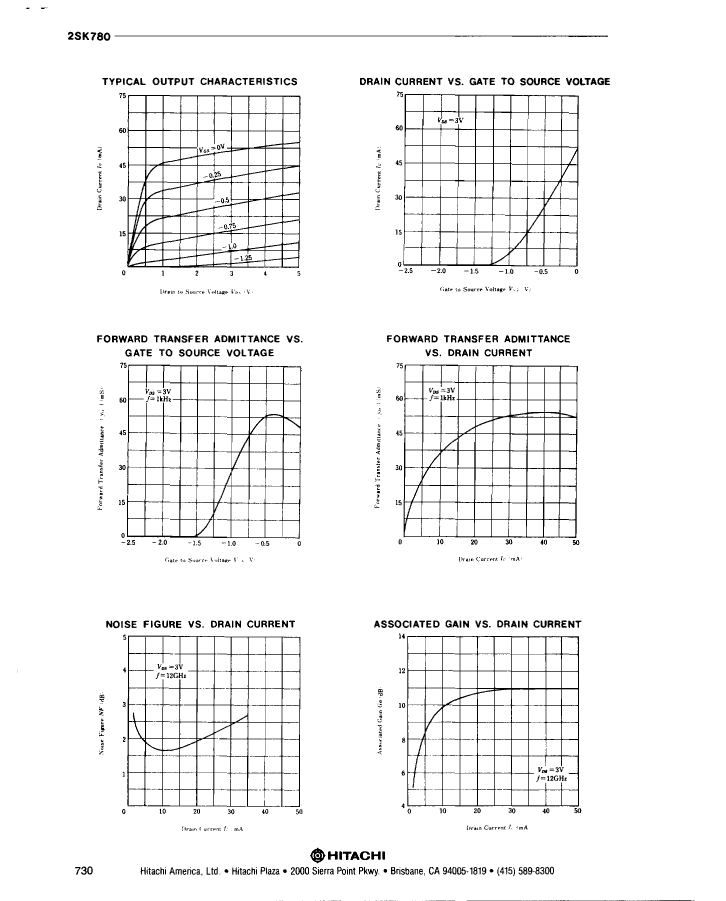

2SK780 Overview

RF Small Signal Field-Effect Transistor, 1-Element, X Band, Gallium Arsenide, N-Channel, Metal Semiconductor FET

Parameter Name	Attribute value
package instruction	DISK BUTTON, O-CRDB-F4
Reach Compliance Code	unknow
ECCN code	EAR99
Shell connection	SOURCE
Configuration	SINGLE
Minimum drain-source breakdown voltage	5 V
Maximum drain current (Abs) (ID)	0.12 A
Maximum drain current (ID)	0.12 A
FET technology	METAL SEMICONDUCTOR
highest frequency band	X BAND
JESD-30 code	O-CRDB-F4
Number of components	1
Number of terminals	4
Operating mode	DEPLETION MODE
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND
Package form	DISK BUTTON
Polarity/channel type	N-CHANNEL
Maximum power consumption environment	0.2 W
Minimum power gain (Gp)	8 dB
Certification status	Not Qualified
surface mount	YES
Terminal form	FLAT
Terminal location	RADIAL
transistor applications	AMPLIFIER
Transistor component materials	GALLIUM ARSENIDE
Base Number Matches	1
