BR-329BC: DescriptionPOWER/SIGNAL RELAY, 2PST, MOMENTARY, 12310mW (COIL), PANEL MOUNT; CategoryMechanical and electronic products relay; File Size74KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

BR-329BC Overview

POWER/SIGNAL RELAY, 2PST, MOMENTARY, 12310mW (COIL), PANEL MOUNT

BR-329BC Parametric

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	COIL OPERATE VOLTAGE(AC): 90 V, COIL RELEASE VOLTAGE(AC): 5 V
body height	82.55 mm
Body length or diameter	65.02 mm
Coil current (AC) maximum value	0.107 A
Coil power	12310 mW
Maximum coil voltage (AC)	115 V
Coil/Input Power Type	AC
Contact (AC) maximum rated R load	60A@115VAC
Maximum contact current (AC)	60 A
Maximum contact voltage (AC)	115 V
Contact/Output Power Type	AC
Electrical life	50000 Cycle(s)
Manufacturer's serial number	BR-329BC
Installation features	PANEL MOUNT
Maximum operating temperature	71 °C
Minimum operating temperature	-55 °C
Guideline	MIL-R-6106
Relay action	MOMENTARY
Relay function	2PST
Relay type	POWER/SIGNAL RELAY
seal	GASKET SEALED
surface mount	NO
Termination type	SCREW

Preview

Download Datasheet

View All

HARTMAN Aerospace Power Products

AC Relays

Features:

• 2PST N.O. Main Contacts

• 115 VAC Coil

• 115 VAC, 60 Hz

• 60 Amps

• High Reliability

• Meets many requirements of MIL-R-6106

• Light Weight Construction

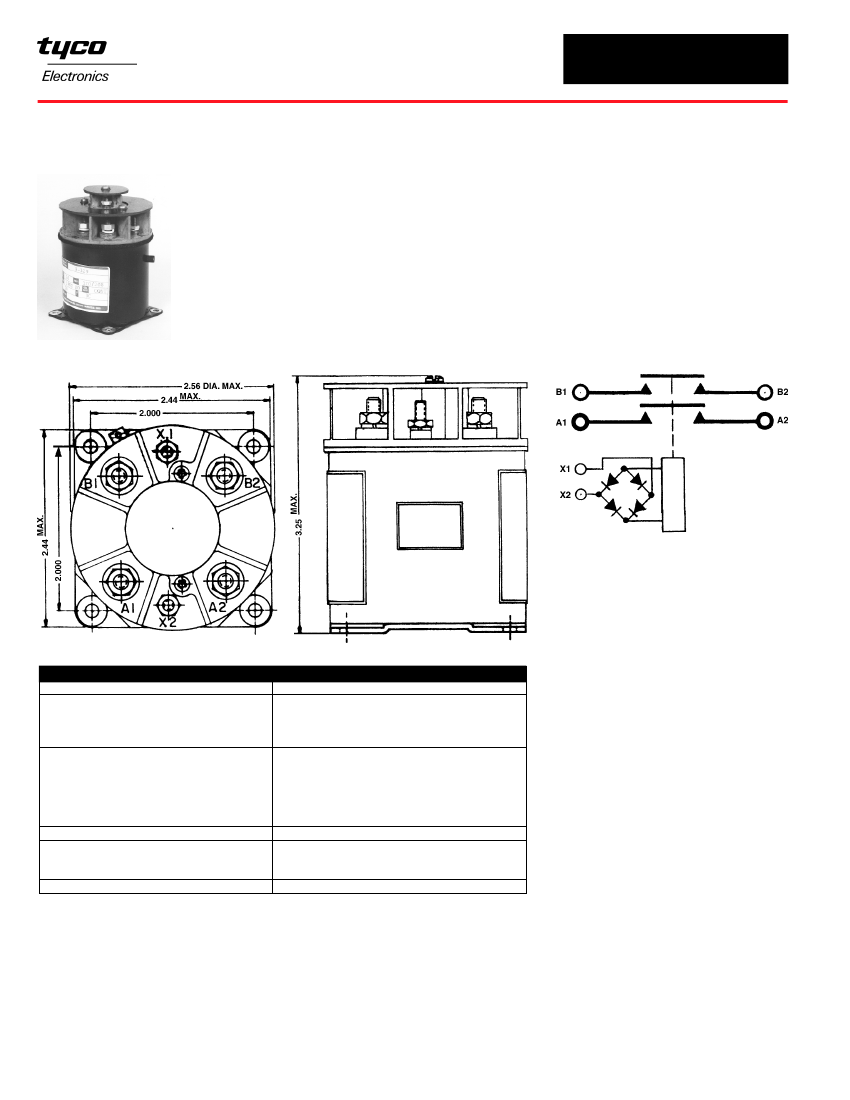

BR-329BC 2PST N.O., 60 Amps,

115 VAC, 60 Hz

CONTACTOR CONFIGURATION

Notes:

Dimensions for this product are expressed in inches.

Multiply values by 25.4 for millimeters.

PRODUCT SPECIFICATIONS

Construction

Main Contacts:

Configuration

Voltage (Nominal)

Current (Resistive)

Coil Data:

Duty Cycle

Voltage (Nominal)

Pick-Up Voltage

Drop-Out Voltage

Coil Current @ 115 VAC & +25°C

Operating Temperature

Life:

Electrical

Mechanical

Weight

Gasket Sealed, Vented

2PST N.O.

115 VAC, 60 Hz

60 Amps

Continuous

115 VAC, 60 Hz

90 VAC

5 - 45 VAC

0.107 Amps Maximum

-55°C to +71°C

50,000 Cycles

100,000 Cycles

1 Lb.

For factory-direct application assistance, contact the HARTMAN

product team at (419) 521-9500, Fax (419) 526-2749.

HARTMAN and TYCO are trademarks.

Catalog (web doc only)

Revised 5-04

www.tycoelectronics.com

Dimensions are in inches and

millimeters unless otherwise

specified. Values in brackets

are metric equivalents.

Dimensions are shown for

reference purposes only.

Specifications subject

to change.

USA: 1-800-522-6752

Canada: 1-905-470-4425

Mexico: 01-800-733-8926

C. America: 52-55-5-729-0425

South America: 55-11-3611-1514

Hong Kong: 852-2735-1628

Japan: 81-44-844-8013

UK: 44-141-810-8967
