BP10RKT datasheet, PDF - EEWORLD Datasheet

BP10RKT: DescriptionPiano Dip Switch, 10 Switches, SPST, Off-on, Horizontal, 0.025A, 25VDC, 20 PCB Hole Cnt, Solder Terminal, Through Hole-right Angle,; CategoryMechanical and electronic products switch; File Size195KB，2 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric View All

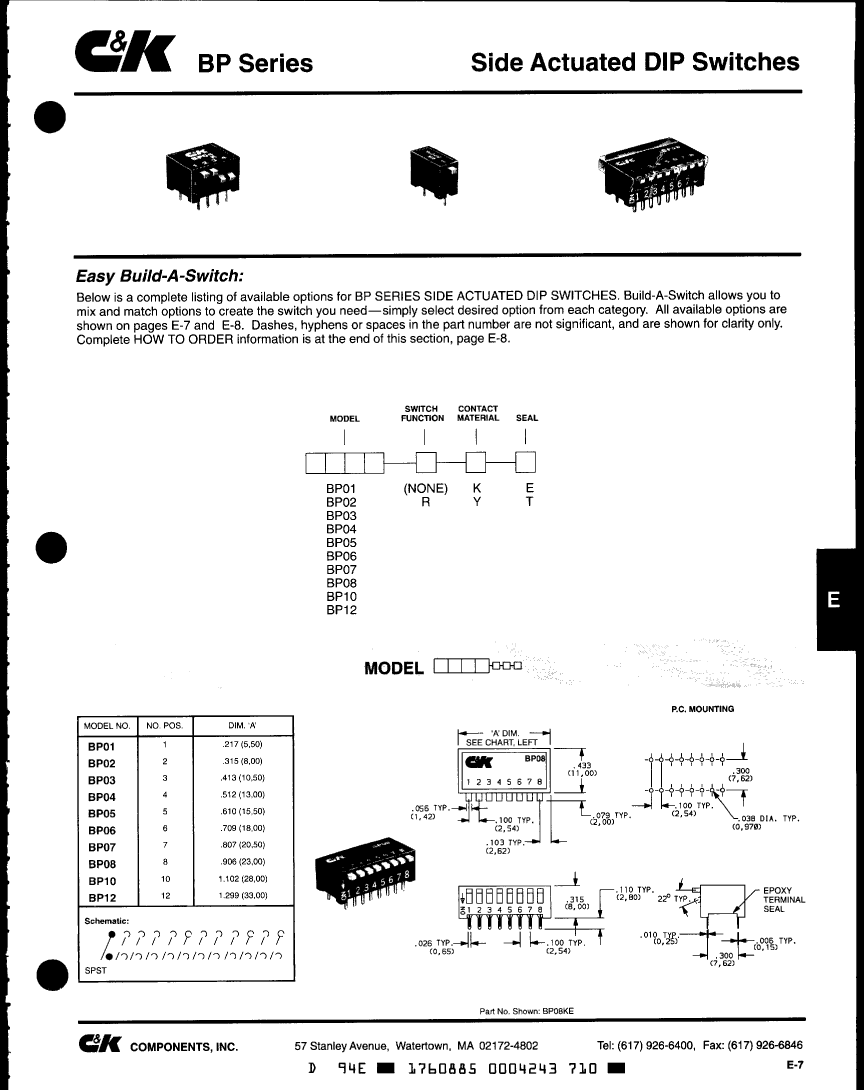

BP10RKT Overview

Piano Dip Switch, 10 Switches, SPST, Off-on, Horizontal, 0.025A, 25VDC, 20 PCB Hole Cnt, Solder Terminal, Through Hole-right Angle,

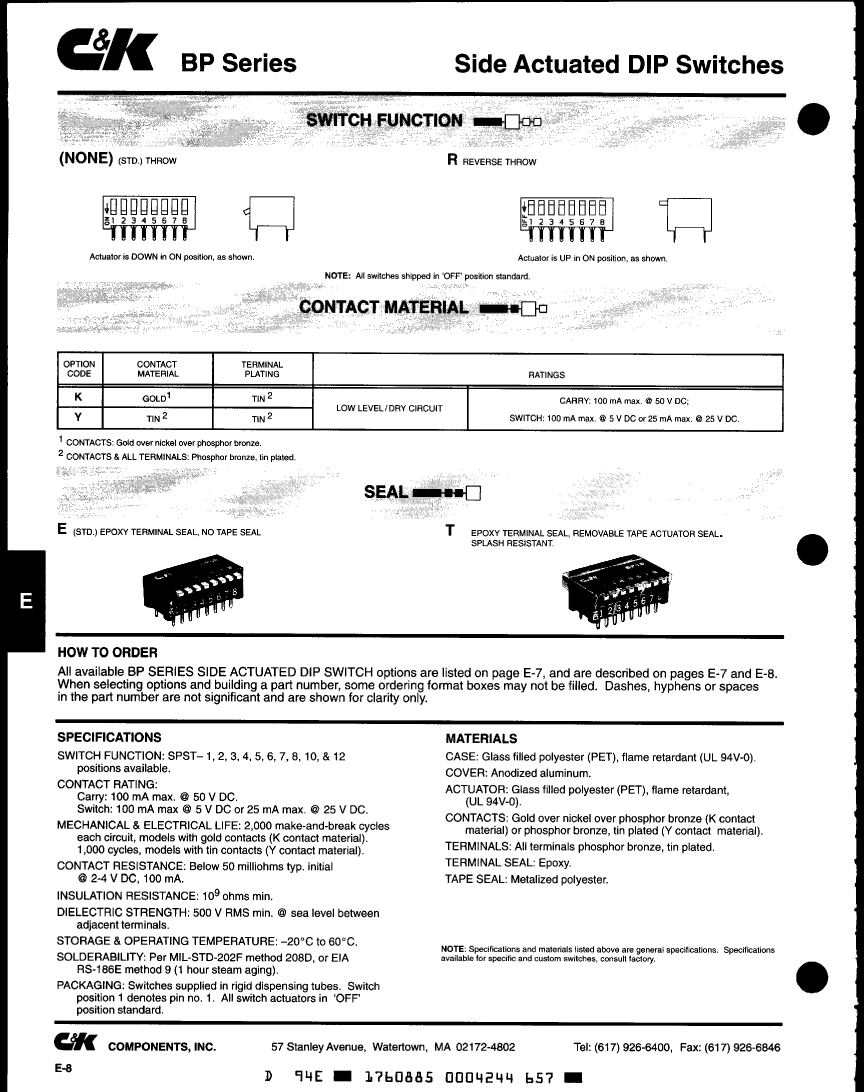

Parameter Name	Attribute value
Maker	ITT
Reach Compliance Code	unknown
Actuator angle	22 deg
Actuator length	0.079 inch
Actuator material	GLASS FILLED POLYESTER
Actuator type	PIANO
Other features	SPLASH RESISTANT
body width	13.0048 mm
body height	10.795 mm
Body length or diameter	27.9908 mm
center contact material	PHOSPHOR BRONZE
Center contact plating	GOLD OVER NICKEL
Maximum contact current (DC)	0.025 A
Contact (DC) maximum rated R load	0.025A@25VDC
Contact function	OFF-ON
Contact resistance	0.05 mΩ
Maximum contact voltage (DC)	25 V
Dielectric withstand voltage	500VRMS V
Electrical life	1000 Cycle(s)
End contact material	PHOSPHOR BRONZE
End contact plating	GOLD OVER NICKEL
Shell material	GLASS FILLED POLYESTER
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	BP
Installation features	THROUGH HOLE-RIGHT ANGLE
Number of switching segments	10
Maximum operating temperature	60 °C
Minimum operating temperature	-20 °C
PCB hole count	20
seal	EPOXY
Solderability	MIL-STD
surface mount	NO
Switch action	HORIZONTAL
switch function	SPST
Switch type	PIANO DIP SWITCH
Terminal length	0.11 inch
Terminal material	BRONZE
Termination type	SOLDER
